GD54S05 datasheet, PDF - EEWORLD Datasheet

GD54S05: DescriptionInverter, S Series, 6-Func, 1-Input, TTL, PDIP14,; Categorylogic logic; File Size49KB，2 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

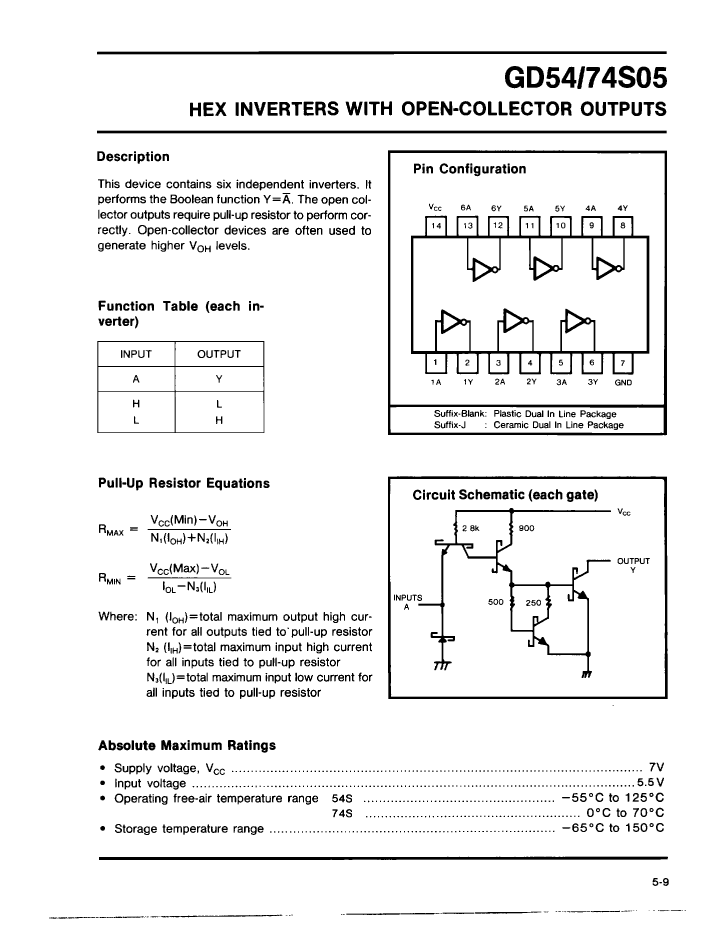

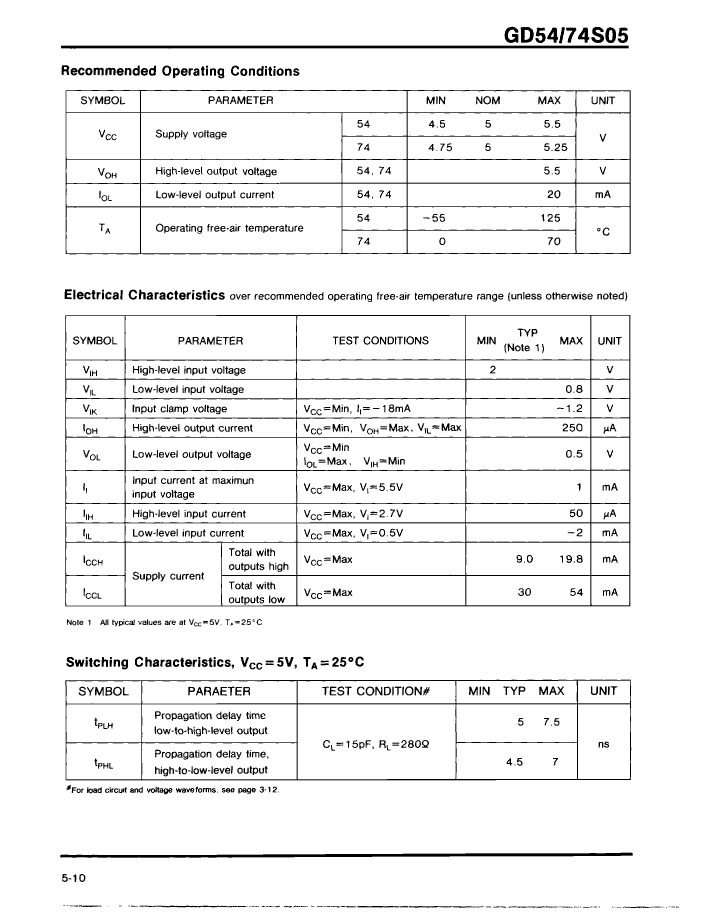

GD54S05 Overview

Inverter, S Series, 6-Func, 1-Input, TTL, PDIP14,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	54 mA
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	GD54S05	GD54S05J	GD74S05J	GD74S05
Description	Inverter, S Series, 6-Func, 1-Input, TTL, PDIP14,	Inverter, S Series, 6-Func, 1-Input, TTL, CDIP14,	Inverter, S Series, 6-Func, 1-Input, TTL, CDIP14,	Inverter, S Series, 6-Func, 1-Input, TTL, PDIP14,
Reach Compliance Code	unknown	unknown	unknown	unknown
series	S	S	S	S
JESD-30 code	R-PDIP-T14	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum supply current (ICC)	54 mA	54 mA	54 mA	54 mA
propagation delay (tpd)	7 ns	7 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Maker	Goldstar Electron Co., Ltd.	-	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
