5962-9063001HXA datasheet, PDF

5962-9063001HXA: DescriptionSample and Hold Circuit, 1 Func, Track, 1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24; CategoryAnalog mixed-signal IC Amplifier circuit; File Size390KB，13 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

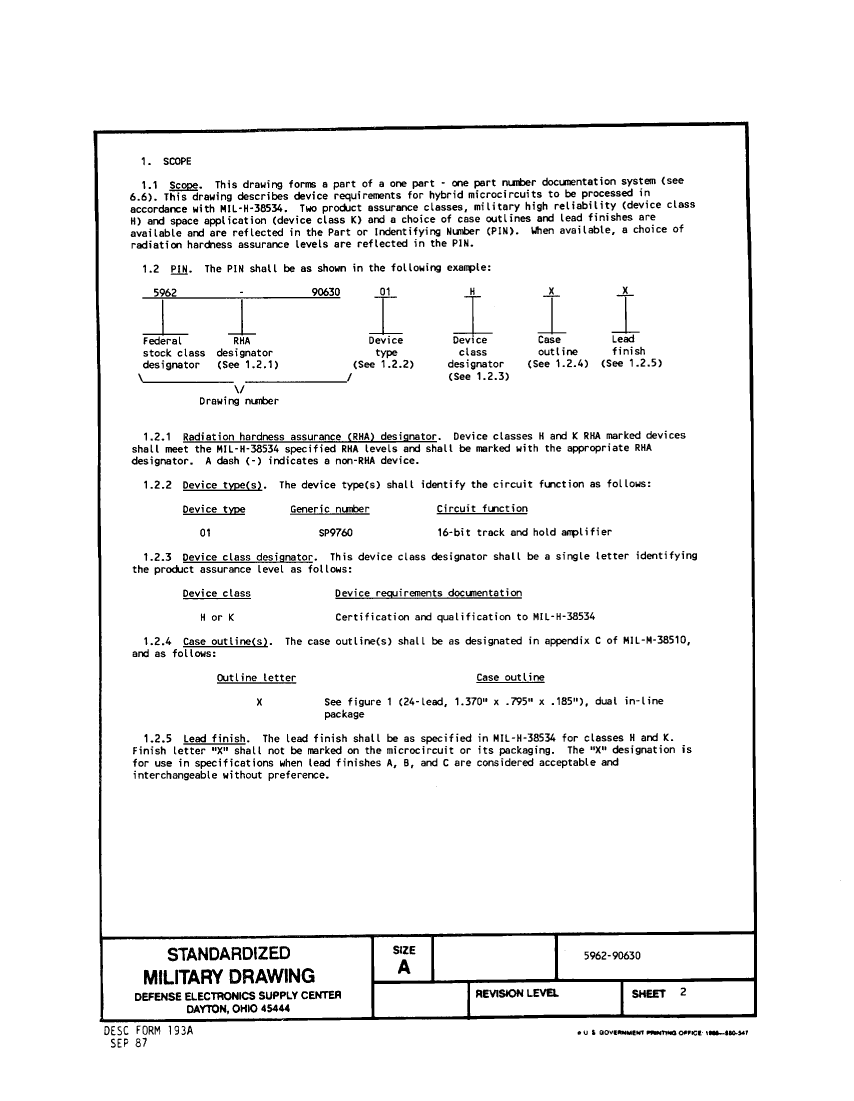

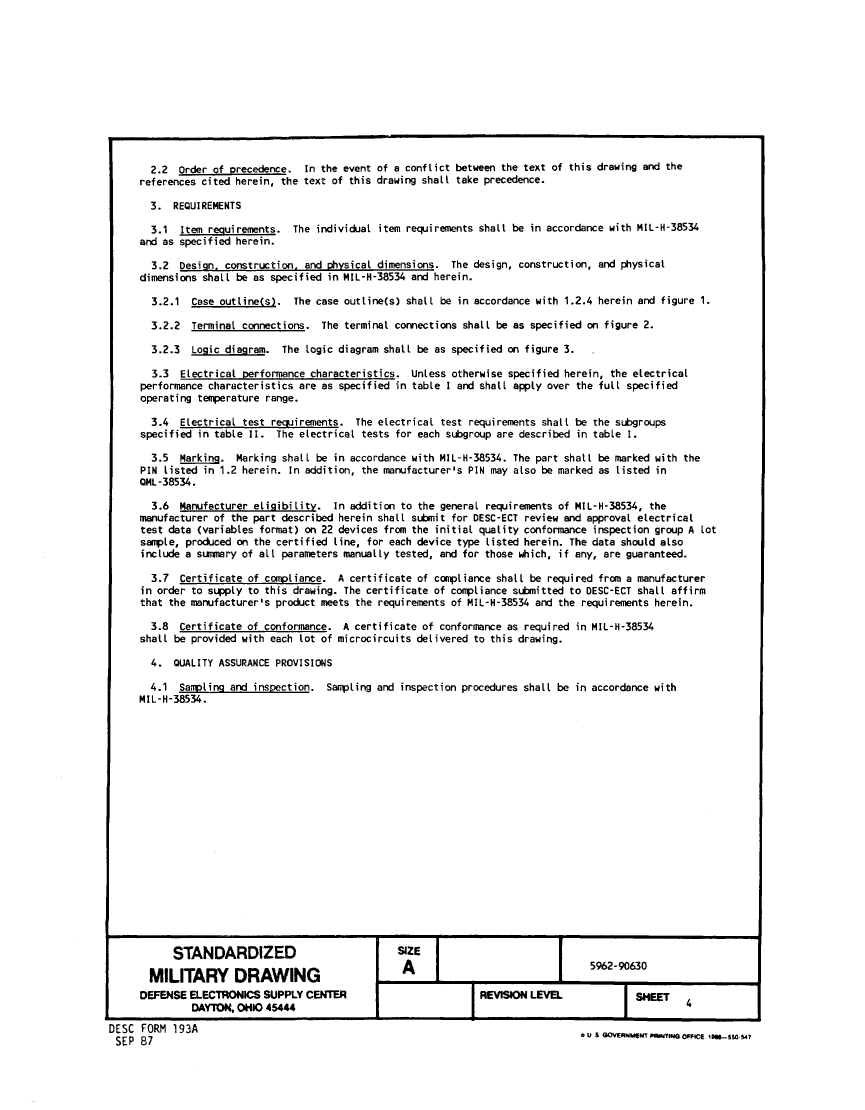

5962-9063001HXA Overview

Sample and Hold Circuit, 1 Func, Track, 1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24

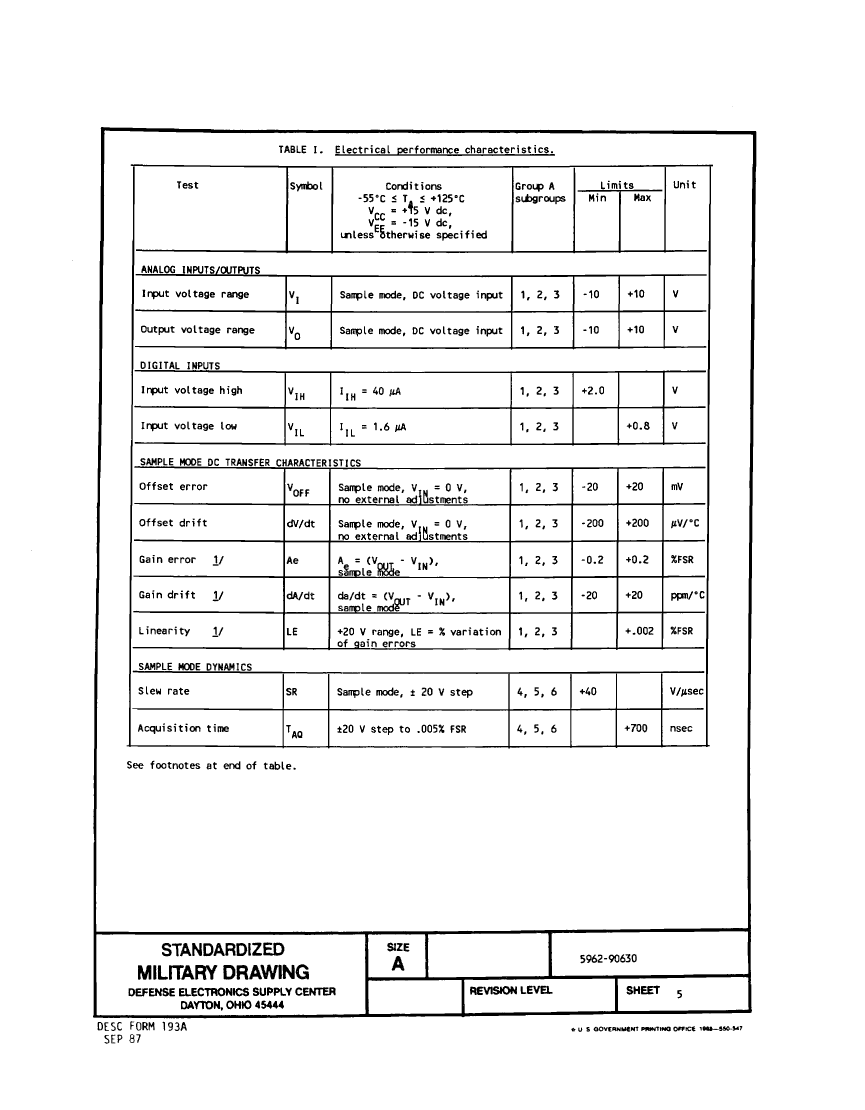

Parameter Name	Attribute value
Maker	SIPEX
package instruction	1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24
Reach Compliance Code	unknown
Maximum acquisition time	0.7 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
maximum rate of descent	1000 V/s
JESD-30 code	R-XDIP-P24

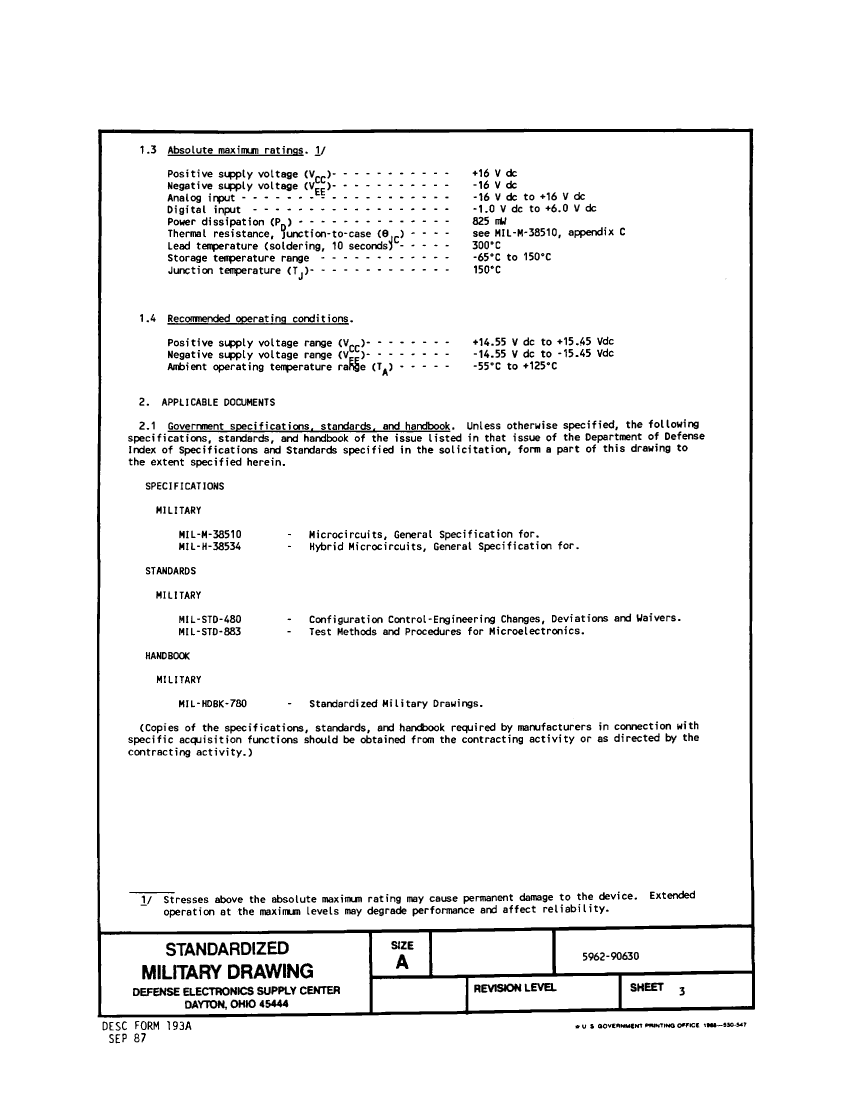

Negative supply voltage upper limit	-16 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Filter level	MIL-PRF-38534 Class H
Maximum seat height	4.7 mm
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

	5962-9063001HXA	5962-9063001HXC
Description	Sample and Hold Circuit, 1 Func, Track, 1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24	Sample and Hold Circuit, 1 Func, Track, 1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24
Maker	SIPEX	SIPEX
package instruction	1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24	1.370 X 0.795 INCH, 0.185 INCH HEIGHT, DIP-24
Reach Compliance Code	unknown	unknown
Maximum acquisition time	0.7 µs	0.7 µs
Amplifier type	SAMPLE AND HOLD CIRCUIT	SAMPLE AND HOLD CIRCUIT
Maximum analog input voltage	10 V	10 V
Minimum analog input voltage	-10 V	-10 V
maximum rate of descent	1000 V/s	1000 V/s
JESD-30 code	R-XDIP-P24	R-XDIP-P24
Negative supply voltage upper limit	-16 V	-16 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK
Filter level	MIL-PRF-38534 Class H	MIL-PRF-38534 Class H
Maximum seat height	4.7 mm	4.7 mm
Supply voltage upper limit	16 V	16 V
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Temperature level	MILITARY	MILITARY
Terminal form	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
