3-Terminal 0.1A Positive Voltage Regulator
(LM78L00, Datasheet, Version 1.0)
Confidential
Imagis Co., Ltd.
LM78L00
Document History
Date
2011-10-07
Contents
Initial Brief Datasheet Release
Notice
This Document is intended only to assist the reader in the use of the product.
Imagis Co., Ltd. shall not be liable for any errors, or any incorrect application of this documentation.
And, this document may change without Notices.
Address
#443-766, 3F-301 Gyeonggi R&DB Center, #906-5, Iui-Dong, Yeongtong-Gu
Suwon-City, Gyeonggi-Do, Korea
Tel
Fax
: +82-31-888-5280
: +82-31-888-5270
http://www.imagis.co.kr
2011-10-07
Homepage:
CONFIDENTIAL
- 2/18 -
Imagis Co., Ltd.
LM78L00
1. Overview
1.1
Description
LM78L00 a series of positive voltage regulators are inexpensive,
easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA.
These devices offer a substantial performance advantage over the traditional Zener Diode–Resistor
combination, as output impedance and quiescent current are substantially reduced.
1.2
Features
• Low Cost
• No external components required
• Output voltages (5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V)
• Internal Thermal shutdown and SOA protection
• Output voltage offered in
4% Tolerance
• Pb-Free Packages are available
• High ESD Level (HBM>8,000V, MM>800V)
1.3
Standard Application
Input
C
I
1
LM78L05
2
3
Output
C
O
0.1
㎌
0.33
㎌
The input voltage must remain typically 2.0V above the output voltage even during the
Low point on the ripple voltage.
• C
I
is required if regulator is located an appreciable distance from power filter.
• Co improves transient response. Value of
≤0.1㎌
could cause instability.
1.4
Package Type
SOP-8
CONFIDENTIAL
TO-92
SOT-89
2011-10-07
- 3/18 -
Imagis Co., Ltd.
LM78L00
1.5
Ordering Information
LM78L
□□ △ △ △
Output Voltage Option
05 :
06 :
08 :
09 :
5V
6V
8V
9V
Package Type
Blank : TO-92
Q
: SOT-89
Tape and Reel Option
Balnk : Bulk
TR : Tape and Reel
Lead Free Option
Balnk : Not Lead Free
L
: Lead Free
10 : 10V
12 : 12V
15 : 15V
18 : 18V
24 : 24V
1.6
Absolute Maximum Ratings
(T
A
=25 °C, unless otherwise noted)
Rating
Input Voltage
5V ~ 18V
24V
Power Dissipation
Thermal Resistance of Junction to
Ambient
Thermal Resistance of Junction to Case
Storage Junction Temperature
Operating Junction Temperature
Symbol
Value
SOP-8
TO-92
35
40
Internally Limited
200
†
-65 ~ 150
0 ~ + 150
15
SOT-89
Unit
V
I
P
D
R
θJA
R
θJC
T
STG
T
J
V
W
°C/W
°C/W
°C
°C
† Mount on a glass epoxy circuit board of 25.4 mm x 25.4 mm PAD dimension of 50
mm
2
Stresses exceeding Maximum ratings may damage the device. Maximum ratings are stress ratings.
Functional operation above the recommended operating conditions is not implied. Extended exposure to
stresses the above the recommended operating conditions may affect device reliability.
CONFIDENTIAL
- 4/18 -
2011-10-07
Imagis Co., Ltd.
LM78L00
VIN
R24
R18
Q17
Q18
Q19
C3
1.0p
Q10
Q7
A=2
R19A
D3
Q20
R16
R14
R15
Q5
Q12
R11
D1
R1
R5
Q8
m=6
R17
R22
R21
R36
R37
VOUT
Q9
A=2
R10
Q15
R9V
R8V
R7V
R6V
Vsense
Q6
R20
Q14
C2
3p
Q13
m=4
R13
R9
R16V
C1
Q4
Q11
R17V
R14V
R11V
R23V
R20V
R15V
R10V
R24V
R19V
Q1
Q2
R18V
Q16
Q3
R8
GND
R3
R13V
R12V
R22V
R21V
R2
R6
R7

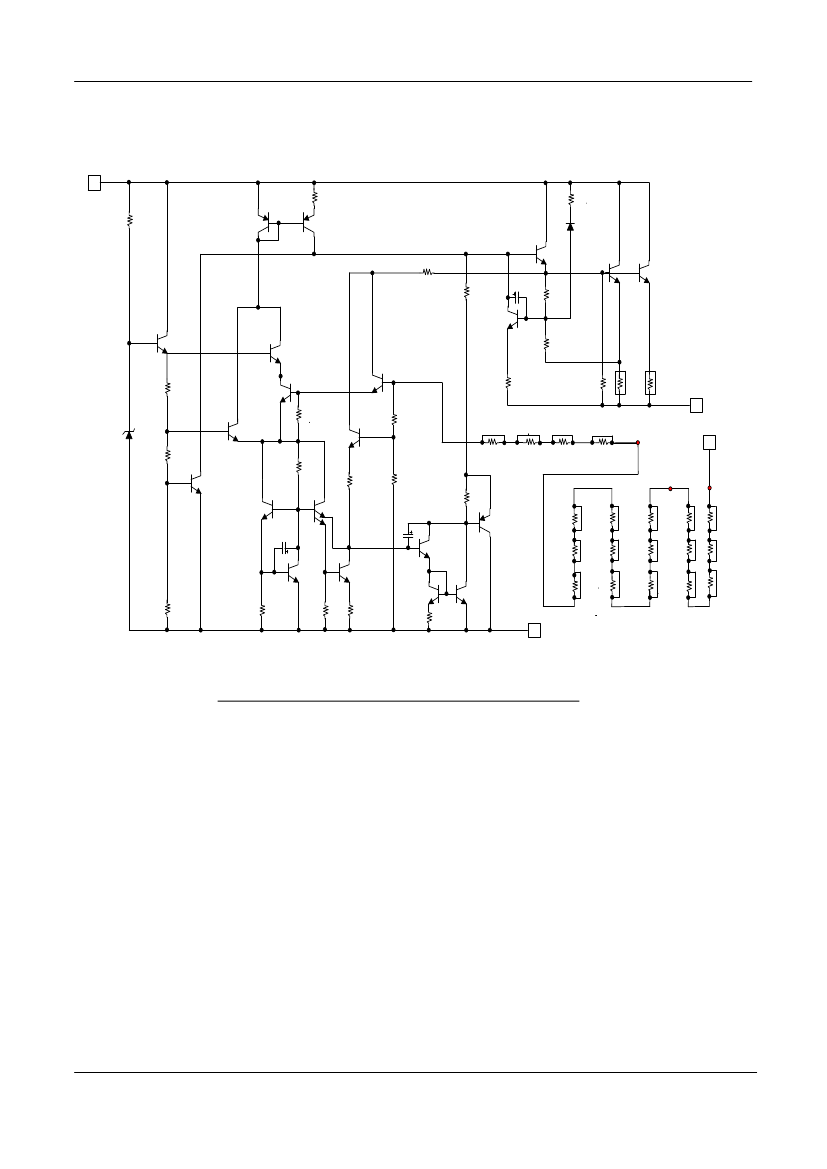

Figure 1.6 Representative Schematic Diagram of LM78L00
