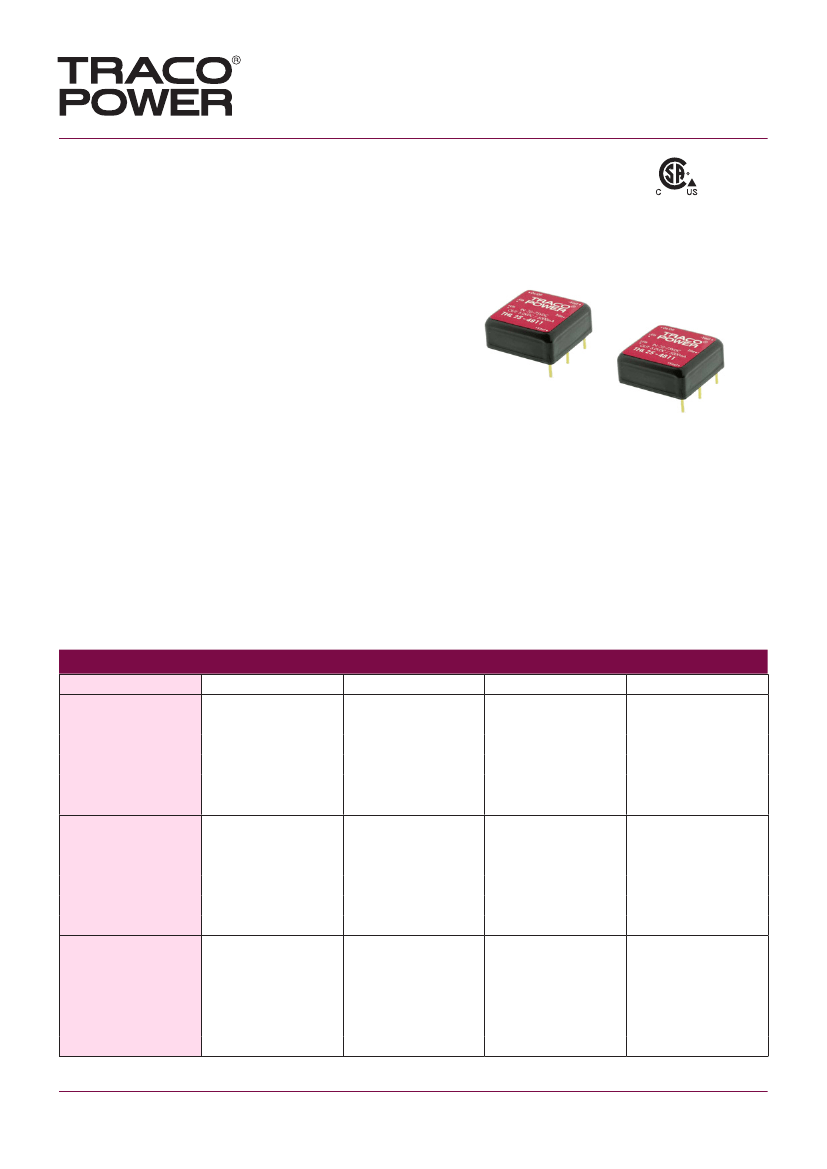

DC/DC Converters
THL 25 Series, 25 Watt
Features
◆
Highest power density 25W converter!
Ultra compact design: 1.0” x 1.0” x 0.4”
Scheme
IEC 60950-1
CB
226037
◆
Shielded metal case with isolated
baseplate
◆
◆
◆
◆
◆
Wide 2:1 input voltage ranges
Very high efficiency up to 90%
Output voltage adjustable
Remote On/Off control
Operating temp. range –40°C to +80°C
and up to +85°C with heat-sink
◆
I/O isolation voltage 1500 VDC
◆
3-year product warranty
The THL 25 series is the latest generation of dc-dc converter modules with highest
power density. The product achieves 25 Watt output power and comes in a metal
case with small dimensions of only 1.0”x 1.0”x 0.4”.
All models have a wide 2:1 input voltage range and precisely regulated output volt-
ages. High efficiency of up to 90% makes this product very reliable and applicable
in temperature ranges of up to +80°C or up to +85°C with optional mounted heat
sink. Typical applications are in mobile equipments, instrumentation, distributed
power architectures in communication and industrial electronics and everywhere
where space on the PCB is critical.
Models
Order code
THL 25-1210
THL 25-1211
THL 25-1212
THL 25-1213
THL 25-1222
THL 25-1223
THL 25-2410
THL 25-2411
THL 25-2412
THL 25-2413
THL 25-2422
THL 25-2423
THL 25-4810
THL 25-4811
THL 25-4812
THL 25-4813
THL 25-4822
THL 25-4823
36 – 75 VDC
(48 VDC nominal)
18 – 36 VDC
(24 VDC nominal)
9 – 18 VDC
(12 VDC nominal)
Input voltage range
Output voltage
3.3 VDC
5.0 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
3.3 VDC
5.0 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
3.3 VDC
5.0 VDC
12 VDC
15 VDC
±12 VDC
±15 VDC
Output current max.
6000 mA
5000 mA
2090 mA
1670 mA
±1040 mA
±840 mA
6000 mA
5000 mA
2090 mA
1670 mA
±1040 mA
±840 mA
6000 mA
5000 mA
2090 mA
1670 mA
±1040 mA
±840 mA
Efficiency typ.
87 %
89 %
89 %
89 %
89 %
89 %
88 %
90 %
90 %
90 %
89 %
89 %
88 %
90 %
90 %
90 %
89 %
89 %
http://www.tracopower.com
Page 1 of 4
DC/DC Converters
THL 25 Series
Input Specifications
Input current at no load
(at nominal input voltage)
12 Vin models:
80 mA typ.
24 Vin models:
55 mA typ.
48 Vin models:
40 mA typ.
12 Vin models:
5000 mA
24 Vin models:
2500 mA
48 Vin models:
1250 mA
12 Vin models:
9 VDC
(or lower)
24 Vin models:
18 VDC
(or lower)
48 Vin models:
36 VDC
(or lower)
12 Vin models:
25 V max.
24 Vin models:
50 V max.
48 Vin models:
100 V max.
12 Vin models:
80 mAp-p typ.
24 Vin models:
50 mAp-p typ.
48 Vin models:
30 mAp-p typ.
EN 55022 class A with external L/C
EN 55022 class B with external filter
see application note
EN 61000-4-2, air ±8 kV, contact ±6 kV,
perf. criteria A
EN 61000-4-3, 10 V/m, perf. criteria A
EN 61000-4-4, ±2 kV, perf. criteria A
EN 61000-4-5, ±1 kV perf. criteria A
external input capacitor:
Nippon chemi-con KY 220 µF, 100 V, ESR 48 mOhm
EN 61000-4-6, 10 Vrms, perf. criteria A
±1 %
±10 %
for single output models only.
Trim up via resistor between Trim and -Vout
Trim down via resistor between Trim and +Vout
resistor values see application note
– Input variation (Vmin – Vmax)
– Load variation
–Cross regulation
Minimum load
Ripple and noise
(20 MHz bandwidth)
Temperature coefficient
Output current limitation
Short circuit protection
Over voltage protection
Transient response setting time
Max. capacitive load
3.3
5
12
15
±12
±15
VDC
VDC
VDC
VDC
VDC
VDC
models:
models:
models:
models:
models:
models:
0.2 % max.
single output models:
0.2 % max.
(0 – 100 % load)
dual output models:
1.0 % max.
(0 – 100 % balanced load)
dual output models:
5.0 % max.
(25 – 100 % asymmetrical load)
not required
3.3 & 5.0 VDC models:
100 mVp-p typ.
12 & 15 VDC models:
150 mVp-p typ.
±0.02 %/K
at 150 % of Iout max., hiccup
indefinite, automatic recovery
shutdown at +20% of nominal output
250 µs typ.
(25% load step change)
10’300 µF
6’800 µF
1’200 µF
750 µF
680 µF
(each output)
380 µF
(each output)
25 Watt
Recommended input fuse
(slow blow)
Start-up voltage
Surge voltage
(0.1 sec. max.)
Reflected input ripple current
Conducted noise
(input)
ESD
(electrostatic discharge)
Radiated immunity
Fast transient / surge
(with external input capacitor)
Conducted immunity
Output Specifications
Voltage set accuracy
Output voltage adj. range
Regulation
http://www.tracopower.com
Page 2 of 4
DC/DC Converters
THL 25 Series
General Specifications
Temperature ranges
–
–
–
–
Operating (natural convection 20 LFM)
–40°C to +80°C
(with derating)
Operating with heat sink (natural convection 20 LFM)
–40°C to +85°C
(with derating)
Case temperature
+105°C max.
Storage
–50°C to +125°C
2.0 %/K above +55°C
2.5 %/K above +65°C
see application note
for particular models
17.6°C/W
14.8°C/W
95 % rel H max.
>372’000 h
1500 VDC
2000 pF max.
>1000 MOhm
3.5 ... 15 VDC or open circuit
0 ... 1.2 VDC or short circuit pin 6 and pin 2
3 mA typ.
285 kHz typ.
(pulse width modulation PWM)
UL/cUL 60950-1, IEC/EN 60950-1
www.tracopower.com/products/thl25-cb.pdf
www.tracopower.com/products/thl25-csa.pdf
www.tracopower.com/products/reach-declaration.pdf
RoHS directive 2011/65/EU
metal
non conductive FR4
epoxy
(UL 94V-0 rated)
16.5 g
(0.58 oz)
max. 260°C / 10sec.
– CB test certificate according IEC 60950-1
– CSA certificate for UL/CSA 60950-1(pending)
– Reach
– RoHS
– Input/Output
– Input/Output
– Input/Output (500 VDC)
– On:
– Off:
– Off idle current:
25 Watt
Load derating
– without heat sink
(natural convection 20 LFM, – with heat sink
typical values over series)
Thermal impedance
Humidity
(non condensing)
Reliability, calculated MTBF
(MIL-HDBK-217F, at +25°C, ground benign)
Isolation voltage
(60sec.)
Isolation capacitance
Isolation resistance
Remote On/Off
– Natural convection
– Natural convection with heat sink
Switching frequency
(fixed)
Safety standards
(designed to meet)
Safety approvals
Environmental compliance
Physical Specifications
Casing material
Baseplate
Potting material
Weight
Soldering temperature
Application note :
www.tracopower.com/products/thl25-application.pdf
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.tracopower.com
Page 3 of 4
DC/DC Converters
THL 25 Series

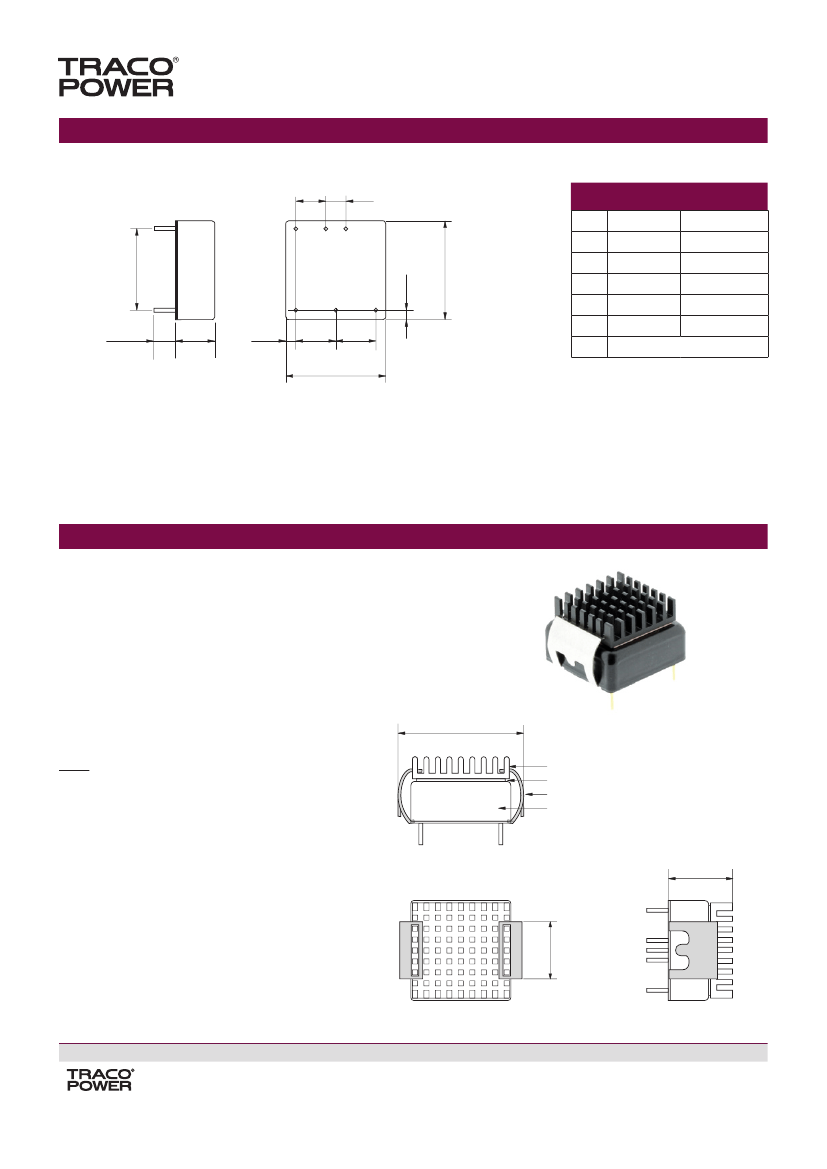

Outline Dimensions
25 Watt
7.62
(0.3)
5.08
(0.2)
Pin-Out
Pin
1
25.4
(1.0)
Single
+Vin (Vcc)
–Vin (GND)
+Vout
Trim
–Vout
Dual
+Vin (Vcc)
–Vin (GND)
+Vout
Common
–Vout
6
20.32
(0.8)
2
1
Bottom view
5
4
10.16
(0.4)
2
3
4
5
6
3
10.16
(0.4)
6.0
(0.24)
10.2
(0.4)
2.5
(0.1)
(0.1)
2.5
Remote On/Off
25.4
(1.0)
Dimensions in [mm], () = Inch
Pin diameter ø 1.0 (0.04)
Pin pitch tolerances: ±0.25 (±0.01)
Tolerances: ±0.5 (±0.02)
Heat-Sink (Option)
Order code: THL-HS1
(cont.: heat-sink, thermal pad, 2 clamps)
Material:
Aluminum
Finish:
Anodic treatment (black)
Weight:
4 g (0.14 oz) without converter
Thermal impedance after assembling: 15.8 K/W
31.0
(1.22)
max.
Note:
The product label on converter has to be re-
moved before mounting the heat-sink.
For volume orders converters will be sup-
plied with mounted heat-sink. Please contact
factory for quotation.
Separate heat-sinks are only available for
prototypes and small quantity orders.
16.3
(0.64)
Heat-sink
Thermal pad
Clamp
Converter
17.5
(0.69)
max.
Specifications can be changed without notice! Make sure you are using the latest documentation, downloadable at www.tracopower.com
www.tracopower.com
Rev. February 07. 2013
Page 4 of 4
