60132 Circuit Breaker
MINIATURE CIRCUIT BREAKER , 120/240VAC, 30A, CIRCUIT BREAKER TYPE: STANDARD
Image not available
Product Information
Features and Specifications
Circuit Breaker Type:
Standard
Catalog Reference Number:
0860CT0201
For Use With:
OEM Panels and Enclosures
Enclosure Rating:
IP40
General Application:
Short circuit and overcurrent protection
Marketing Trade Name:
Multi 9
Ampere Rating:
30A
Approvals:
UL489 Listed - CSA 22.2 #5.1 Certified - IEC Rated 60947-2
Specific Application:
Protection for loads with high inrush currents (motors, transformers, etc.)
HACR Rated:
Yes
Voltage Rating:
120/240VAC
Mounting Type:
Flush, Surface or DIN Rail (35mm)
Weight:
4.40 Ounces
Number of Poles:
1-Pole
Short Circuit Current Rating:
5kA@240VAC - 10kA@120VAC
Terminal Type:
Line: Box Lug - Load: Box Lug
Type:
C60N
Trip Curve:
D Curve - Magnetic operates between 10 to 14 times
Wire Size:
#18 to #2 AWG
Width:
0.71 Inches (18mm)
Depth:
3.00 Inches (76mm)
Height:
4.21 Inches (107mm)
Ordering and Shipping Information
Category
00915 -
Discount Schedule
DE2
Article Number
785901210481
Package Qty
1
Weight (lbs.)
0.27
Availability Code
S
Returnability
Y
Multi 9
System Catalog
Section 1—Introduction
Section 1—Introduction
Multi 9
TM
Products for Equipment Applications
The Multi 9 modular system of miniature circuit breakers and supplementary protectors, accessories,
and peripherals provides complete protection of equipment or especially sensitive circuits within the
equipment. Installation labor and space are both minimized by the modular architecture of the Multi 9
system, whether a single protective device or multiple devices with their accessories are being used.
Schneider Electric offers an extensive line of UL 489 Circuit Breakers and UL 1077 Supplementary
Protectors. In addition, a variety of IEC certified Circuit Breakers and Accessories are available for
OEM's whose products are destined for export beyond North America. To an OEM, this means that
one family of electrical protection products can be used regardless of equipment destination.
The Standards include:
•
•
•
•
•
UL 489 Standard for Circuit Breakers
UL 489A Standard for DC Communication Applications
UL 1077 Standard for Supplementary Protectors
UL 1053 Ground Fault Sensing and Relaying Equipment
IEC 60947-2 Low-voltage switchgear and controlgear - Part
2: Circuit-breakers
•
•
•
•
CSA C22.2 No. 5 Standard for Circuit Breakers
CSA C22.2 No. 235 Supplementary Protectors
CCC Pending 4Q2007
C60 Miniature Circuit Breakers are RoHS Compliant
Potential applications include semi-conductor machines, communication equipment, process control
panels, computers, medical equipment, electronic controls, transformers, power supplies, and other
electrical equipment.
System Flexibility
The Multi 9 System includes an extensive line of field-installable accessories. Plug-on electrical auxiliaries
include shunt trip, undervoltage release, auxiliary switch, and alarm switch. Other protection devices include
residual current devices, dc circuit breakers, and switches. Control and display devices include signal
lamps, push buttons, and motor operators. There are also mechanical accessories for locking, operating,
shielding, mounting, etc. The following diagram shows many of the Multi 9 system accessories.
Figure 1:
08603577
Functional Diagram of Multi 9 System
Status and Display Output
Control Inputs
V
Signal
Lamp
BP
Push
Button
(N.O.)
or
Signal
BP
Push
Button
(N.C.)
or
Signal
TM
Motor
Operator
CI
Impulse
Counter
CH
Hour
Counter
V
Signal
Lamp
Switch or
Control
Metering
Device
SD
Alarm
Switch
OF
Aux
Switch
MX + OF
Shunt
Trip
&
Aux
Switch
MN
Under-
voltage
Release
C60
Circuit
Breaker
Vigi or GFP
Residual
Current Device
Protected Line
Plug-on Electrical Auxiliaries
IH
and
IHP
Time
Switches
I
Switch
CM
Selector
Switch
DPN-N
Residual
Current
Circuit
Breaker
OFS
&
Elect.
Accessory
GFP
Ground
Fault
Protector
Other devices used with or instead of the C60 device
7
03/2008
© 2002–2008 Schneider Electric All Rights Reserved
Multi 9 System Catalog
Section 1—Introduction
Advantages
Multi 9 C60 circuit breakers and supplementary protectors provide several features which are
important to OEMs. These include:
•
•
•
•
•
•
Small, compact size
Easy installation on DIN rails
Limits let-thru current
Resetability, more convenient than fuses
Electrical auxiliaries for control and status information
Extensive variety of accessories

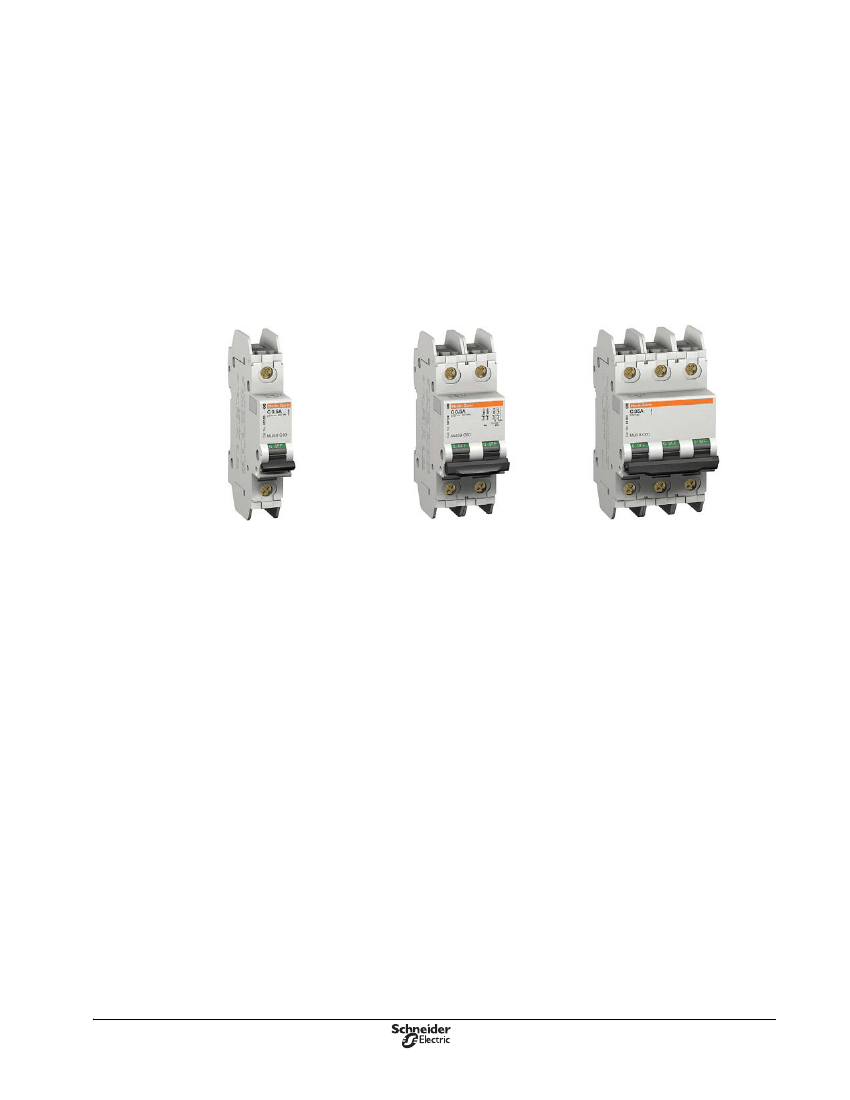

UL 489 Listed Multi 9 C60 Circuit Breakers
Figure 2:
08603343
1P
08603344
2P
08603349
3P
Better Protection—Multi
9 supplementary protectors and miniature circuit breakers limit let-through
current, providing faster separation of the component from the fault, thereby reducing system damage.
More Selection—More
ratings compatible with low-power electronic circuits are available in the range
from 0.5 to 10 A. Others are provided in convenient steps, up to 63 A for the C60 products.
Reduction of Nuisance Tripping—Available
with different trip characteristics to meet system needs:
B, C and D curves, depending on the model.
Panel Space Savings—Multi
9 products are compact. Width per pole is only 0.71 in. (18 mm) for the
C60 circuit breaker. All of the products are built in a consistent format with incremental widths of 0.35
in. (9 mm) (therefore the name Multi 9).
Easy Installation—The
Multi 9 products mount easily onto a 35 mm DIN mounting rail. Large box lug
terminals (pressure plate type) are suitable for use with copper wiring up to 2 AWG for C60 circuit
breakers and supplemental protectors.
Reverse Feeding—
Reverse feeding of line power is permitted.
Reliability—Each
C60 miniature circuit breaker has an endurance of 10,000 operation cycles and
voltage withstand of 6000 V impulse rating.
World-Wide Availability—The
Multi 9 products are available and supported throughout the world by
Schneider Electric.
From the Power Distribution Specialists—Schneider
Electric can be your single source of
protection equipment, with a comprehensive line of products for OEM products or the factory. In
addition to the Multi 9 circuit breakers and supplementary protectors, these products include the
following:
•
•
•
•
8
QO
®
and QOU Miniature Circuit Breakers 10–125 A
Compact
®
Molded Case Circuit Breakers 15–3200 A
Powerpact
®
Electronic Trip Circuit Breakers 250–2500 A
Masterpact
®
Universal Power Circuit Breakers 250–6300 A
© 2002–2008 Schneider Electric All Rights Reserved
03/2008
Multi 9
System Catalog
Section 2—UL and CSA Rated Protection Devices
Section 2—UL and CSA Rated Protection Devices
The Multi 9 system includes several families of miniature circuit protection devices that have the UL
ratings required in the United States and some other countries. The products are summarized below
and are described in detail on the following pages. They include the following families:
•
•
•
•
UL Listed C60 240 V Circuit Breakers (UL 489 and CSA C22.2 No. 5)
UL Listed C60 480 V Circuit Breakers (UL 489 and CSA C22.2 No. 5)
UL Listed C60 Circuit Breakers for use in Communication Equipment (UL 489A)
UL Recognized C60 Supplementary Protectors (UL 1077 and CSA C22.2 No. 235)
NOTE:
Protection devices with only IEC ratings are described in Section 3, while accessories for both
the UL and IEC devices are described in Section 5.
Table 2:
Specifications for UL 489 and 489A Listed C60 Circuit Breakers
UL 489 C60
(240 Vac)
1P
0.5–35 A
120 V
AC 50/60 Hz
Interrupting Ratings
as per UL 489
DC
240 V
277 V
480Y/277 V
60 V
125 V
240 V
Ultimate Breaking Capacity
(I
cu
) as per IEC 60947-2
AC 50/60 Hz
415 V
440 V
10 kA
10 kA
—
—
10 kA
—
10 kA
10 kA
—
75%
—
7 to 10
10 to 14
0.71/18
box/box
Dimensions (in./mm)
Height
Depth
box/box
Weight (oz./g) max.
1
Ratings per UL Standards
Number of Poles
Rated Current at 77°F (25°C)
UL 489 C60
(480Y/277 Vac)
2P
0.5–35 A
—
10 kA
—
—
10 kA
10 kA
20 kA
10 kA
6 kA
75%
3P
0.5–35 A
—
10 kA
—
—
—
—
20 kA
10 kA
6 kA
75%
1P
0.5–20 A
10 kA
10 kA
10 kA
10 kA
—
—
10 kA
10 kA
—
75%
—
7 to 10
10 to 14
1.42/36
4.21/107
4.86/123.4
4.54/115
3.00/76
8.7/271
10.3/321
9.5/297
2.13/54
4.21/107
4.86/123.4
4.54/115
3.00/76
13.1/407
15.5/482
14.3/445
0.71/18
5.56/141
5.56/141
—
3.00/76
5.3 (166)
5.3 (166)
—
1.42/36
5.56/141
5.56/141
—
3.00/76
10.6/332
10.6/332
—
2.13/54
5.56/141
5.56/141
—
3.00/76
15.9 (498)
15.9 (498)
—
2P
1–20 A
—
10 kA
10 kA
10 kA
—
—
10 kA
10 kA
6 kA
75%
3P
1–20 A
—
10 kA
10 kA
10 kA
—
—
10 kA
10 kA
6 kA
75%
UL 489A
C60
(60 Vdc)
1P
0.5–63 A
—
—
—
—
10 kA
—
—
—
—
75%
—
7 to 14
—
0.71/18
3.19/81
—
—
3.00/76
3.85/110
—
—
Service Breaking Capacity (I
cs
) (%I
cu
)
B curve
Magnetic Setting (Times
Ampere Rating)
C curve
D curve
Width
ring/ring
1
box/ring
4.21/107
4.86/123.4
4.54/115
3.00/76
4.4/136
5.2/161
4.8/148
ring/ring
box/ring
Fingersafe 240 V C60 circuit breaker ring terminal dimensions are same as the 480V C60 circuit breaker.
13
03/2008
© 2002–2008 Schneider Electric All Rights Reserved
Multi 9
UL 489 Listed 240 Vac C60 Circuit Breakers (AC)
System Catalog
Section 2—UL and CSA Rated Protection Devices
A selected range of Multi-9 circuit breakers rated 240 V are UL 489 Listed. Unlike UL 1077
Supplementary Protectors, these UL 489 circuit breakers can be used for branch circuit protection as
required by the National Electrical Code.
As shown in tables Table 5 and Table 6, the UL 489 Listed products are available in C and D curves.
They include devices ranging from 0.5 to 35 A.

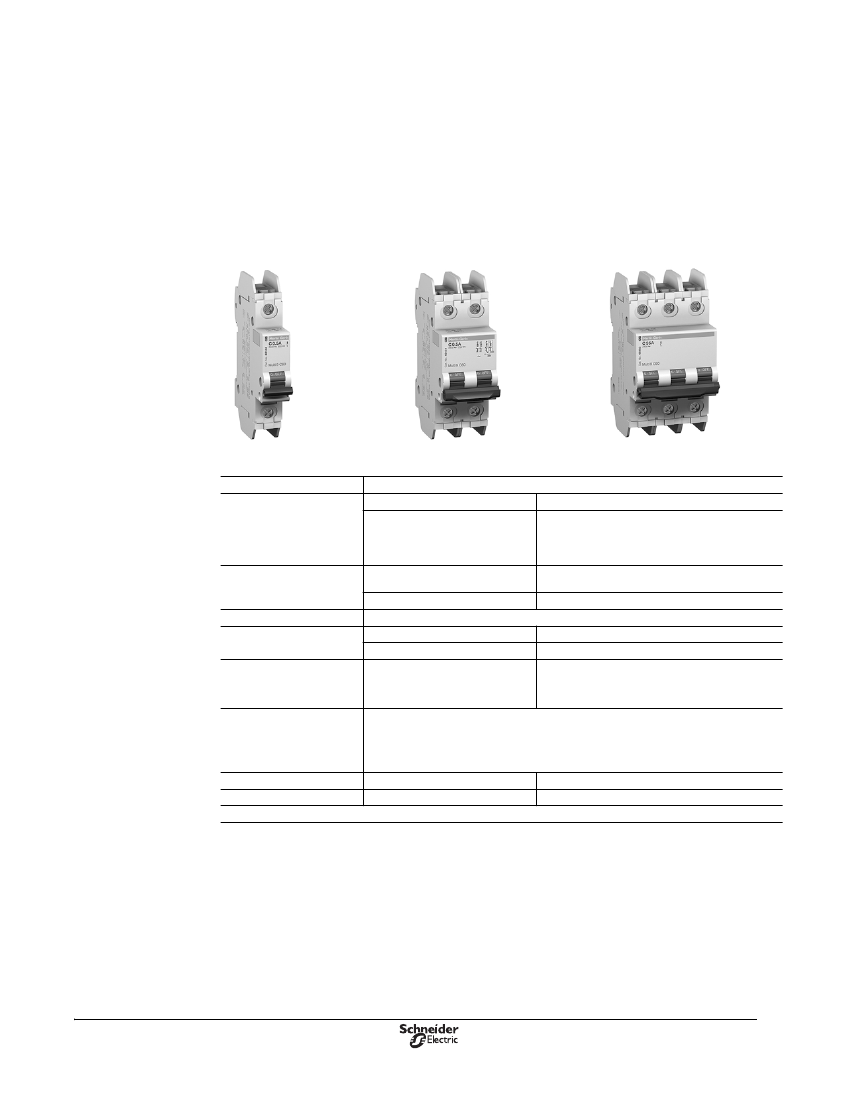

UL 489 Listed Multi 9 C60 Circuit Breakers
08603
08603
1P
2P
08603
3P
Table 4:
Specifications for UL 489 240 V Listed C60N Circuit Breakers
6 kV
Rating
UL 486A File No. E216919 (Use with Copper Wire Only)
0.5–25 A: 14–4 AWG (2–25 mm
2
) Cables
Torque to 22 lb-in. (2.48 N•m)
30–35 A: 14–2 AWG (1–35 mm
2
) Cables
Torque to 31 lb-in. (3.52 N•m)
High Voltage Withstand
Connector: Box Lug
Connection
Connector: Ring Tongue
Mounting
Degree of Protection
Use Single UL Listed or CSA Certified Screw dia. 0.2 in. (5 mm)
Insulated Ring Tongue Only
Torque to 18 lb-in. (2.03 N•m)
Max Ring Terminal Width
35 mm DIN rail
Case
Terminals
Calibration
Storage
Operating
MN Undervoltage Trip
IP40 as per IEC 529
IP20
25°C (77°F)
-40 to 80°C (-40 to 176°F)
-30 to 70°C (-22 to 158°F)
0.54 in. (14 mm)
Temperatures
Plug-On Auxiliary Modules with MX + OF Shunt Trip/Auxiliary Switch
Mechanical Linkage:
OF Auxiliary Switch
SD Alarm Switch
Tropicalization
Number of Operating Cycles
Treatment 2
Electrical (O-C)
Relative Humidity: 95% at 131°F (55°C)
6,000 load, 4,000 no-load
See specifications Table 2 for dimensions, weights and interrupting ratings
Standard Features
•
•
•
•
Fast closing: Allows increased withstand to the high inrush currents of some loads.
Trip-free mechanism: Contacts cannot be held in the I-ON position when the C60 circuit breaker is
tripped automatically.
Positive indication of contact disconnect. Green mechanical indication on front face of circuit
breaker shows that all poles are open.
C curve: Overcurrent protection for all application types. Magnetic release operates from 7 to 10
times ampere rating (7 to 14 for DC applications).
15
03/2008
© 2002–2008 Schneider Electric All Rights Reserved
Embedded System
