ZRB500N802TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZRB500N802TA

ZRB500N802TA: DescriptionTwo Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8; CategoryPower/power management The power supply circuit; File Size187KB，5 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZRB500N802TA Overview

Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8

ZRB500N802TA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.1 V
Minimum output voltage	4.9 V
Nominal output voltage	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
surface mount	YES
technology	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Fine-tuning/adjustable output	NO
width	3.9 mm

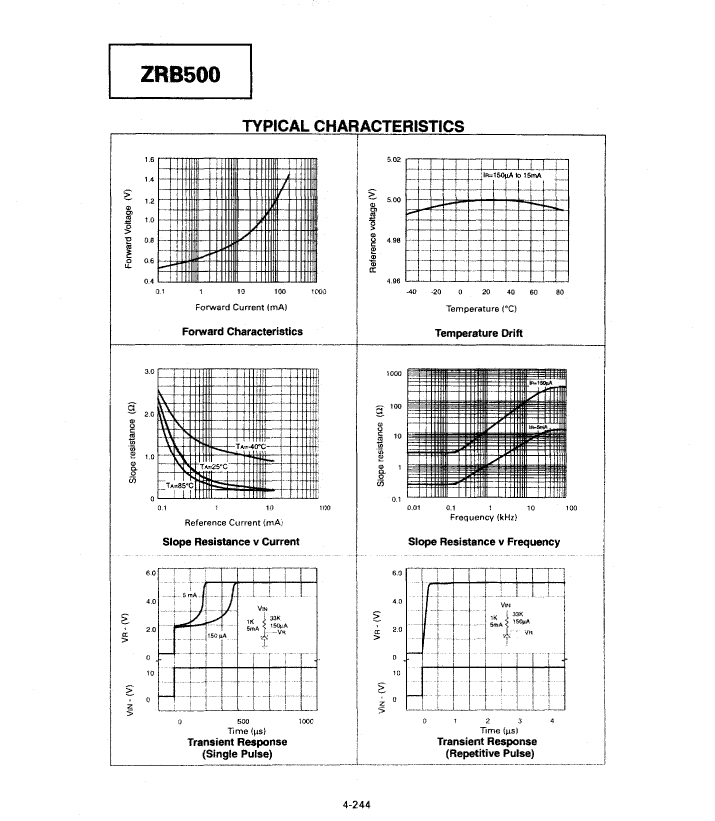

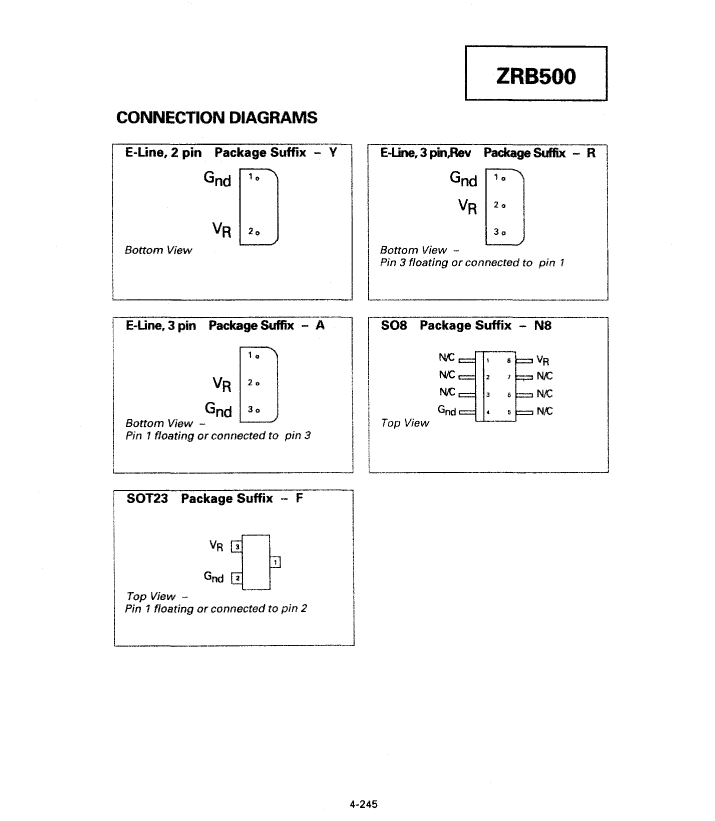

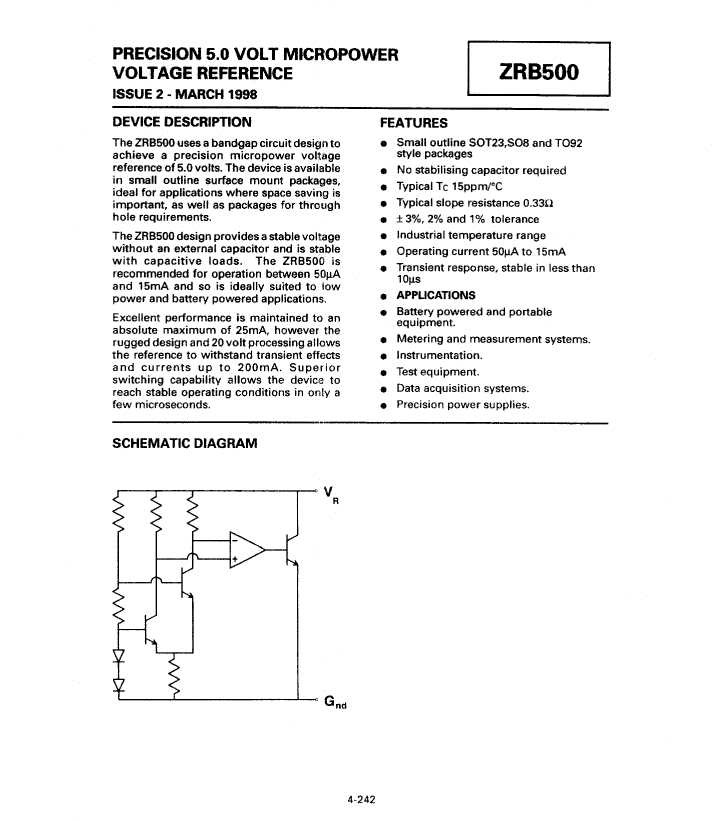

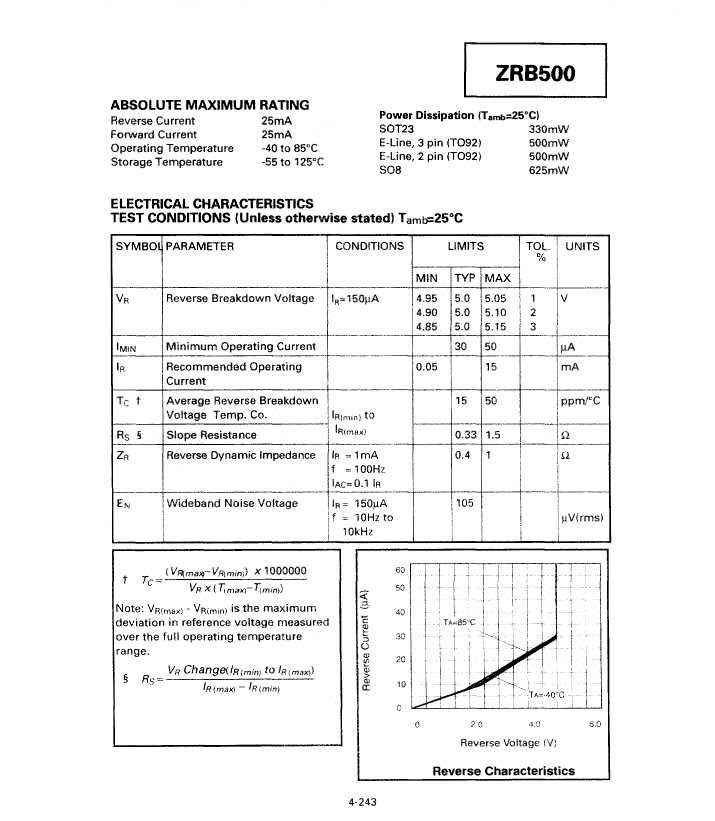

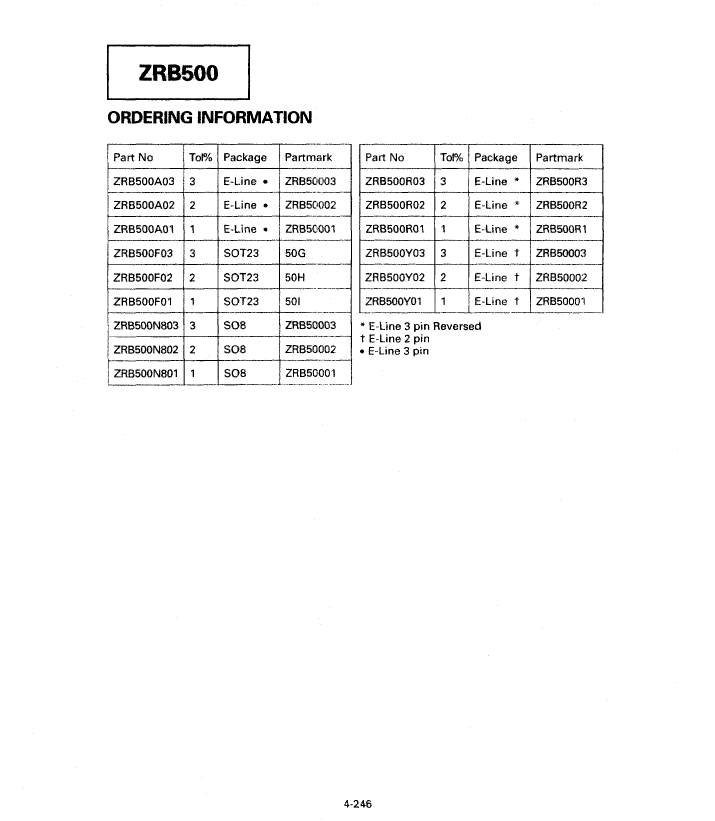

ZRB500N802TA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZRB500N802TA Related Products

	ZRB500N802TA	ZRB500N801TA	ZRB500N802TC	ZRB500N803TA	ZRB500N803TC
Description	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8	Two Terminal Voltage Reference, 1 Output, 5V, BIPolar, PDSO8, SO-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SOP,	SOP,	SOP,	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e3	e3	e3	e3	e3
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Humidity sensitivity level	1	1	1	1	1
Number of functions	1	1	1	1	1
Output times	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	5.1 V	5.05 V	5.1 V	5.15 V	5.15 V
Minimum output voltage	4.9 V	4.95 V	4.9 V	4.85 V	4.85 V
Nominal output voltage	5 V	5 V	5 V	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
surface mount	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	3.9 mm
