Z0844004DEE datasheet, PDF - EEWORLD Datasheet

Z0844004DEE: DescriptionSerial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, CDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size769KB，41 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

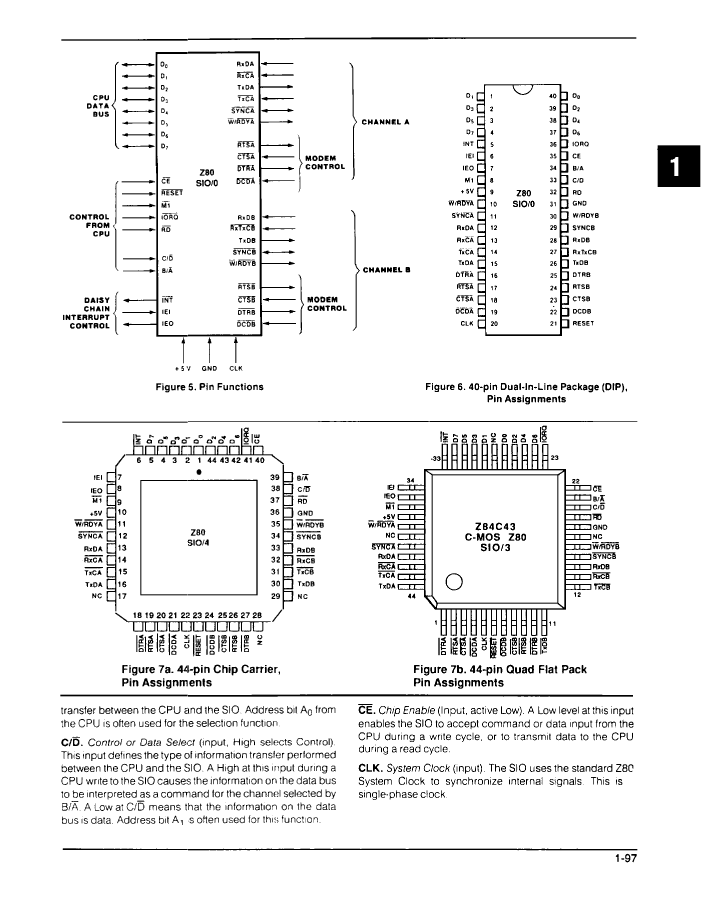

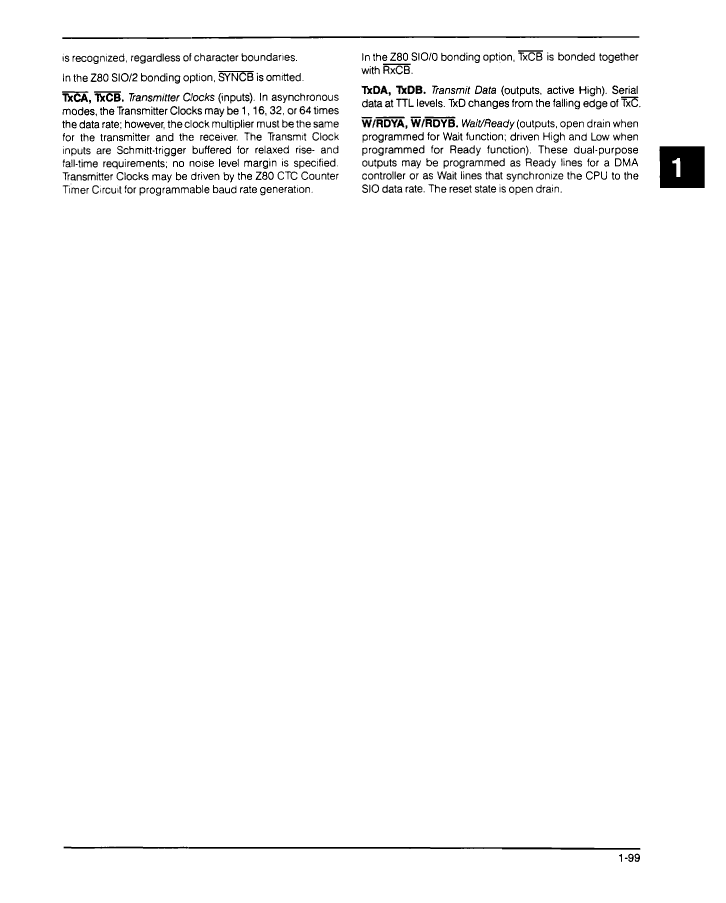

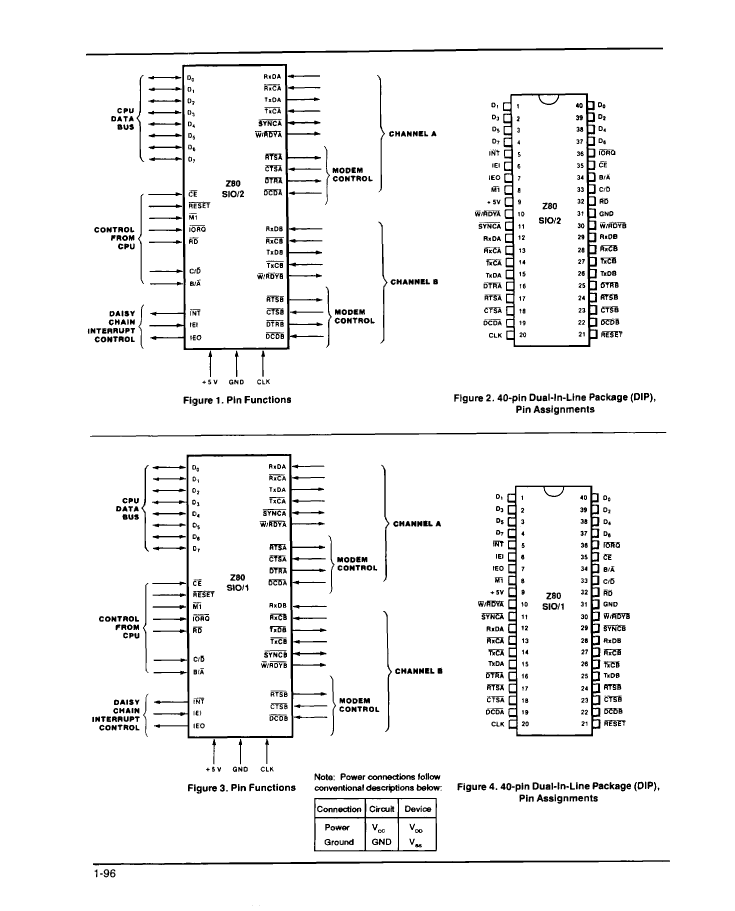

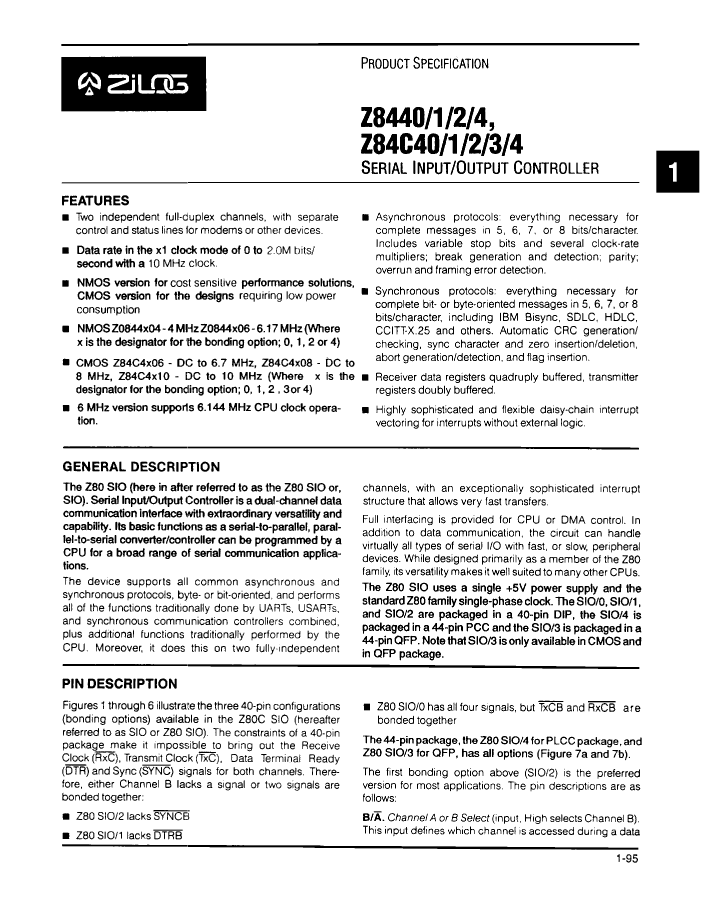

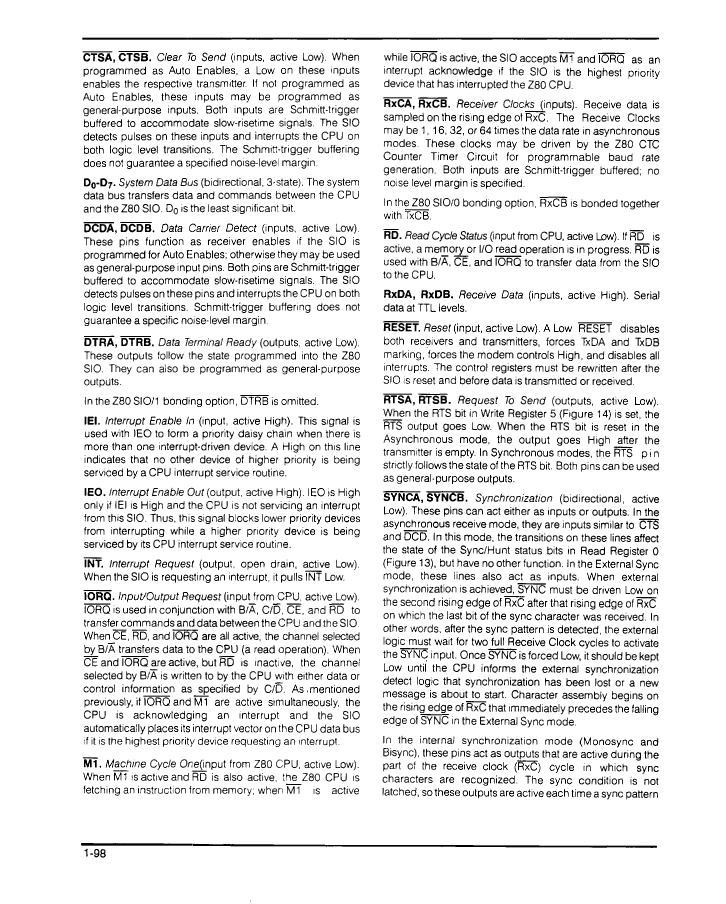

Z0844004DEE Overview

Serial I/O Controller, 2 Channel(s), 0.25MBps, NMOS, CDIP40, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
boundary scan	NO
Bus compatibility	Z80
maximum clock frequency	4 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; X.25; BISYNC
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
low power mode	YES
Number of serial I/Os	2
Number of terminals	40
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	7.366 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
