Z84C0004PSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z84C0004PSC

Z84C0004PSC: DescriptionMicroprocessor, 8-Bit, 4MHz, CMOS, PDIP40, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size918KB，35 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z84C0004PSC Overview

Microprocessor, 8-Bit, 4MHz, CMOS, PDIP40, DIP-40

Z84C0004PSC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Other features	DRAM REFRESH COUNTER
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.96 mm
speed	4 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

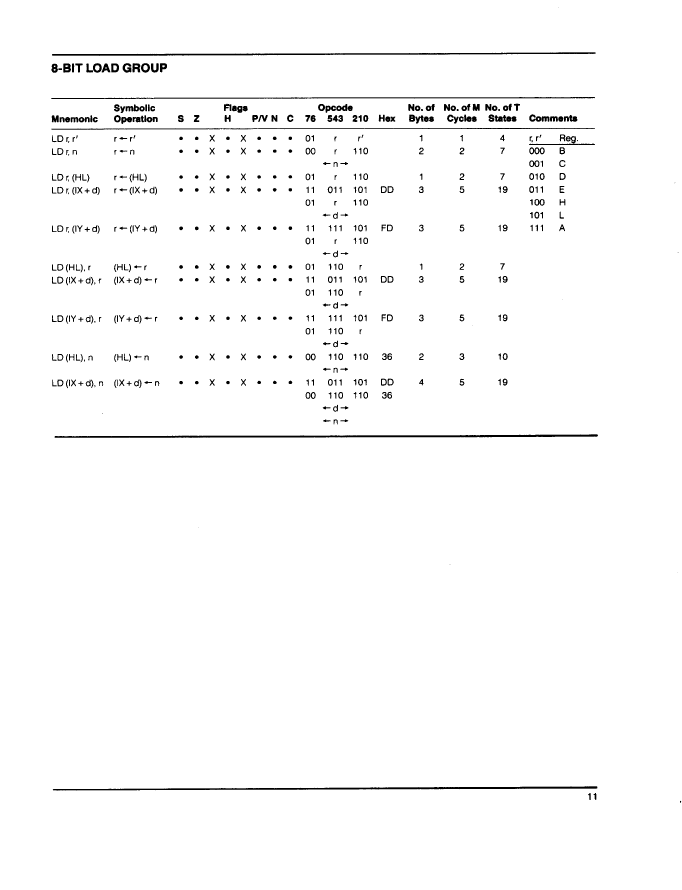

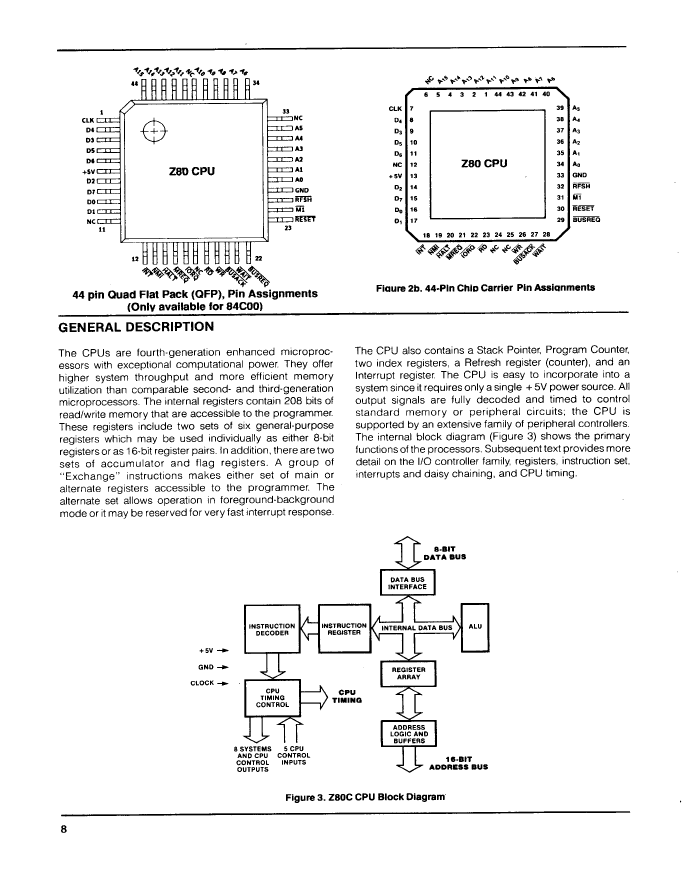

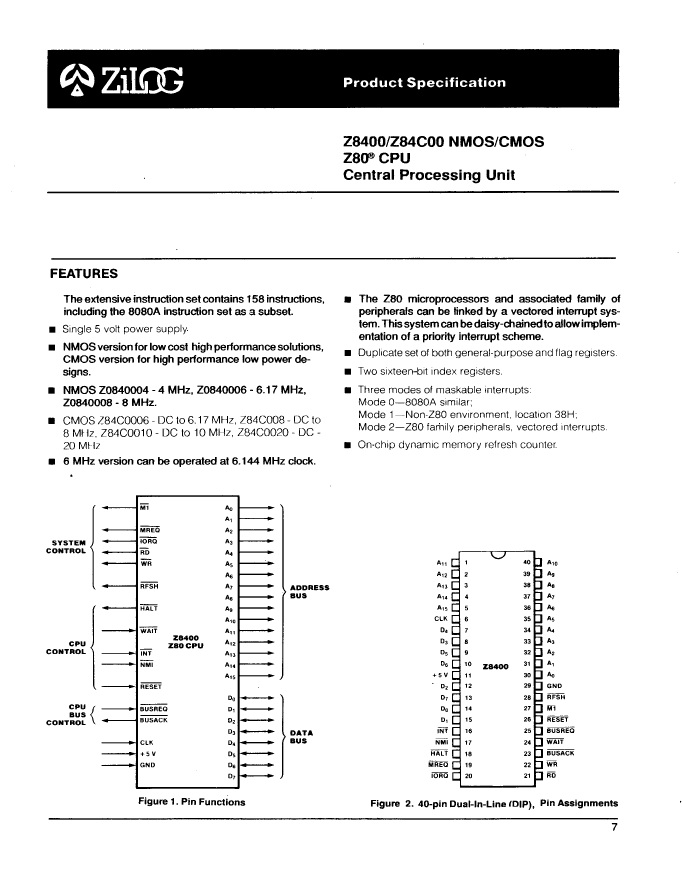

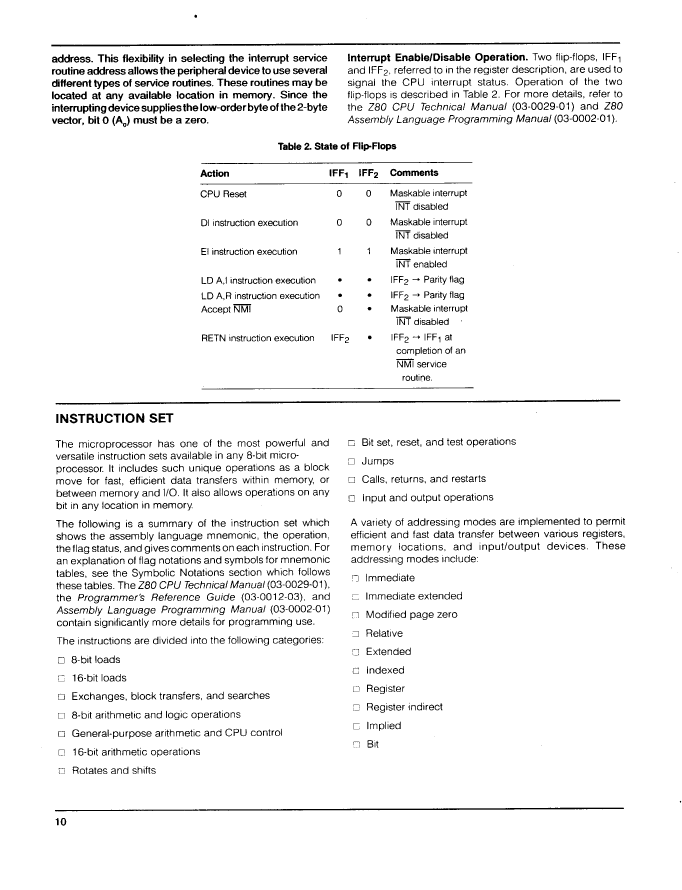

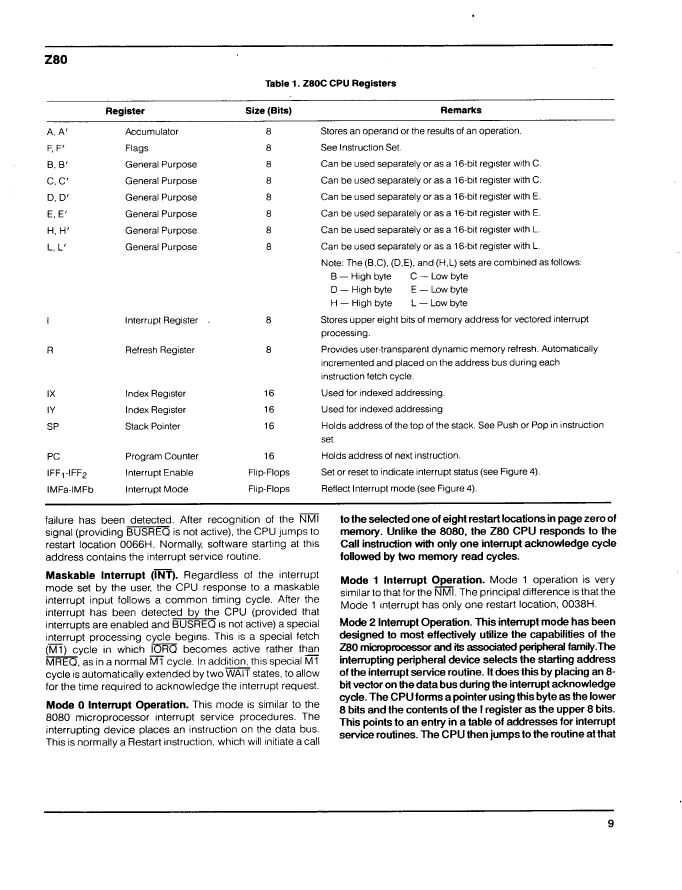

Preview

Download Datasheet

View All

Z84C0004PSC Related Products

	Z84C0004PSC	Z84C0010PSC	Z84C0004VEC	Z84C0004PEC	Z84C0006PSC	Z84C0008PSC
Description	Microprocessor, 8-Bit, 4MHz, CMOS, PDIP40, DIP-40	Microprocessor, 8-Bit, 10MHz, CMOS, PDIP40, DIP-40	Microprocessor, 8-Bit, 4MHz, CMOS, PQCC44, CC-44	Microprocessor, 8-Bit, 4MHz, CMOS, PDIP40, DIP-40	Microprocessor, 8-Bit, 6.17MHz, CMOS, PDIP40, DIP-40	Microprocessor, 8-Bit, 8MHz, CMOS, PDIP40, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	DIP	QFN	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP,	QCCJ, LDCC(UNSPEC)	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	44	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow
Other features	DRAM REFRESH COUNTER	-	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER	DRAM REFRESH COUNTER
Address bus width	16	-	16	16	16	16
bit size	8	-	8	8	8	8
boundary scan	NO	-	NO	NO	NO	NO
maximum clock frequency	4 MHz	-	4 MHz	4 MHz	6.17 MHz	8 MHz
External data bus width	8	-	8	8	8	8
Format	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	-	NO	NO	NO	NO
JESD-30 code	R-PDIP-T40	-	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40
JESD-609 code	e0	-	e0	e0	e0	e0
length	52.325 mm	-	16.5862 mm	52.325 mm	52.325 mm	52.325 mm
low power mode	YES	-	YES	YES	YES	YES
Number of external interrupt devices	2	-	2	2	2	2
Number of terminals	40	-	44	40	40	40
Maximum operating temperature	70 °C	-	100 °C	100 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	-	QCCJ	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	-	LDCC(UNSPEC)	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	-	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	240	-	240	240	240	240
power supply	5 V	-	5 V	5 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.96 mm	-	4.57 mm	4.96 mm	4.96 mm	4.96 mm
speed	4 MHz	-	4 MHz	4 MHz	6.17 MHz	8 MHz
Maximum slew rate	20 mA	-	20 mA	20 mA	30 mA	40 mA
Maximum supply voltage	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V
surface mount	NO	-	YES	NO	NO	NO
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	-	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	QUAD	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	-	16.5862 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	-	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
