AHV9500B datasheet, PDF - EEWORLD Datasheet

AHV9500B: DescriptionVariable Capacitance Diode, Millimeter Wave Band, 0.5pF C(T), 22V, Silicon, Hyperabrupt, CERAMIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size151KB，3 Pages; ManufacturerAdvanced Semiconductor, Inc.

Download Datasheet Parametric View All

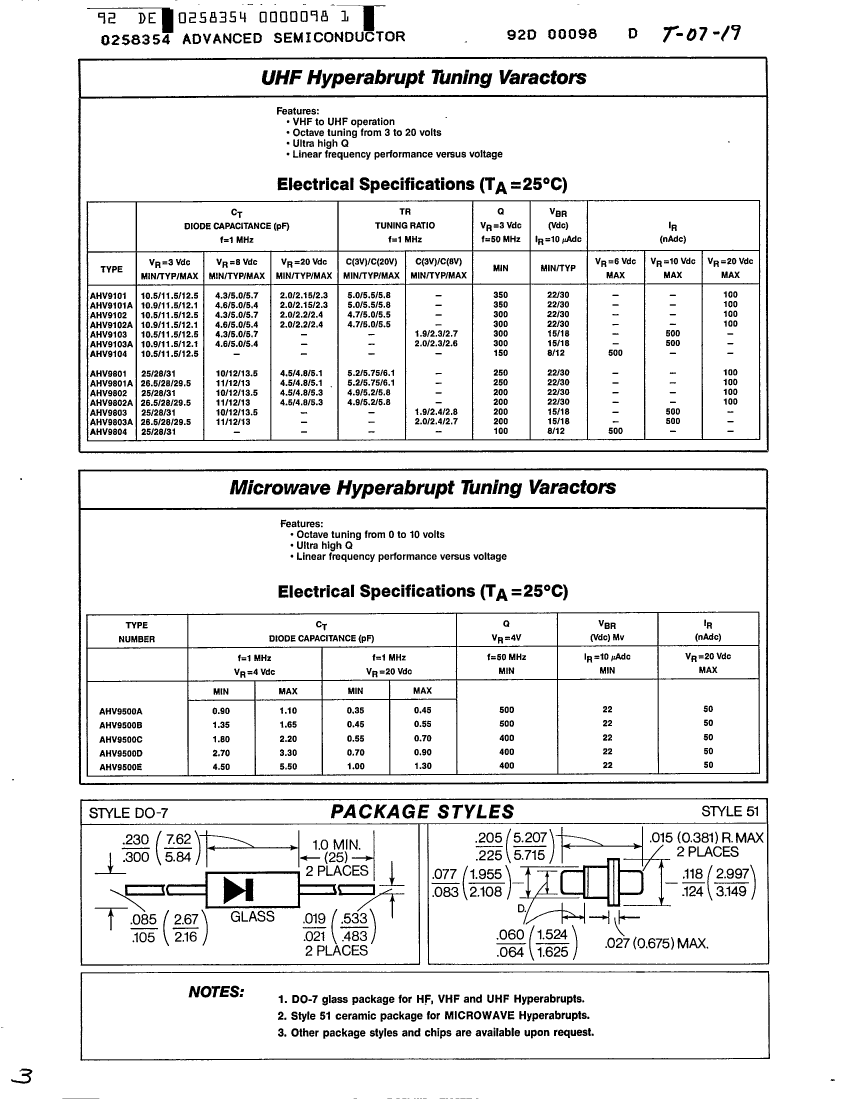

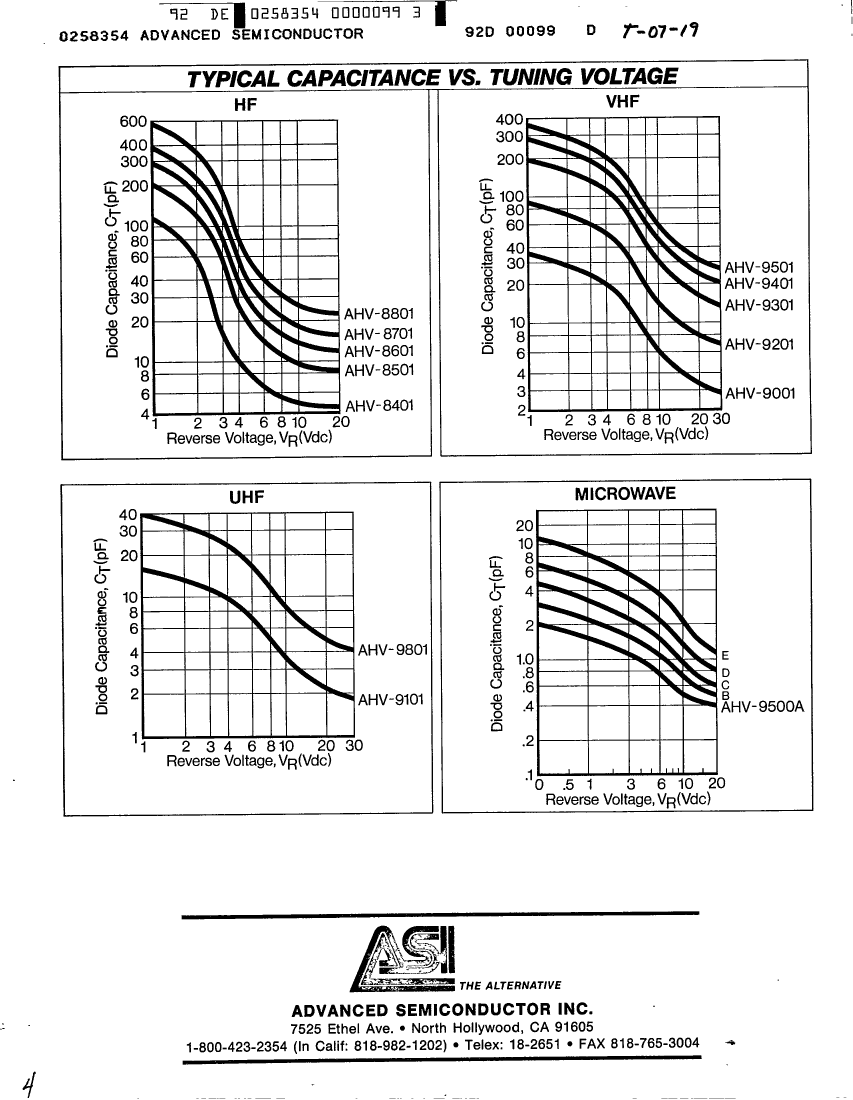

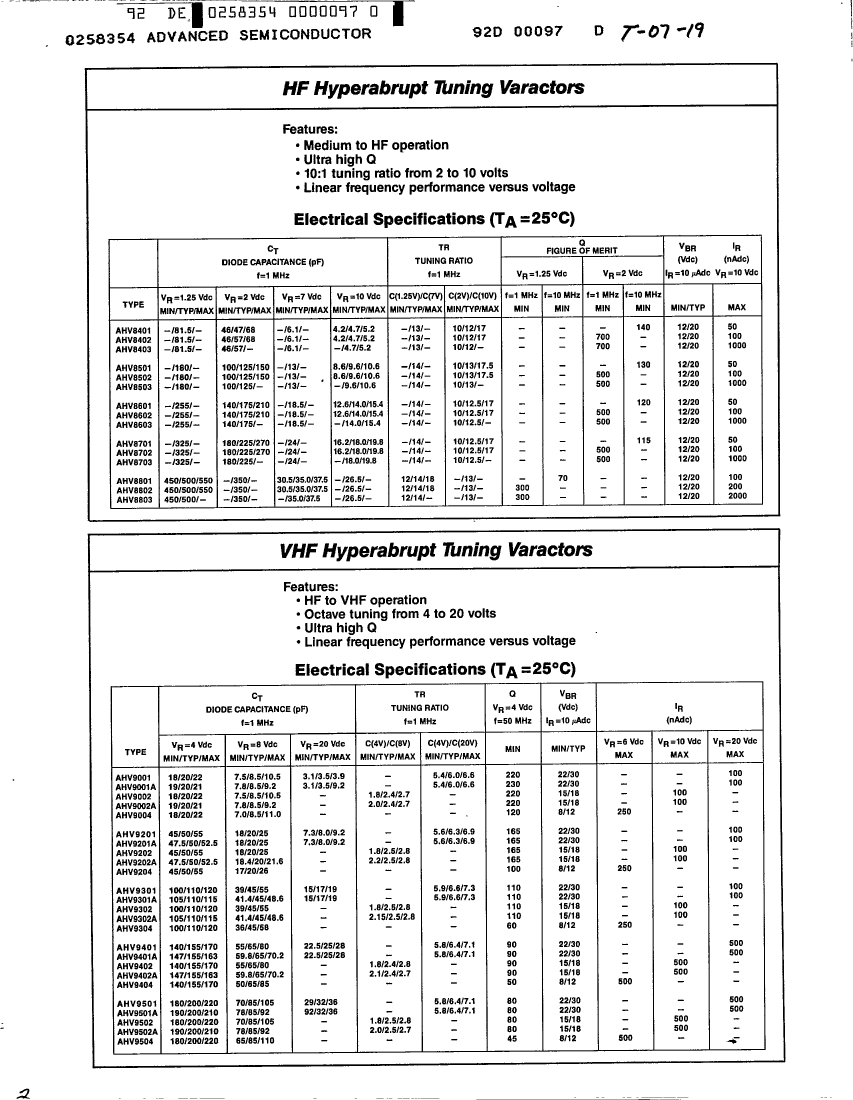

AHV9500B Overview

Variable Capacitance Diode, Millimeter Wave Band, 0.5pF C(T), 22V, Silicon, Hyperabrupt, CERAMIC PACKAGE-2

Parameter Name	Attribute value
Maker	Advanced Semiconductor, Inc.
package instruction	O-CEMW-N2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	22 V
Configuration	SINGLE
Diode Capacitance Tolerance	10%
Nominal diode capacitance	0.5 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	MILLIMETER WAVE BAND
JESD-30 code	O-CEMW-N2
Number of components	1
Number of terminals	2
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Certification status	Not Qualified
minimum quality factor	500
Maximum repetitive peak reverse voltage	20 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Varactor Diode Classification	HYPERABRUPT
