AD578JD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD578JD

AD578JD: DescriptionIC 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size464KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD578JD Overview

IC 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter

AD578JD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-32
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	6 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
length	40.945 mm
Maximum linear error (EL)	0.0183%
Nominal negative supply voltage	-15 V
Number of analog input channels	2
Number of digits	12
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum seat height	6.98 mm
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

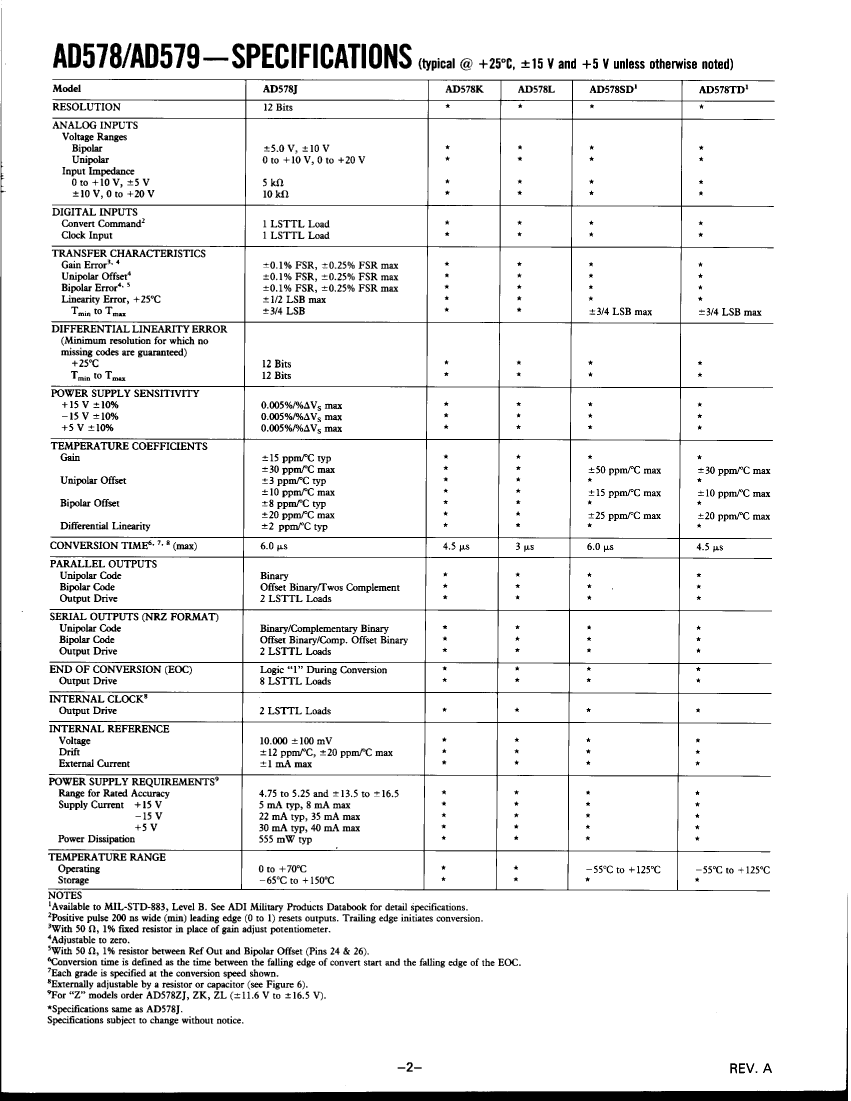

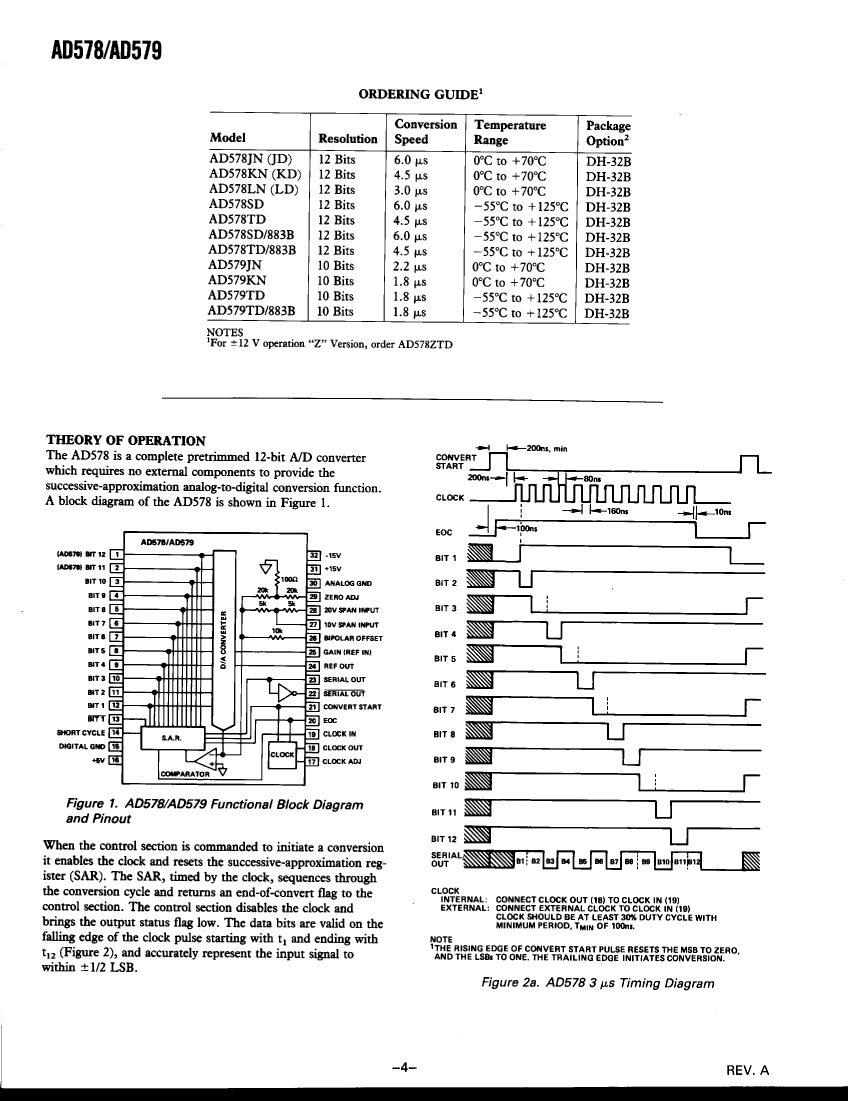

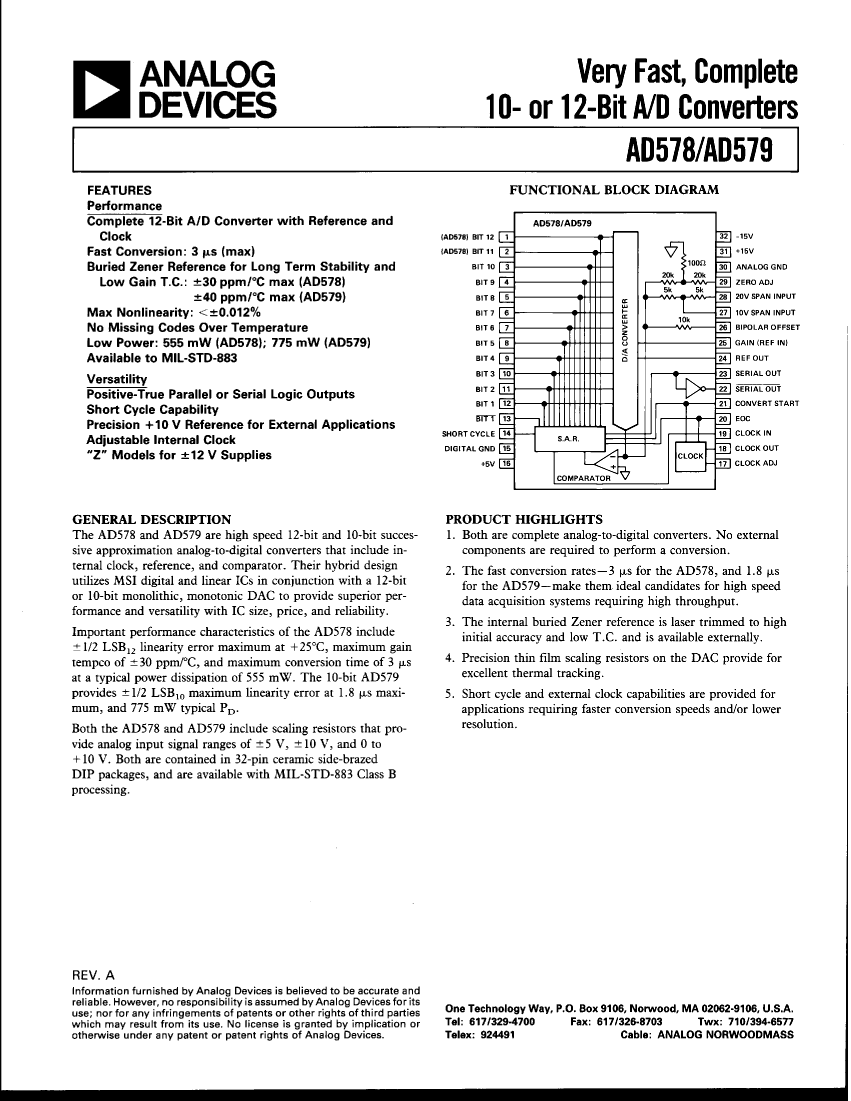

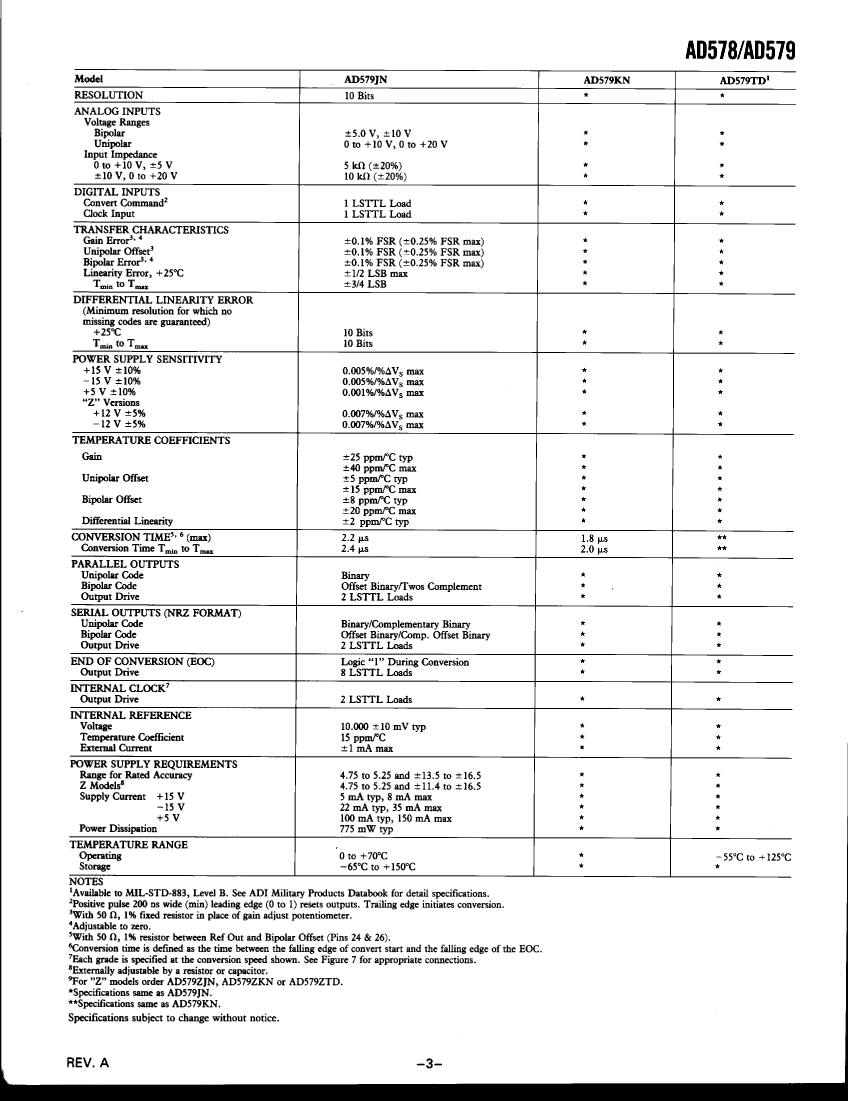

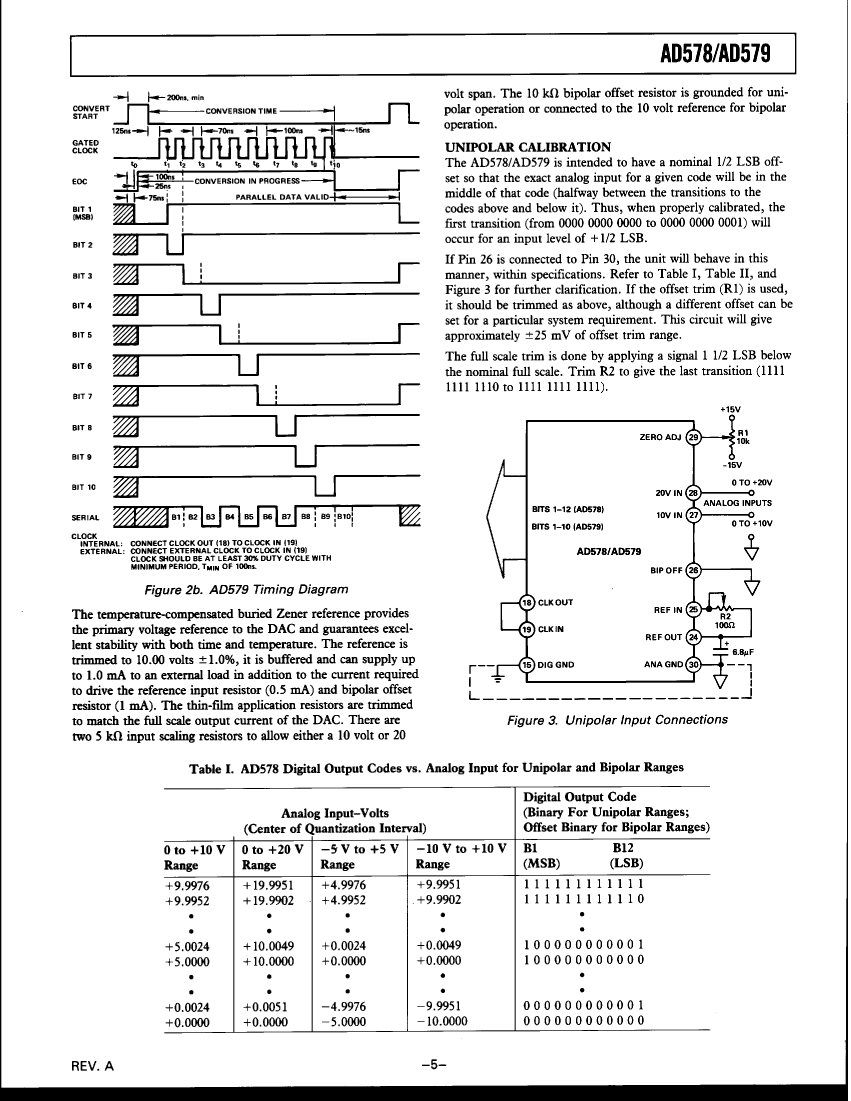

AD578JD Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AD578JD Related Products

	AD578JD	AD578JN	AD579JN
Description	IC 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter	IC 2-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter	IC 2-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32, Analog to Digital Converter
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-32	SIDE BRAZED, CERAMIC, DIP-32	SIDE BRAZED, CERAMIC, DIP-32
Contacts	32	32	32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum analog input voltage	10 V	10 V	10 V
Minimum analog input voltage	-10 V	-10 V	-10 V
Maximum conversion time	6 µs	6 µs	2.4 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T32	R-CDIP-T32	R-CDIP-T32
JESD-609 code	e0	e0	e0
length	40.945 mm	40.945 mm	40.945 mm
Maximum linear error (EL)	0.0183%	0.0183%	0.0732%
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of analog input channels	2	2	2
Number of digits	12	12	10
Number of functions	1	1	1
Number of terminals	32	32	32
Maximum operating temperature	70 °C	70 °C	70 °C
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B
Maximum seat height	6.98 mm	6.98 mm	6.98 mm
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm
