SV6350: DescriptionZener Diode, 120V V(Z), 0.5W, Silicon, Unidirectional, DO-35,; CategoryDiscrete semiconductor diode; File Size271KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

SV6350 Overview

Zener Diode, 120V V(Z), 0.5W, Silicon, Unidirectional, DO-35,

SV6350 Parametric

Parameter Name	Attribute value
Maker	SENSITRON
package instruction	O-LALF-W2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY, METALLURGICALLY BONDED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	600 Ω

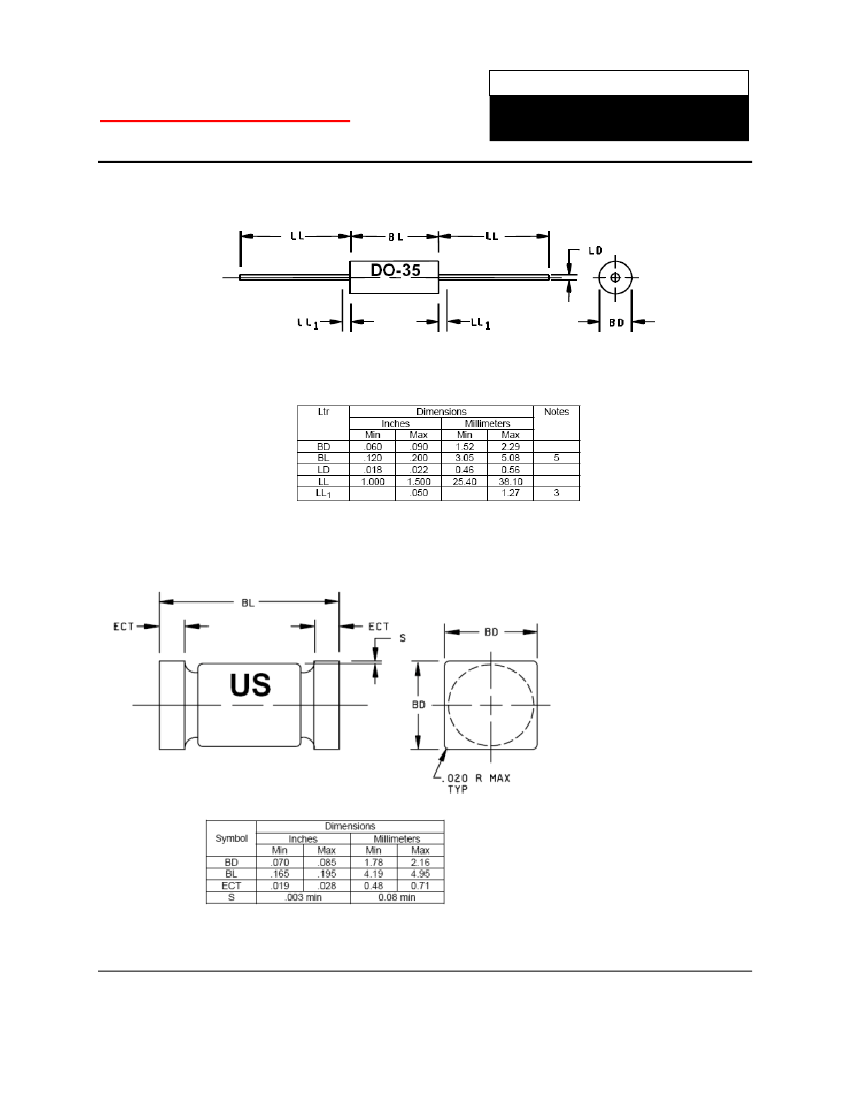

JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Guideline	MIL-19500
Nominal reference voltage	120 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Working test current	1 mA

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 5102, REV. B.3

1N6324/US thru 1N6351/US

Standard

ZENER 500mW VOLTAGE

REGULATOR

V AI L AB L E AS

1 N , J AN , J AN T X , J ANT XV

JANS

JAN EQUIVALENT *

SJ*, SX*, SV*, SS*

500mW Zener

Qualified per MIL-PRF-19500/533

DESCRIPTION:

This voidless hermetically sealed zener is military qualified per MIL-PRF-19500/533 and is

targeted for space, commerical and military aircraft, military vehicles, shipboard markets and all

high reliability applications.

FEATURES / BENEFITS:



Hermetic, non-cavity glass package

Category I Metallurgically bonded

All devices are 100% hot solder dipped

JAN/ JANTX/JANTXV available per

MIL-PRF-19500/533

“JANS Plus” removes atypical/out of family V

MAXIMUM RATINGS



All ratings are @ Tc = 25 °C unless otherwise

specified

Operating -55 °C to +175 °C and storage -65

°C to +175 °C

*Sensitron equivalent diodes are manufactured and screened to MIL-PRF-19500 flow and guidelines starting from

wafer fabrication through assembly and testing using our specification 7700-4093.



221 WEST INDUSTRY COURT



DEER PARK, NY 11729-4681



PHONE (631) 586-7600



FAX (631) 242-9798



www.sensitron.com


