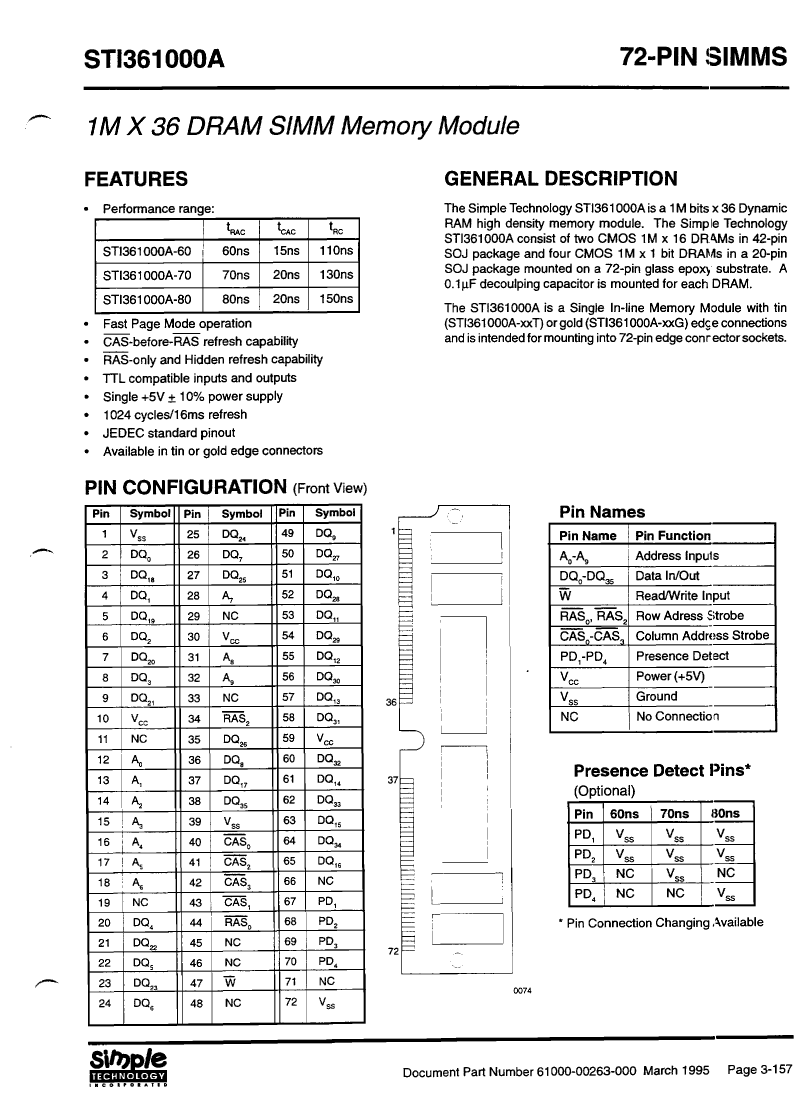

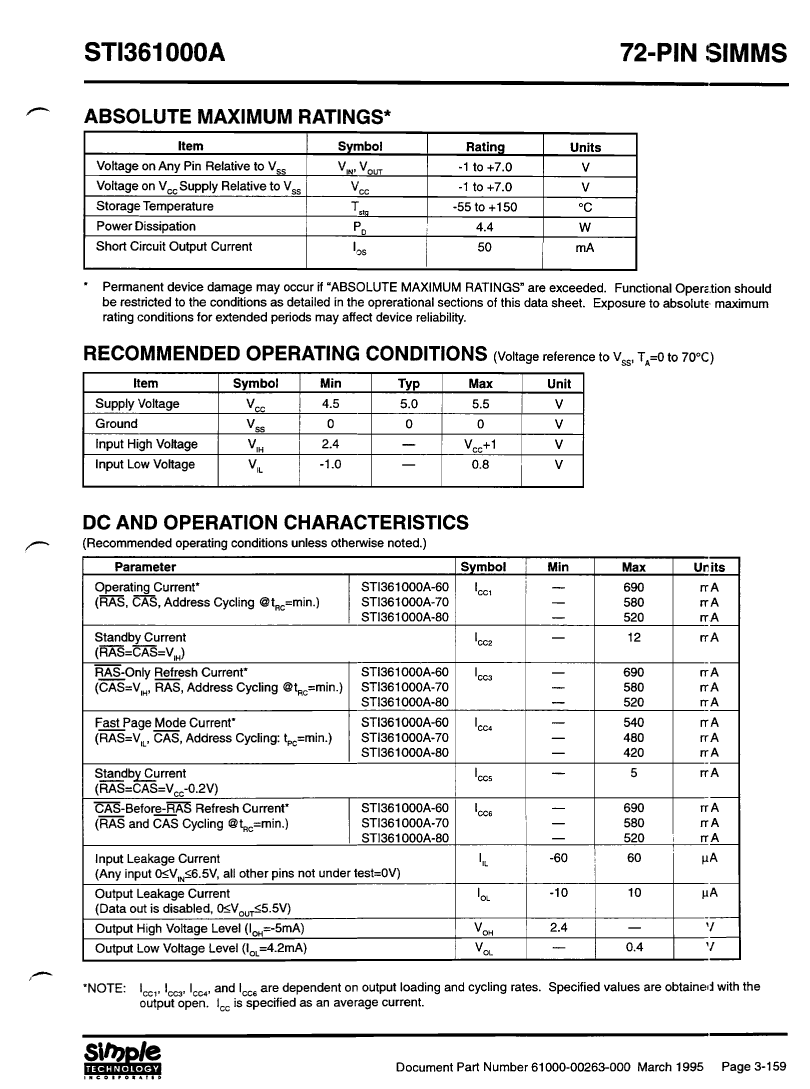

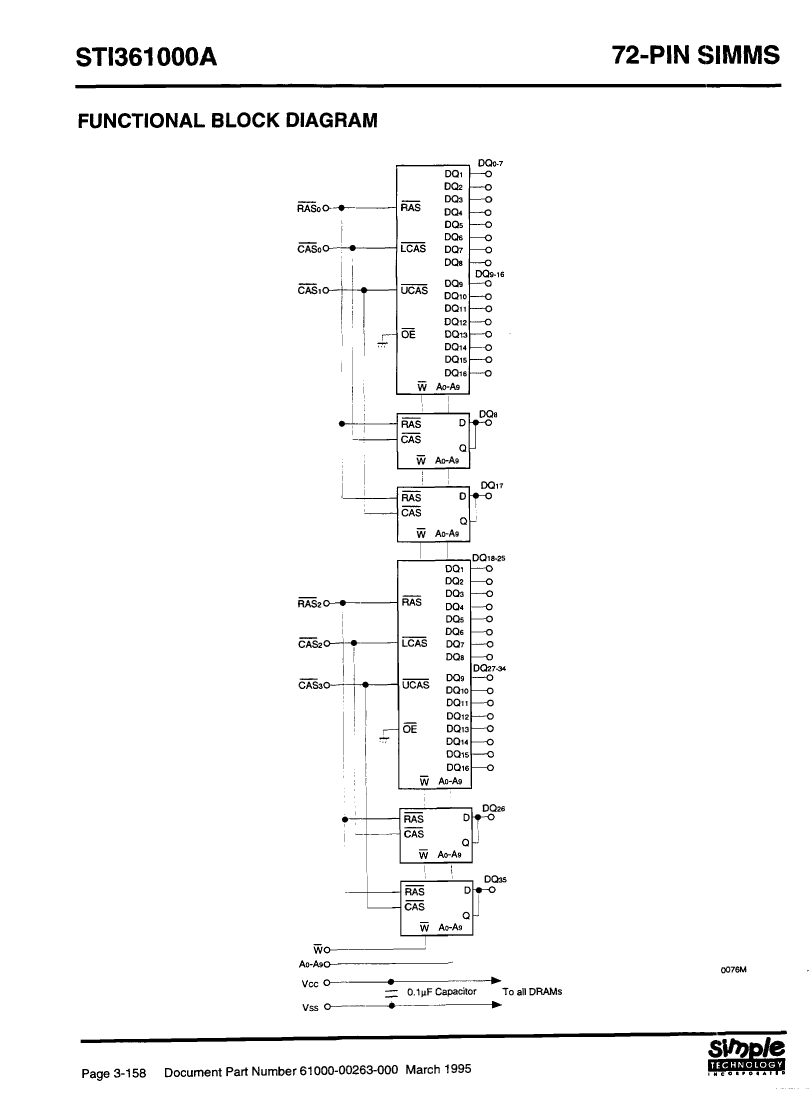

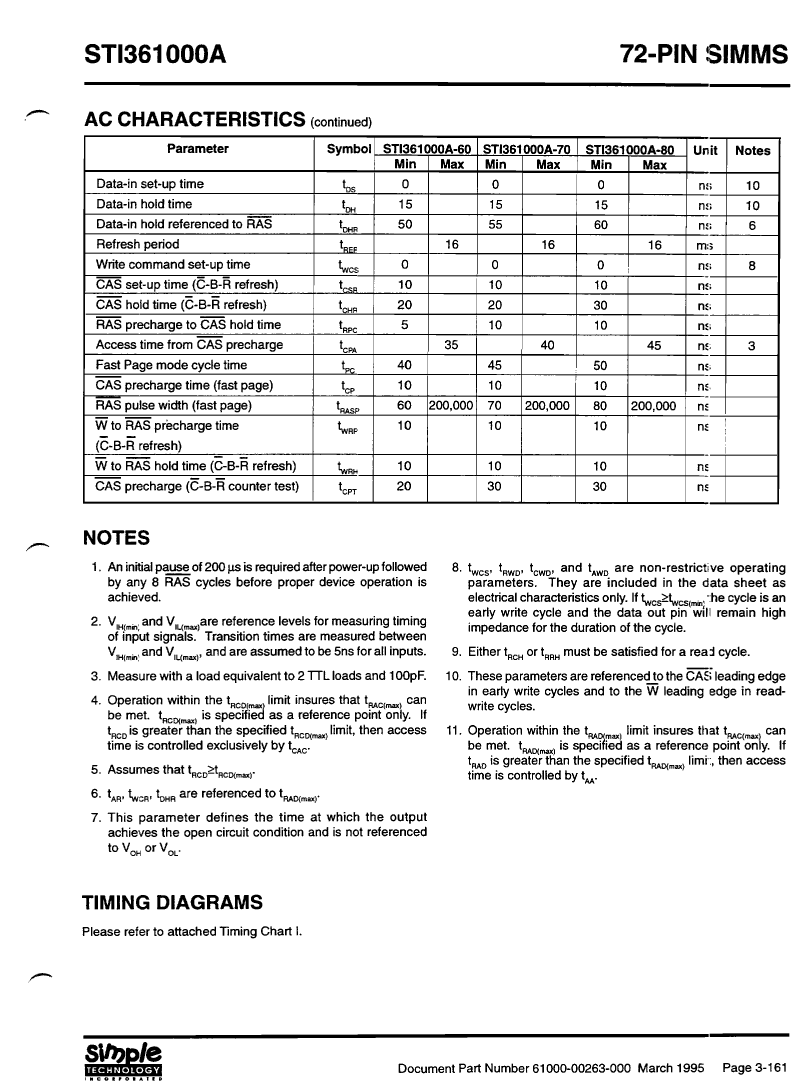

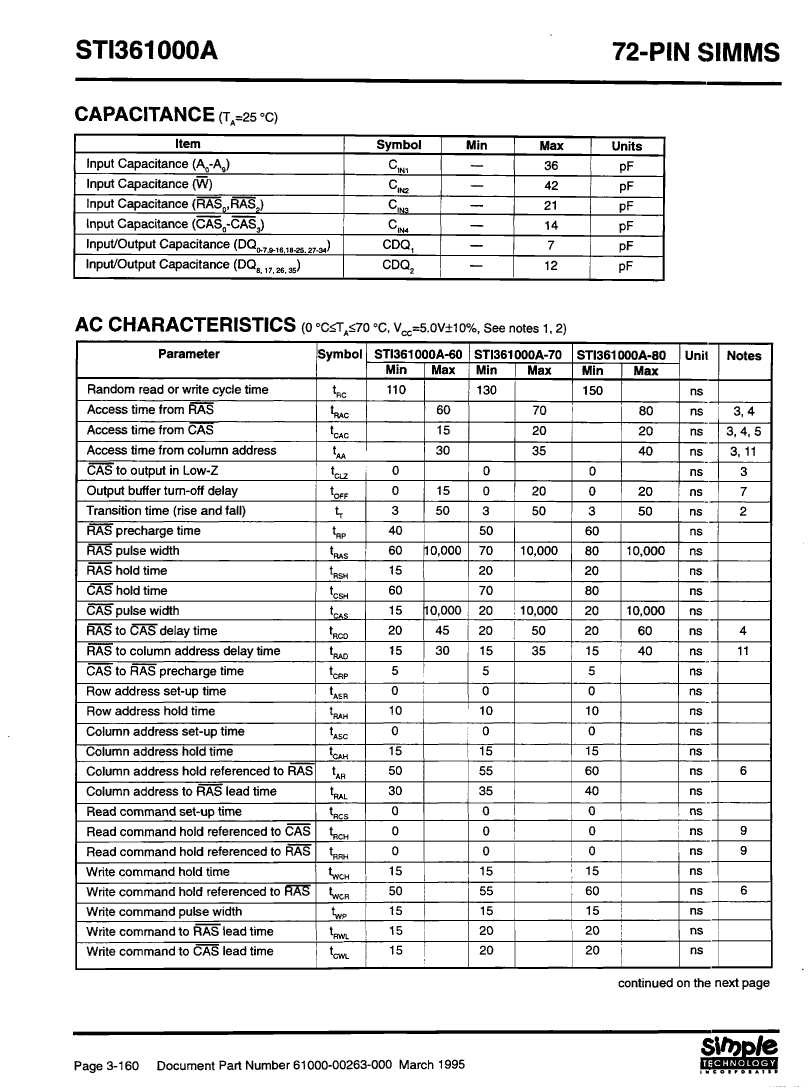

STI361000A-60GC datasheet, PDF

STI361000A-60GC: DescriptionFast Page DRAM Module, 1MX36, 60ns, CMOS, SIMM-72; Categorystorage storage; File Size220KB，6 Pages; ManufacturerSimple Tech Inc.

Download Datasheet Parametric View All

STI361000A-60GC Overview

Fast Page DRAM Module, 1MX36, 60ns, CMOS, SIMM-72

Parameter Name	Attribute value
Maker	Simple Tech Inc.
package instruction	SIMM-72
Reach Compliance Code	unknown
access mode	FAST PAGE
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	18
JESD-30 code	R-XSMA-N72
memory density	37748736 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX36
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE
