Datasheet> All Categories > storage> storage> THM91000AS-80

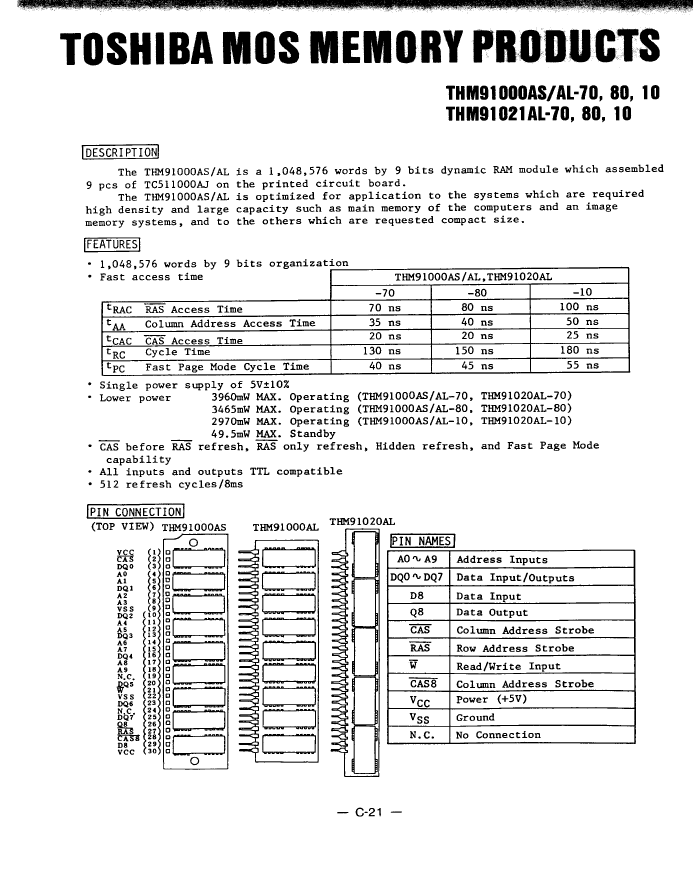

Preview

THM91000AS-80: DescriptionIC 1M X 9 FAST PAGE DRAM MODULE, 80 ns, SMA30, SIMM-30, Dynamic RAM; Categorystorage storage; File Size600KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

THM91000AS-80 Overview

IC 1M X 9 FAST PAGE DRAM MODULE, 80 ns, SMA30, SIMM-30, Dynamic RAM

THM91000AS-80 Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SIMM
package instruction	,
Contacts	30
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N30
memory density	9437184 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	30
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX9
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

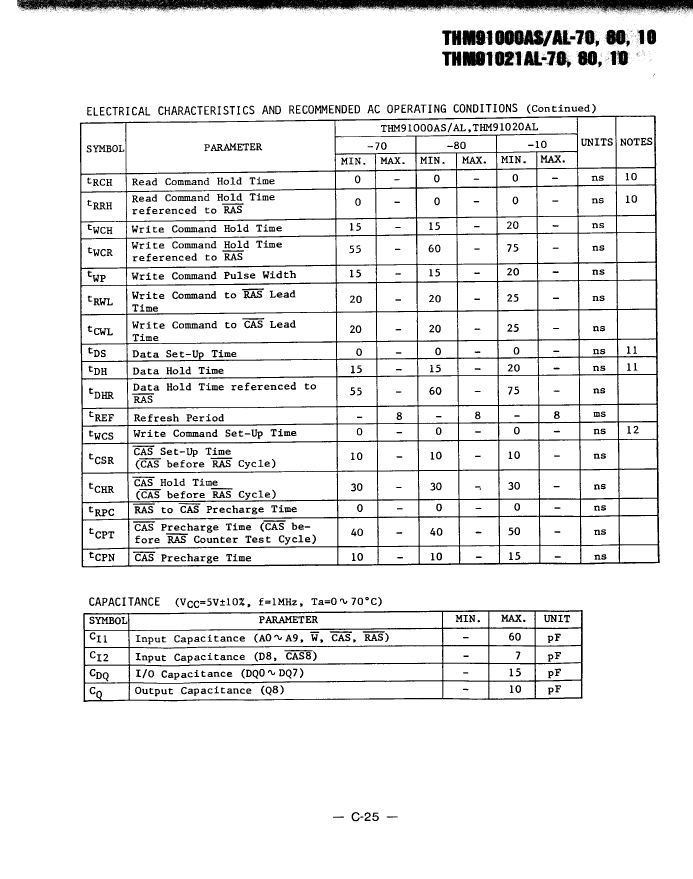

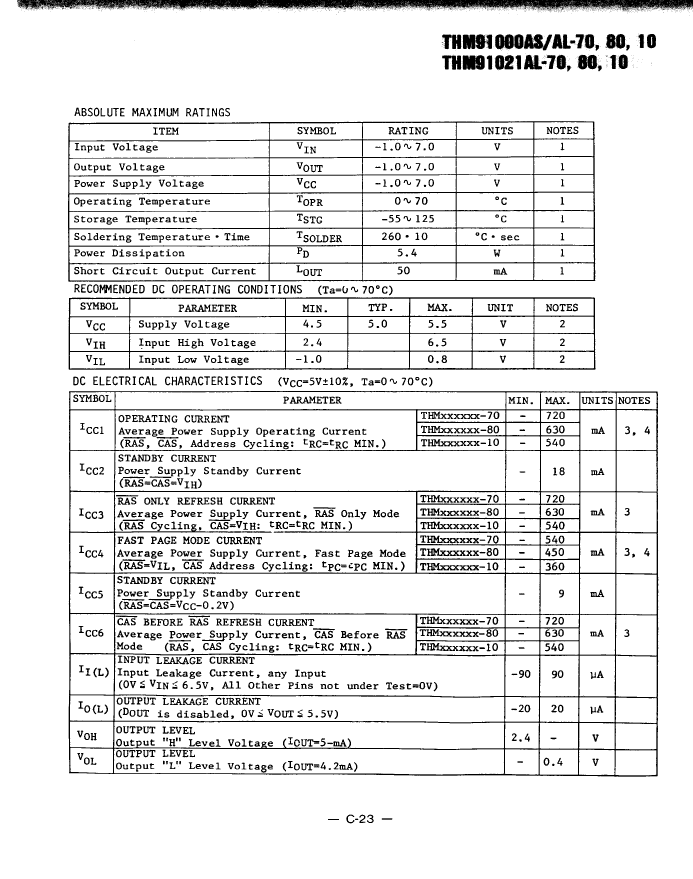

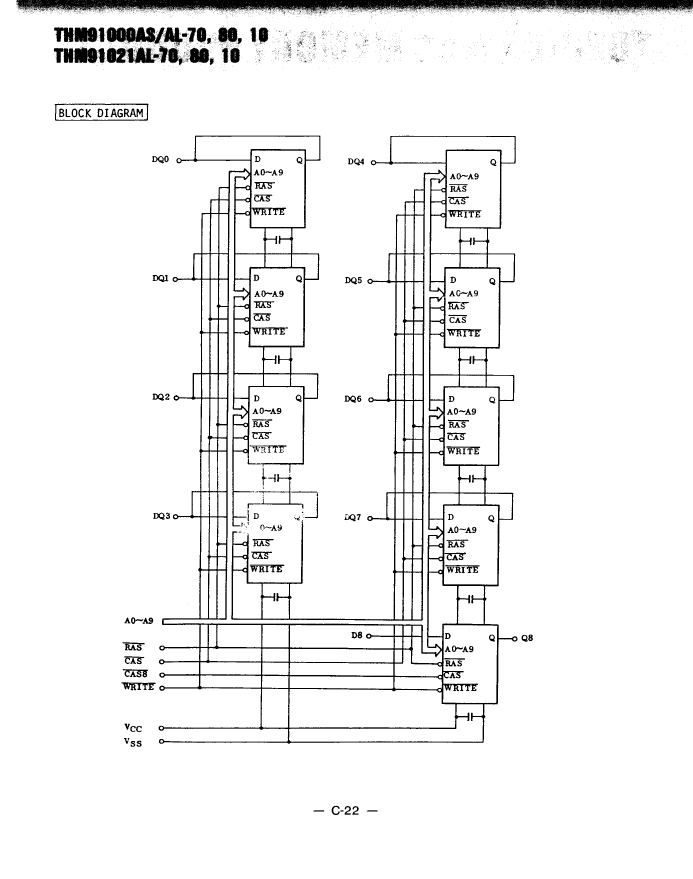

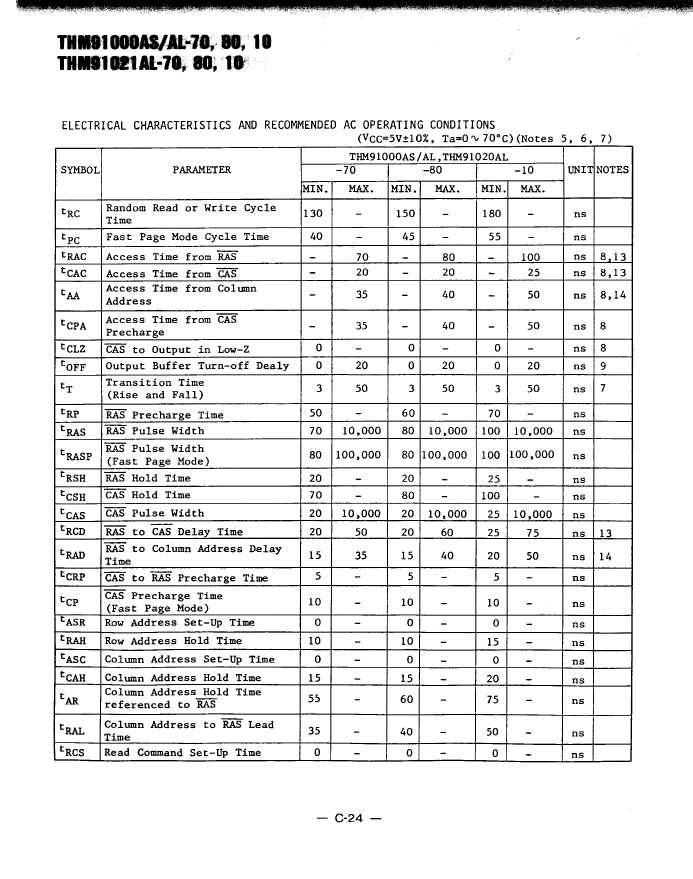

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

THM91000AS-80 Related Products

	THM91000AS-80	THM91000AL-80	THM91000AL-10	THM91000AS-70
Description	IC 1M X 9 FAST PAGE DRAM MODULE, 80 ns, SMA30, SIMM-30, Dynamic RAM	IC 1M X 9 FAST PAGE DRAM MODULE, 80 ns, SMA30, SIMM-30, Dynamic RAM	IC 1M X 9 FAST PAGE DRAM MODULE, 100 ns, SMA30, SIMM-30, Dynamic RAM	IC 1M X 9 FAST PAGE DRAM MODULE, 70 ns, SMA30, SIMM-30, Dynamic RAM
Parts packaging code	SIMM	SIMM	SIMM	SIMM
Contacts	30	30	30	30
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	80 ns	100 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XSMA-N30	R-XSMA-T30	R-XSMA-T30	R-XSMA-N30
memory density	9437184 bit	9437184 bit	9437184 bit	9437184 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	9	9	9	9
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	30	30	30	30
word count	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	1MX9	1MX9	1MX9	1MX9
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor
