AD846JH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> AD846JH

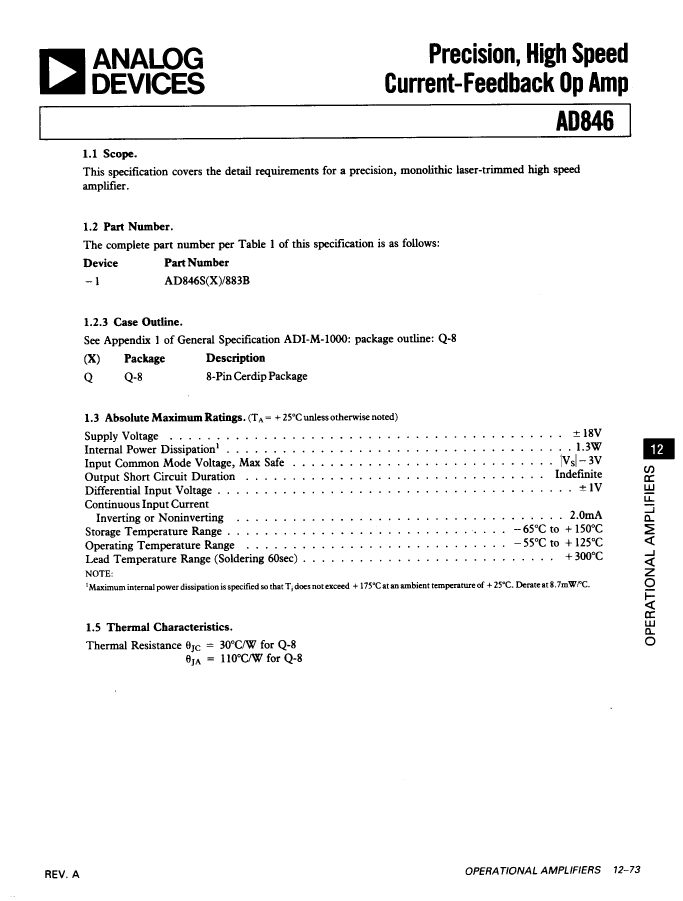

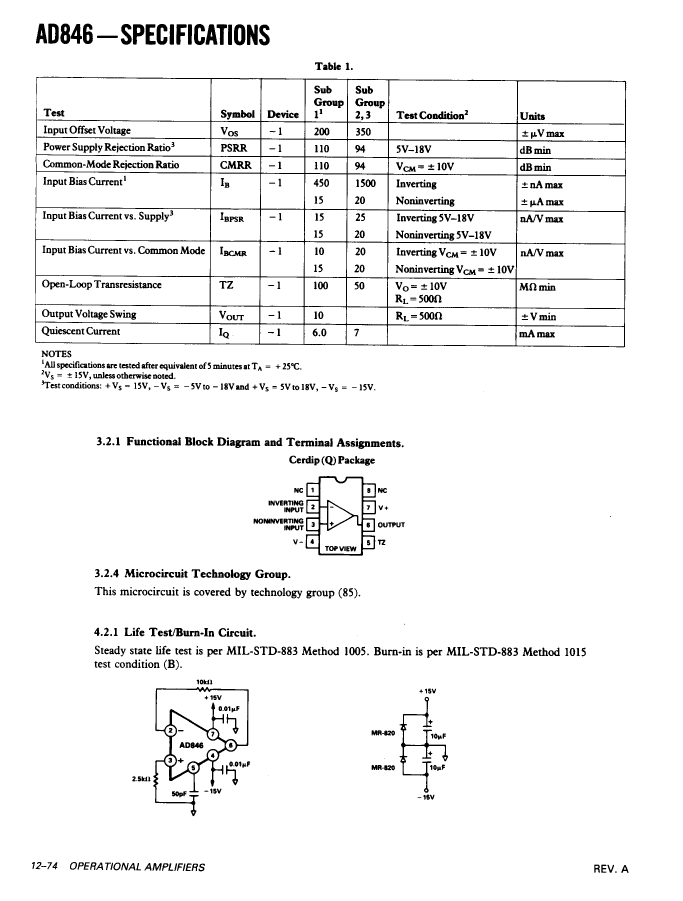

AD846JH: DescriptionIC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size89KB，2 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD846JH Overview

IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier

AD846JH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	TO-99
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	10.225 µA
frequency compensation	NO
Maximum input offset voltage	400 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
power supply	+-15 V
Certification status	Not Qualified
minimum slew rate	350 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM

Preview

Download Datasheet

View All

AD846JH Related Products

	AD846JH	AD846AH	AD846BH	AD846SH	AD846SH/883B	AD846JN	AD846JQ
Description	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC, Operational Amplifier	IC IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC, Operational Amplifier
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TO-99	TO-99	TO-99	TO-99	TO-99	DIP	DIP
Contacts	8	8	8	8	8	8	8
Reach Compliance Code	unknown	not_compliant	not_compliant	not_compliant	not_compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK	CURRENT-FEEDBACK
Maximum bias current (IIB) at 25C	10.225 µA	7.725 µA	2.625 µA	7.725 µA	15 µA	10.225 µA	10.225 µA
frequency compensation	NO	NO	NO	NO	NO	NO	NO
Maximum input offset voltage	400 µV	350 µV	125 µV	350 µV	350 µV	400 µV	400 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	R-PDIP-T8	R-XDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
low-dissonance	YES	YES	YES	YES	YES	YES	YES
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	85 °C	85 °C	125 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-55 °C	-55 °C	-	-
Package body material	METAL	METAL	METAL	METAL	METAL	PLASTIC/EPOXY	CERAMIC
Encapsulate equivalent code	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	DIP8,.3	DIP8,.3
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	6 mA	6.5 mA	6.5 mA	7 mA	7 mA	6 mA	6 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	DUAL	DUAL
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
Base Number Matches	-	1	1	1	1	-	-
