AD8652AR-REEL7

Description
IC DUAL OP-AMP, 300 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO8, SOIC-8, Operational Amplifier
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size256KB，5 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Parametric Compare View All

AD8652AR-REEL7 Overview

IC DUAL OP-AMP, 300 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO8, SOIC-8, Operational Amplifier

AD8652AR-REEL7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
Parts packaging codeSOIC
package instructionSOP, SOP8,.25
Contacts8
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.00001 µA
Nominal Common Mode Rejection Ratio85 dB
frequency compensationYES
Maximum input offset voltage300 µV
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
low-biasYES
low-dissonanceYES
micropowerNO
Number of functions2
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
method of packingTAPE AND REEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
powerNO
power supply2.7/5 V
Programmable powerNO
Certification statusNot Qualified
Maximum seat height1.75 mm
Nominal slew rate41 V/us
Maximum slew rate24 mA
Supply voltage upper limit5.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Nominal Uniform Gain Bandwidth50000 kHz
Minimum voltage gain100000
broadbandNO
width3.9 mm

AD8652AR-REEL7 Preview

50 MHz, Precision, Low Distortion,
Low Noise CMOS Amplifiers
Preliminary Technical Data
AD8651/AD8652
FEATURES
Single Supply Operation: 2.7 V to 5.5 V
Space-Saving MSOP and TSSOP Packaging
Bandwidth: 50 MHz @ 5 V
Offset Voltage: 100uV typ
41 V/us Slew Rate
Rail-to-Rail Input and Output Swing
Input Bias Current: 1 pA
Supply Current: 8 mA/op amp
APPLICATIONS
Optical Communications
Laser Source Drivers / Controllers
Broadband Communications
High speed ADC and DAC
Microwave link interface
Cellphone PA control
Video line driver
Audio
GENERAL DESCRIPTION

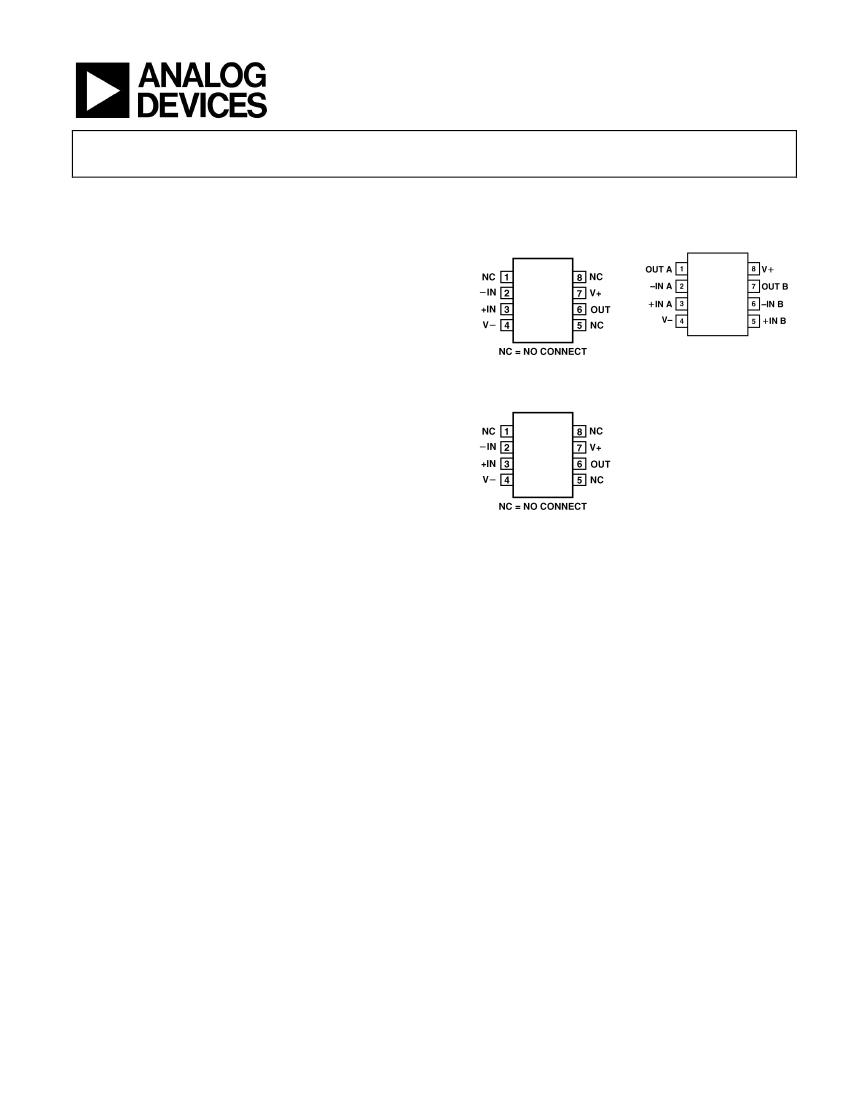

PIN CONFIGURATIONS
8-Lead MSOP
(RM-8)
8-Lead SO
(R-8)
AD8651
AD8652
8-Lead SO
(R-8)
AD8651
The AD8651 and AD8652 are high precision low noise low
Distortion Rail-to-Rail CMOS operational amplifiers
running at single supply voltage from 2.7V to 5V.
The single and dual amplifiers are both offered in the 8-
Lead SOIC package and the single is also offered in the
8- Lead MSOP package.
The AD8651/2 features high speed, high bandwidth, low
noise and high precision. They are rail-to-rail output
amplifiers with a gain bandwidth of 50 MHz and typical
voltage offset of 150uV from a 5V supply. It also features
low noise of 5nV per square root Hertz.
The AD8651/2 can be used in communication areas, such
as cell phone transmission power control, fiber optics
networking, wireless networking and video line drivers.
The AD86512 are specified over the extended industrial (-
40°C to +125C°) temperature range.
REV. PrB
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its use,
nor for any infringements of patents or other rights of third parties, which may
result from its use. No license is granted by implication or otherwise under any
patent or patent rights of Analog Devices.
One Technology Way, PO Box 9106, Norwood, MA 02062-9106, USA
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
© Analog Devices, Inc., 2003
Preliminary Technical Data
Parameter
INPUT CHARACTERISTICS
Offset Voltage
Symbol
V
OS
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Offset Voltage Drift
Input Bias Current
I
B
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Input Offset Current
I
OS
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Input Voltage Range
Common-Mode Rejection Ratio
V
CM
CMRR
V
+
= 2.7V
,
0V<V
CM
<2.7V
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
V
+
= 2.7V
,
0V<V
CM
<2.7V
Large Signal Voltage Gain
A
VO
R
L
= 10 kΩ , 50mV<Vo<2.65V
R
L
= 1 kΩ, 200mV<Vo<2.5V
OUTPUT CHARACTERISTICS
Output Voltage High
Output Voltage Low
Short Circuit Limit
100
0
75
70
70
66
85
120
125
1
4
1
Conditions
Min
Typ
100
AD8651/AD8652
Max
300
tbd
tbd
10
Units
uV
uV
uV
uV/
o
C
pA
ELECTRICAL CHARACTERISTICS
(V+=+2.7V, V-=+0V, VCM = V+/2, TA=+25°C unless otherwise specified.)
20
pA
V
+
90
V
dB
dB
dB
dB
dB
V
OH
V
OL
I
SC
I
L
= 250uA
I
L
= 250uA
Sourcing
-40°C
≤
T
A
≤
+125°C
Sinking
-40°C
≤
T
A
≤
+125°C
2.68
20
80
V
mV
mA
mA
mA
mA
mA
Output Current
Capacitive Load Drive
POWER SUPPLY
Power Supply Rejection Ratio
Supply Current/Amplifier
DYNAMIC PERFORMANCE
Slew Rate
Gain Bandwidth Product
Setting Time, 0.1%
Overload Recovery Time
Total Harmonic Distortion + Noise
NOISE PERFORMANCE
Voltage Noise Density
Current Noise Density
I
O
C
load
PSRR
I
SY
+40
See Performance Curve
V
S
= 2.7V to 5.5V, V
CM
=0V
-40°C
≤
T
A
≤
+125°C
I
O
= 0
-40°C
≤
T
A
≤
+125°C
76
75
8
10
12
41
50
0.2
0.1
0.0006
7
5.6
4
85
dB
dB
mA
mA
V/µs
MHz
uS
uS
%
nV/√Hz
nV/√Hz
fA/√Hz
SR
GBP
G=1, R
L
=10 kΩ, C
L
=100pF,
G=1, C
L
=100pF
G=±1, 2V Step
V
IN
•
G =V
+
THD+N
e
n
in
G = 1, R
L
=600
Ω,
f = 1 kHz
f = 10 kHz
f = 100 kHz
f=10 KHz
REV. PrB
–2–
Preliminary Technical Data
Parameter
INPUT CHARACTERISTICS
Offset Voltage
Symbol
V
OS
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Offset Voltage Drift
Input Bias Current
I
B
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Input Offset Current
I
OS
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
Input Voltage Range
Common-Mode Rejection Ratio
V
CM
CMRR
V
+
=5V
,
0V<V
CM
<5V
-40°C
≤
T
A
≤
+85°C
-40°C
≤
T
A
≤
+125°C
V
+
= 5V
,
0V<V
CM
<5V
Large Signal Voltage Gain
A
VO
R
L
= 10 kΩ , 50mV<Vo<4.95V
R
L
= 1 kΩ, 200mV<Vo<4.8V
OUTPUT CHARACTERISTICS
Output Voltage High
Output Voltage Low
Short Circuit Limit
100
0
75
70
70
66
85
1
4
1
Conditions
Min
AD8651/AD8652
Typ
100
Max
300
tbd
tbd
10
Units
uV
uV
uV
uV/
o
C
pA
ELECTRICAL CHARACTERISTICS
(V+=+5V, V-=+0V, VCM = V+/2, TA=+25°C unless otherwise specified.)
20
pA
V
+
90
V
dB
dB
dB
120
125
dB
dB
V
OH
V
OL
I
SC
I
L
= 250uA
I
L
= 250uA
Sourcing
-40°C
≤
T
A
≤
+125°C
Sinking
-40°C
≤
T
A
≤
+125°C
4.98
20
80
V
mV
mA
mA
mA
mA
mA
Output Current
Capacitive Load Drive
POWER SUPPLY
Power Supply Rejection Ratio
Supply Current/Amplifier
DYNAMIC PERFORMANCE
Slew Rate
Gain Bandwidth Product
Setting Time, 0.1%
Overload Recovery Time
Total Harmonic Distortion + Noise
NOISE PERFORMANCE
Voltage Noise Density
Current Noise Density
I
O
C
load
PSRR
I
SY
+40
See Performance Curve
V
S
= 2.7V to 5.5V, V
CM
=0V
-40°C
≤
T
A
≤
+125°C
I
O
= 0
-40°C
≤
T
A
≤
+125°C
76
75
8
10
12
41
50
0.2
0.1
0.0006
7
5.6
4
85
dB
dB
mA
mA
V/µs
MHz
uS
uS
%
nV/√Hz
nV/√Hz
fA/√Hz
SR
GBP
G=1, R
L
=10 kΩ, C
L
=100pF,
G=1, C
L
=100pF
G=±1, 2V Step
V
IN
•
G =V
+
THD+N
e
n
in
G = 1, R
L
=600
Ω,
f = 1 kHz
f = 10 kHz
f = 100 kHz
f=10 KHz
REV. PrB
–3–
Preliminary Technical Data
ABSOLUTE MAXIMUM RATINGS
1
Supply Voltage ...........................................................+5.5V
Input Voltage ..........................................GND to Vs + 0.3V
Differential Input Voltage
1
.........................................
±
5.5V
Output Short-Circuit Duration to Gnd ................... Indefinite
Storage Temperature Range
N, R Package...................................... -65°C to +150°C
Operating Temperature Range
.......................................................... -40°C to +125°C
Junction Temperature Range
N, R Package...................................... -65°C to +150°C
Lead Temperature Range (Soldering, 10 sec)............ +300°C
Package Type
8-Pin MSOP (RM)
8-Pin SOIC (R)
NOTES
AD8651/AD8652
θ
JA
210
158
θ
JC
45
43
Units
°C/W
°C/W
1 Absolute maximum ratings apply at 25°C, unless otherwise noted.
2
θ
is specified for the worst-case conditions, i.e.,
θ
is specified for device soldered in
JA
JA
circuit board for surface mount packages.
ORDERING GUIDE
Model
AD8651ARM-Reel
AD8651AR
AD8651AR-Reel
AD8651AR-Reel7
AD8652AR
AD8652AR-Reel
AD8652AR-Reel7
Temperature
Range
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
Package
Description
8-Pin MSOP
8-Pin SOIC
8-Pin SOIC
8-Pin SOIC
8-Pin SOIC
8-Pin SOIC
8-Pin SOIC
Package
Option
RM-8
R-8
R-8
R-8
R-8
R-8
R-8
Branding
Information
XXX
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 2000 V
readily accumulate on the human body and test equipment and can discharge without
detection. Although this device features proprietary ESD protection circuitry, permanent
damage may occur on devices subjected to high-energy electrostatic discharges.
Therefore, proper ESD precautions are recommended to avoid performance degradation or
loss of functionality.
REV. PrB
–4–
Preliminary Technical Data

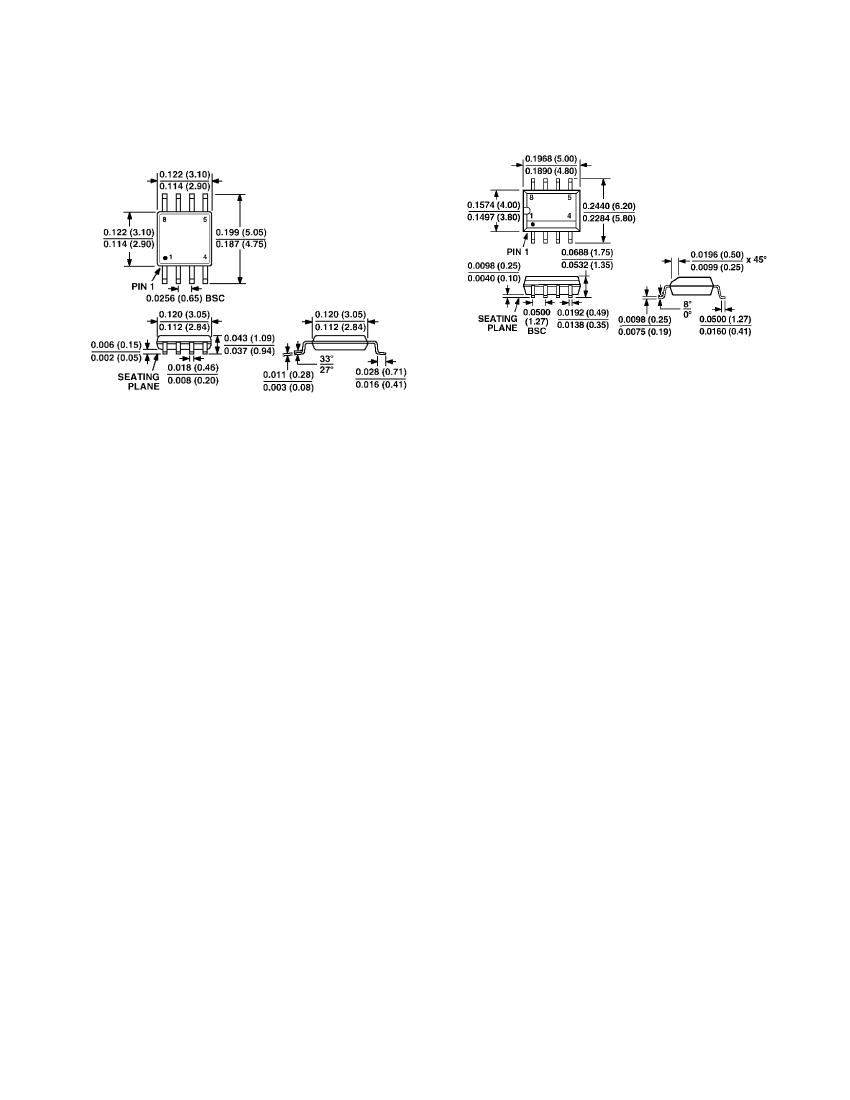

8-Lead
µSOIC
(RM-8)
AD8651/AD8652
8-Lead SO
(R-8)
REV. PrB
–5–
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AD8652AR-REEL7 Related Products

AD8652AR-REEL7 AD8652AR AD8652AR-REEL
Description IC DUAL OP-AMP, 300 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO8, SOIC-8, Operational Amplifier IC DUAL OP-AMP, 300 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO8, SOIC-8, Operational Amplifier IC DUAL OP-AMP, 300 uV OFFSET-MAX, 50 MHz BAND WIDTH, PDSO8, SOIC-8, Operational Amplifier
Is it Rohs certified? incompatible incompatible incompatible
Maker ADI ADI ADI
Parts packaging code SOIC SOIC SOIC
package instruction SOP, SOP8,.25 SOP, SOP8,.25 SOP, SOP8,.25
Contacts 8 8 8
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK
Maximum average bias current (IIB) 0.00001 µA 0.00001 µA 0.00001 µA
Nominal Common Mode Rejection Ratio 85 dB 85 dB 85 dB
frequency compensation YES YES YES
Maximum input offset voltage 300 µV 300 µV 300 µV
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8
JESD-609 code e0 e0 e0
length 4.9 mm 4.9 mm 4.9 mm
low-bias YES YES YES
low-dissonance YES YES YES
micropower NO NO NO
Number of functions 2 2 2
Number of terminals 8 8 8
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP
Encapsulate equivalent code SOP8,.25 SOP8,.25 SOP8,.25
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED 220 NOT SPECIFIED
power NO NO NO
power supply 2.7/5 V 2.7/5 V 2.7/5 V
Programmable power NO NO NO
Certification status Not Qualified Not Qualified Not Qualified
Maximum seat height 1.75 mm 1.75 mm 1.75 mm
Nominal slew rate 41 V/us 41 V/us 41 V/us
Maximum slew rate 24 mA 24 mA 24 mA
Supply voltage upper limit 5.5 V 5.5 V 5.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level AUTOMOTIVE AUTOMOTIVE AUTOMOTIVE
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED 30 NOT SPECIFIED
Nominal Uniform Gain Bandwidth 50000 kHz 50000 kHz 50000 kHz
Minimum voltage gain 100000 100000 100000
broadband NO NO NO
width 3.9 mm 3.9 mm 3.9 mm
method of packing TAPE AND REEL - TAPE AND REEL

Recommended Resources

High voltage line secondary circuit wiring diagram

Telephone automatic recording controller circuit

Low-power voltage regulator circuit diagram using μA723

Narrow pulse trigger one-way circuit

Intermittent oscillator circuit diagram

Video amplifier circuit: Video amplifier board-2

Where to start learning MCU and ARM7
The company now has two products, one is ARM7 and the other is SyncMOS sm8958A. There is also an Atmel ATF1508AS on the board. Now I am asked to take over. Where should I start? I used to do software ...
xsxusen05 ARM Technology
SimpleApp Examples
Rewrite the program using the simpleApp example. Why doesn't led3 blink when no button is pressed? The program is as followsif ( events & ZB_ENTRY_EVENT ) { uint8 startOptions; // Give indication to a...
c山水 RF/Wirelessly
Please advise: How to parse the Chinese text messages received by Wavecom CDMA Modem into real Chinese?
I have a wavecom CDMA modem and want to make a text message receiving program. When I send a text message with the content "测试." to the modem, the text message content obtained by AT+CMGR is "mK嬚0". I...
wolfliu_67 Embedded System
Baobaobao~~~After the Chinese New Year, what new developments are there in the evaluation industry? Hurry up and take a look at the Evaluation Intelligence Bureau~
Welcome the New Year, everyone has a happy New Year~ I am here to report to the admin~ I started working today~ After the New Year, what new developments are there in the evaluation industry? Let's ta...
okhxyyo Special Edition for Assessment Centres
The ADC sampling speed of MSP430G2553 is accurate to 500Hz. Please help me
I have consulted the MSP430G2553 data and the posts of experts on the Internet, but I still cannot get an ADC sampling rate of 500Hz (to be precise). Now, please help me set up the ADC to get such a s...
wgsxsm Microcontroller MCU
vs2005(c++)
ListCtrlUseDlg.obj : error LNK2005: "private: void __cdecl CListCtrlUseDlg::FillListCtrl(void)" (?FillListCtrl@CListCtrlUseDlg@@AAAXXZ) already defined in ListCtrlUse.obj1>ListCtrlUseDlg.obj : error L...
leadsky Embedded System
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 0150200955
  2. EMDS23C2H-53.125MTR
  3. OQ18709100J0G
  4. ER422XM4-12B/SQ
  5. 87146-9
  6. FFC-6T2BSM1B
  7. TRU050-GKCNA-41M2416000
  8. EPSA22BBJB-2.375MTR
  9. AME8890_08
  10. S1DT/R13
  11. P6SMB110CA
  12. C4201WR-F-2x5P-BK

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Videos 52: Pulse Train Length Measurement
  2. ST launches ST4SIM M2M GSMA-compliant eSIM chip for mass market
  3. iPhone 13 price to increase, but with greater capacity
  4. How to use a multimeter to measure the output current of a solar panel
  5. How to choose a spectrum analyzer and repair it? Fault analysis of spectrum analyzers
  6. Yangtze Memory releases PCle4.0 solid-state drive TiPro7000 with sequential read speed of 740MB/s
  7. Huawei P50 Pro early engineering machine: better photography/appearance drives people with obsessive compulsive disorder crazy
  8. Mercedes-Benz plans to independently produce next-generation electric drivetrains or build a battery plant in Germany with Farasis Energy
  9. Apple App Store China mobile game revenue rankings for December 2021 released
  10. Troubleshooting of digital designs using mixed signal oscilloscopes

Technical ResourceMore

  1. Research on single-phase non-isolated photovoltaic grid-connected inverter
  2. Research and design of a DC power conversion circuit
  3. Active clamp forward-flyback circuit written by an American expert
  4. PPT materials and experimental pictures of digital image processing
  5. Protues simulation example (8051) - H-type motor drive.rar
  6. Chapter 08 Robot Programming 36 pages 1.4M.ppt
  7. Silergy Power Solutions_DCDC Technical Exchange
  8. Infineon six-unit SIO driver IC introduction
  9. Power calculation formula
  10. Three-phase three-level LLC resonant DC converter suitable for high voltage and high power applications - Hu Gaoping

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2276  852  154  1459  1332  46  18  4  30  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
