Datasheet of 2.00 inch 5x7 Square Dot Matrix LED Display
LM20157A/B Series – 2.00 inch 5x7 Dot Matrix LED Display
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Features
53.10mm (2.00 inch) digit high
Dot size: 6x6 mm
Pitch: 7.62mm
Wide viewing angle
Range of emitted colors
I.C. compatible
Low power consumption
White dot, grey or black face
RoHS compliant
Available options
Alternative emitting luminosity:
Standard or high brightness version
Alternative emitted color
Alternative dot color
Alternative face
Both CC and CA versions are available
Cropped terminal pins
Package Dimensions
6.0(0.24 )
7 . 62 × 6= 4 5. 7 2
53 . 1( 2 . 1 2 )
7.62×4=30.48
37.8(1.51 )
COL.
ROW 1
1
2
3
4
5
8. 5
2
3
4
5
6
Ø0.60
2.54×6=15.24
Notes:
7
1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm (0.01inch) unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DS10121830
REV: A.4
CHECKED: Emily Zhou
3 8. 1 0
APPROVED: M.H. Lin
PAGE: 1/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey

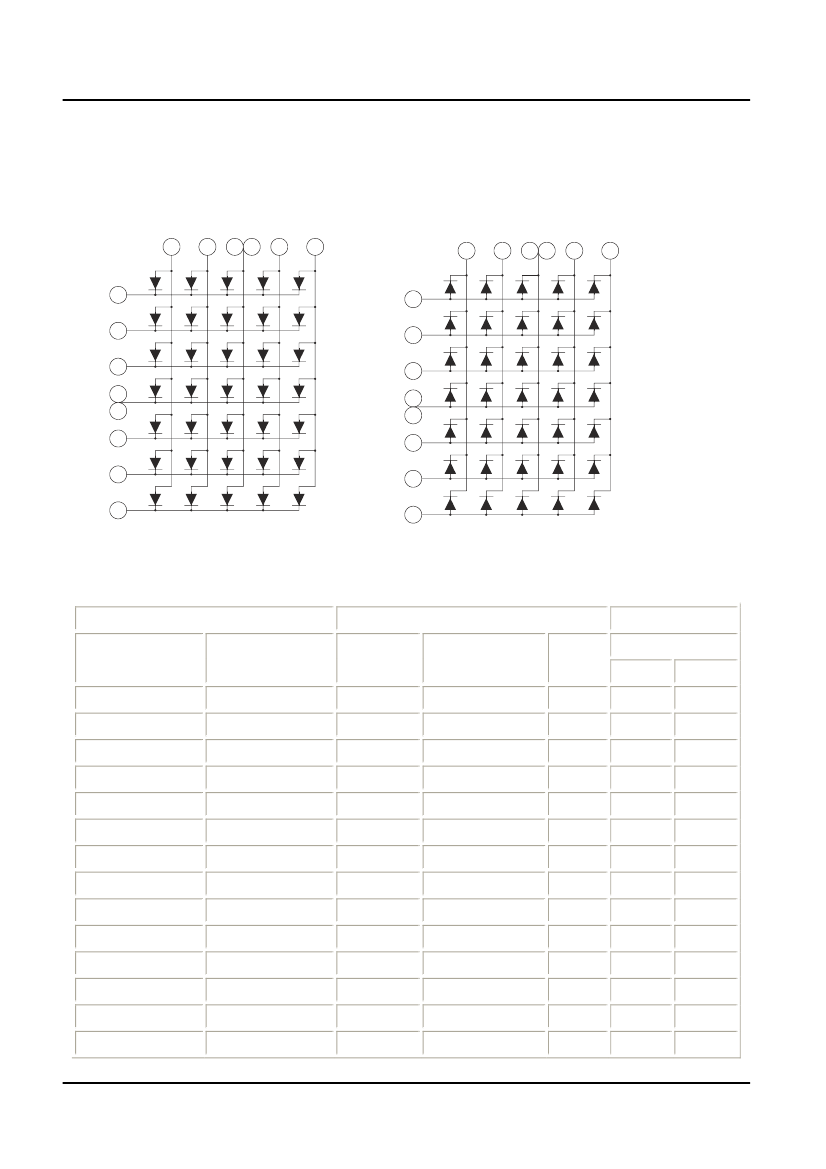

Internal Circuit Diagram
LM20157A (Common Cathode Row)
COL. 1
PIN
NO.
PIN
NO.
9
14
8
5
12
1
7
2
13
2
3
3
4 11
4
10
5
6
Datasheet of 2.00 inch 5x7 Square Dot Matrix LED Display
LM20157B (Common Anode Row)
COL.
PIN
NO.
PIN
NO.
9
14
8
5
12
1
7
2
1
13
2
3
3
4 11
4
10
5
6
ROW
1
2
3
4
5
6
7
ROW
1
2
3
4
5
6
7
Selection Guide
Part No.
Common
Cathode Row
LM20157AR
LM20157AD
LM20157AO
LM20157AY
LM20157AG
LM20157AUR
LM20157AUO
LM20157AUA
LM20157AUY
LM20157AUG
LM20157APG
LM20157AUB
LM20157AUW
Unit:
Common
Anode Row
LM20157BR
LM20157BD
LM20157BO
LM20157BY
LM20157BG
LM20157BUR
LM20157BUO
LM20157BUA
LM20157BUY
LM20157BUG
LM20157BPG
LM20157BUB
LM20157BUW
\
Material
GaAlAs
GaAlAs
GaAsP
GaAsP
GaP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
\
Chip
Color
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
\
WLD
627
627
610
588
568
627
610
605
595
573
525
470
\
nm
8
18
7
8
7
30
45
30
30
30
120
30
100
mcd
Iv@IF=20mA
One Dot
Min.
Typ.
10
25
9
10
9
45
60
45
45
45
300
45
120
mcd
SPEC NO: DS10121830
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 2/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
LightKey
Datasheet of 2.00 inch 5x7 Square Dot Matrix LED Display
Electrical Characteristics & Absolute Maximum Ratings
Electrical
Characteristics
Color
V
F
@
I
F
=20mA
[2]
Typ.
Super Red
Hi-Red
Orange
Yellow
Green
Ultra Red
Ultra Orange
Ultra Amber
Ultra Yellow
Ultra Green
Pure Green
Ultra Blue
Ultra White
Unit:
Notes:
1. At Ta = 25 °C.
2. Forward voltage at forward current = 20mA.
3. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
[1]
Absolute Maximum Ratings
[1]
DC
Forward
Current
25
25
30
30
30
30
30
30
30
30
30
30
30
mA
Peak
Forward
Current
[3]
100
100
100
100
100
100
100
100
100
100
100
100
100
mA
Reverse
Current
VR=5V
30
30
30
30
30
30
30
30
30
30
30
30
30
uA
Power
Dissipation
60
60
80
80
80
60
65
65
65
75
110
120
120
mW
Max.
2.2
2.2
2.5
2.5
2.5
2.6
2.6
2.6
2.6
2.6
4.0
4.0
4.0
V
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
Per Dot
\
1.8
1.8
2.1
2.1
2.2
1.9
2.0
2.0
2.0
2.1
3.5
3.5
3.5
V
SPEC NO: DS10121830
REV: A.4
CHECKED: Emily Zhou
APPROVED: M.H. Lin
PAGE: 3/3
HTTP://WWW.DISPLAY-LEDS.COM
TEL: 0086-574-86322282
DATE: Jul/20/2011
