PMAD7572AAN10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PMAD7572AAN10

PMAD7572AAN10: DescriptionIC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN; CategoryAnalog mixed-signal IC converter; File Size893KB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

PMAD7572AAN10 Overview

IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN

PMAD7572AAN10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
package instruction	DIP, DIP24,.3
Reach Compliance Code	unknown
Maximum analog input voltage	5 V
Converter type	A/D CONVERTER
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Maximum linear error (EL)	0.024%
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-12/-15 V
Certification status	Not Qualified
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

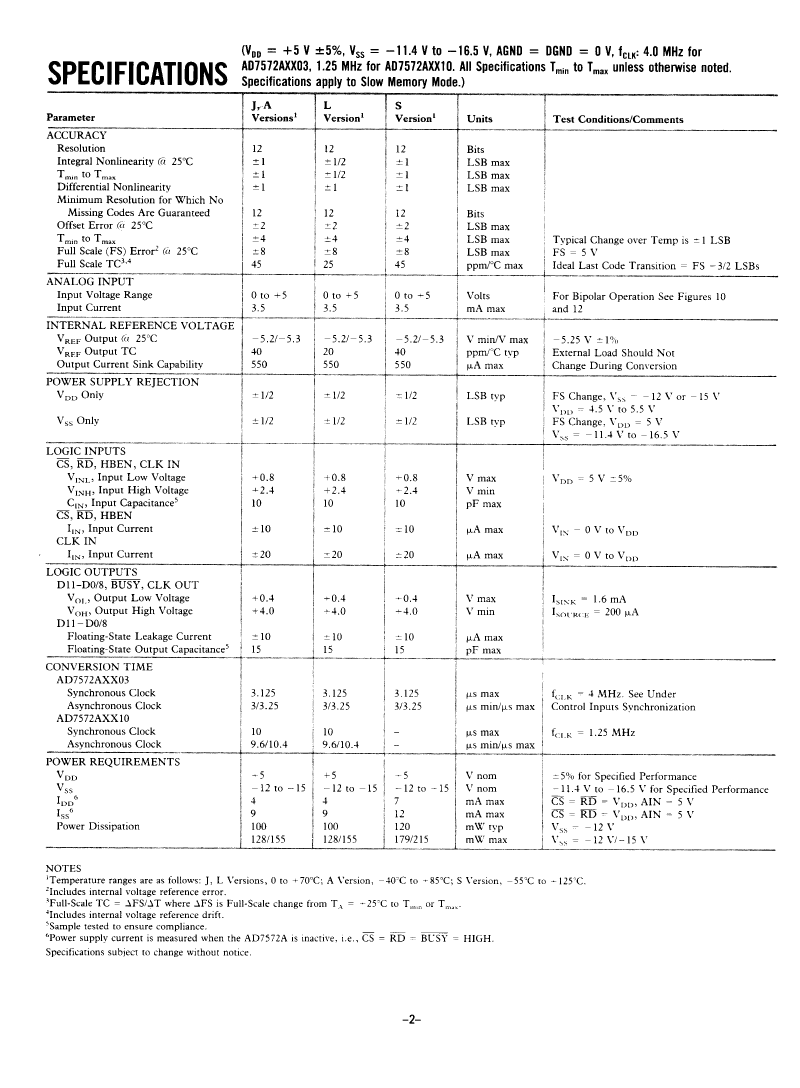

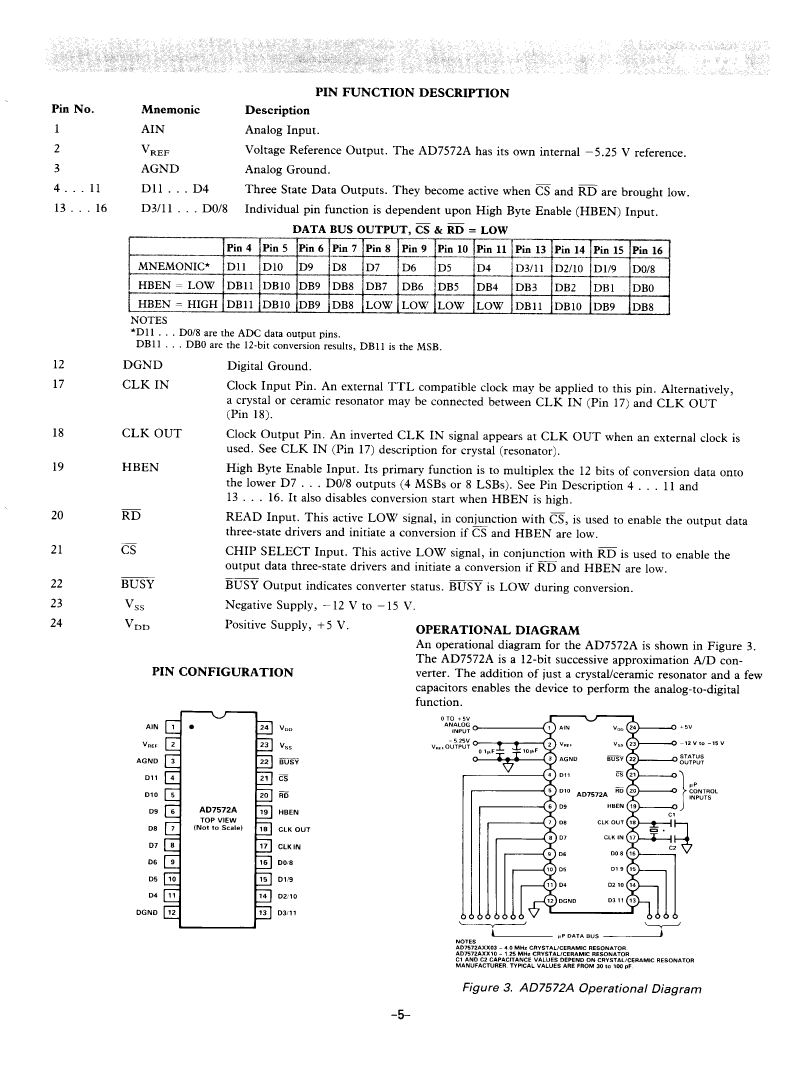

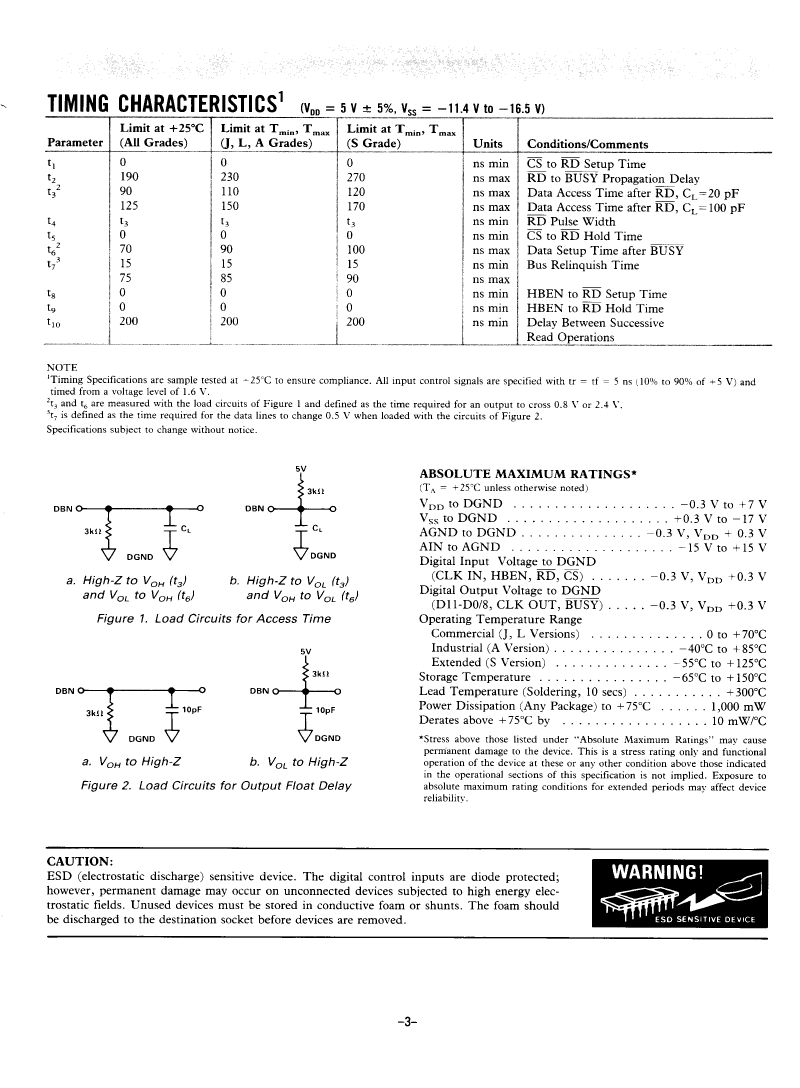

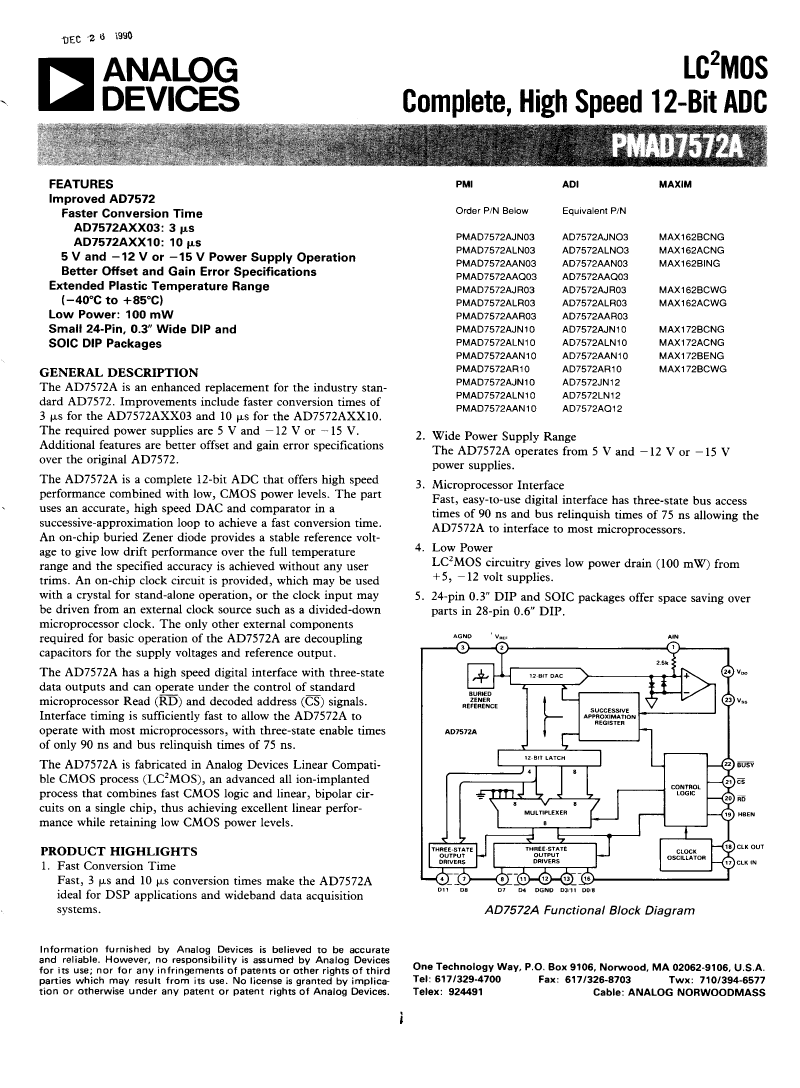

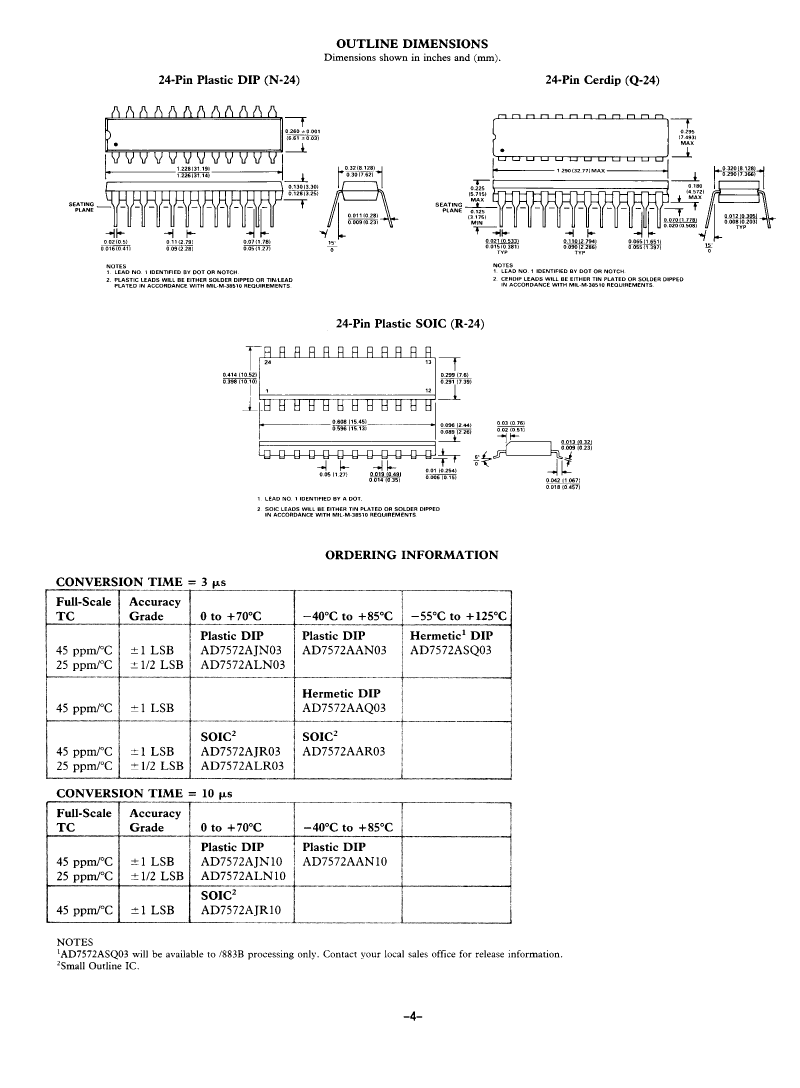

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

PMAD7572AAN10 Related Products

	PMAD7572AAN10	PMAD7572AJN10	PMAD7572AAR03	PMAD7572ALN03	PMAD7572ALN10	PMAD7572AJN03	PMAD7572AJR03	PMAD7572AAN03	PMAD7572AAQ03
Description	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,SOP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,SOP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN	IC,A/D CONVERTER,SINGLE,12-BIT,BICMOS,DIP,24PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Reach Compliance Code	unknown	not_compliant	not_compliant	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog input voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-XDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.024%	0.024%	0.024%	0.012%	0.012%	0.024%	0.024%	0.024%	0.024%
Number of digits	12	12	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	85 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	SOP	DIP	DIP	DIP	SOP	DIP	DIP
Encapsulate equivalent code	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3	DIP24,.3	SOP24,.4	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	YES	NO	NO	NO	YES	NO	NO
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP24,.3	-	-	-	-	DIP, DIP24,.3	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3
