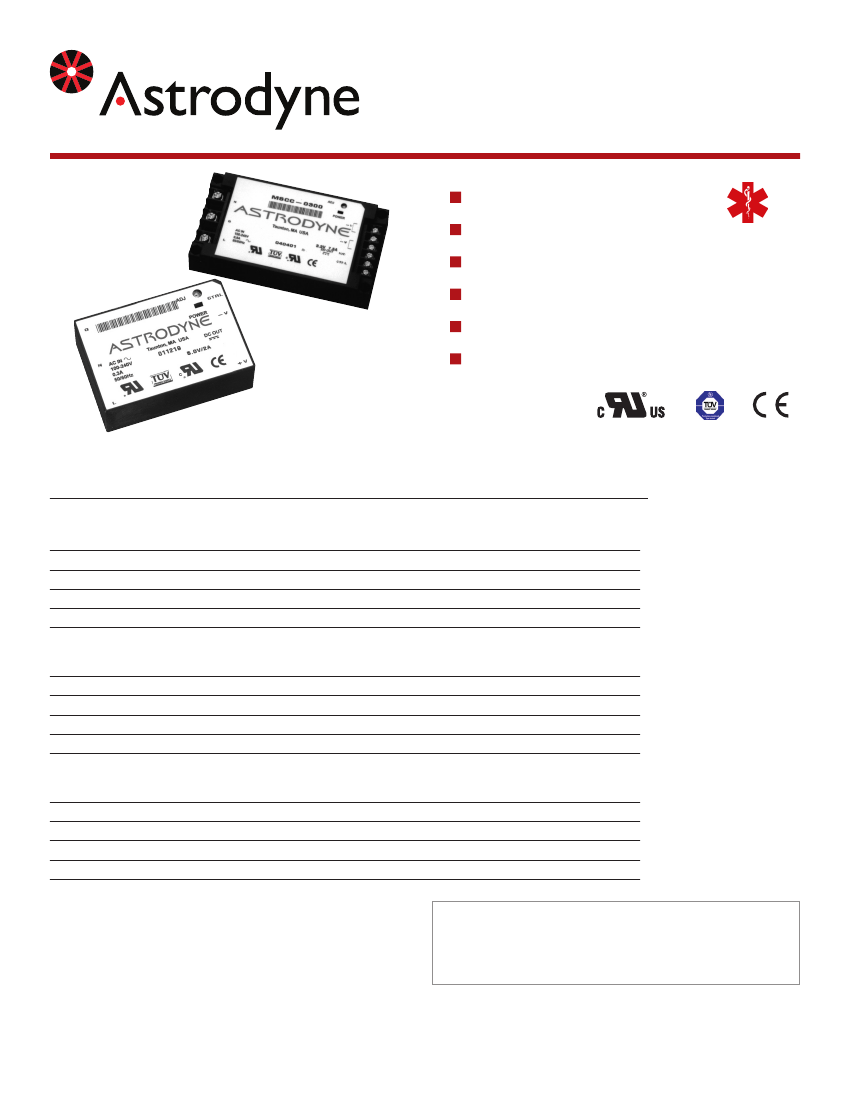

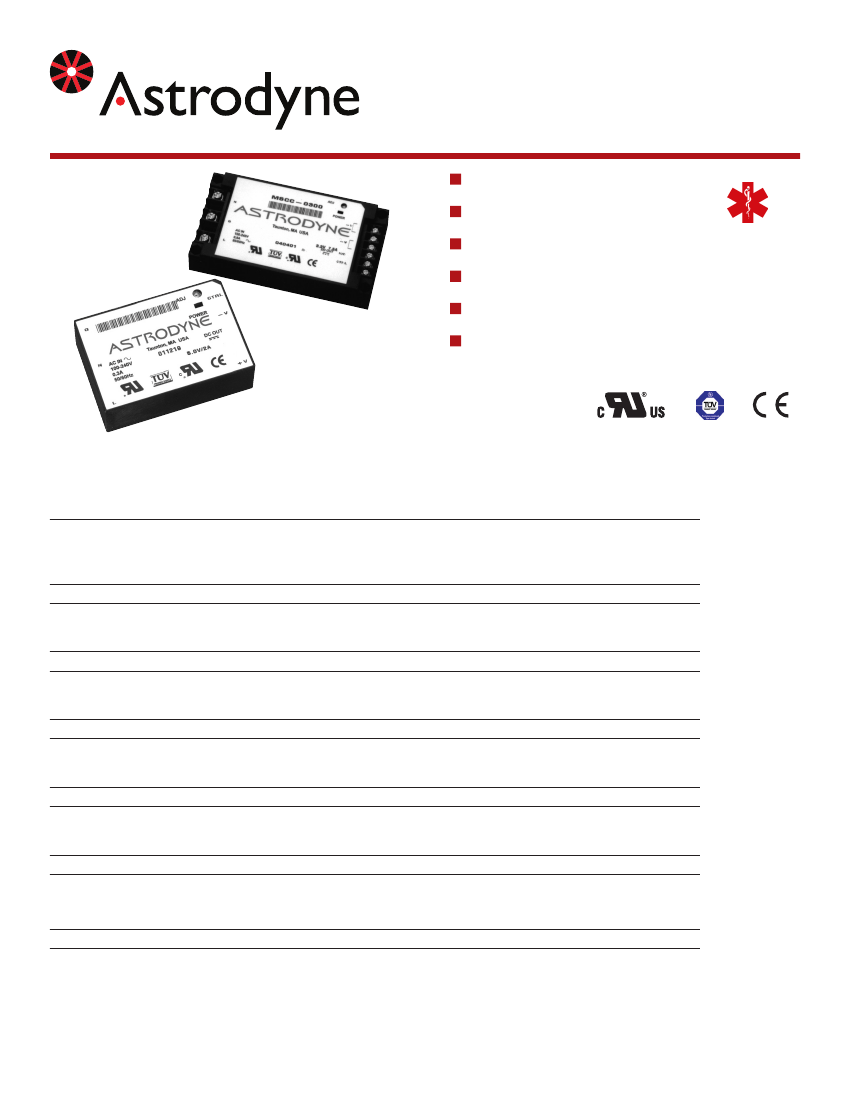

5 W M e d ic al G ra de Ultraminiatur e Switching P ower S uppl ies
MMA-5
series
Single / Dual / Triple Outputs
Universal 90 to 264VAC Input
3.3VDC to 24VDC Outputs
4,000VAC Input to Output Isolation
PCB 2.28”L x 1.77”W x 0.85”H
Chassis 3.77”L x 2.16”W x 1.0”H
PCB and Chassis Mount Packages
Full Safety Approvals
Model
Number
Output
Voltage
Output
Amps
1.25
1
0.42
0.33
0.23
1.25
1
0.42
0.33
0.23
1.25
1
0.42
0.33
0.23
Output
Watts
4W
5W
5W
5W
5W
4W
5W
5W
5W
5W
4W
5W
5W
5W
5W
Ripple & Noise Line/Load
max.
(Note 2)
Reg. max.
(Note 3)
100mV pk-pk
75mV pk-pk
50mV pk-pk
50mV pk-pk
50mV pk-pk
100mV pk-pk
75mV pk-pk
50mV pk-pk
50mV pk-pk
50mV pk-pk
100mV pk-pk
75mV pk-pk
50mV pk-pk
50mV pk-pk
50mV pk-pk
1% / 2%
1% / 1%
1% / 1%
0.5% / .05%
0.5% / .05%
1% / 2%
1% / 1%
1% / 1%
0.5% / .05%
0.5% / .05%
1% / 2%
1% / 1%
1% / 1%
0.5% / .05%
0.5% / .05%
Fully Approved
UL/CSA22.2 2601 File# E167432
EN60601-1 File# B021022749042
Efficiency
62% nom.
71% nom.
71% nom.
71% nom.
72% nom.
62% nom.
71% nom.
71% nom.
71% nom.
72% nom.
62% nom.
71% nom.
71% nom.
71% nom.
72% nom.
SINGLE OUTPUT - PCB Mount
MSMA-5000
3.3 VDC
MSMA-5001
5 VDC
MSMA-5002
12 VDC
MSMA-5003
15 VDC
MSMA-5005
24 VDC
SINGLE OUTPUT - Chassis Mount
MSMC-5000
3.3 VDC
MSMC-5001
5 VDC
MSMC-5002
12 VDC
MSMC-5003
15 VDC
MSMC-5005
24 VDC
SINGLE OUTPUT - DIN Rail Mount
MSMC-5000/DRL 3.3 VDC
MSMC-5001/DRL 5 VDC
MSMC-5002/DRL 12 VDC
MSMC-5003/DRL 15 VDC
MSMC-5005/DRL 24 VDC
All specifications are typical at nominal input, full load, and 25DegC unless
otherwise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
These Astrodyne products are not authorized or warranteed for use
as critical components in life support systems, equipment used
in hazardous environments, nuclear controls systems, or other
mission-critical applications.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
5 W M e d ic al G ra de Ultraminiatur e Switching P ower S uppl ies
MMA-5
series
Single / Dual / Triple Outputs
Universal 90 to 264VAC Input
3.3VDC to 24VDC Outputs
4,000VAC Input to Output Isolation
PCB 2.28”L x 1.77”W x 0.85”H
Chassis 3.77”L x 2.16”W x 1.0”H
PCB and Chassis Mount Packages
Full Safety Approvals
Fully Approved
UL/CSA22.2 2601 File# E167432
EN60601-1 File# B021022749042
Model
Number
Output
Voltage
Output
Amps
Output
Watts
Ripple & Noise Line/Load
max.
(Note 2)
Reg. max.
(Note 3)
Efficiency
DUAL OUTPUT - PCB Mount
MDMA-5006
±12 VDC
MDMA-5007
±15 VDC
DUAL OUTPUT - Chassis Mount
MDMC-5006
±12 VDC
MDMC-5007
±15 VDC
DUAL OUTPUT - DIN Rail Mount
MDMC-5006/DRL ±12 VDC
MDMC-5007/DRL ±15 VDC
TRIPLE OUTPUT - PCB Mount
MTMA-5009
+5,±12 VDC
MTMA-5011
+5,±15 VDC
±0.21
±0.18
±0.21
±0.18
±0.21
±0.18
5W
5W
5W
5W
5W
5W
100mV pk-pk
100mV pk-pk
100mV pk-pk
100mV pk-pk
100mV pk-pk
100mV pk-pk
50, ±75mV pk-pk
50, ±75mV pk-pk
50, ±75mV pk-pk
50, ±75mV pk-pk
2% / 0.5%
2% / 0.5%
2% / 0.5%
2% / 0.5%
2% / 0.5%
2% / 0.5%
0.6%, ±0.2 / 0.5%
0.6%, ±0.2 / 0.5%
0.6%, ±0.2 / 0.5%
0.6%, ±0.2 / 0.5%
66% nom.
67% nom.
66% nom.
67% nom.
66% nom.
67% nom.
63% nom.
61% nom.
63% nom.
61% nom.
0.6, ±0.1 5W
0.45, ±0.1 5W
TRIPLE OUTPUT - Chassis Mount
MTMC-5009
+5,±12 VDC 0.6, ±0.1 5W
MTMC-5011
+5,±15 VDC 0.45, ±0.1 5W
TRIPLE OUTPUT - DIN Rail Mount
MTMC-5009/DRL +5,±12 VDC 0.6, ±0.1 5W
MTMC-5011/DRL +5,±15 VDC 0.45, ±0.1 5W
50, ±75mV pk-pk
50, ±75mV pk-pk
0.6%, ±0.2 / 0.5%
0.6%, ±0.2 / 0.5%
63% nom.
61% nom.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
5 W M e d ic al G ra de Ultraminiatur e Switching P ower S uppl ies
INPUT SPECIFICATIONS
Input Voltage, Nominal
Input Frequency
Input Current (LL/HL)
Inrush Current (Note 1)
Leakage Current
90-264VAC
Nominal: 100-240VAC
47-440 Hz, 50-60Hz Nom.
0.2A / 0.1A
20A @ 100VAC, typ
40A @ 200VAC, typ
<3.5mA at 265Vin, 50Hz
MMA-5
series
ENVIRONMENTAL SPECIFICATIONS
0 to +50°C FL See Derate
*
(Free-air Convection)
Relative Humidity (Note 5)
0-95%, Non-Condensing
Storage Temperature
-25 to +71°C
*
MTBF, Single/Multi O/P (Note 9) 180,000 / 110,000 Hrs
Vibration (Note 10)
2G Peak, 10~500Hz, 3 Axes
Drop Test
70 cm
EMS
ESD:
EN61000-4-2, 6kV Contact, 8kV Air
RS: (Note 7)
EN61000-4-3
EFT:
EN61000-4-4, 2kV on AC Line
Surge:
EN61000-4-5, 1kV L-N
CS:
EN61000-4-6, 3V EMF
Dips: (Note 8)
EN61000-4-11
EMI
CISPR EN55011 class B
Oper. Temperature
OUTPUT SPECIFICATIONS
Output Voltage/Current
Preset Accuracy
Single & Dual O/P:
Triple O/P: (5, ±O/P)
Voltage Adjust
Load/Line Regulation (Note 3)
Cross Regulation (Note 11)
Single & Dual O/P:
Triple O/P: (5, ±O/P)
Temperature Coefficient
Ripple/Noise (Note 2)
Over Voltage Protection
Turn On Delay Time
Hold Up Time
Single O/P:
Multi O/P:
Rise Time
Over-Shoot/Under-Shoot
Short Circuit Protection
See Model Selection Chart
±1% nom.
±1%, ±5% nom.
±6%, typ
See Model Selection Chart
3% max.
N/A, ±0.5% max.
±0.03%/°C
See Model Selection Chart
Clamp*
<1S
30mS, typ
20mS, typ
<20mS
<10% nominal O/P voltage
Continuous, self-recovering
*
PHYSICAL SPECIFICATIONS
Case Material
Construction
Weight PCB / CHA
Rynite, 94V-0 Rated
Encapsulated, Soft Pot
4 oz (113g) / 8.5 oz (241g)
GENERAL SPECIFICATIONS
On/Off Control (Note 4)
Input-Output Isolation
Insulation Resistance (Note 6)
Operating Frequency
Efficiency
Safety (c)UL:
TUV:
CE:
CB:
Open Collector Logic “1”/Open=ON
Logic “0”/GND=OFF
4000VAC, 60S
≥ 20M Ω
140 Khz, fixed
See Model Selection Chart
UL 60601-1
EN 60601-1
EN 60601-1-2
IEC 60601-1
Notes:
1. Cold Start and 25°C
2. Test by dc loading side parallel with a 0.1uF ceramic capacitor and
measured band-width with DC-20MHz.
3. Regulation includes line, cross temperature drift, tolerance variation
Load regulation measured from 20% to Full load. All other outputs
at nominal load.
4. No termination necessary with Control pin to maintain constant ”On”
operation.
5. Operating or Storage
6. 500Vdc, 1 Sec between primary to secondary
7. FR: 80MHz-2.5GHz; Field Strength 3V/M
8. 95% 250Cy , 70% 25Cy, 40% 5Cy, 5% 0.5Cy
9. MIL STD 217, 25°C
10. Tested with shippinjg container for 30 minutes
11. Measured at nominal load with the other output(s) varied between
20% and 100% nominal load.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
5 W M e d ic al G ra de Ultraminiatur e Switching P ower S uppl ies

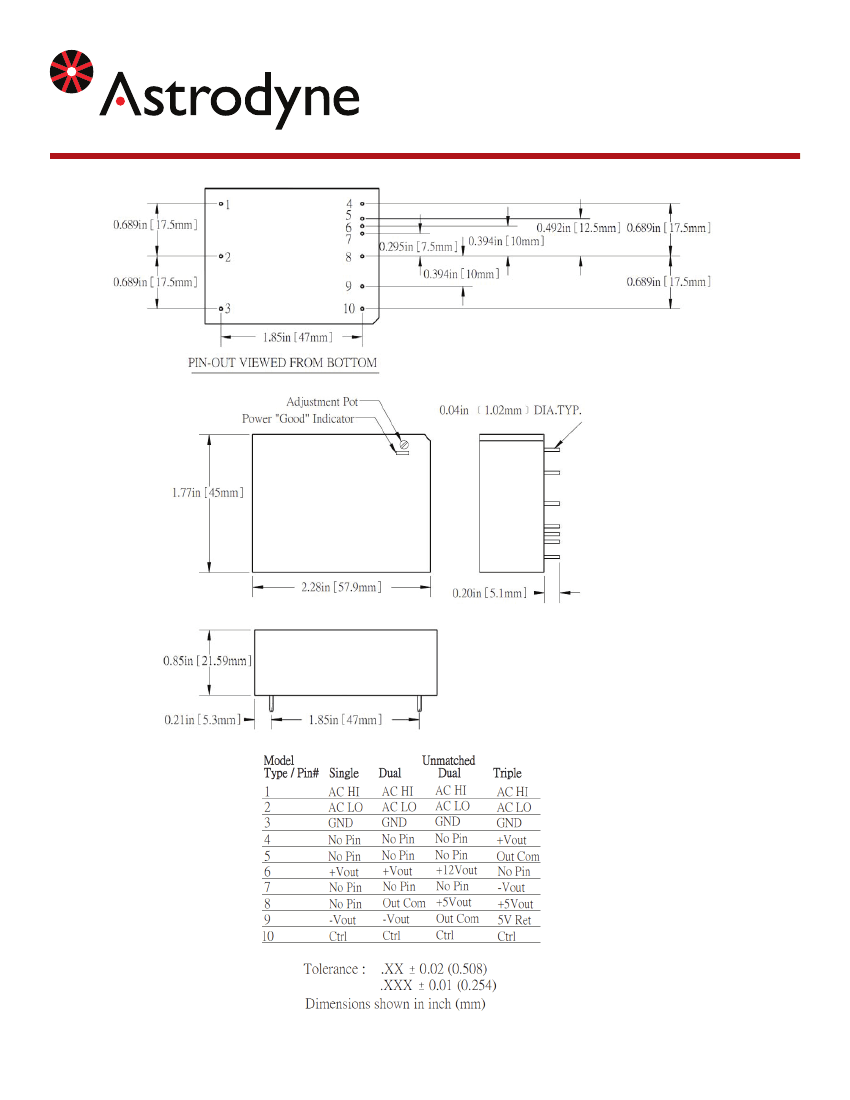

MECHANICAL DIMENSIONS - PCB MOUNT
MMA-5
series
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458

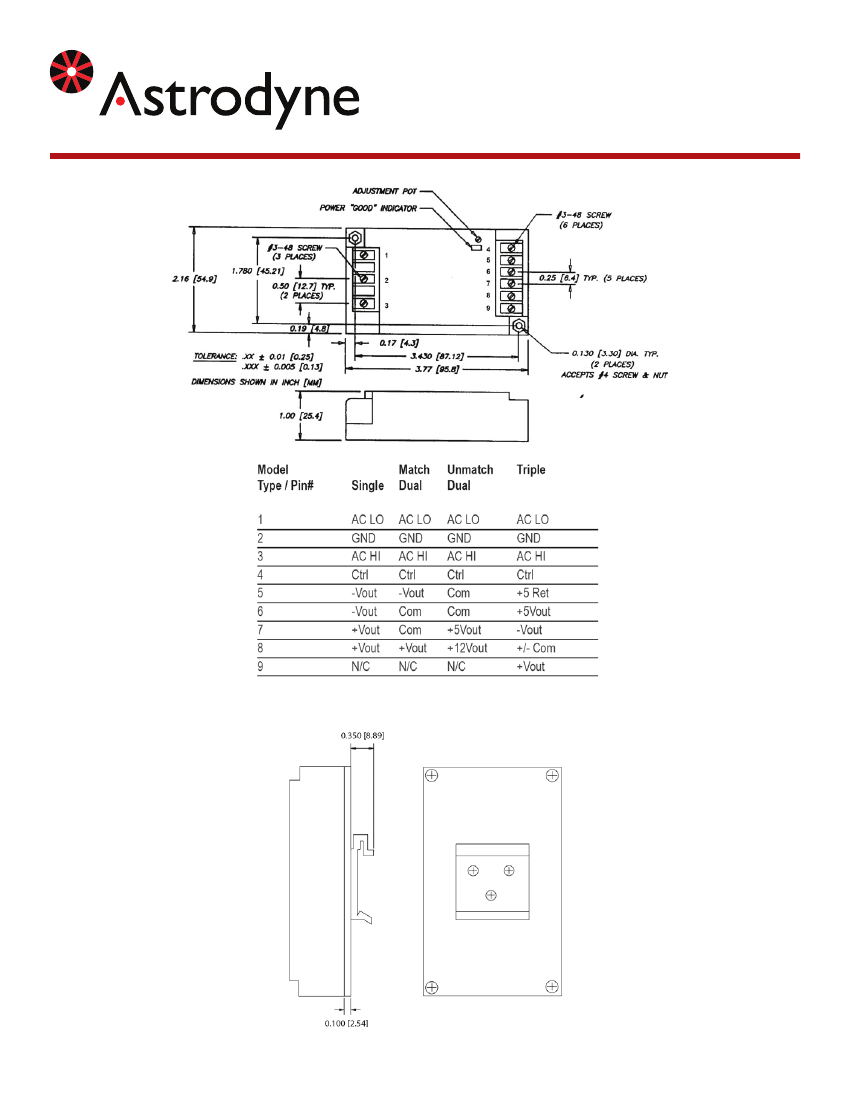

5 W M e d ic al G ra de Ultraminiatur e Switching P ower S uppl ies
MECHANICAL DIMENSIONS - CHASSIS MOUNT
MMA-5
series
MECHANICAL DIMENSIONS - DIN RAIL
DIN Rail mounting kit available for Chassis-mount modules, specify part #
M-DRL-01. Kit includes mounting plate, DIN Rail cliip and assembly hardware.
WWW.ASTRODYNE.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
