AZ165-4C-240A1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ165-4C-240A1

AZ165-4C-240A1: DescriptionPower/Signal Relay, 4 Form C, 4PDT, 5A (Contact), 30VDC (Contact), AC Input, AC/DC Output; CategoryMechanical and electronic products relay; File Size462KB，3 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ165-4C-240A1 Overview

Power/Signal Relay, 4 Form C, 4PDT, 5A (Contact), 30VDC (Contact), AC Input, AC/DC Output

AZ165-4C-240A1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
body width	21.5 mm
body height	35 mm
Body length or diameter	28 mm
Coil operating voltage (AC)	192 V
Coil resistance	22000 Ω
Maximum coil voltage (AC)	288 V
Nominal coil voltage	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated power R load	1250VA@250VAC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated power R load	150W@30VDC
Contact (DC) maximum rated R load	5A@30VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Ag-Ce
Insulation resistance	100000000 Ω
Number of terminals	14
operating hours	25 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-55 °C
physical size	28mm x 21.5mm x 35mm
Guideline	UL; TUV
Relay style	4 FORM C
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
release time	25 ms
Terminal length	0.0053 inch
Termination type	QUICK CONNECT
weight	37 g

Preview

Download Datasheet

View All

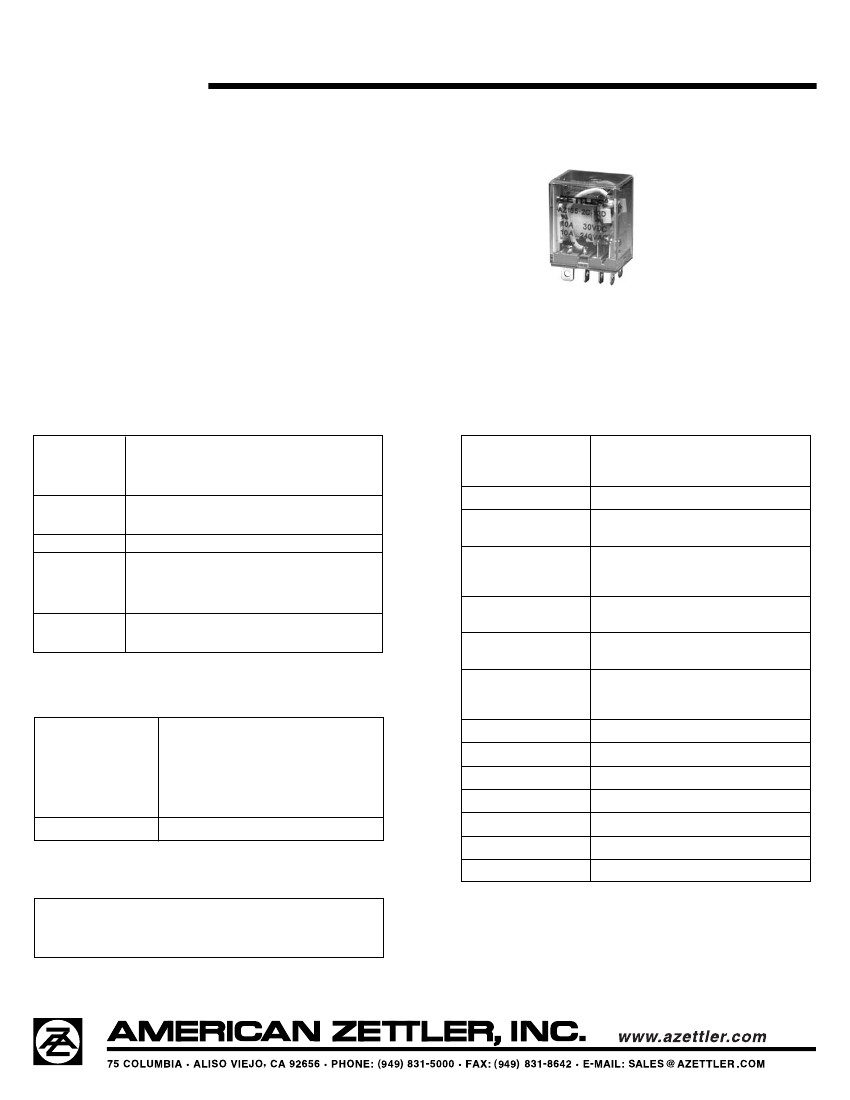

AZ165

MINIATURE

POWER RELAY

FEATURES

•

Plug in/Solder terminals

SPDT through 4PDT arrangement

High switching capacity

AC and DC coils

Push To Test lever available on some models

CE marked

UL, CUR file E43203

TÜV pending

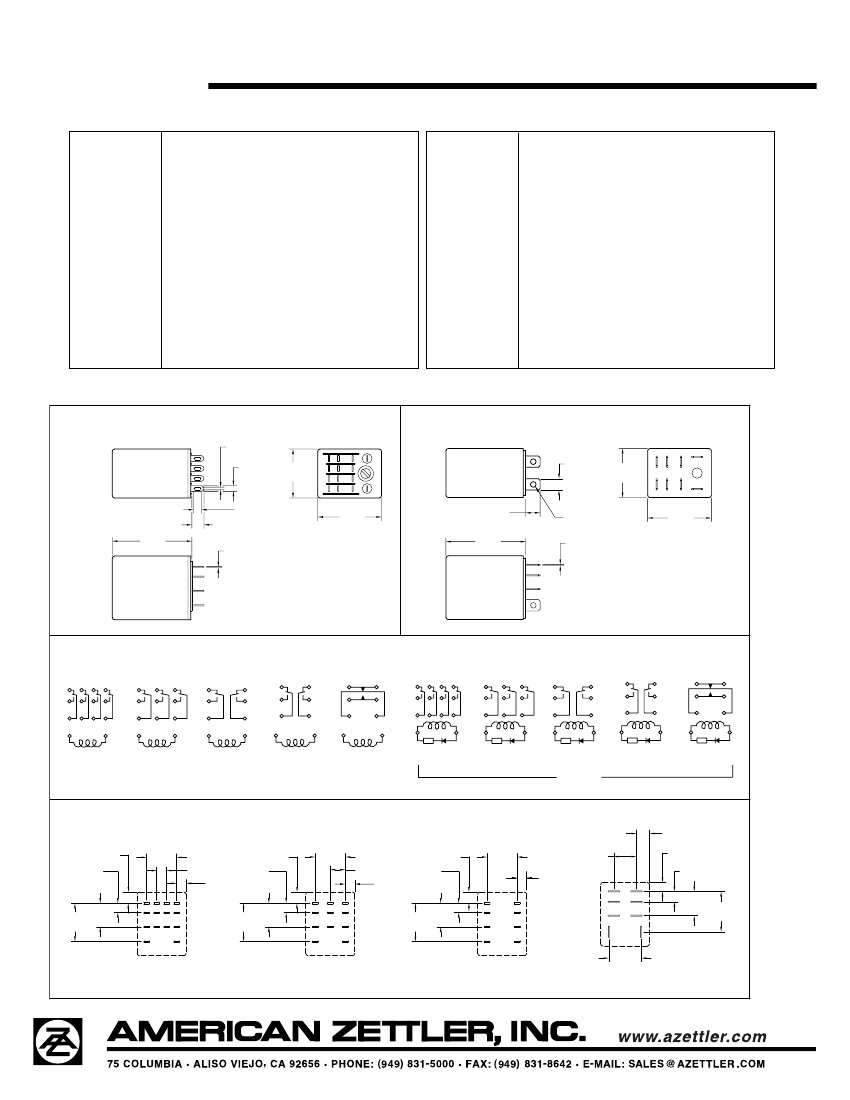

CONTACTS

Arrangement

SPDT (1 Form C)

DPDT (2 Form C)

3PDT (3 Form C)

4PDT (4 Form C)

See chart on page 2

5 VDC, 0.1A

-1CT contact

-2C and 2CT contact

-3C contact

-4C contact

Silver

cadmium oxide

cerium

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time

Release Time

Minimum operations

2 x 10

operations

See UL/CUR ratings on page 2

25 msec max. at nominal coil voltage

25 msec at nominal coil voltage

(without suppression)

Ratings

UL, CUR

Minimum Load

Material

Dielectric Strength

1500 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms contact to contact

1000 Vrms between contact sets

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

100 megohms min. at 500 VDC,

20°C, 50% RH

DC: > 10% of nominal coil voltage

AC: > 30% of nominal coil voltage

-55°C (-67°F) to 70°C (158°F)

-55°C (-67°F) to 105°C (221°F)

0.062" DA at 10–55 Hz

20 g

Polycarbonate

250°C (482°F)

5 seconds

37 grams

Resistance

< 50 milliohms initially

(24 V, 1 A voltage drop method)

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature

DC: 576 mW, 6 to 48 VDC

704 mW, 110 VDC

AC: .768 VA

DC: 1.2 W (110 V : 1.5 W) at 20°C (68°F)

AC: 1.7 VA at 20°C (68°F)

105°C (221°F)

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

11/18/13
