AZ900-2C-48D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ900-2C-48D

AZ900-2C-48D: DescriptionPower/Signal Relay, 2 Form C, DPDT, 62.6VDC (Coil), 30A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size355KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ900-2C-48D Overview

Power/Signal Relay, 2 Form C, DPDT, 62.6VDC (Coil), 30A (Contact), 28VDC (Contact), DC Input, Random, AC/DC Output

AZ900-2C-48D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	compliant
body width	63.5 mm
body height	60.45 mm
Body length or diameter	84.33 mm
Coil operating voltage (DC)	36 V
Coil resistance	1150 Ω
Maximum coil voltage (DC)	62.6 V
Nominal coil voltage	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	12000VA@600VAC
Contact (AC) maximum rated R load	30A@600VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated power R load	840W@28VDC
Contact (DC) maximum rated R load	30A@28VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	600 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	2200 Vrms
Dielectric strength between breaking contacts	2200 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
operating hours	30 ms
Maximum operating temperature	115 °C
Minimum operating temperature	-45 °C
physical size	84.33mm x 63.5mm x 60.45mm
Guideline	UL
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	30 ms
weight	227 g

Preview

Download Datasheet

View All

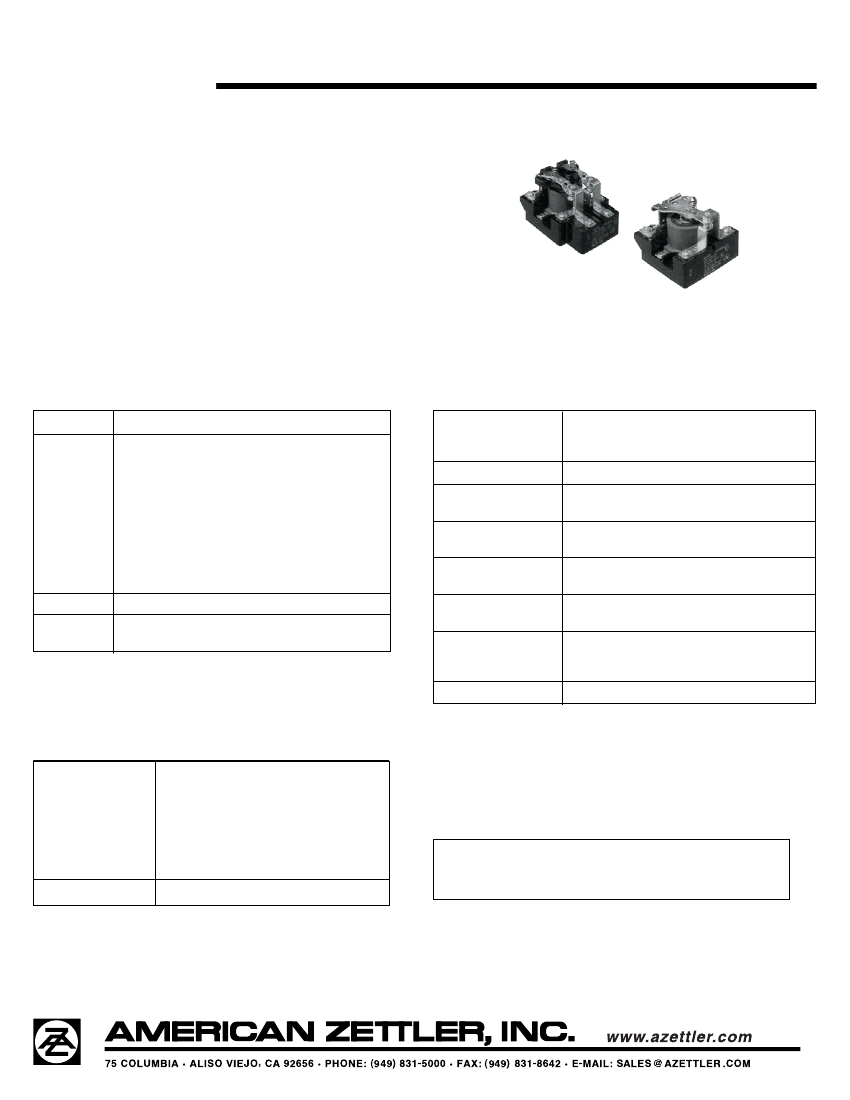

AZ900

30 AMP HEAVY DUTY

POWER RELAY

FEATURES

•

1 Form C contacts, 2 Form C contacts

AC and DC coils available

UL Class F (155°C) molded construction

UL, CUL file E44211

CONTACTS

Arrangement

Ratings

SPDT (1 Form C) DPDT (2 Form C)

Resistive load:

Max. switched power: 840 W or 12000 VA

Max. switched current: 30 A

Max. switched voltage: 600 VAC, 28 VDC

30 A at 240 VAC

1.5 HP at 120 VAC

2.0 HP at 240 VAC

3600 VA at 120 VAC / 240 VAC ballast

30 A at 240 VAC Res., 100k cycles

20 A at 600 VAC

30 A at 28 VDC

Silver cadmium oxide

< 50 milliohms initially

(24 V, 1 A voltage drop method)

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Dielectric Strength

(at sea level for 1 min.)

Minimum operations

1 x 10

at 30 A 240 VAC Res.

30 msec at nominal coil voltage

(without suppression)

2200 Vrms contact to contact

2200 Vrms contact to coil

100 megohms min. at 20°C, 500 VDC

50% RH

DC: > 10% of nominal coil voltage

AC: > 20% of nominal coil voltage

-45°C (-49°F) to 80°C (176°F) AC coil, 30A

-45°C (-49°F) to 115°C (239°F) DC coil, 30A

227 grams

UL, CUR

Insulation Resistance

Dropout

Ambient Temperature

Operating

Weight

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Max. Temperature

DC: 1.12 mW

AC: 6.9 VA

DC: 3.3 W at 20°C

AC: 12.5 VA at 20°C

70°C at nominal coil voltage (AC)

35°C at nominal coil voltage (DC)

155°C (311°F)

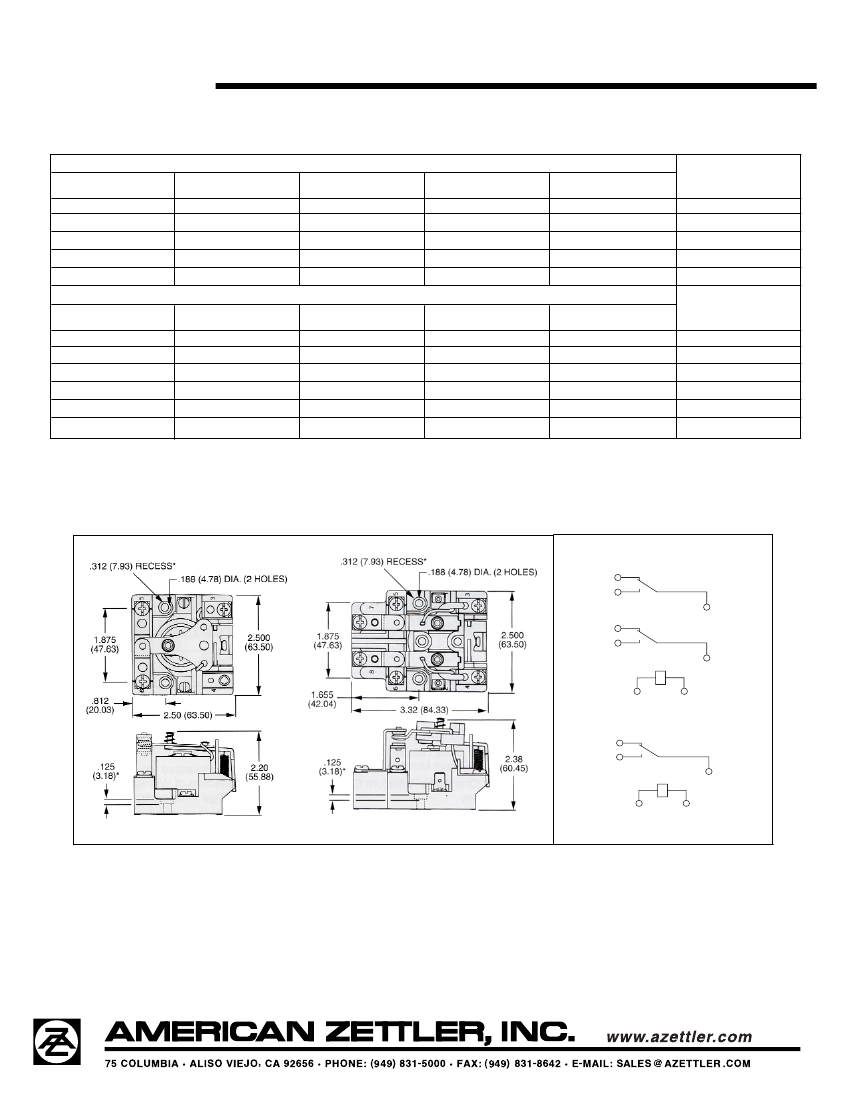

NOTES

1. All values at 25°C (77°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

9/12/05
