Part Number

Search

29F52PCQR

Description
Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP24, PLASTIC, DIP-24
Categorylogic    logic
File Size81KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

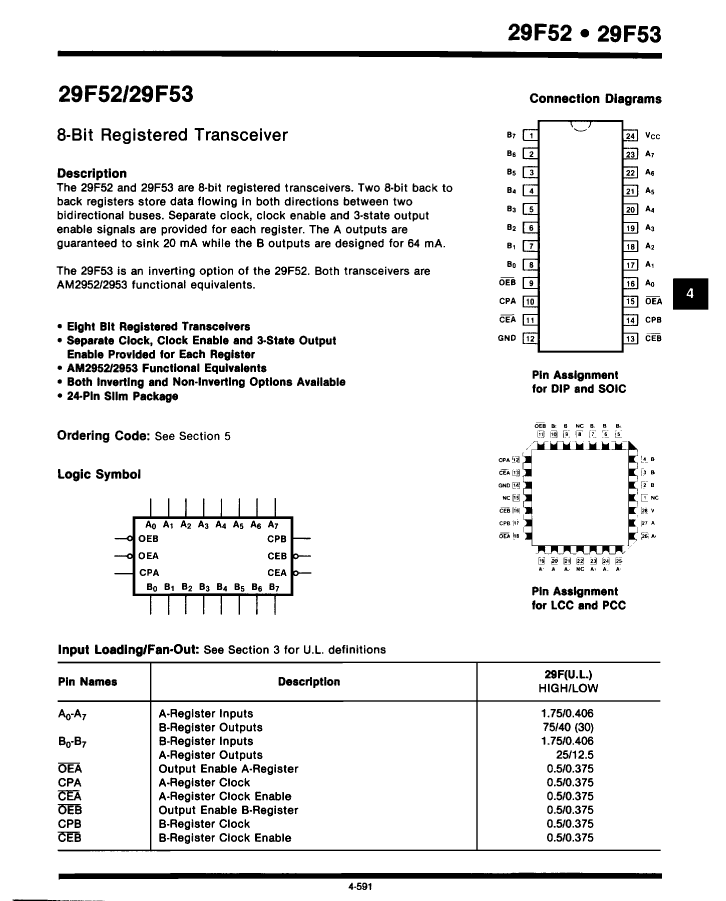

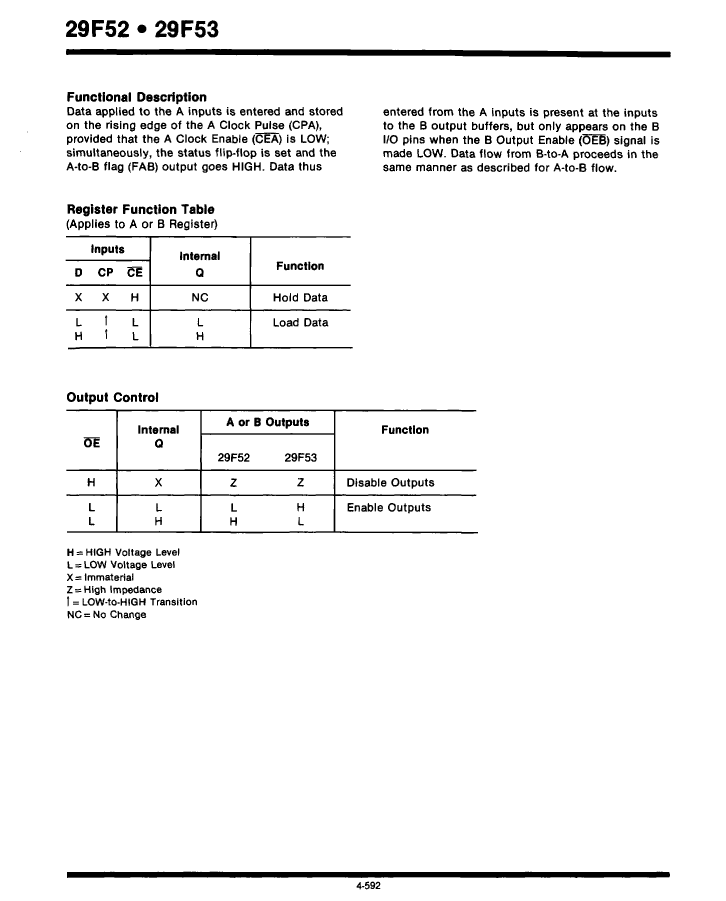

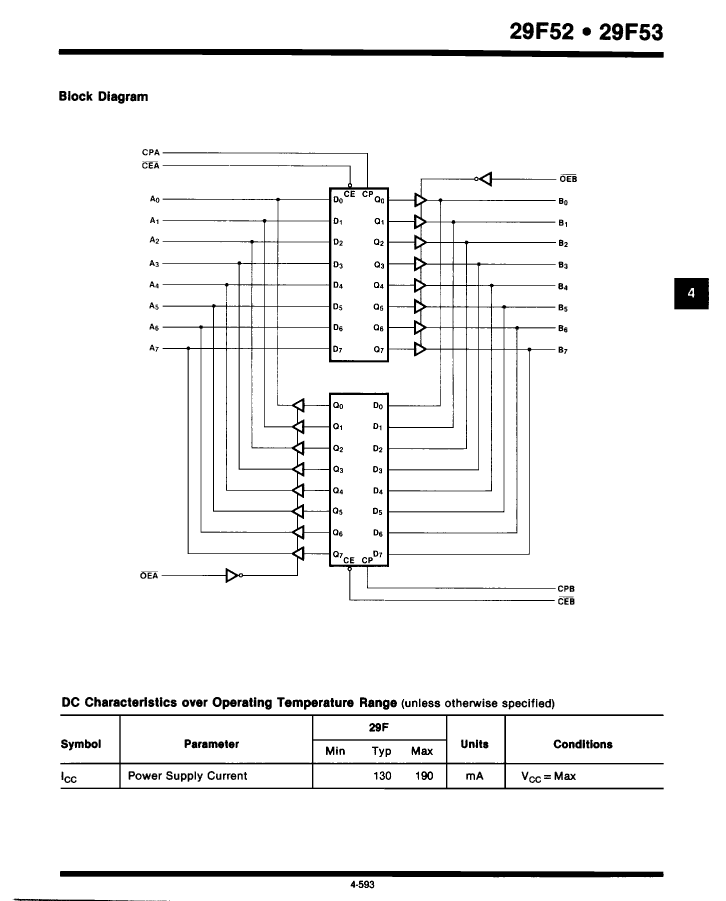

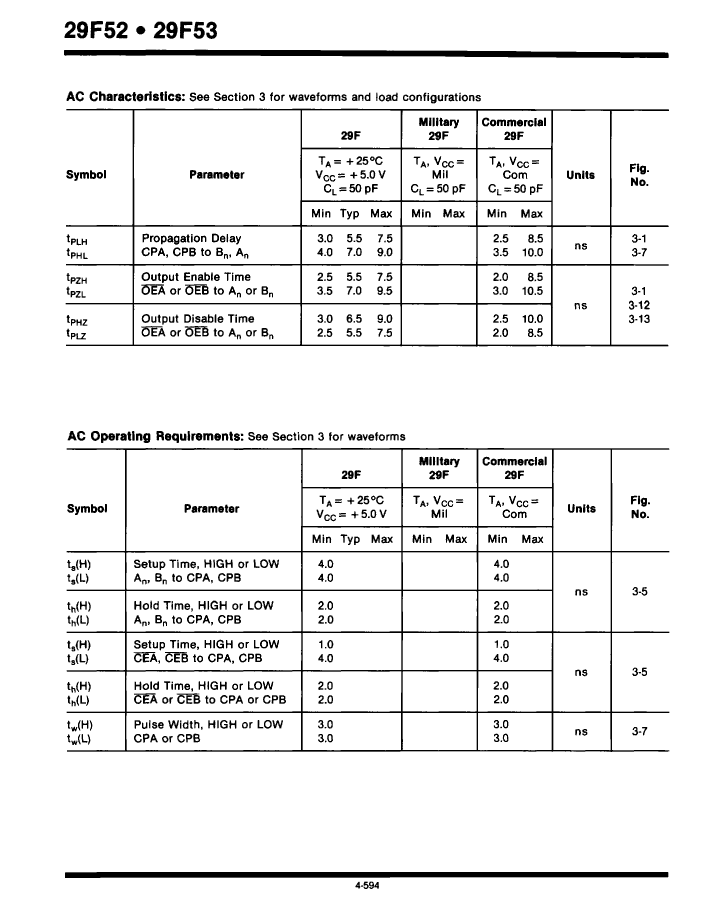

29F52PCQR Overview

Registered Bus Transceiver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, PDIP24, PLASTIC, DIP-24

29F52PCQR Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts24
Reach Compliance Codeunknow
Other featuresWITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
seriesF/FAST
JESD-30 codeR-PDIP-T24
length31.75 mm
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals24
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristics3-STATE
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)10 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
width15.24 mm
Base Number Matches1
