AQ115A201KATWE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> AQ115A201KATWE

AQ115A201KATWE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.0002uF, Surface Mount, 0606, CHIP; CategoryPassive components capacitor; File Size242KB，5 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

AQ115A201KATWE Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.0002uF, Surface Mount, 0606, CHIP

AQ115A201KATWE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 0606
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0002 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.508 mm
JESD-609 code	e3
length	1.4 mm
Manufacturer's serial number	AQ
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	WAFFLE PACK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-55681
series	AQ11/12 (5,A)
size code	0606
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
width	1.4 mm

Preview

Download Datasheet

View All

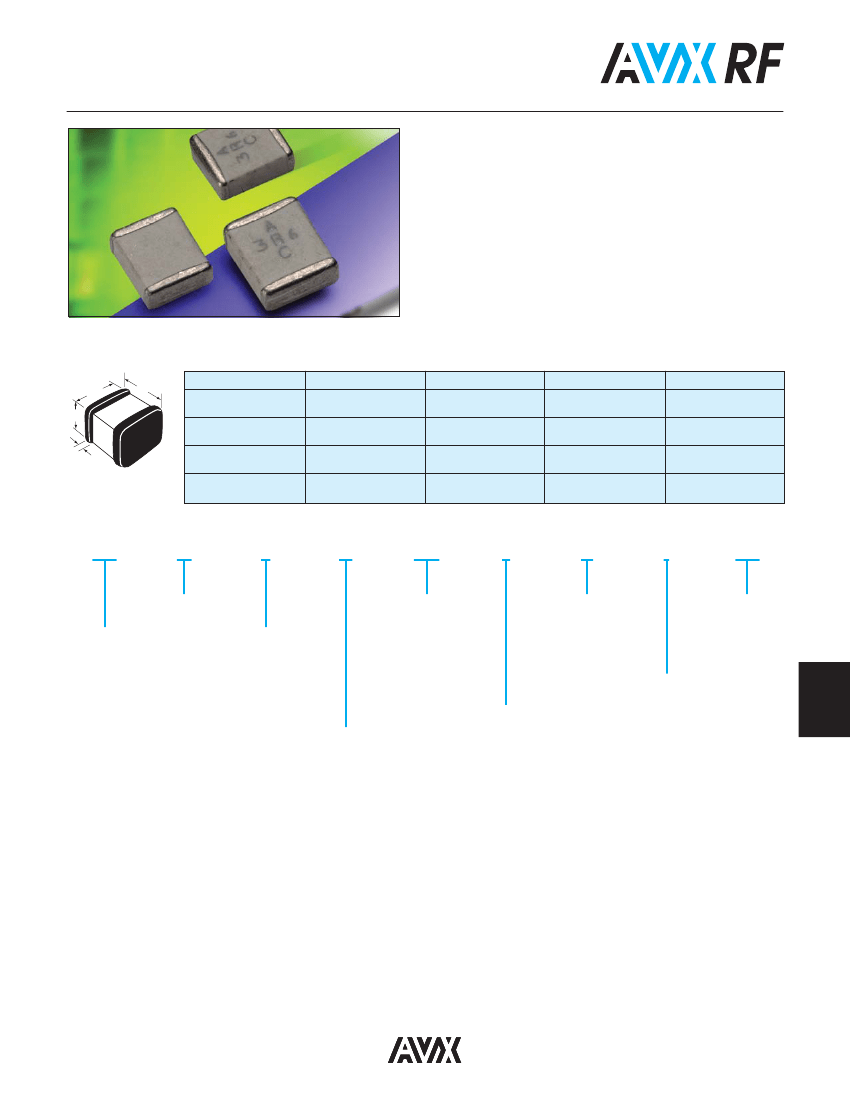

Microwave MLC’s

AQ Series

These porcelain and ceramic dielectric multilayer capacitor

(MLC) chips are best suited for RF/ Microwave applications

typically ranging from 10 MHz to 4.2 GHz. Characteristic is a

fine grained, high density, high purity dielectric material imper-

vious to moisture with heavy internal palladium electrodes.

These characteristics lend well to applications requiring:

1) high current carrying capabilities;

2) high quality factors;

3) very low equivalent series resistance;

4) very high series resonance;

5) excellent stability under stresses of changing volt-

age, frequency, time and temperature.

MECHANICAL DIMENSIONS:

inches (millimeters)

Width (W)

.055±.015

(1.40±.381)

.055±.015

(1.40±.381)

.110±.020

(2.79±.508)

.110±.010

(2.79±.508)

Case

AQ11

AQ12

Length (L)

.055±.015

(1.40±.381)

.055 + .015 - .010

(1.40+ .381 - .254)

.110±.020

(2.79±.508)

.110 + .020 - .010

(2.79 +.889 -.254)

Thickness (T)

.020/.057

(.508/1.45)

.020/.057

(.508/1.45)

.030/.102

(.762/2.59)

.030/.102

(.762/2.59)

Band Width (bw)

.010 + .010 -.005

(.254 +.254 -.127)

.010 + .010 -.005

(.254 +.254 -.127)

.015±.010

(.381±.254)

.015±.010

(.381±.254)

A 1J

AQ13

AQ14

HOW TO ORDER

100

Case Size

(See Chart)

Capacitance

EIA Capacitance Code in pF.

Failure Rate

Code

A = Not

Applicable

Packaging*

Code

3A = 13" Reel

ME = 7" Reel

RE = 13" Reel

WE = Waffle

Pack

AVX Style

AQ11, AQ12,

AQ13, AQ14

Voltage

Code

5 = 50V

1 = 100V

E = 150V

2 = 200V

9 = 300V

7 = 500V

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Termination

Style Code

1 = Pd/Ag

(AQ11/13 only)

7 = Ag/Ni/Au

(AQ11/13 only)

J = Nickel Barrier

Sn/Pb (60/40) -

(AQ12/14 only)

T = 100% Tin

Temperature

Coefficient Code

M = +90±20ppm/°C (AQ11/12/13/14)

A = 0±30ppm/°C (AQ11/12/13/14)

C = 15% (“J” Termination only) (AQ12/14)

Capacitance

Tolerance Code

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

N = ±30%

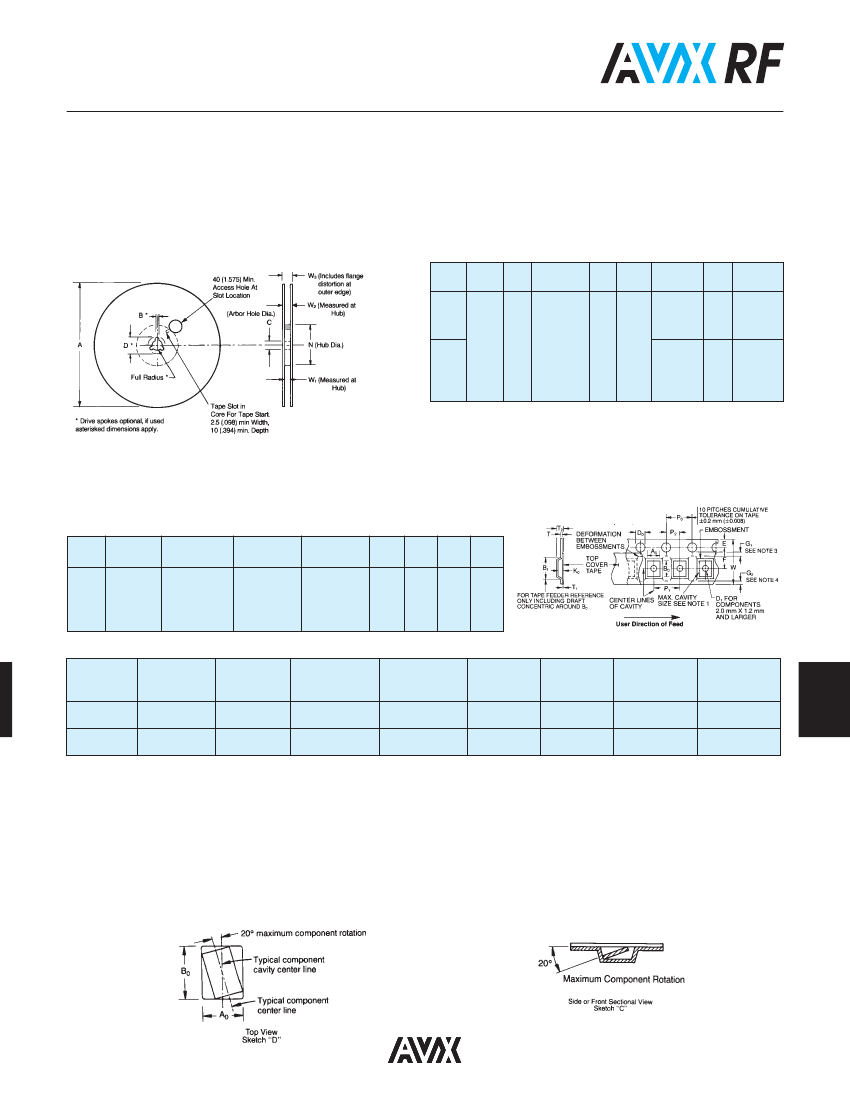

PACKAGING

Standard Packaging = Waffle Pack (maximum quantity is 80)

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

Sizes SQCA through SQCB, CDR11/12 through 13/14.

—8mm carrier

—7" reel:

≤0.040"

thickness = 2000 pcs

≤0.075"

thickness = 2000 pcs

—13" reel:

≤0.075"

thickness = 10,000 pcs
