DATA SHEET
PNP SILICON POWER TRANSISTOR
2SB772
PNP SILICON POWER TRANSISTOR
DESCRIPTION
The 2SB772 is PNP silicon transistor suited for the output stage of 3 W
audio amplifier, voltage regulator, DC-DC converter and relay driver.

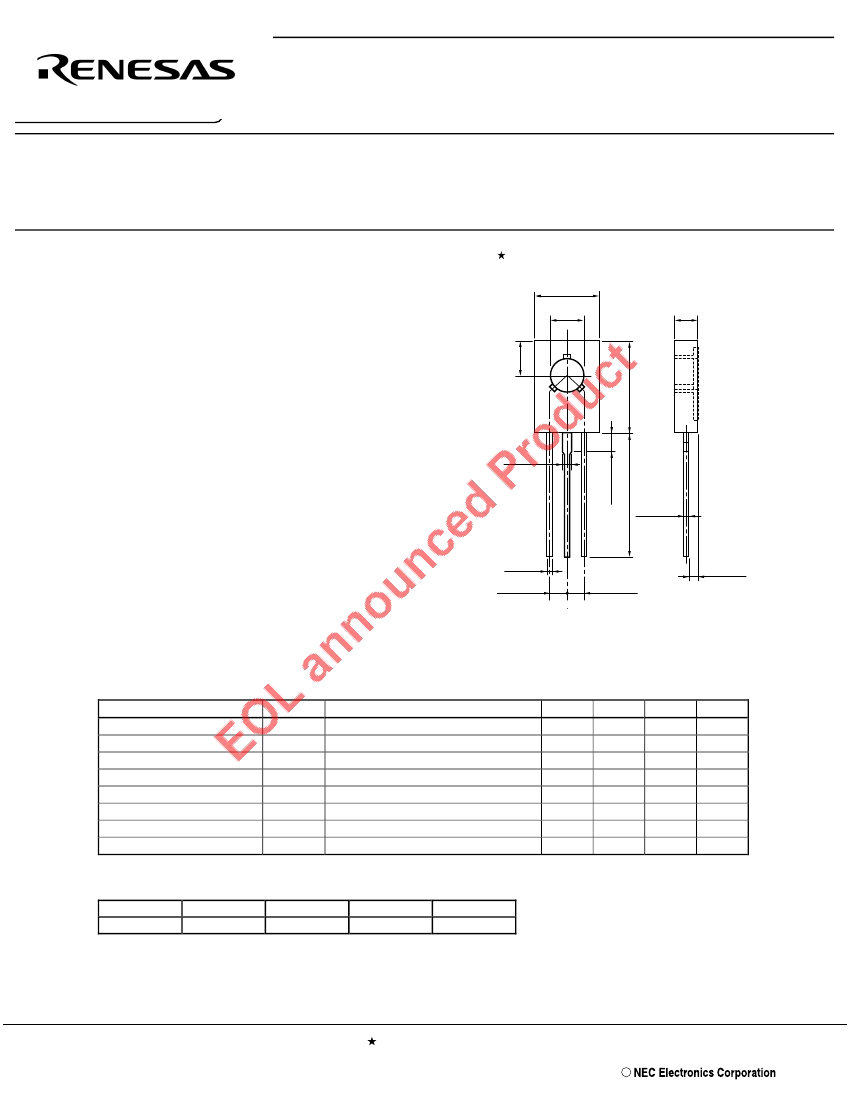

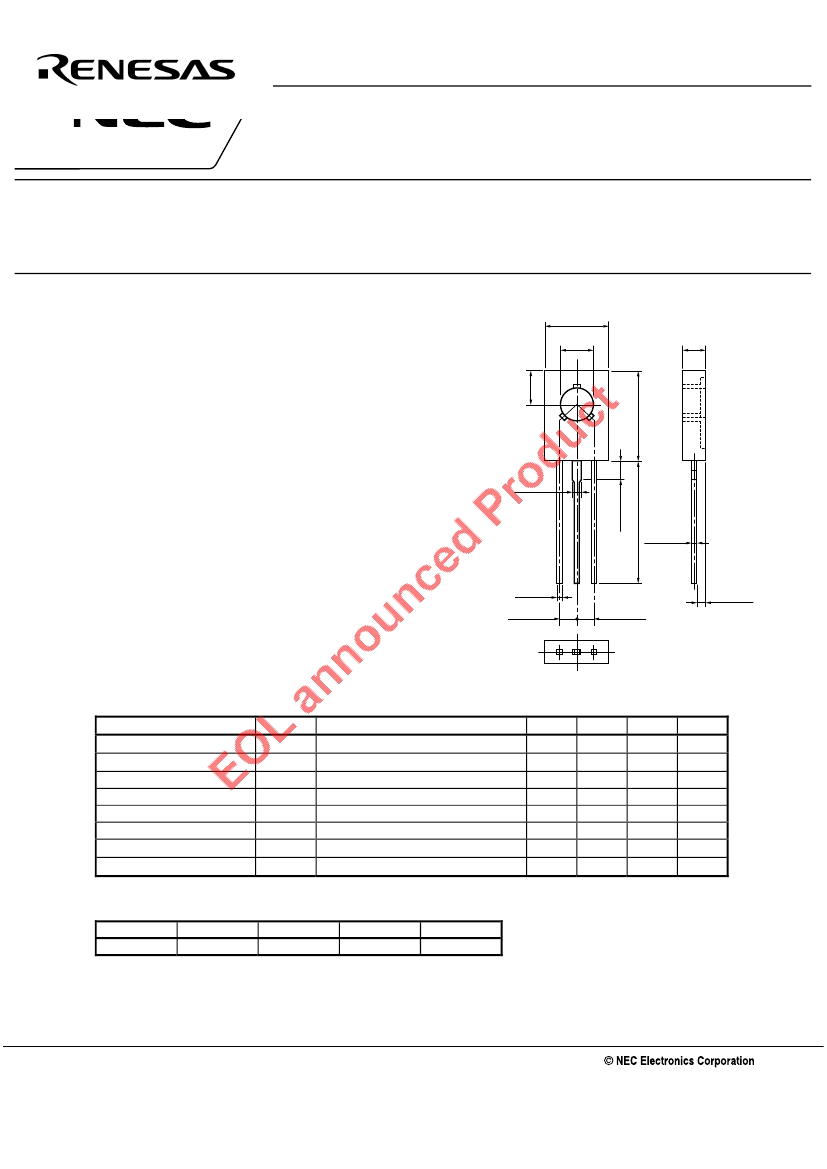

PACKAGE DRAWING (Unit: mm)
8.5 MAX.
3.2±0.2
3.8±0.2
FEATURES
•
Low saturation voltage
V
CE(sat)
≤ −0.5
V (I
C
=
−2.0
A, I
B
=
−0.2
A)
•
Excellent h
FE
linearity and high h
FE
h
FE2
= 60 to 400 (V
CE
=
−2.0
V, I
C
=
−1.0
A)
•
Less cramping space required due to small and thin package (TO-
126 (MP-5)) and reducing the trouble for attachment to a radiator.
No insulator bushing required.
2.8 MAX.
1 2
12 TYP.
3
2.5 ±0.2
ABSOLUTE MAXIMUM RATINGS
Maximum Temperature
Storage Temperature
−55
to +150°C
Junction Temperature
150°C Maximum
Maximum Power Dissipation
Total Power Dissipation (T
A
= 25°C)
1.0 W
Total Power Dissipation (T
C
= 25°C)
10 W
Maximum Voltages and Currents (T
A
= 25°C)
V
CBO
Collector to Base Voltage
−40
V
V
CEO
Collector to Emitter Voltage
−30
V
V
EBO
Emitter to Base Voltage
−5.0
V
I
C(DC)
Collector Current (DC)
−3.0
A
Note
I
C(pulse)
Collector Current (pulse)
−7.0
A
Note
Pulse Test PW
≤
350
μ
s, Duty Cycle
≤
2%
13.0 MIN.
12.0 MAX.
0.55
+0.08
–0.05
0.8
+0.08
–0.05
1.2 TYP.
2.3 TYP.
2.3 TYP.
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
CHARACTERISTIC
DC Current Gain
SYMBOL
h
FE1
h
FE2
f
T
C
ob
I
CBO
I
EBO
V
CE(sat)
V
BE(sat)
TEST CONDITIONS
V
CE
=
−2.0
V, I
C
=
−20
mA
V
CE
=
−2.0
V, I
C
=
−1.0
A
V
CE
=
−5.0
V, I
C
=
−0.1
A
V
CB
=
−10
V, I
E
= 0 A, f = 1.0 MHz
V
CB
=
−30
V, I
E
= 0 A
V
EB
=
−3.0
V, I
C
= 0 A
I
C
=
−2.0
A, I
B
=
−0.2
A
I
C
=
−2.0
A, I
B
=
−0.2
A
Note
Note
Note
Note
1: Emitter
2: Collector: connected to mounting plane
3: Base
MIN.
30
60
TYP.
220
160
80
55
−1.0
−1.0
−0.3
−1.0
−0.5
−2.0
400
MHz
pF
MAX.
UNIT
<R>
DC Current Gain
Gain Bandwidth Product
Output Capacitance
Collector Cutoff Current
Emitter Cutoff Current
Collector Saturation Voltage
Base Saturation Voltage
μ
A
μ
A
V
V
Note
Pulse Test: PW
≤
350
μ
s, Duty Cycle
≤
2%
CLASSIFICATION OF h
FE2
Rank
Range
R
60 to 120
Q
100 to 200
P
160 to 320
E
200 to 400
Remark
Test Conditions: V
CE
=
−2.0
V, I
C
=
−1.0
A
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17118EJ3V0DS00 (3rd edition)
Date Published April 2008 NS
Printed in Japan
2004
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
2SB772

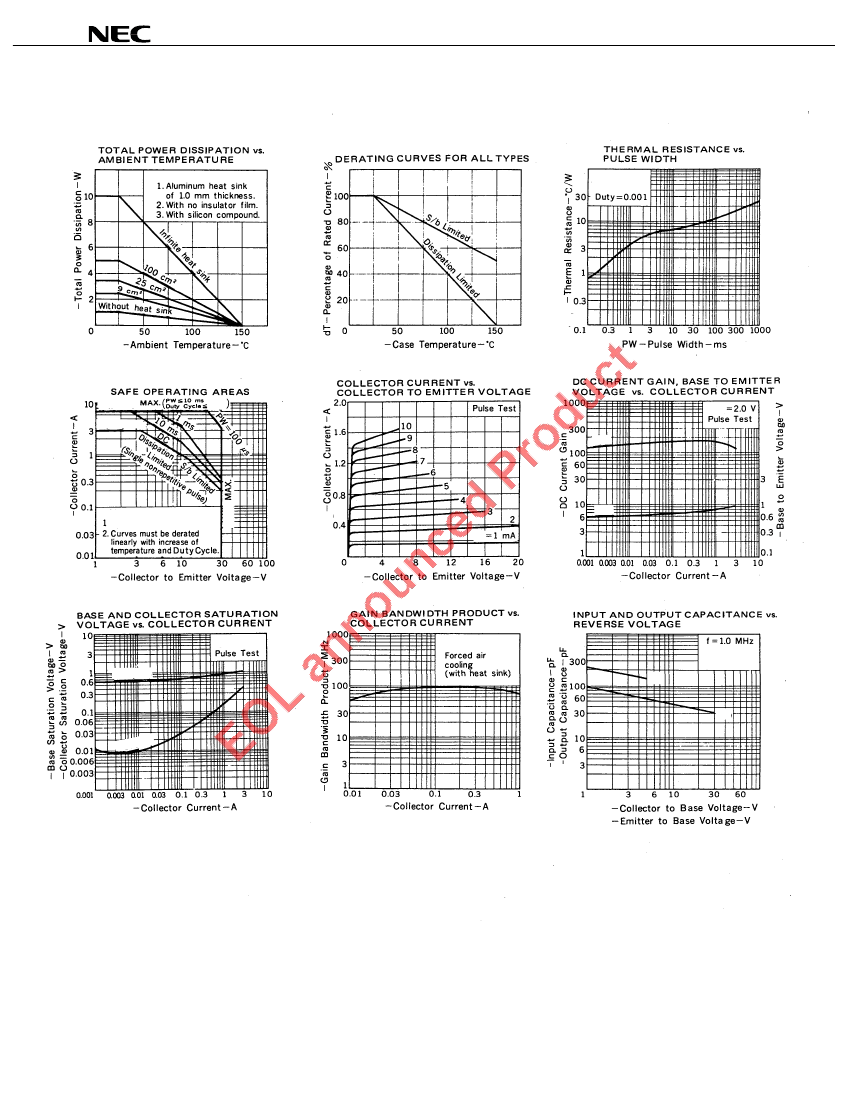

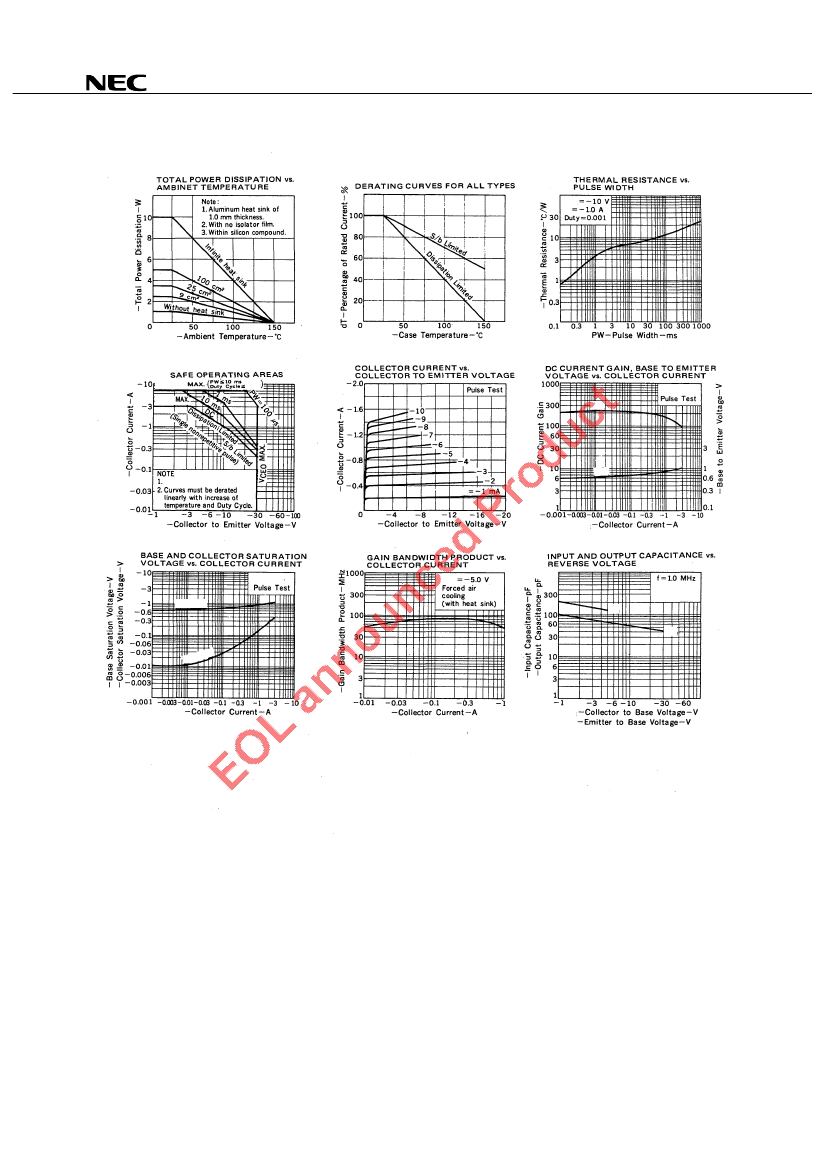

TYPICAL CHARACTERISTICS (T
