572D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
™, Low Profile, Conformal Coated, Maximum CV

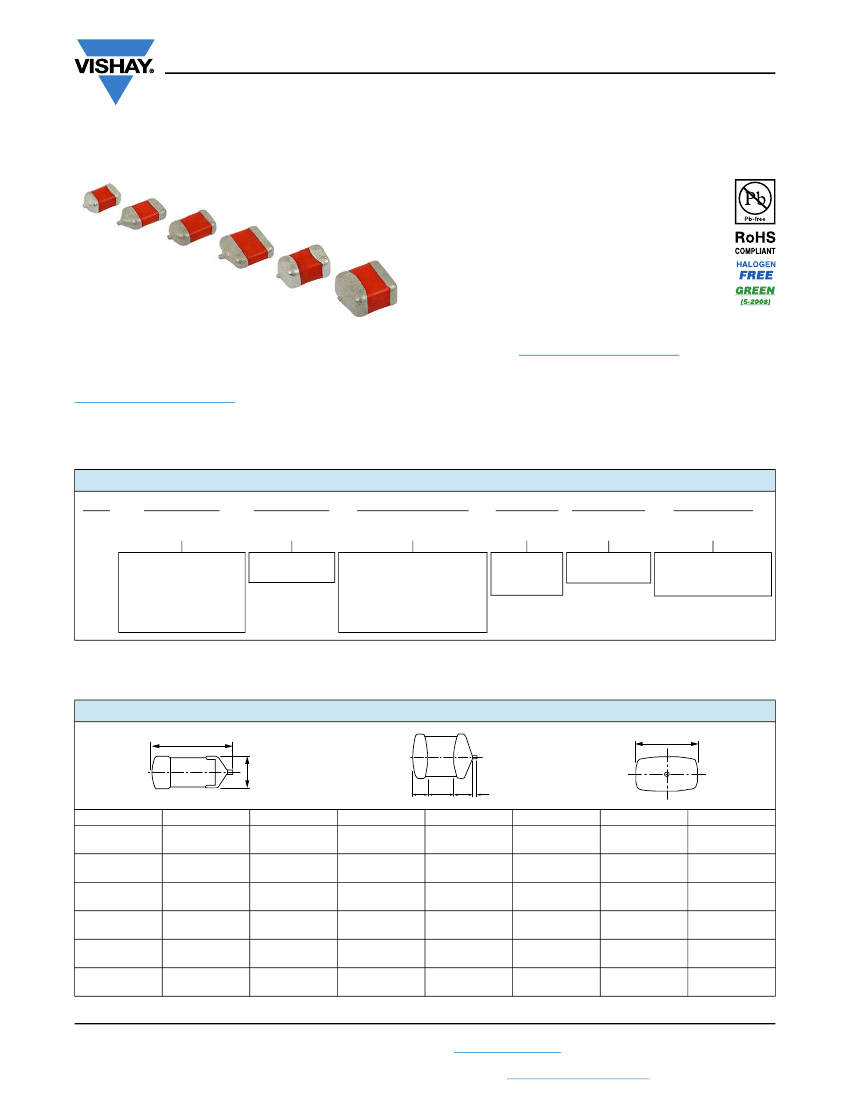

FEATURES
•
P case offers single-sided lead (Pb)-free
terminations
• Wraparound lead (Pb)-free terminations: Q, S,
A, B, and T cases
• 8 mm and 12 mm tape and reel packaging
available per EIA-481 and reeling per
IEC 60286-3
7" [178 mm] standard
13" [330 mm] available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Images not to scale
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
2.2 μF to 220 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 35 V
DC
Moisture Sensitivity Level 2a
ORDERING INFORMATION
572D
TYPE
336
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT +85 °C
This is expressed in volts. To
complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
A
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = tape and reel
7" [178 mm] reel
W = 13" [330 mm] reel
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
See Ratings
and Case
Codes table
2 = 100 % tin
4 = gold plated
Notes
• Preferred tolerance and reel sizes are in bold
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size
DIMENSIONS
in inches [millimeters]
L
H
A
B
C
D
W
CASE CODE
Q
S
A
B
T
P
L
0.126 ± 0.008
[3.2 ± 0.2]
0.126 ± 0.012
[3.2 ± 0.3]
0.126 ± 0.012
[3.2 ± 0.3]
0.130 ± 0.012
[3.3 ± 0.3]
0.138 ± 0.008
[3.5 ± 0.2]
0.087 ± 0.012
[2.2 ± 0.3]
W
0.063 ± 0.008
[1.6 ± 0.2]
0.063 ± 0.012
[1.6 ± 0.3]
0.067 ± 0.012
[1.7 ± 0.3]
0.106 ± 0.012
[2.7 ± 0.3]
0.106 ± 0.008
[2.7 ± 0.2]
0.049 ± 0.012
[1.25 ± 0.3]
H
0.031 ± 0.008
[0.8 ± 0.2]
0.039 ± 0.008
[1.0 ± 0.2]
0.051 ± 0.012
[1.3 ± 0.3]
0.067 ± 0.012
[1.7 ± 0.3]
0.039 ± 0.008
[1.0 ± 0.2]
0.039 ± 0.008
[1.0 ± 0.2]
A
0.031 ± 0.008
[0.8 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.008
[0.8 ± 0.2]
0.024 ± 0.012
[0.6 ± 0.3]
B (MIN.)
0.039
[1.0]
0.035
[0.9]
0.035
[0.9]
0.035
[0.9]
0.039
[1.0]
0.019
[0.5]
C
0.031 ± 0.008
[0.8 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
0.031 ± 0.012
[0.8 ± 0.3]
0.043 ± 0.012
[1.1 ± 0.3]
0.043 ± 0.008
[1.1 ± 0.2]
0.031 ± 0.012
[0.8 ± 0.3]
D (REF.)
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
0.008
[0.2]
Revision: 17-Jul-2018
Document Number: 40064
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
572D
www.vishay.com
Vishay Sprague
6.3 V
10 V
16 V
25 V
Q
A/S
A
35 V
A
RATINGS AND CASE CODES
μF
2.2
4.7
10
22
33
47
68
100
220
4V
P
A/P/Q/S
Q/S
S
A/B/S/T
B
A/P/S
S
B
B/T
P
A/B/T
B/S/T
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
MAX. ESR
AT +25 °C
100 kHz
()
0.2
0.8
0.6
0.8
1.5
2.0
1.4
1.1
0.9
0.9
0.8
0.4
1.0
0.6
0.2
3.0
0.8
4.0
1.1
1.1
0.45
0.4
0.5
4.0
1.4
0.5
1.1
5.0
2.8
4.0
3.5
3.0
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.63
0.26
0.37
0.29
0.13
0.17
0.24
0.22
0.25
0.26
0.36
0.45
0.24
0.36
0.63
0.09
0.29
0.08
0.23
0.23
0.42
0.45
0.40
0.08
0.22
0.45
0.27
0.10
0.15
0.12
0.15
0.12
220
220
220
33
33
33
33
47
47
68
100
100
100
100
220
10
33
33
33
47
68
100
100
10
22
22
22
2.2
4.7
4.7
10
2.2
B
S
T
A
P
Q
S
Q
S
S
A
B
S
T
B
P
A
P
S
S
B
B
T
P
A
B
T
Q
A
S
A
A
4 V
DC
AT+85 °C, 2.7 V
DC
AT +125 °C
572D227(1)004B(2)(3)
8.8
16
572D227X0004S(2)(3)
8.8
25
572D227X0004T(2)(3)
8.8
26
6.3 V
DC
AT+85 °C, 4 V
DC
AT +125 °C
572D336(1)6R3A(2)(3)
2.1
8
572D336X06R3P(2)(3)
2.1
14
572D336(1)6R3Q(2)(3)
2.1
10
572D336(1)6R3S(2)(3)
2.1
10
572D476X06R3Q(2)(3)
3.0
10
572D476(1)6R3S(2)(3)
3.0
10
572D686(1)6R3S(2)(3)
4.3
12
572D107(1)6R3A(2)(3)
6.3
14
572D107(1)6R3B(2)(3)
6.3
14
572D107X06R3S(2)(3)
6.3
20
572D107(1)6R3T(2)(3)
6.3
14
572D227(1)6R3B(2)(3)
13.9
16
10 V
DC
AT+85 °C, 7 V
DC
AT +125 °C
572D106(1)010P(2)(3)
1.0
8
572D336(1)010A(2)(3)
3.3
10
572D336X0010P(2)(3)
3.3
25
572D336X0010S(2)(3)
3.3
10
572D476X0010S(2)(3)
4.7
14
572D686(1)010B(2)(3)
6.8
6
572D107(1)010B(2)(3)
10
14
572D107X0010T(2)(3)
10
18
16 V
DC
AT +85 °C, 10 V
DC
AT +125 °C
572D106(1)016P(2)(3)
1.6
10
572D226(1)016A(2)(3)
3.5
8
572D226(1)016B(2)(3)
3.5
6
572D226(1)016T(2)(3)
3.5
8
25 V
DC
AT +85 °C, 17 V
DC
AT +125 °C
572D225(1)025Q(2)(3)
0.65
6
572D475(1)025A(2)(3)
1.2
8
572D475(1)025S(2)(3)
1.2
8
572D106(1)025A(2)(3)
2.5
10
35 V
DC
AT +85 °C, 23 V
DC
AT +125 °C
572D225(1)035A(2)(3)
0.8
6
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”; for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”, for gold plated specify “4”
(3) Packaging code: for 7" reels specify “T”, for 13" reel specify “W”
Revision: 17-Jul-2018
Document Number: 40064
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
572D
www.vishay.com
Vishay Sprague

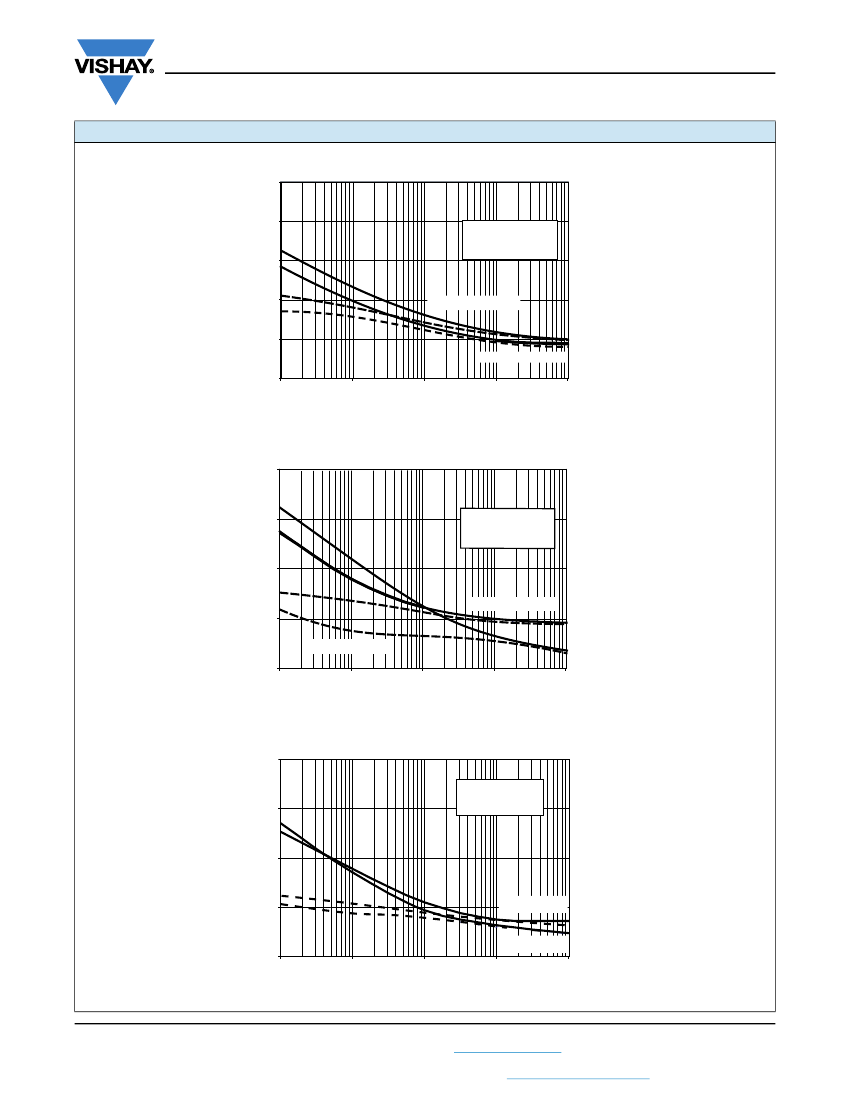

TYPICAL CURVES AT +25 °C, IMPEDANCE AND ESR VS. FREQUENCY
“B” case
1000.0
100.0
__
__ __ __
10.0
IMPEDANCE
ESR
Ω
1.0
100 μF - 10 V
DC
0.1
220 μF - 6 V
DC
0.0
100
1K
10K
100K
1M
FREQUENCY IN Hz
“P” case
1000.0
100.0
__
IMPEDANCE
ESR
__ __ __
Ω
10.0
33 μF - 6 V
DC
1.0
10 μF - 10 V
DC
0.1
100
1K
10K
100K
1M
FREQUENCY IN Hz
“Q” case
1000.0
__
IMPEDANCE
100.0
__ __ __
ESR
Ω
10.0
1.0
47 μF - 6 V
DC
33 μ - 6 V
DC
0.1
100
1K
10K
100K
1M
FREQUENCY IN Hz
Revision: 17-Jul-2018
Document Number: 40064
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
572D
www.vishay.com
Vishay Sprague
TYPICAL CURVES AT +25 °C, IMPEDANCE AND ESR VS. FREQUENCY
220 μF - 4 V T-Case
ESR/Z vs. Freq.
100
ESR
IMPEDANCE
10
Ω
1
0
0.01
0.10
1.00
10.00
100.00
1000.00
FREQUENCY IN kHz
220 μF - 4 V
S-Case
ESR/Z vs. Freq.
100
10
ESR
IMPEDANCE
Ω
1
0
0.01
0.10
1.00
10.00
100.00
1000.00
FREQUENCY IN kHz
POWER DISSIPATION
CASE CODE
P
Q
S
A
B/T
MAXIMUM PERMISSIBLE POWER DISSIPATION AT +25 °C (W) IN FREE AIR
0.025
0.055
0.060
0.065
0.080
Revision: 17-Jul-2018
Document Number: 40064
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
572D
www.vishay.com
Vishay Sprague
STANDARD PACKAGING QUANTITY
CASE CODE
A
B
P
Q
S
T
UNITS PER REEL
7" REEL
2500
2000
3000
2500
2500
1500
13" REEL
10 000
10 000
10 000
10 000
10 000
8000
PRODUCT INFORMATION
Conformal Coated Guide
Pad Dimensions
Packaging Dimensions
Moisture Sensitivity (MSL)
SELECTOR GUIDES
Solid Tantalum Selector Guide
Solid Tantalum Chip Capacitors
FAQ
