SP4-2512-2 datasheet, PDF - EEWORLD Datasheet

SP4-2512-2: DescriptionOperational Amplifier, 1 Func, 10000uV Offset-Max, CQCC20, CERAMIC, LCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size342KB，6 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric View All

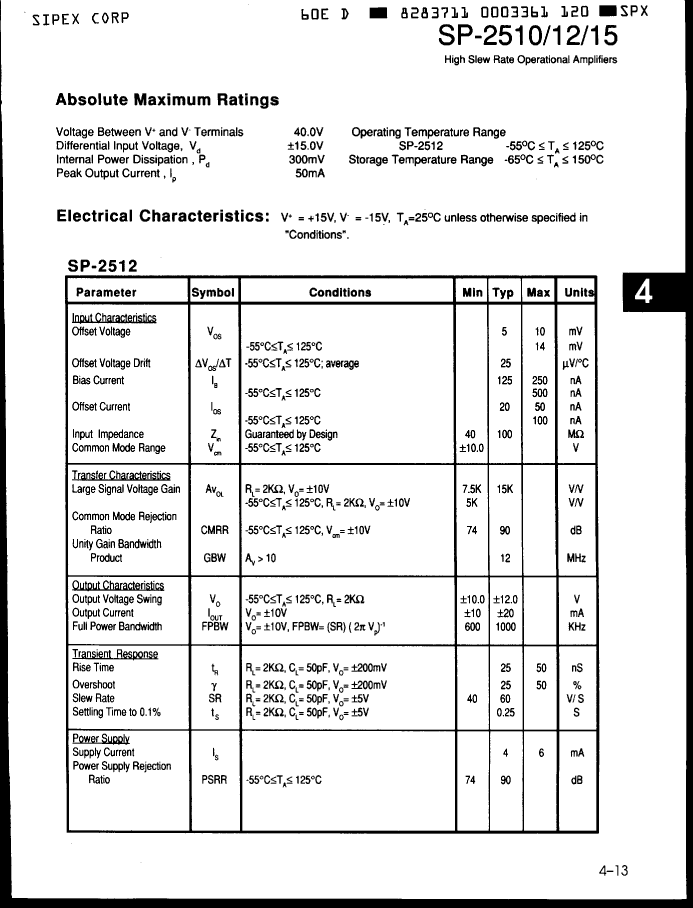

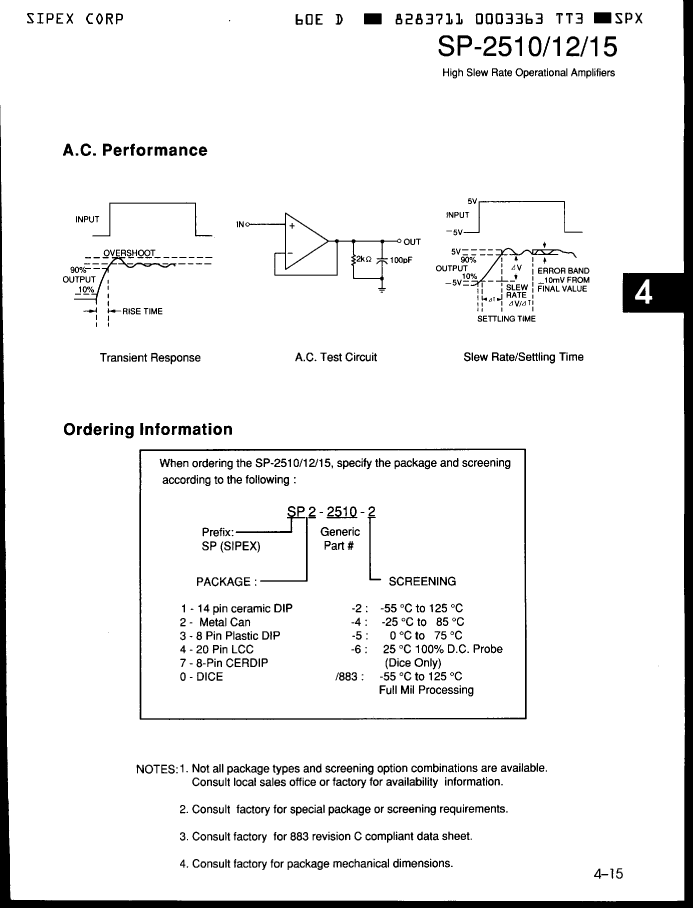

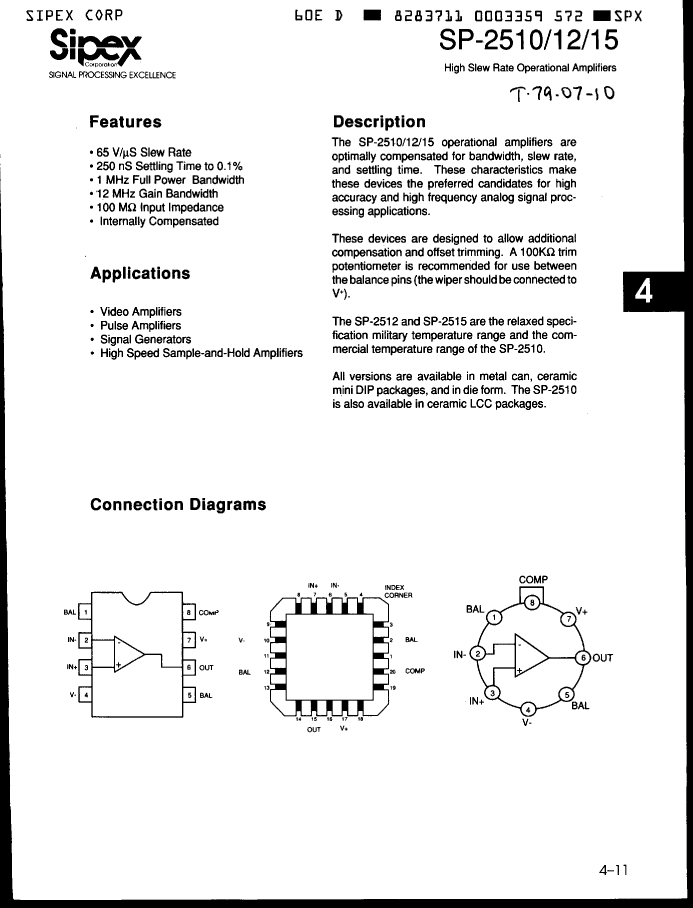

SP4-2512-2 Overview

Operational Amplifier, 1 Func, 10000uV Offset-Max, CQCC20, CERAMIC, LCC-20

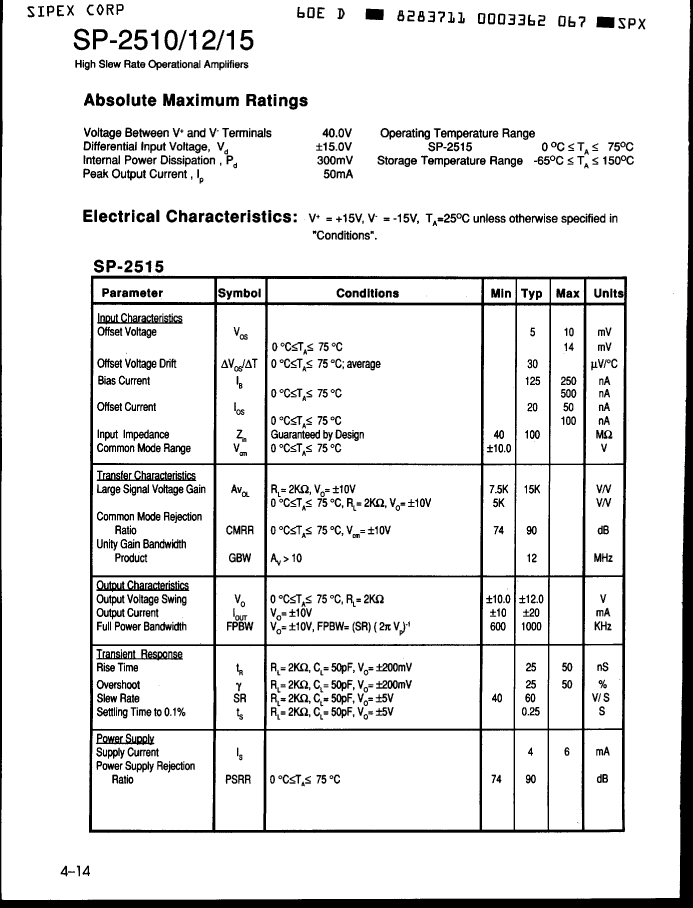

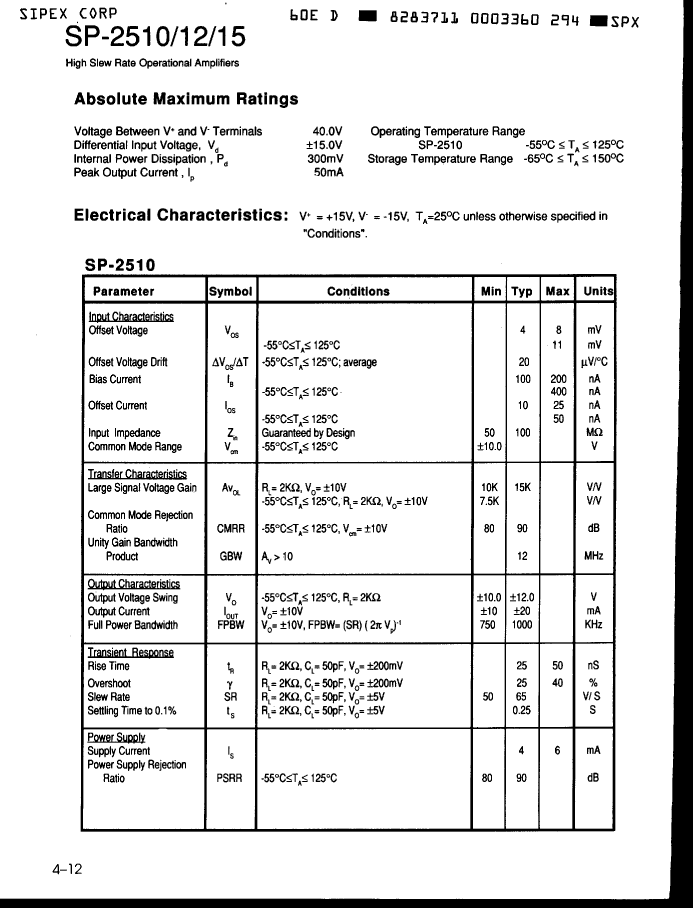

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	QCCN,
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.25 µA
Minimum Common Mode Rejection Ratio	74 dB
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	10000 µV
JESD-30 code	S-CQCC-N20
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
minimum slew rate	40 V/us
Nominal slew rate	60 V/us
Maximum slew rate	6 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Nominal Uniform Gain Bandwidth	12000 kHz
Minimum voltage gain	7500
