592502B03402G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> Heat resisting bracing> 592502B03402G

592502B03402G: DescriptionHeat Sink, 22ohm, Fin, Staggered, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size210KB，2 Pages; ManufacturerAavid Thermalloy

Download Datasheet Parametric Compare View All

592502B03402G Overview

Heat Sink, 22ohm, Fin, Staggered, Aluminum, Anodized, ROHS COMPLIANT

592502B03402G Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
Main material	ALUMINUM
color	BLACK
structure	FIN
fin direction	STAGGERED
Surface layer	ANODIZED
high	31.75 mm
length	22.2 mm
Thermal resistance	22 Ω
Heat Resistant Support Device Type	HEAT SINK
width	6.35 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5/18/12

592502B03400G - Board level heatsinks

Tel (toll-free): +1-855-32-AAVID

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

Board Level Products

592502B03400G

TO-220, TO-220-single gauge (0.020")

Qty in stock:

Enter QTY:

View Price

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

12,955

Help Page

Check Stock

Enter a part number for

pricing and availability.

go!

Space saving twisted fin heat sink with solderable tabs for Vertical mounting

This non-electronic component is functionally unaffected by the normal soldering or reflow

processes used for semiconductor circuits. The heat resistance time or heat resistance

temperature is not applicable for the component.

Height: 31.75

Mount Orientation: Vertical

Finish: Black Anodize

RoHS: compliant

Download PCN

Thermal Resistance: 22.00

Product Return Policy

Terms & Conditions

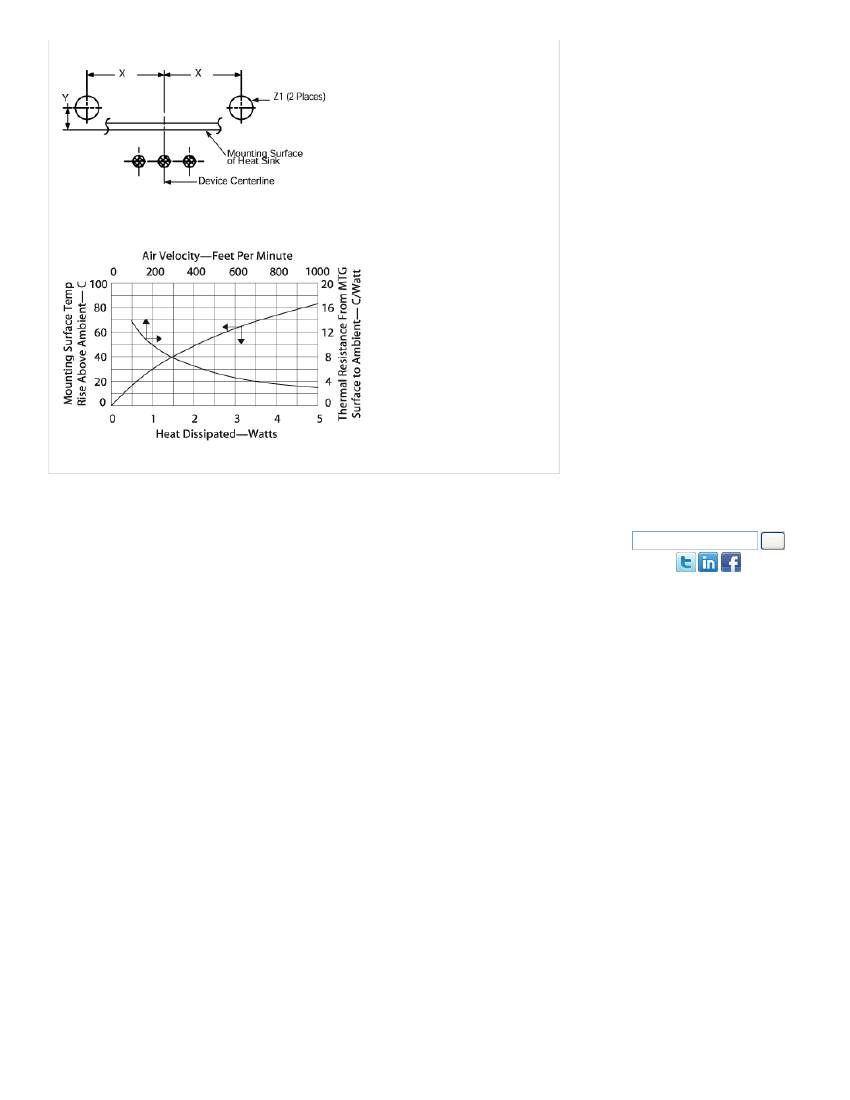

Y Dim: 1.14 (0.045) | Z Dim: 2.39 (0.094)

https://www.aavid.com/products/standard/592502b03400g

1/2

592502B03402G Related Products

	592502B03402G	592502B13400G	592502B03401G
Description	Heat Sink, 22ohm, Fin, Staggered, Aluminum, Anodized, ROHS COMPLIANT	Heat Sink, 22ohm, Fin, Staggered, Aluminum, Anodized, ROHS COMPLIANT	Heat Sink, 22ohm, Fin, Staggered, Aluminum, Anodized, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	unknow
Main material	ALUMINUM	ALUMINUM	ALUMINUM
color	BLACK	BLACK	BLACK
structure	FIN	FIN	FIN
fin direction	STAGGERED	STAGGERED	STAGGERED
Surface layer	ANODIZED	ANODIZED	ANODIZED
high	31.75 mm	31.75 mm	31.75 mm
length	22.2 mm	22.2 mm	22.2 mm
Thermal resistance	22 Ω	22 Ω	22 Ω
Heat Resistant Support Device Type	HEAT SINK	HEAT SINK	HEAT SINK
width	6.35 mm	6.35 mm	6.35 mm
Base Number Matches	1	1	1
