NM27C128N100

Description
OTP ROM, 16KX8, 100ns, CMOS, PDIP28,
Categorystorage    storage
File Size579KB,12 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

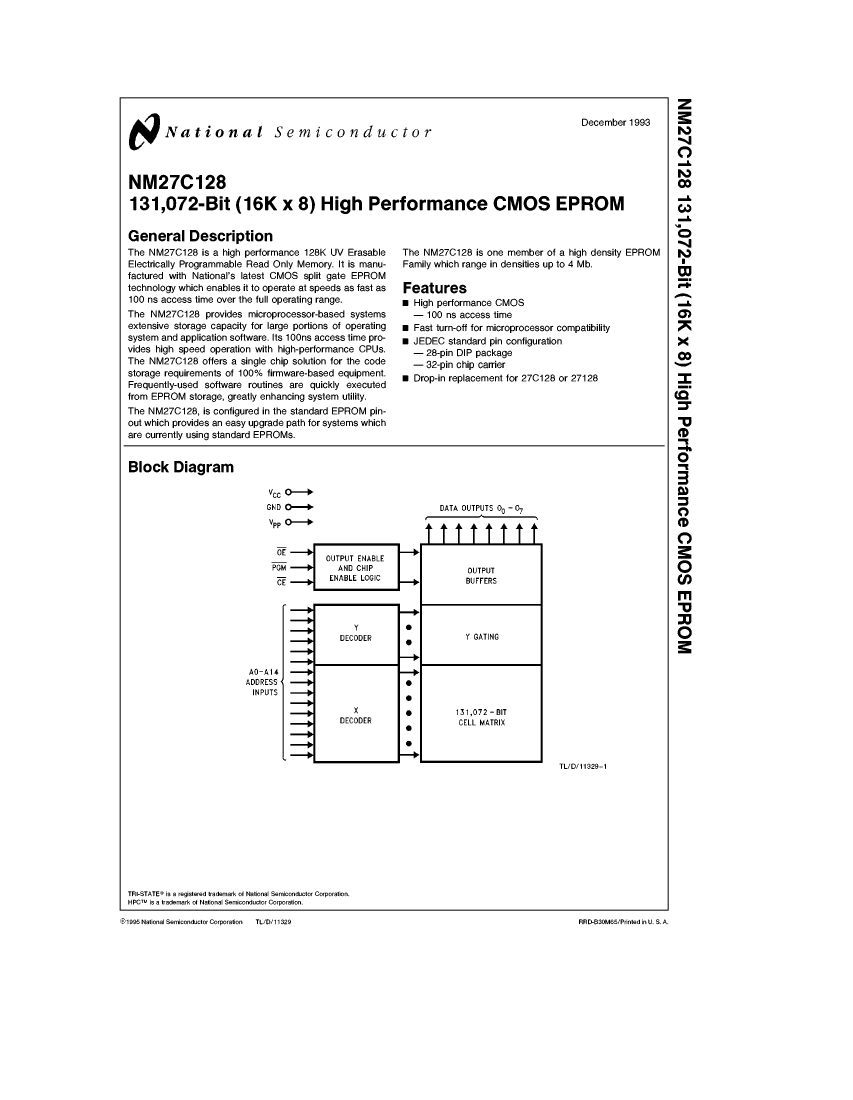

NM27C128N100 Overview

OTP ROM, 16KX8, 100ns, CMOS, PDIP28,

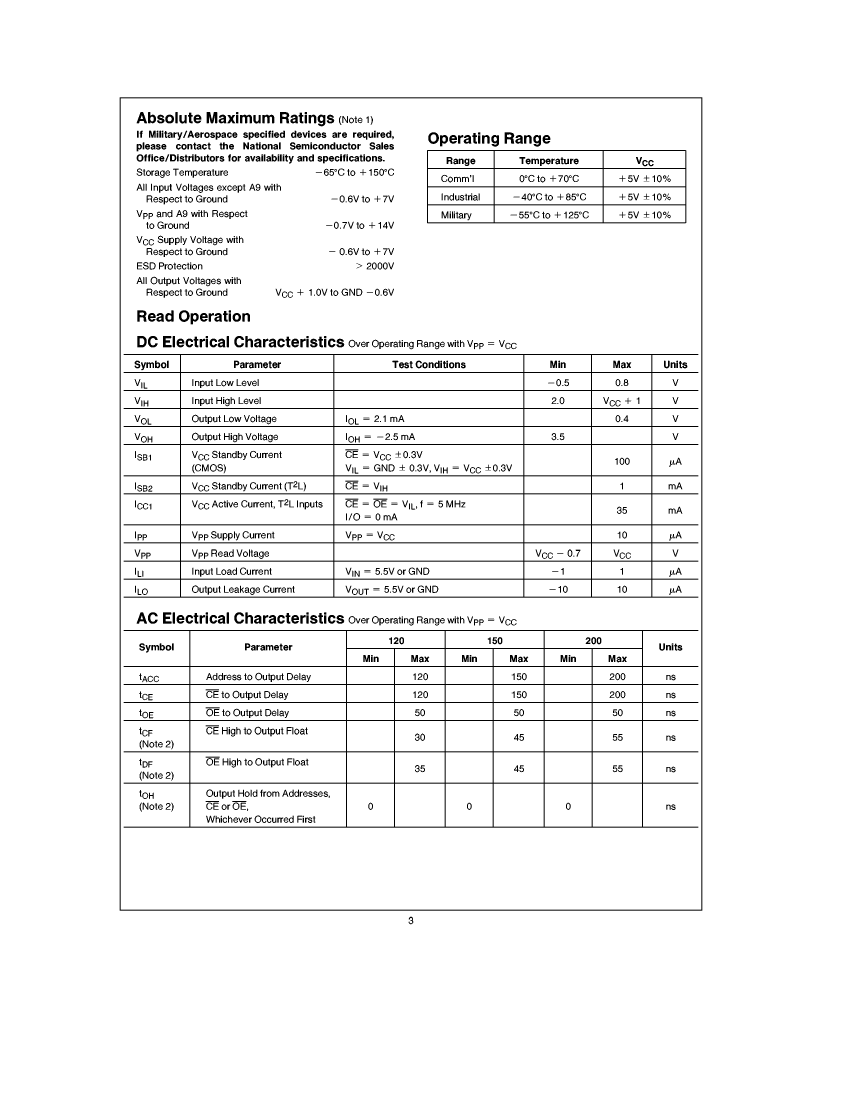

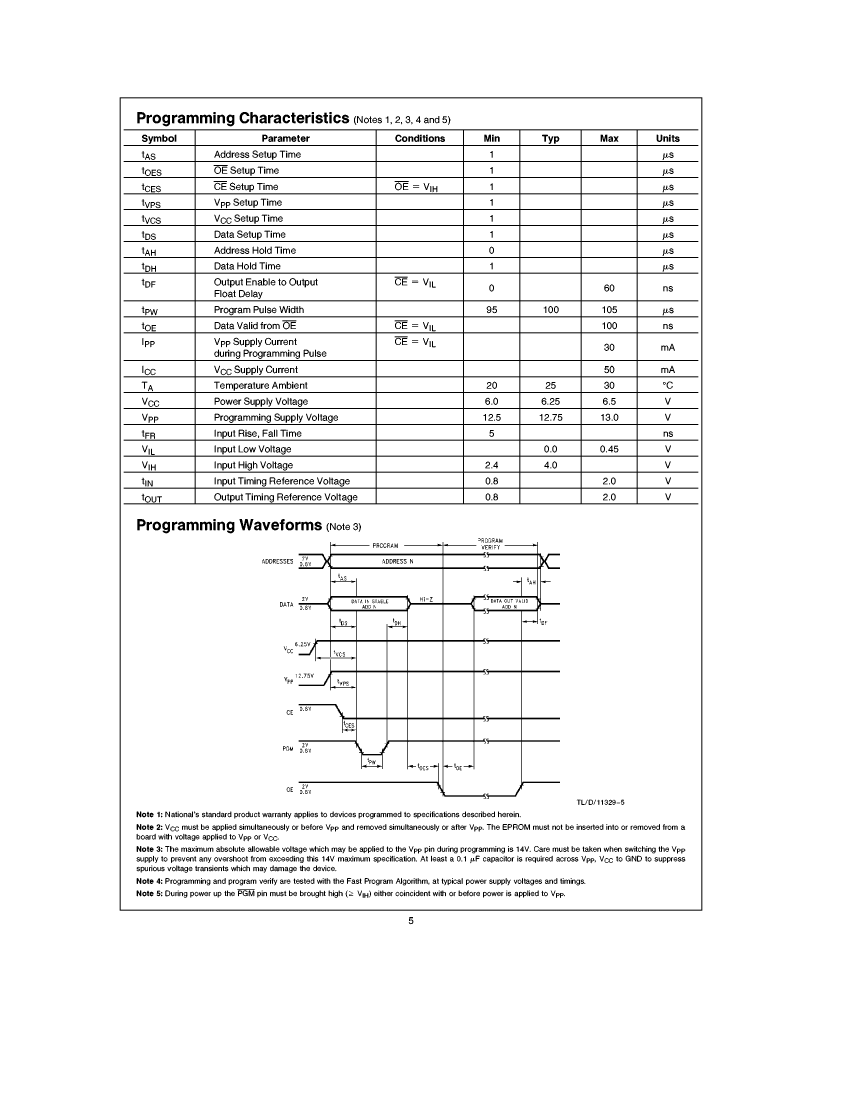

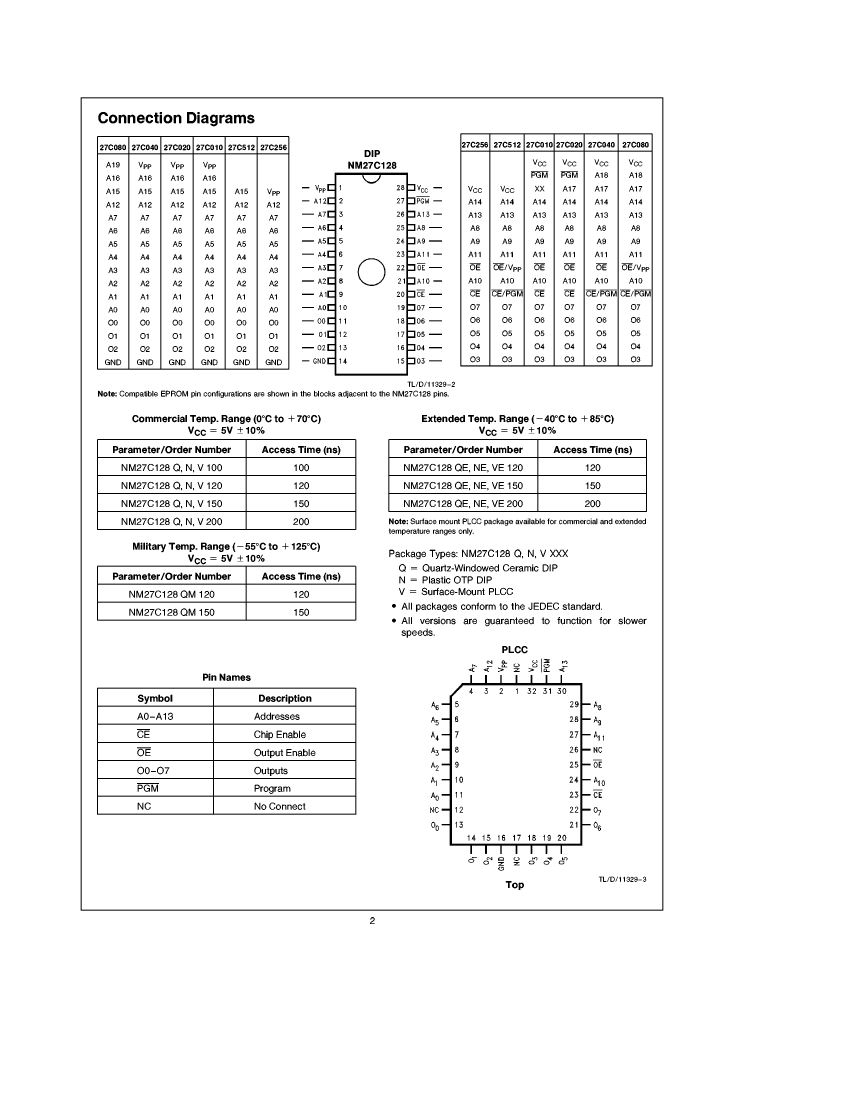

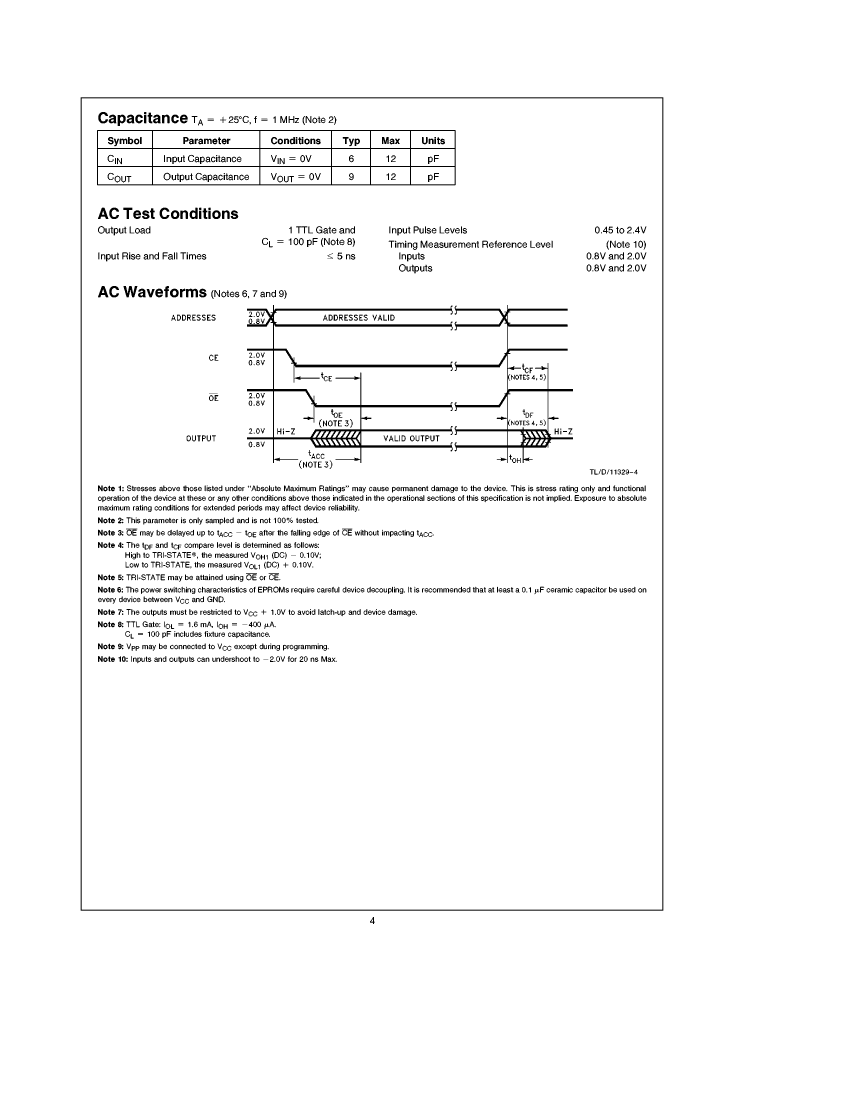

NM27C128N100 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
package instructionDIP, DIP28,.6
Reach Compliance Codeunknown
Maximum access time100 ns
I/O typeCOMMON
JESD-30 codeR-PDIP-T28
JESD-609 codee0
memory density131072 bit
memory width8
Number of terminals28
word count16384 words
character code16000
Maximum operating temperature70 °C
Minimum operating temperature
organize16KX8
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP28,.6
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Programming voltage12.75 V
Certification statusNot Qualified
Maximum standby current0.0001 A
Maximum slew rate0.035 mA
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

NM27C128N100 Related Products

NM27C128N100 NM27C128Q100 NM27C128V100 NM27C128QM150
Description OTP ROM, 16KX8, 100ns, CMOS, PDIP28, EPROM, 16KX8, 100ns, CMOS, CDIP28, OTP ROM, 16KX8, 100ns, CMOS, PQCC32, EPROM, 16KX8, 150ns, CMOS, CDIP28,
Is it Rohs certified? incompatible incompatible incompatible incompatible
package instruction DIP, DIP28,.6 DIP, DIP28,.6 QCCJ, LDCC32,.5X.6 DIP, DIP28,.6
Reach Compliance Code unknown unknown unknown unknown
Maximum access time 100 ns 100 ns 100 ns 150 ns
I/O type COMMON COMMON COMMON COMMON
JESD-30 code R-PDIP-T28 R-XDIP-T28 R-PQCC-J32 R-XDIP-T28
JESD-609 code e0 e0 e0 e0
memory density 131072 bit 131072 bit 131072 bit 131072 bit
memory width 8 8 8 8
Number of terminals 28 28 32 28
word count 16384 words 16384 words 16384 words 16384 words
character code 16000 16000 16000 16000
Maximum operating temperature 70 °C 70 °C 70 °C 125 °C
organize 16KX8 16KX8 16KX8 16KX8
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE
Package body material PLASTIC/EPOXY CERAMIC PLASTIC/EPOXY CERAMIC
encapsulated code DIP DIP QCCJ DIP
Encapsulate equivalent code DIP28,.6 DIP28,.6 LDCC32,.5X.6 DIP28,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE CHIP CARRIER IN-LINE
power supply 5 V 5 V 5 V 5 V
Programming voltage 12.75 V 12.75 V 12.75 V 12.75 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum standby current 0.0001 A 0.0001 A 0.0001 A 0.0001 A
Maximum slew rate 0.035 mA 0.035 mA 0.035 mA 0.035 mA
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount NO NO YES NO
technology CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE J BEND THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 2.54 mm
Terminal location DUAL DUAL QUAD DUAL
Maker Fairchild - Fairchild Fairchild
