595D33616R3S23 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 595D33616R3S23

595D33616R3S23: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 22 uF, SURFACE MOUNT, 1611; CategoryPassive components; File Size335KB，24 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

595D33616R3S23 Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 6.3 V, 22 uF, SURFACE MOUNT, 1611

595D33616R3S23 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	6.3 V
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN OVER NICKEL
Installation features	SURFACE MOUNT
Manufacturer Series	595D
size code	1611
capacitance	22 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	SOLID
Terminal shape	WRAPAROUND
polarity	POLARIZED
tangent angle	0.06
ripple current	0.39A@100KHz
leakage current	1.4uA

Preview

Download Datasheet

View All

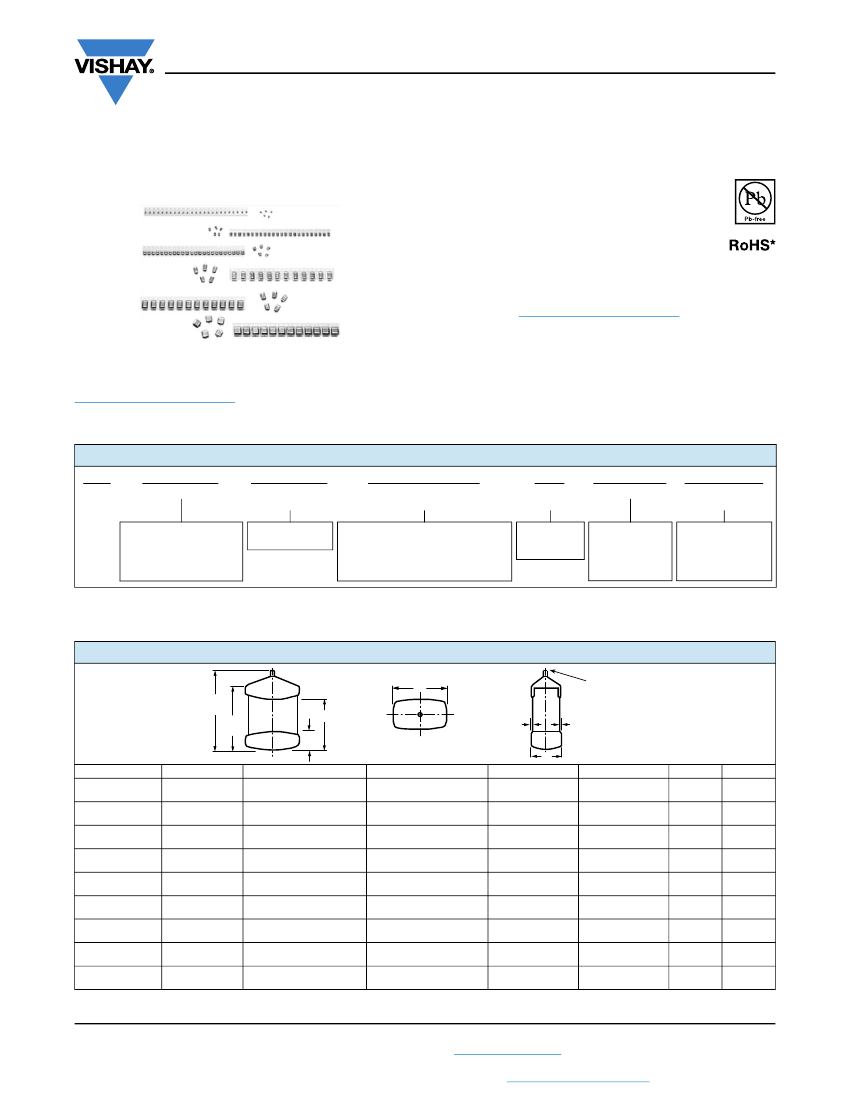

595D

www.vishay.com

Vishay Sprague

Solid Tantalum Chip Capacitors T

ANTAMOUNT®

Conformal Coated, Maximum CV

FEATURES

• Large capacitance rating range

• Terminations: 100 % tin (2) standard tin/lead

available

Available

• Mounting: Surface mount

• 8 mm, 12 mm tape and reel packaging available

Available

per EIA 481 and reeling per IEC 60286-3.

7" [178 mm] standard. 13" [330 mm] available.

• Case code compatibility with EIA 535BAAC and CECC 30801

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and/or parts that are non-RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information/tables in this datasheet for details.

PERFORMANCE CHARACTERISTICS

www.vishay.com/doc?40088

Operating Temperature:

- 55 °C to + 125 °C

(above 85 °C, voltage derating is required)

Capacitance Range:

0.1 μF to 1500 μF

Capacitance Tolerance:

± 10 %, ± 20 % standard

Voltage Rating:

4 V

to 50 V

ORDERING INFORMATION

595D

TYPE

106

CAPACITANCE

TOLERANCE

X0 = ± 20 %

X9 = ± 10 %

010

DC VOLTAGE RATING

AT + 85 °C

This is expressed in V.

To complete the three-digit block,

zeros precede the voltage rating.

A decimal point is indicated by an

“R” (6R3 = 6.3 V).

CASE

CODE

See Ratings

and Case

Codes table

TERMINATION

REEL SIZE AND

PACKAGING

Tape and reel

T = 7"

[178 mm] reel

W = 13"

[330 mm] reel

This is expressed in pF.

The first two digits are

the significant figures.

The third is the number

of zeros to follow.

2 = 100 % tin

4 = Gold plated

8 = Solder

plated (60/40)

Special order

Note

• Preferred tolerances and reel sizes are in bold.

We reserve the right to substitute form-fit-function replacement products with higher voltage rating, tighter capacitance tolerance, lower

ESR (e.g., 594D series), or increased reliability screening (T95 series).

DIMENSIONS

in inches [millimeters]

MAX.

REF.

MAX.

Tantalum wire

nib identifies

anode (+)

terminal

MAX.

CASE CODE

L MAX.

0.087

[2.2]

0.126 ± 0.012

[3.2 ± 0.3]

0.146

[3.7]

0.142

[3.6]

0.158

[4.0]

0.281

[7.1]

0.221

[5.6]

0.293

[7.4]

0.283

[7.2]

0.045 ± 0.012

[1.1 ± 0.3]

0.063 ± 0.012

[1.6 ± 0.3]

0.072 ± 0.012

[1.8 ± 0.3]

0.106 ± 0.012

[2.7 ± 0.3]

0.110 + 0.012/- 0.016

[2.8 + 0.3/- 0.4]

0.126 ± 0.012

[3.2 ± 0.3]

0.144 ± 0.016

[3.66 ± 0.4]

0.170 + 0.012/- 0.024

[4.3 + 0.3/- 0.6]

0.235 + 0.012/- 0.024

[6.0 + 0.3/- 0.6]

0.045 ± 0.012

[1.1 ± 0.3]

0.052 ± 0.012

[1.3 ± 0.3]

0.056 ± 0.012

[1.4 ± 0.3]

0.067 ± 0.012

[1.7 ± 0.3]

0.075 + 0.012/- 0.024

[1.9 + 0.3/- 0.6]

0.098 ± 0.012

[2.5 ± 0.3]

0.087 max.

[2.2 max.]

0.110 ± 0.012

[2.8 ± 0.3]

0.136 + 0.012/- 0.016

[3.5 + 0.3/- 0.4]

0.016 ± 0.008

[0.4 ± 0.2]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.031 ± 0.012

[0.8 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.051 ± 0.012

[1.3 ± 0.3]

0.042 ± 0.010

[1.07 ± 0.25]

0.078 ± 0.012

[2.0 ± 0.3]

0.085 ± 0.016

[2.2 ± 0.4]

0.080 ± 0.012

[2.0 ± 0.3]

0.097 ± 0.016

[2.5 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.133 ± 0.016

[3.4 ± 0.4]

0.180 ± 0.024

[4.6 ± 0.6]

0.180 ± 0.024

[4.6 ± 0.6]

D REF.

0.063

[1.6]

0.086

[2.2]

0.115

[2.9]

0.107

[2.7]

0.138

[3.5]

0.236

[6.0]

0.173

[4.4]

0.253

[6.4]

0.243

[6.2]

J MAX.

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

Note

• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]. T case = 0.005" [0.13 mm] minimum.

Revision: 19-Aug-13

Document Number: 40007

For technical questions, contact:

tantalum@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
