CF162D0104KBA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CF162D0104KBA

CF162D0104KBA: DescriptionCAPACITOR, FILM/FOIL, POLYESTER, 63V, 0.1uF, SURFACE MOUNT, 4030; CategoryPassive components capacitor; File Size23KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

CF162D0104KBA Overview

CAPACITOR, FILM/FOIL, POLYESTER, 63V, 0.1uF, SURFACE MOUNT, 4030

CF162D0104KBA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AVX
package instruction	, 4030
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	50 VOLTS ALSO AVAILABLE
capacitance	0.1 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e0
Manufacturer's serial number	CF
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	10%
Rated (DC) voltage (URdc)	63 V
size code	4030
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND

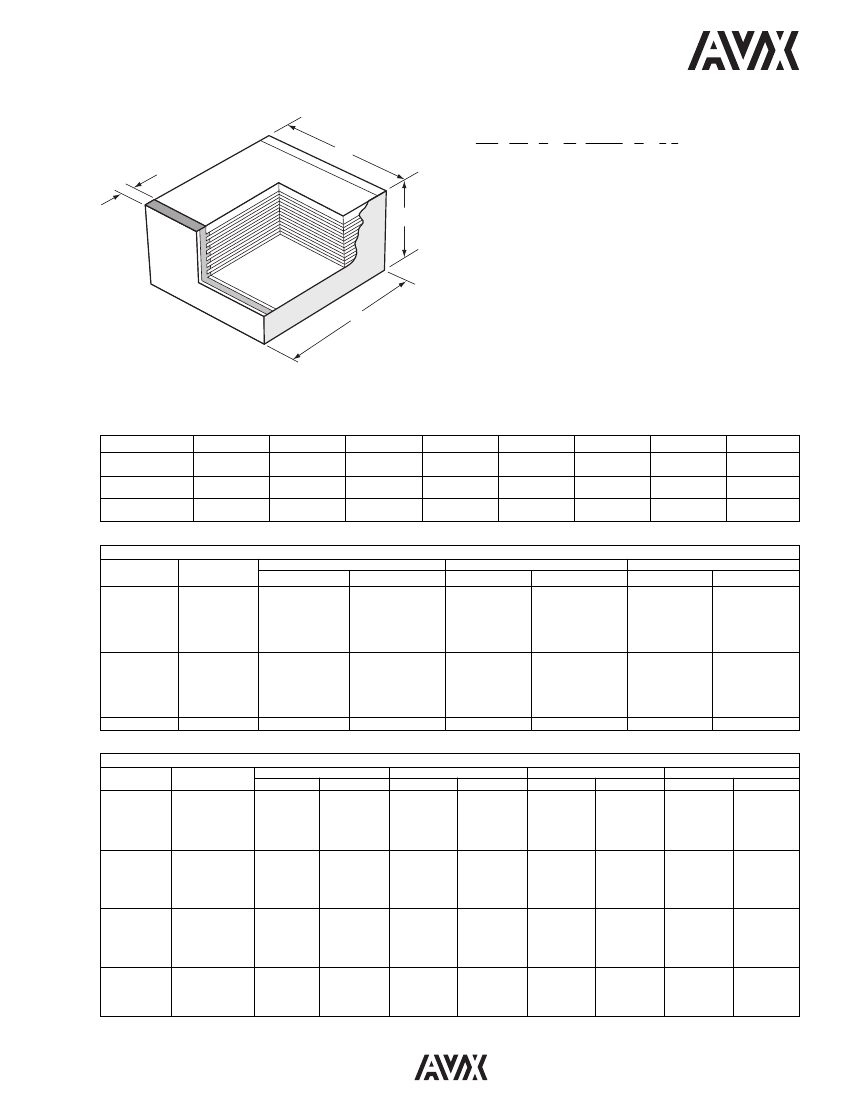

CF162D0104KBA Preview

Film Chip Capacitors

0.2

(0.

0.3

(0.

HOW TO ORDER

CF 04 2 D 0334 J - -

1 2 3 4 5 6 7

Type

Size Code:

Dimensions:

millimeters (inches)

Size Code

Equivalent

Size

Length (L)

(inches)

Width (W)

(inches)

1 = 1206; 02 = 1210; 03 = 1812; 04 = 2220;

05 = 2824; 16 = 4030; 17 = 5040; 18 = 6054

Dielectric Class:

2 = PET

Voltage Code

50/63 V = D; 100 V = E; 160 V = F; 250 V = G

Capacitance EIA Code

1st digit: 0 (zero). 2nd & 3rd: 2nd significant

figures of the capacitance value. 4th digit:

number of zeros to be added to the capaci-

tance value.

Tolerance Code:

J = 5%; K = 10%

Suffix

- - = Bulk

BA = Taped on reel ø 180

BC = Taped on reel ø 330

2824

7.1 ± 0.5

(0.280 ± 0.020)

6.1 ± 0.5

(0.240 ± 0.020)

1206

3.2 ± 0.3

(0.126 ±0.012)

1.6 ± 0.3

(0.063 ± 0.012)

1210

3.2 ± 0.3

(0.126 ± 0.012)

2.5 ± 0.3

(0.098 ± 0.012)

1812

4.5 ± 0.5

(0.177 ± 0.020)

3.2 ± 0.5

(0.126 ± 0.020)

2220

5.7 ± 0.5

(0.224 ± 0.020)

5.0 ± 0.5

(0.197 ± 0.020)

4030

10.2 ± 0.6

(0.401 ± 0.024)

7.6 ± 0.8

(0.299 ± 0.031)

5040

12.7 ± 0.6

(0.500 ± 0.024)

10.2 ± 0.8

(0.401 ± 0.031)

6054

15.2 ± 0.6

(0.598 ± 0.024)

13.7 ± 0.8

(0.539 ± 0.031)

Capacitance and Voltage Range: Case Sizes 1206 and 1210

Capacitance

Code

0102

0152

0222

0332

0472

0682

0103

0153

0223

0333

0473

0683

0104

DC Rated Voltage (105°C / 125°C)

25 V / 19 V

50 V / 38 V

Size Code

H max

Size Code

H max

1.1 (0.043)

1.3 (0.051)

1.8 (0.071)

1.3 (0.051)

2.2 (0.087)

1.8 (0.071)

2.2 (0.087)

millimeters (inches)

100 V / 75 V

Size Code

H max

1.1 (0.043)

1.3 (0.051)

1.6 (0.063)

1.8 (0.071)

2.2 (0.087)

1 nF

1.5

2.2

3.3

4.7

6.8

100

Capacitance and Voltage Range: Case Sizes 1812 to 6054

Capacitance

millimeters (inches)

250 V / 187 V

Size Code

H max

1.5 (0.059)

2.5 (0.098)

2.0 (0.079)

3.0 (0.118)

4.0 (0.157)

3.6 (0.142)

5.1 (0.201)

3.8 (0.150)

5.8 (0.228)

4.6 (0.181)

4.4 (0.173)

5.7 (0.224)

1 nF

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1 µF

1.5

2.2

3.3

4.7

Capacitance

Code

0102

0152

0222

0332

0472

0682

0103

0153

0223

0333

0473

0683

0104

0154

0224

0334

0474

0684

0105

0155

0225

0335

0475

DC Rated Voltage (105°C / 125°C)

63 V / 47 V

100 V / 75 V

Size Code

H max

Size Code

H max

1.5 (0.059)

2.0 (0.079)

3.0 (0.118)

2.0 (0.079)

3.0 (0.118)

2.5 (0.098)

3.0 (0.118)

4.5 (0.177)

3.4 (0.134)

4.5 (0.177)

4.0 (0.157)

5.4 (0.213)

4.5 (0.177)

5.1 (0.201)

5.0 (0.197)

4.8 (0.189)

4.6 (0.181)

5.5 (0.217)

6.2 (0.244)

7.0 (0.276)

160 V / 120 V

Size Code

H max

1.5 (0.059)

2.0 (0.079)

2.5 (0.098)

2.1 (0.083)

3.0 (0.118)

3.4 (0.134)

5.1 (0.201)

5.0 (0.197)

3.8 (0.150)

4.6 (0.181)

4.4 (0.173)

6.2 (0.244)

Additional information on this product is available from AVX’s catalog or AVX’s FAX Service.

Call 1-800-879-1613 and request document

#079.

Visit our website http://www.avxcorp.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
