CWR19HB336KCGZ

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 10% +Tol, 10% -Tol, 33uF, Surface Mount, 2611, CHIP
CategoryPassive components    capacitor
File Size92KB，5 Pages
ManufacturerAVX
Environmental Compliance
Download Datasheet Parametric View All

CWR19HB336KCGZ Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 15V, 10% +Tol, 10% -Tol, 33uF, Surface Mount, 2611, CHIP

CWR19HB336KCGZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAVX
package instruction, 2711
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance33 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR1100 mΩ
high2.79 mm
JESD-609 codee4
leakage current0.006 mA
length6.73 mm
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingBulk
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)15 V
GuidelineMIL-PRF-55365/11
ripple current130 mA
size code2611
surface mountYES
Delta tangent0.08
Terminal surfaceGold (Au)
Terminal shapeJ BEND
width2.79 mm

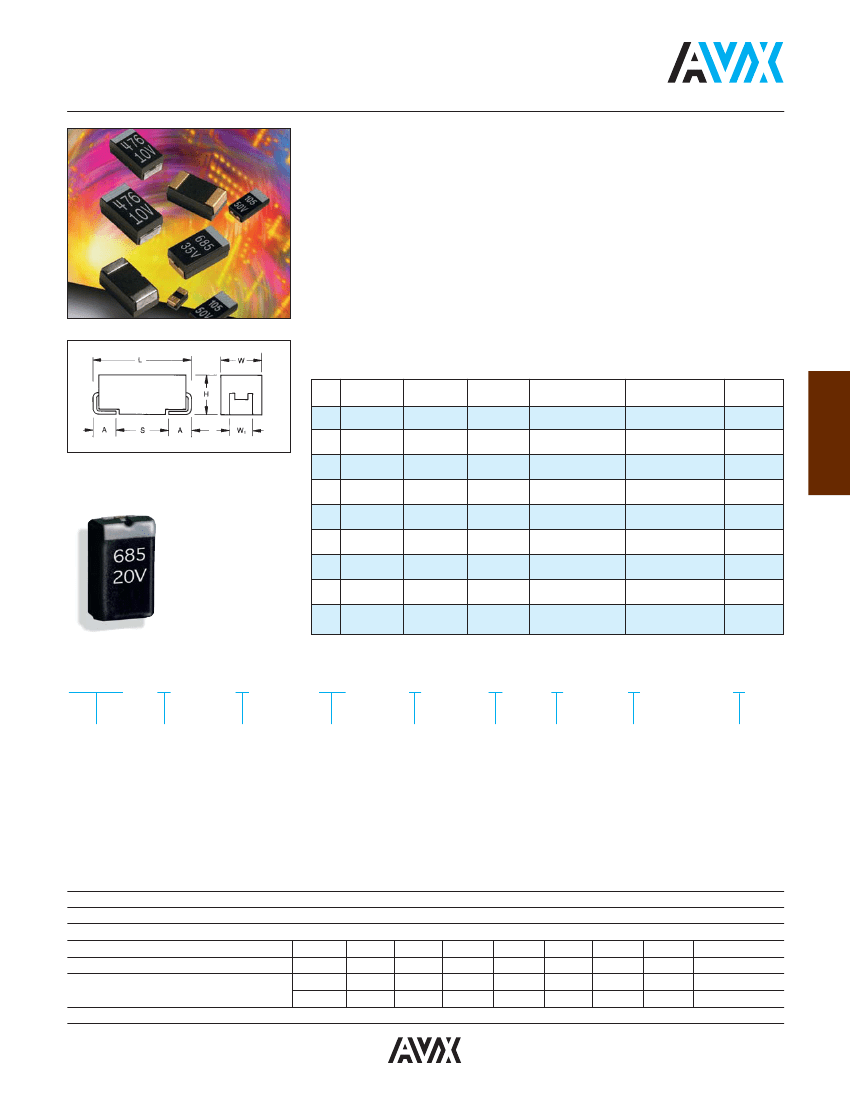

CWR19HB336KCGZ Preview

TAZ Series
CWR19 - MIL-PRF-55365/11
An extended range of capacitor ratings
beyond CWR09 that is fully qualified to
MIL-PRF-55365/11, this series repre-
sents the most flexible of surface
mount form factors, offering nine case
sizes. The molded construction is
compatible with a wide range of SMT
board assembly processes including
wave or reflow solder, conductive
epoxy or compression bonding tech-
niques. The five smaller cases are
characterized by their low profile con-
struction; with the A case being the
world’s smallest molded military tanta-
lum. There are three termination finish-
es available: fused solder plated (“K”
per MIL-PRF-55365), hot solder
dipped (“C”) and gold plated (“B”). In
addition, the molding compound has
been selected to meet the require-
ments of UL94V-0 (Flame Retardancy)
and requirements of NASA SP-R-
0022A (Outgassing).
CASE DIMENSIONS:
Case Length (L)
Width (W)
Height (H)
Code ±0.38 (0.015) ±0.38 (0.015) ±0.38 (0.015)
A
B
2.54 (0.100)
3.81 (0.150)
5.08 (0.200)
3.81 (0.150)
5.08 (0.200)
5.59 (0.220)
6.73 (0.265)
7.24 (0.285)
6.93 Max
(0.273)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
2.54 (0.100)
2.54 (0.100)
3.43 (0.135)
2.79 (0.110)
3.81 (0.150)
5.41 Max
(0.213)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.27 (0.050)
1.78 (0.070)
Term. Width (W
1
)
1.27±0.13
(0.050±0.005)
1.27±0.13
(0.050±0.005)
1.27±0.13
(0.050±0.005)
2.41+0.13/-0.25
(0.095+0.005/-0.010)
2.41+0.13/-0.25
(0.095+0.005/-0.010)
millimeters (inches)
Term. Length (A)
±0.13 (0.005)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
0.76 (0.030)
1.27 (0.050)
1.27 (0.050)
1.19 (0.047)
S min
1.80 (0.071)
1.65 (0.065)
2.92 (0.115)
1.65 (0.065)
2.92 (0.115)
3.43 (0.135)
3.56 (0.140)
0.70 (0.028)
N/A
MARKING
(White marking on black body)
Polarity Stripe (+)
C
D
E
F
Capacitance Code
Rated Voltage
G
H
X
3.30±0.13
(0.130±0.005)
2.67±0.13
2.79 (0.110)
(0.105±0.005)
3.68+0.13/-0.51
2.79 (0.110) (0.145+0.005/-0.020)
2.74 Max
(0.108)
3.05±0.13
(0.120±0.005)
HOW TO ORDER
CWR19
Type
J
Voltage
Code
C = 4Vdc
D = 6Vdc
F = 10Vdc
H = 15Vdc
J = 20Vdc
K = 25Vdc
M = 35Vdc
N = 50Vdc
–
Termination
Finish
K = Fused Solder
Plated
C = Hot Solder
Dipped
B = Gold Plated
225
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd digit
represents
multiplier
(number of zeros
to follow)
*
Capacitance
Tolerance
M = ±20%
K = ±10%
J = ±5%
@
Reliability
Grade
Weibull: B =
0.1%/1000 Hrs.
(90% C =
0.01%/1000
Hrs. conf.)
Comm: Z =
Non ER
D
Case
Size
+
Surge Test
Option
A = 10 cycles, +25°C
B = 10 cycles, -55°C
& +85°C
C = 10 cycles, -55°C
& +85°C
before Weibull
Z = None required
Packaging
Bulk = Standard
\TR = 7" T&R
\TR13 = 13" T&R
\W = Waffle
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage: (V
R
)
Category Voltage: (V
C
)
Surge Voltage: (V
S
)
Temperature Range:
Unless otherwise specified, all technical
0.33 µF to 330 µF
±5%; ±10%; ±20%
4
6
10
15
2.7
4
7
10
5.2
8
13
20
3.4
5
8
13
-55°C to +125°C
data relate to an ambient temperature of 25°C
85°C:
125°C:
85°C:
125°C:
20
13
26
16
25
17
32
20
35
23
46
28
50
33
65
40
57
TAZ Series
CWR19 - MIL-PRF-55365/11
CAPACITANCE AND RATED VOLTAGE, V
R
(VOLTAGE CODE) RANGE
(LETTER DENOTES CASE SIZE)
Capacitance
µF
Code
0.10
104
0.15
154
0.22
224
0.33
334
0.47
474
0.68
684
1.0
105
1.5
155
2.2
225
3.3
335
4.7
475
6.8
685
10
106
15
156
22
226
33
336
47
476
68
686
100
107
150
157
220
227
330
337
4V (C)
6V (D)
10V (F)
Rated voltage DC (V
R
) at 85ºC
15V (H)
20V (J)
25V (K)
35V (M)
50V (N)
A
A
A
A
A/C
B
B/C/D
D/E
D/E
E/F
F
F/G
G/H
G/H
H
A
A
B/C
B
D
E
E
E/F
F
G
H
H/X
C
B/C
D
E
F
G
G/H/X
H/X
G
H
X
C
A
A
A/C
B
B
B/D
D/E
E
E
F
G
G
H
A
A/C
B
B
B/D/E
D/E
E
F
F/G
G
G
H
H
A
A/C
B/C
B/C/D
B/C/D/E
D/E
E
F
F/G
G
G/H
H/X
H
58
TAZ Series
CWR19 - MIL-PRF-55365/11
Part Number
Case
Size
Cap
(nom)
(µF)
DC
rated
voltage
(85°C)
(volts)
ESR
(max)
100 kHz
+25°C
(ohms)
DC Leakage (max)
+25°C
(µA)
+85°C
(µA)
+125°C
(µA)
Dissipation Factor (max)
+25°C
(%)
+85/125°C
(%)
-55°C
(%)
CWR19C-335*@A+
CWR19C-475*@A+
CWR19C-685*@A+
CWR19C-685*@C+
CWR19C-106*@B+
CWR19C-156*@B+
CWR19C-226*@B+
CWR19C-226*@D+
CWR19C-336*@D+
CWR19C-336*@E+
CWR19C-476*@E+
CWR19C-686*@E+
CWR19C-107*@F+
CWR19C-157*@G+
CWR19C-227*@H+
CWR19C-337*@H+
CWR19D-335*@A+
CWR19D-475*@A+
CWR19D-475*@C+
CWR19D-685*@B+
CWR19D-106*@B+
CWR19D-156*@B+
CWR19D-156*@D+
CWR19D-156*@E+
CWR19D-226*@D+
CWR19D-226*@E+
CWR19D-336*@E+
CWR19D-476*@F+
CWR19D-686*@F+
CWR19D-686*@G+
CWR19D-107*@G+
CWR19D-157*@G+
CWR19D-227*@H+
CWR19D-337*@H+
CWR19F-225*@A+
CWR19F-335*@A+
CWR19F-335*@C+
CWR19F-475*@B+
CWR19F-475*@C+
CWR19F-685*@B+
CWR19F-685*@C+
CWR19F-685*@D+
CWR19F-106*@B+
A
A
A
C
B
B
B
D
D
E
E
E
F
G
H
H
A
A
C
B
B
B
D
E
D
E
E
F
F
G
G
G
H
H
A
A
C
B
C
B
C
D
B
3.3
4.7
6.8
6.8
10
15
22
22
33
33
47
68
100
150
220
330
3.3
4.7
4.7
6.8
10
15
15
15
22
22
33
47
68
68
100
150
220
330
2.2
3.3
3.3
4.7
4.7
6.8
6.8
6.8
10
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
12
12
12
5.5
8
8
8
4
4
3
3
3
2
1
1
0.9
12
12
5.5
8
8
8
5
3
5
3.5
3.5
3.5
1.5
1
1.1
1.1
0.9
0.9
12
12
5.5
8
5.5
8
5.5
5
8
1
1
1
1
1
1
1
1
2
2
2
3
4
6
8
10
1
1
1
1
1
1
1
1
1
2
2
3
4
4
6
10
10
20
1
1
1
1
1
1
1
1
1
10
10
10
10
10
10
10
10
20
20
20
30
40
60
80
100
10
10
10
10
10
10
10
10
10
20
20
30
40
40
60
100
100
200
10
10
10
10
10
10
10
10
10
12
12
12
12
12
12
12
12
24
24
24
36
48
72
96
120
12
12
12
12
12
12
12
12
12
24
24
36
48
48
72
120
120
240
12
12
12
12
12
12
12
12
12
6
6
6
6
8
8
8
8
8
8
8
8
10
10
10
10
6
6
6
6
6
8
8
8
6
8
6
8
10
10
10
10
10
10
6
6
6
6
6
6
6
6
8
8
8
8
8
10
10
10
10
10
10
10
10
12
12
12
12
8
8
8
8
8
10
10
10
8
10
8
10
12
12
12
12
12
12
8
8
8
8
8
8
8
8
10
8
8
8
8
10
10
10
12
12
12
12
12
12
12
12
12
8
8
8
8
8
10
12
12
8
12
8
12
12
12
12
12
12
12
8
8
8
8
8
8
8
8
10
59
TAZ Series
CWR19 - MIL-PRF-55365/11
Part Number
Case
Size
Cap
(nom)
(µF)
DC
rated
voltage
(85°C)
(volts)
ESR
(max)
100 kHz
+25°C
(ohms)
DC Leakage (max)
+25°C
(µA)
+85°C
(µA)
+125°C
(µA)
Dissipation Factor (max)
+25°C
(%)
+85/125°C
(%)
-55°C
(%)
CWR19F-106*@C+
CWR19F-106*@D+
CWR19F-106*@E+
CWR19F-156*@D+
CWR19F-156*@E+
CWR19F-226*@E+
CWR19F-336*@F+
CWR19F-476*@F+
CWR19F-476*@G+
CWR19F-686*@G+
CWR19F-107*@G+
CWR19F-107*@H+
CWR19F-157*@H+
CWR19F-157*@X+
CWR19F-227*@H+
CWR19H-105*@A+
CWR19H-155*@A+
CWR19H-225*@A+
CWR19H-225*@C+
CWR19H-335*@B+
CWR19H-475*@B+
CWR19H-475*@C+
CWR19H-475*@D+
CWR19H-685*@D+
CWR19H-685*@E+
CWR19H-106*@D+
CWR19H-106*@E+
CWR19H-156*@E+
CWR19H-156*@F+
CWR19H-226*@F+
CWR19H-336*@F+
CWR19H-336*@G+
CWR19H-476*@G+
CWR19H-476*@H+
CWR19H-686*@G+
CWR19H-686*@H+
CWR19H-107*@H+
CWR19J-684*@A+
CWR19J-105*@A+
CWR19J-155*@B+
CWR19J-155*@C+
CWR19J-225*@B+
CWR19J-335*@D+
C
D
E
D
E
E
F
F
G
G
G
H
H
X
H
A
A
A
C
B
B
C
D
D
E
D
E
E
F
F
F
G
G
H
G
H
H
A
A
B
C
B
D
10
10
10
15
15
22
33
47
47
68
100
100
150
150
220
1
1.5
2.2
2.2
3.3
4.7
4.7
4.7
6.8
6.8
10
10
15
15
22
33
33
47
47
68
68
100
0.68
1
1.5
1.5
2.2
3.3
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
5.5
4
3.5
5
3
2
1.5
1.5
1
1.1
1.1
0.9
0.9
0.9
0.9
15
15
15
5.5
9
5
5.5
6
6
3
6
4
4
3
3
3
1.1
1.1
0.9
1.1
0.9
0.9
15
15
9
6
9
6
1
1
1
2
2
3
3
4
4
6
10
10
15
15
20
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
5
6
10
10
10
10
15
1
1
1
1
1
1
10
10
10
20
20
30
30
40
40
60
100
100
150
150
200
10
10
10
10
10
10
10
10
10
10
20
20
20
20
30
50
60
100
100
100
100
150
10
10
10
10
10
10
12
12
12
24
24
36
36
48
48
72
120
120
180
180
240
12
12
12
12
12
12
12
12
12
12
24
24
24
24
36
60
72
120
120
120
120
180
12
12
12
12
12
12
6
6
6
6
8
8
8
10
10
10
10
10
10
10
10
6
6
6
6
6
6
6
6
6
8
6
6
6
8
8
6
8
8
8
8
8
10
6
6
6
6
6
6
8
8
8
8
10
10
10
12
12
12
12
12
12
12
12
8
8
8
8
8
8
8
8
8
10
8
8
8
10
10
8
10
10
10
10
10
12
8
8
8
8
8
8
8
8
8
8
10
10
10
12
12
12
12
12
12
12
12
8
8
8
8
8
8
8
8
8
12
8
8
8
10
10
8
10
10
10
10
10
12
8
8
8
8
8
8
60
TAZ Series
CWR19 - MIL-PRF-55365/11
Part Number
Case
Size
Cap
(nom)
(µF)
DC
rated
voltage
(85°C)
(volts)
ESR
(max)
100 kHz
+25°C
(ohms)
DC Leakage (max)
+25°C
(µA)
+85°C
(µA)
+125°C
(µA)
Dissipation Factor (max)
+25°C
(%)
+85/125°C
(%)
-55°C
(%)
CWR19J-475*@E+
CWR19J-685*@E+
CWR19J-106*@E+
CWR19J-106*@F+
CWR19J-156*@F+
CWR19J-226*@G+
CWR19J-336*@H+
CWR19J-476*@H+
CWR19J-476*@X+
CWR19K-474*@A+
CWR19K-105*@B+
CWR19K-105*@C+
CWR19K-225*@D+
CWR19K-335*@E+
CWR19K-685*@F+
CWR19K-156*@G+
CWR19K-226*@G+
CWR19K-226*@H+
CWR19K-226*@X+
CWR19K-336*@H+
CWR19K-336*@X+
CWR19M-334*@A+
CWR19M-684*@C+
CWR19M-685*@G+
CWR19M-106*@H+
CWR19M-156*@X+
CWR19N-474*@C+
E
E
E
F
F
G
H
H
X
A
B
C
D
E
F
G
G
H
X
H
X
A
C
G
H
X
C
4.7
6.8
10
10
15
22
33
47
47
0.47
1
1
2.2
3.3
6.8
15
22
22
22
33
33
0.33
0.68
6.8
10
15
0.47
20
20
20
20
20
20
20
20
20
25
25
25
25
25
25
25
25
25
25
25
25
35
35
35
35
35
50
6
5
5
3
3
2.5
0.9
0.9
0.9
15
10
6.5
6
4
3
1.4
1.4
0.9
0.9
0.9
0.9
22
10
1.5
0.9
0.9
8
1
2
2
2
3
4
6
10
10
1
1
1
1
1
2
4
6
6
6
10
10
1
1
3
4
6
1
10
20
20
20
30
40
60
100
100
10
10
10
10
10
20
40
60
60
60
100
100
10
10
30
40
60
10
12
24
24
24
36
48
72
120
120
12
12
12
12
12
24
48
72
72
72
120
120
12
12
36
48
72
12
6
6
6
6
6
6
8
8
8
6
6
6
6
6
6
6
6
6
6
8
8
6
6
6
8
6
6
8
8
8
8
8
8
10
10
10
8
8
8
8
8
8
8
8
8
8
10
10
8
8
8
10
8
8
8
8
8
8
8
8
10
10
10
8
8
8
8
8
8
8
8
8
8
10
10
8
8
8
10
8
8
61
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Problems with stm32 edge capture?
Can the STM32 timer input capture be set to edge-valid (both rising and falling edges are valid)?...
qzm stm32/stm8
Find an electronics engineer near Foshan
[i=s]This post was last edited by Mr. Boyi-He on 2020-4-17 14:48[/i]Are there any electronic engineers looking for a job or changing jobs in Foshan? Especially those in the field of analytical instrum...
博翼-何先生 Talking about work
Is WMFormatSDK included in ce.net 4.2?
I recently developed a project, and I can't find some libraries under ce. I want to borrow some libs under WMFormatSDK. I don't know if it's possible. I checked the information in this regard, but the...
国强 Embedded System
Agitek Engineer - How to determine if an oscilloscope has a false wave
[i=s]This post was last edited by agitek安泰维修 on 2020-5-6 18:15[/i]Oscilloscopes are like "eyes" to many engineers. The time engineers spend with oscilloscopes every day even exceeds the time they spen...
agitek安泰维修 Test/Measurement
Improve SOC performance without increasing clock frequency and power consumption
In the field of consumer mobile devices, in order to maintain their share in the ever-changing market, system designers must constantly add new functions to embedded products: listening to music, watc...
soso MCU
My question is, does IoT need a server? Is Alibaba Cloud better or Tencent Cloud? Can anyone recommend one?
Is a cloud server needed in the Internet of Things? I would like to ask an expert to introduce it to me....
15003214995 TI Technology Forum
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. XC6121F323MR
  2. 311FS034XMT1904
  3. C1210X563G4JAC7210
  4. 27J1K2E
  5. R-24N1-A330KL-20RE
  6. B32327-C1605-K032
  7. FHV200913JN
  8. FMXMA118JIC-06.000000M
  9. AME7805AJBT
  10. BAV170-AU
  11. A2508-TP-H
  12. 0603WAJ0751T5E

Popular Articles

Technical ResourceMore

  1. FlashPgm software 2.24 latest version
  2. Application of high-precision lithography machines in large-scale integrated circuits
  3. Homemade small high-fidelity active speakers
  4. Photoelectric encoder position detection program
  5. Analysis on the Current Situation and Development of Intelligent Transportation System
  6. RTOS routines based on STM32
  7. OFDM+Code Division Multiple Access for Multi-Carrier CDMA
  8. MAX1303, pdf data sheet
  9. Performance Analysis of MIMO Technology in Tropospheric Scatter Communications
  10. Signal conditioning circuits and power conversion

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2808  603  169  1973  1709  57  13  4  40  35
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
