P3C1256-20TC

Description
Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, TSOP1-28
Categorystorage    storage
File Size268KB，10 Pages
ManufacturerPyramid Semiconductor Corporation
Websitehttp://www.pyramidsemiconductor.com/
Download Datasheet Parametric Compare View All

P3C1256-20TC Overview

Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, TSOP1-28

P3C1256-20TC Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerPyramid Semiconductor Corporation
Parts packaging codeTSOP
package instructionTSOP1-28
Contacts28
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum access time20 ns
JESD-30 codeR-PDSO-G28
length11.811 mm
memory density262144 bit
Memory IC TypeSTANDARD SRAM
memory width8
Number of functions1
Number of terminals28
word count32768 words
character code32000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize32KX8
Package body materialPLASTIC/EPOXY
encapsulated codeTSOP1
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.1938 mm
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal formGULL WING
Terminal pitch0.55 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width8 mm

P3C1256-20TC Preview

P3C1256
HIGH SPEED 32K x 8
3.3V STATIC CMOS RAM
FEATURES
3.3V Power Supply
High Speed (Equal Access and Cycle Times)
— 12/15/20/25 ns (Commercial)
— 15/20/25 ns (Industrial)
Low Power
Single 3.3 Volts ±0.3Volts Power Supply
Easy Memory Expansion Using
CE
and
OE
Inputs
Common Data I/O
Three-State Outputs
Fully TTL Compatible Inputs and Outputs
Advanced CMOS Technology
Automatic Power Down
Packages
—28-Pin TSOP and SOJ
DESCRIPTION
The P3C1256 is a 262,144-bit high-speed CMOS
static RAM organized as 32Kx8. The CMOS memory
requires no clocks or refreshing, and has equal access
and cycle times. Inputs are fully TTL-compatible. The
RAM operates from a single 3.3V± 0.3V tolerance power
supply.
Access times as fast as 12 nanoseconds permit greatly
enhanced system operating speeds. CMOS is utilized
to reduce power consumption to a low level. The
P3C1256 is a member of a family of PACE RAM™ prod-
ucts offering fast access times.
The P3C1256 device provides asynchronous operation
with matching access and cycle times. Memory loca-
tions are specified on address pins A
0
to A
14
. Reading is
accomplished by device selection (CE and output en-
abling (OE) while write enable (WE) remains HIGH. By
presenting the address under these conditions, the data
in the addressed memory location is presented on the
data input/output pins. The input/output pins stay in the
HIGH Z state when either
CE
or
OE
is HIGH or
WE
is
LOW.
Package options for the P3C1256 include 28-pin TSOP
and SOJ packages.

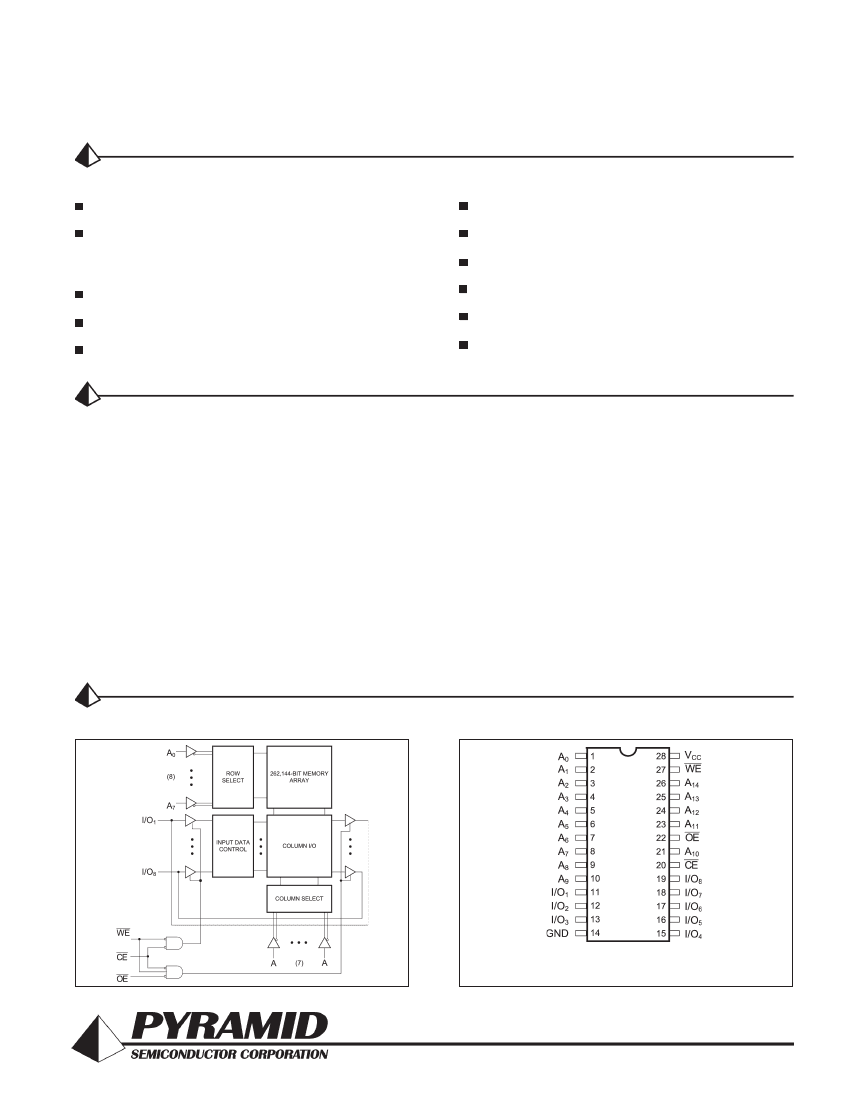

FUNCTIONAL BLOCK DIAGRAM
PIN CONFIGURATIONS
SOJ (J5)
1519B
TOP VIEW
See end of datasheet for TSOP pin configuration
Document #
SRAM122
REV B
1
Revised August 2006
P3C1256
RECOMMENDED OPERATING TEMPERATURE & SUPPLY VOLTAGE
Temperature Range (Ambient)
Commercial (0°C to 70°C)
Industrial (-40°C to 85°C)
Supply Voltage
3.0V
≤
V
CC
≤
3.6V
3.0
≤
V
CC
≤
3.6V
MAXIMUM RATINGS
(1)
Stresses greater than those listed can cause permanent damage to the device. These are absolute stress ratings
only. Functional operation of the device is not implied at these or any other conditions in excess of those given in
the operational sections of this data sheet. Exposure to Maximum Ratings for extended periods can adversely
affect device reliability.
Symbol
V
CC
V
TERM
T
A
S
TG
I
OUT
I
LAT
Parameter
Supply Voltage with Respect to GND
Terminal Voltage with Respect to GND (up to 7.0V)
Operating Ambient Temperature
Storage Temperature
Output Current into Low Outputs
Latch-up Current
>200
Min
-0.5
-0.5
-40
-55
Max
7.0
V
CC
+ 0.5
85
125
25
Unit
V
V
°C
°C
mA
mA
DC ELECTRICAL CHARACTERISTICS
(Over Recommended Operating Temperature & Supply Voltage)
(2)
Symbol
V
OH
V
OL
V
IH
V
IL
I
LI
I
LO
I
SB
I
SB1
Parameter
Output High Voltage
(I/O
0
- I/O
7
)
Output Low Voltage
(I/O
0
- I/O
8
)
Input High Voltage
Input Low Voltage
Input Leakage Current
Output Leakage Current
V
CC
Current
TTL Standby Current
V
CC
Current
CMOS Standby Current
GND
≤
V
IN
≤
V
CC
GND
≤
V
OUT
≤
V
CC
CE
= V
CC
V
CC
= 3.6V, I
OUT
= 0 mA
CE
= V
CC
V
CC
= 3.6V, I
OUT
= 0 mA
CE
= V
CC
Test Conditions
I
OH
= –4mA, V
CC
= 3.0V
I
OL
= 8 mA
I
OL
= 10 mA
2.2
-0.5
(3)
-5
-5
Min
2.4
0.4
0.5
V
CC
+ 0.3
0.8
+5
+5
20
Max
Unit
V
V
V
V
V
µA
µA
mA
3
mA
Document #
SRAM122
REV B
Page 2 of 10
P3C1256
CAPACITANCES
(4)
(V
CC
= 5.0V, T
A
= 25°C, f = 1.0 MHz)
Symbol
C
IN
C
OUT
Parameter
Input Capacitance
Output Capacitance
Test Conditions
V
IN
= 0V
V
OUT
= 0V
Max
10
10
Unit
pF
pF
POWER DISSIPATION CHARACTERISTICS VS. SPEED
Symbol
I
CC
Parameter
Dynamic Operating Current
Temperature
Test
Range
Conditions
Commercial
Industrial
*
*
-12
110
N/A
-15
100
115
-20
95
110
-25
90
105
Unit
mA
mA
*Tested
with outputs open and all address and data inputs changing at the maximum write-cycle rate.
The device is continuously enabled for writing, i.e.,
CE,
and
WE
≤
V
IL
(max),
OE
is high. Switching inputs are 0V
and 3V.
AC ELECTRICAL CHARACTERISTICS - READ CYCLE
(Over Recommended Operating Temperature & Supply Voltage)
Symbol
t
RC
t
AA
t
AC
t
OH
t
LZ
t
HZ
t
OE
t
OLZ
t
OHZ
t
PU
t
PD
Parameter
Read Cycle Time
Address Access Time
Chip Enable Access
Time
Output Hold from
Address Change
Chip Enable to
Output in Low Z
Chip Disable to
Output in High Z
Output Enable Low
to Data Valid
Output Enable Low to
Low Z
Output Enable High
to High Z
Chip Enable to Power
Up Time
Chip Disable to
Power Down Time
0
12
0
6
0
15
-12
Min
12
12
12
2
2
7
7
0
7
0
20
2
2
8
9
0
9
0
20
Max
Min
15
15
15
2
2
9
11
0
10
-15
Max
Min
20
20
20
2
2
10
12
-20
Max
Min
25
25
25
-25
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Document #
SRAM122
REV B
Page 3 of 10
P3C1256

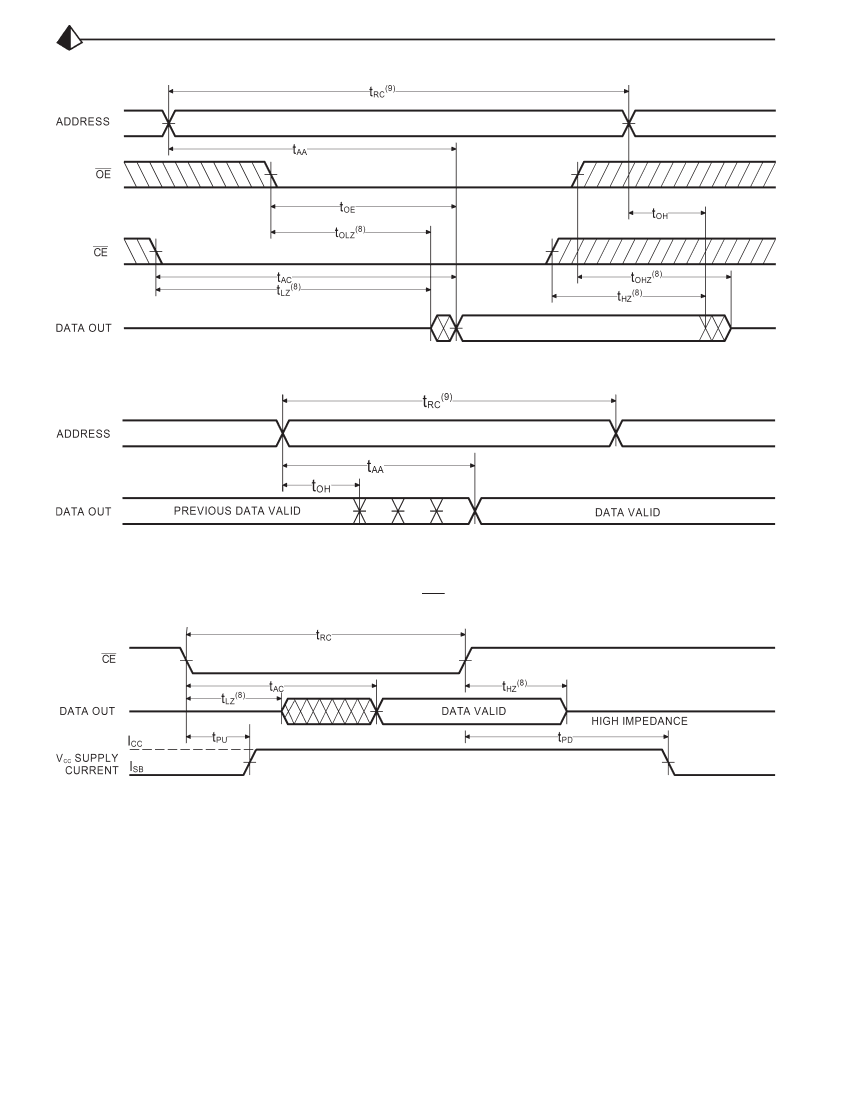

TIMING WAVEFORM OF READ CYCLE NO. 1 (OE CONTROLLED)
(5)
OE
TIMING WAVEFORM OF READ CYCLE NO. 2 (ADDRESS CONTROLLED)
(5,6)
TIMING WAVEFORM OF READ CYCLE NO. 3 (CE CONTROLLED)
(5,7)
Notes:
1. Stresses greater than those listed under MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification
is not implied. Exposure to MAXIMUM rating conditions for extended
periods may affect reliability.
2. Extended temperature operation guaranteed with 400 linear feet per
minute of air flow.
3. Transient inputs with V
IL
and I
IL
not more negative than –3.0V and
–100mA, respectively, are permissible for pulse widths up to 20 ns.
4. This parameter is sampled and not 100% tested.
5.
WE
is HIGH for READ cycle.
6.
CE
is LOW and
OE
is LOW for READ cycle.
7. ADDRESS must be valid prior to, or coincident with
CE
transition
LOW.
8. Transition is measured ± 200 mV from steady state voltage prior to
change, with loading as specified in Figure 1. This parameter is
sampled and not 100% tested.
9. Read Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM122
REV B
Page 4 of 10
P3C1256
AC CHARACTERISTICS—WRITE CYCLE
(Over Recommended Operating Temperature & Supply Voltage)
Symbol
t
WC
t
CW
t
AW
t
AS
t
WP
t
AH
t
DW
t
DH
t
WZ
t
OW
Parameter
Write Cycle Time
Chip Enable Time to
End of Write
Address Valid to
End of Write
Address Set-up
Time
Write Pulse Width
Address Hold Time
Data Valid to End of
Write
Data Hold Time
Write Enable to
Output in High Z
Output Active from
End of Write
3
-12
Min
12
10
10
0
9
0
8
0
7
3
Max
Min
15
12
12
0
11
0
10
0
8
3
-15
Max
Min
20
15
15
0
15
0
12
0
10
3
-20
Max
Min
25
18
18
0
18
0
15
0
11
-25
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
TIMING WAVEFORM OF WRITE CYCLE NO. 1 (WE CONTROLLED)
(10,11)
WE
Notes:
10.
CE
and
WE
must be LOW for WRITE cycle.
11.
OE
is LOW for this WRITE cycle to show t
WZ
and t
OW
.
12. If
CE
goes HIGH simultaneously with WE HIGH, the output remains
in a high impedance state
13. Write Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM122
REV B
Page 5 of 10
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

P3C1256-20TC Related Products

P3C1256-20TC P3C1256-12TC P3C1256-15TC P3C1256-20TI P3C1256-15TI P3C1256-25TI P3C1256-25TC
Description Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 12ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, TSOP1-28 Standard SRAM, 32KX8, 25ns, CMOS, PDSO28, TSOP1-28
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation Pyramid Semiconductor Corporation
Parts packaging code TSOP TSOP TSOP TSOP TSOP TSOP TSOP
package instruction TSOP1-28 TSOP1, TSOP1-28 TSOP1-28 TSOP1-28 TSOP1-28 TSOP1-28
Contacts 28 28 28 28 28 28 28
Reach Compliance Code compliant compliant compliant compliant compliant compliant compli
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Maximum access time 20 ns 12 ns 15 ns 20 ns 15 ns 25 ns 25 ns
JESD-30 code R-PDSO-G28 R-PDSO-G28 R-PDSO-G28 R-PDSO-G28 R-PDSO-G28 R-PDSO-G28 R-PDSO-G28
length 11.811 mm 11.811 mm 11.811 mm 11.811 mm 11.811 mm 11.811 mm 11.811 mm
memory density 262144 bit 262144 bit 262144 bit 262144 bit 262144 bit 262144 bit 262144 bi
Memory IC Type STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM STANDARD SRAM
memory width 8 8 8 8 8 8 8
Number of functions 1 1 1 1 1 1 1
Number of terminals 28 28 28 28 28 28 28
word count 32768 words 32768 words 32768 words 32768 words 32768 words 32768 words 32768 words
character code 32000 32000 32000 32000 32000 32000 32000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 85 °C 85 °C 85 °C 70 °C
organize 32KX8 32KX8 32KX8 32KX8 32KX8 32KX8 32KX8
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code TSOP1 TSOP1 TSOP1 TSOP1 TSOP1 TSOP1 TSOP1
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL PARALLEL
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 1.1938 mm 1.1938 mm 1.1938 mm 1.1938 mm 1.1938 mm 1.1938 mm 1.1938 mm
Maximum supply voltage (Vsup) 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V 3.6 V
Minimum supply voltage (Vsup) 3 V 3 V 3 V 3 V 3 V 3 V 3 V
Nominal supply voltage (Vsup) 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V 3.3 V
surface mount YES YES YES YES YES YES YES
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL COMMERCIAL
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING
Terminal pitch 0.55 mm 0.55 mm 0.55 mm 0.55 mm 0.55 mm 0.55 mm 0.55 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 8 mm 8 mm 8 mm 8 mm 8 mm 8 mm 8 mm

Recommended Resources

CPU input and output interface circuits

TL431 circuit diagram

Motor bidirectional control circuit

DTMF multi-channel infrared remote control switch circuit

555 multifunctional refrigerator power socket circuit (2)

Computer motherboard circuit diagram 810 2_36

The calmest lip-syncing in history: the microphone was held upside down (photo)
The calmest lip-syncing in history: the microphone was held upside down (picture) [img=318,248]http://www.55usedcar.net/bbs/attachments/month_1003/100312114530ca71ef83dd53c3.jpg[/img] How much courage...
joyje110 Talking
Please give me some advice on the SPI serial port of TMS320F28027 and the initialization of rf905. The course design is urgent~~~~
rt, TMS320F28027's SPI serial port and rf905 initialization, course design, please help~~ Give an example, mainly now I have no clue~~...
newblee DSP and ARM Processors
DIY tube amplifier, starting with a transformer (50W)
EL34 dual tube push-pull 50WThe output power is 50W, and the performance is OK. When I tried the 25W amplifier with the 100W speaker, the tweeter was burned out. The sound is OK, which is shocking. 20...
青叶漂零 DIY/Open Source Hardware
IP camera surveillance replaces analog surveillance systems
Keywords: [b]Network Camera[/b] With the popularization of [url=http://www.yucoo.com/jiankongshexiangji.html][color=black]network camera[/color][/url] video surveillance and the rapid development of i...
yucooxfj Industrial Control Electronics
PCB connector connection method
As a component of a complete machine, a PCB generally cannot constitute an electronic product, and there must be problems with external connections. For example, electrical connections are required be...
中信华 PCB Design
Dear experts, please help... Why does the LCD display look like this?
[img]file:///c:/users/ADMINI~1/appdata/roaming/360se6/USERDA~1/Temp/102440~1.JPG[/img] Why is the display angle wrong? I am a novice and hope everyone will not criticize me. . . . . ....
20110318 51mcu
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. 2V4HCB
  2. 861011485016
  3. GSP1.7204.1
  4. HLS328-299TTRTV
  5. DBL1040CR6-36V/80-N
  6. LT3508IFE
  7. M2027TJG07-FC
  8. ATS-06B-25-C2-R0
  9. 1N5266D-35B
  10. P6SMB36A-T/R
  11. 1F1G_R2_10001
  12. TR0603D2R49P0525Z

Popular Articles

  1. LPC1768 SPI mode SD card FatFs file system transplantation
  2. ZDS2022 Oscilloscope 100 Practical Specials 30: UART Protocol Trigger
  3. STMicroelectronics' 70W wireless charging chipset improves charging speed, energy efficiency and flexibility
  4. TI launches new 3D Hall-effect position sensor for faster real-time control
  5. Renesas Electronics Launches Network Synchronizer and Jitter Attenuator for Optical Transmission and Wired Networks
  6. Wireless charging pad, can be used with iPhone or Android and other Qi devices
  7. What tests can the Tektronix MSO4 series oscilloscope perform?
  8. Car2 Cloud drives the future - using data storage to drive automotive industry upgrades and urban development
  9. AI beats humans in the triple crown! Is Sony saving the country by reserving autonomous driving technology?
  10. Objects and Object Systems in Siemens STEP7 Programming Software

Technical ResourceMore

  1. Instrument and meter tool manufacturing, improvement and repair - Radio Amateur Series
  2. 0603 Resistor Code Table
  3. Application of FPGA in Evolvable Hardware
  4. ADO Database Programming
  5. Design of Carbon Monoxide Gas Measurement and Control System in Cars Based on Single Chip Microcomputer
  6. 2.4-inch LCD screen data and 51 single-chip microcomputer code
  7. SDH daily maintenance
  8. Portel_DXP Lecture 3 Bus and Network Labeling
  9. MAX98095 Data Sheet
  10. 820 motherboard circuit diagram

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2411  1244  365  1181  1287  49  26  8  24  51
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
