PC740A and 750APowerPC™ Microprocessors
Fact Sheet
The PowerPC 750 and PowerPC740 microprocessors are low-power 32-bit implementations of the PowerPC Reduced
Instruction Set Computer (RISC) architecture. The PowerPC 750 and the PowerPC 740 micro-processors differ only in that
the PowerPC 750 features a dedicated L2 cache interface with on-chip L2 tags.
Both are software -compatible and bus-compatible with the PowerPC603e
TM
micro -processor families, and the PowerPC
740 is pin-compatible as well. PowerPC 750/740 micro-processors are fully JTAG
-compliant.
PC740/750 Main Features
n
Six independent execution units
:
- Two integer units
- Floating-point unit
- Branch processing unit
- Load/store unit
- System register unit
n
Cache and MMU Support
- 32-Kbytes, physically-addressed instruction and data cache
- 8-way set -associative
- Dedicated L2 cache interface with on-chip L2 tags (PC750, only)
- Separate Instruction and Data MMUs
- Virtual memory support up to 4 Petabytes (2
52
)
- Real memory support up to 4 Gigabytes (2
52
)
- 128-entry instruction and data TLBs

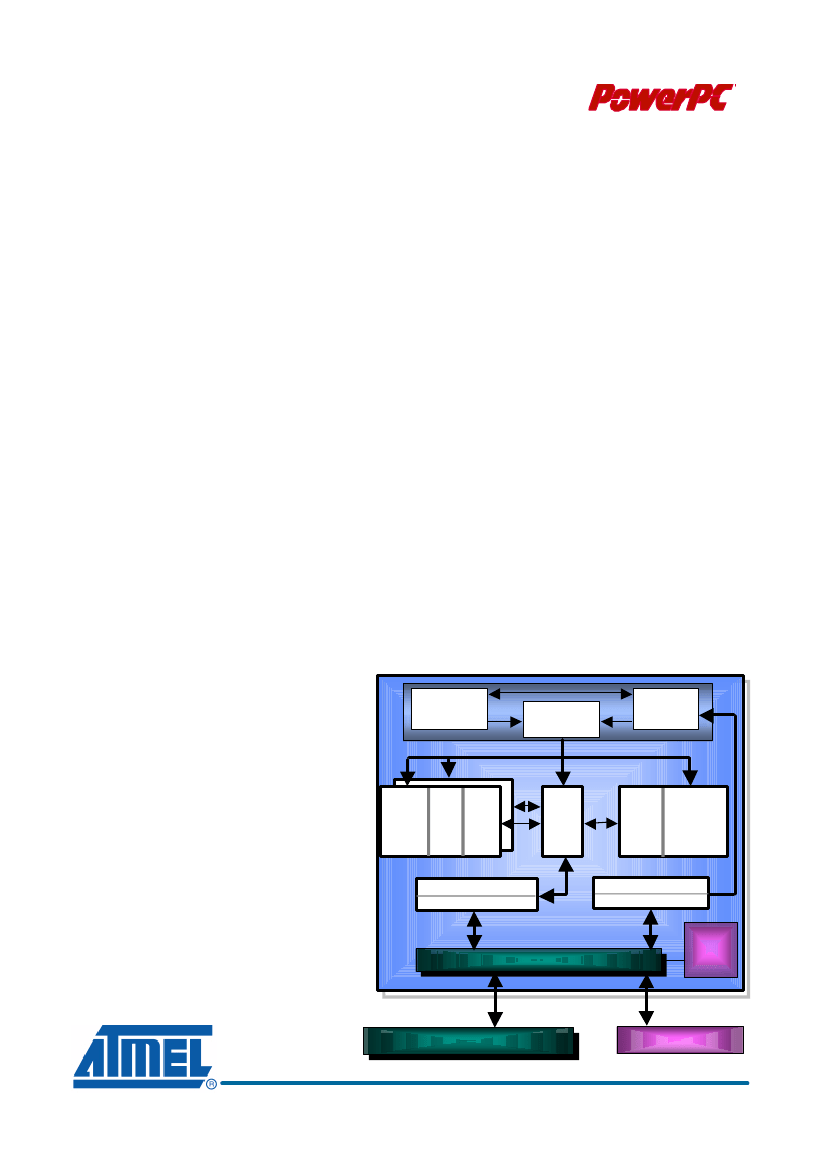

Completion
Unit
Dispatch
Unit
Branch
Unit
Integer
Unit
Gen Gen
Reg Re-
File name
Load/
Store
Unit
FPU
Reg
File
Floating
Point
Unit
D MMU
Data Cache
I MMU
Inst. Cache
Bus Interface Unit
L2
tags
32bit
Address
System Bus
64bit
Data
L2 Cache
Port (750 only)
L2 Data Bus
n
Bus Interface
-
-
-
-
Compatible with 60x processor interface
32 bit address bus
64-bit data bus
11 Bus -to- Core frequency multipliers
Motorola Name
Die Revision
CPU Speeds -
Internal
PC740A
200 - 266 MHz
MPC740PID8t
3.1 = H
200 MHz
PC750A
200 - 266 MHz
MPC750PID8t
3.1 = H
200 MHz
n
Power Management
-
-
-
-
Low-power design
3 static power saving modes : doze, nap and sleep
Dynamic power management
Integrated thermal management unit
CPU Bus Dividers
n
Packaging
- PC740 : 255 pin CBGA and CI-CGA
- PC750 : 360 pin CBGA and CI-CGA
n
Screening
-
-
-
-
CBGA upscreening upon Atmel-Grenoble standards
CI-CGA up to QML class Q
Full military range (Tj = -55°C +125°C)
Industrial temperature range (Tj = -40°C +85°C)
Bus Interface
Instructions per
Clock
L1 Cache
32-KB Instruction and Data 32-KB Instruction and Data
L2 Cache
-
256KB, 512KB, 1MB
Core-to-L2 Frequency
-
1:1, 1.5:1, 2:1, 2.5:1, 3:1
Divisions
Typ/Max Power
5.7W/7.9W @ 266 MHz
5.7W/7.9W @ 266 MHz
Dissipation
Die Size
67 mm²
67 mm²
Package
255-pin Flip-Chip CBGA
360-pin Flip-Chip CBGA
255-pin Flip-Chip CI-CGA 360-pin Flip-Chip CI-CGA
Process
0.29
µ
CMOS, 5LM
0.29
µ
CMOS, 5LM
Voltage
3.3V I/O
3.3V I/O
2.6V internal
2.6V internal
SPECint95
11.5 @ 266 MHz
12.0 @ 266 MHz
(estimated)
SPECfp95 (estimated)
6.9 @ 266 MHz
7.4 @ 266 MHz
Other Performance
488 MIPS @ 266 MHz
488 MIPS @ 266 MHz
Status
Active
Active
Samples
Now
Now
Production
Now
Now
Execution Units
Integer (2)
Integer (2)
Floating Point Unit
Floating Point Unit
Branch Unit
Branch Unit
Load/Store Unit
Load/Store Unit
System Register
System Register
233 MHz
233 MHz
266 MHz
266 MHz
3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x,
6x, 6.5x, 7x, 7.5x, 8x
6x, 6.5x, 7x, 7.5x, 8x
32-bit address, 64-bit data 32-bit address, 64-bit data
3 (2+Branch)
3 (2+Branch)
TS
Prefix
Prototype
Type
Temperature range : Tc
M: -55, +125°C
V: -40, +110°C
Package:
G : CBGA
GS: CI-CGA
(X) PC750A
M
G
U/T
8
L
x
Revision level
Rev E: Rev.2.2 obsolete
H: Rev 3.1
Bus divider
(to be confirmed)
L: Any valid PLL configuration
Max internal processor speed
Screening level:
-- : Standard
B/Q: MIL-STD-883, class Q
B/T: according to MIL-STD-883
U : Upscreening
U/T: Upscreening + burn-in
8: 200 MHz
10: 233 MHz
12: 266 MHz
For additional information:
contact your local ATMEL-Grenoble representative
or visit our web site at http://www.atmel-grenoble.com
