Z8400ALMBC: DescriptionMicroprocessor, 8-Bit, 4MHz, MOS, CQCC44, CERAMIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size536KB，23 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z8400ALMBC Overview

Microprocessor, 8-Bit, 4MHz, MOS, CQCC44, CERAMIC, LCC-44

Z8400ALMBC Parametric

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	LCC
package instruction	QCCN,
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	3 MODES OF MASKABLE INTERRUPTS
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	4 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-CQCC-N44
length	16.51 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	2.286 mm
speed	4 MHz
Maximum slew rate	200 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	MOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

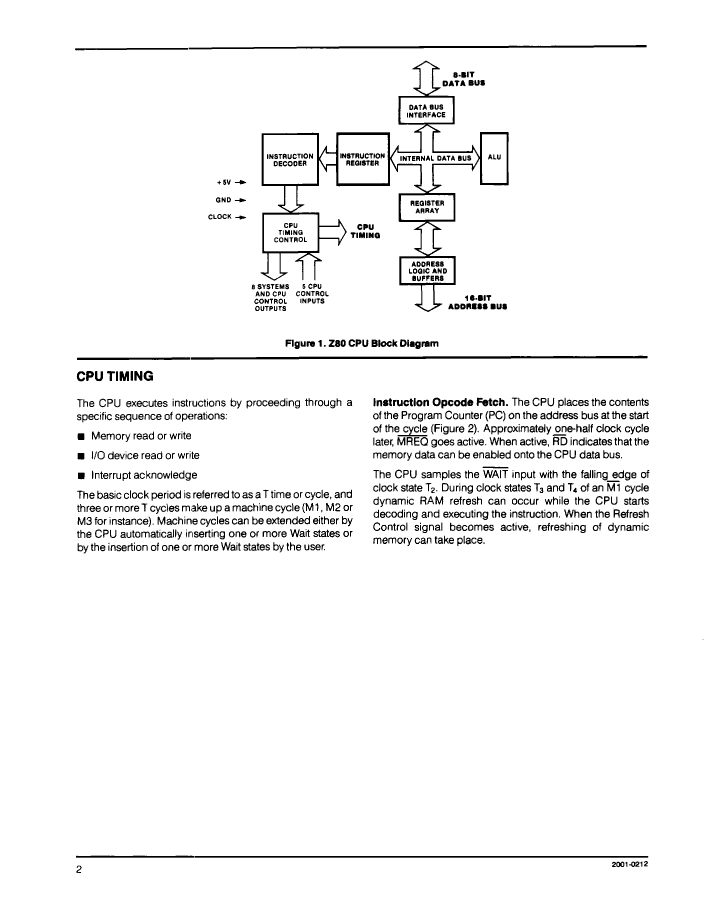

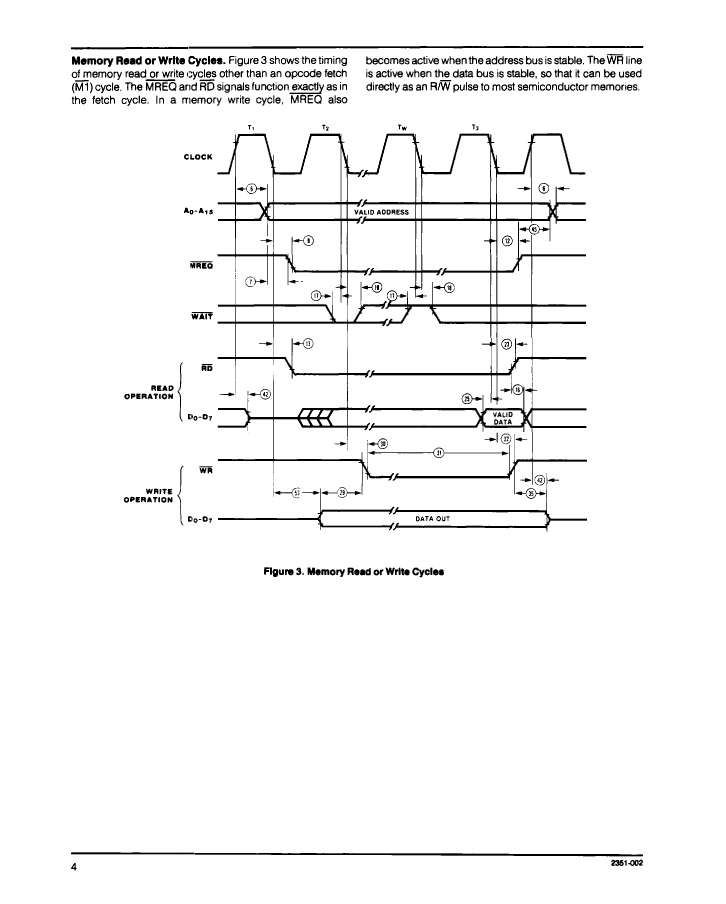

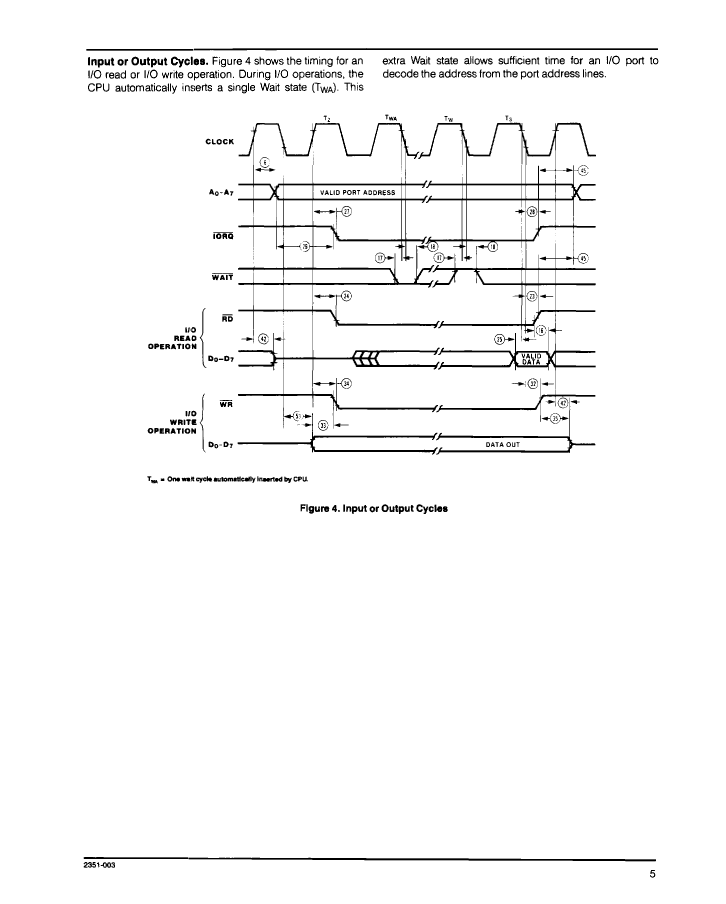

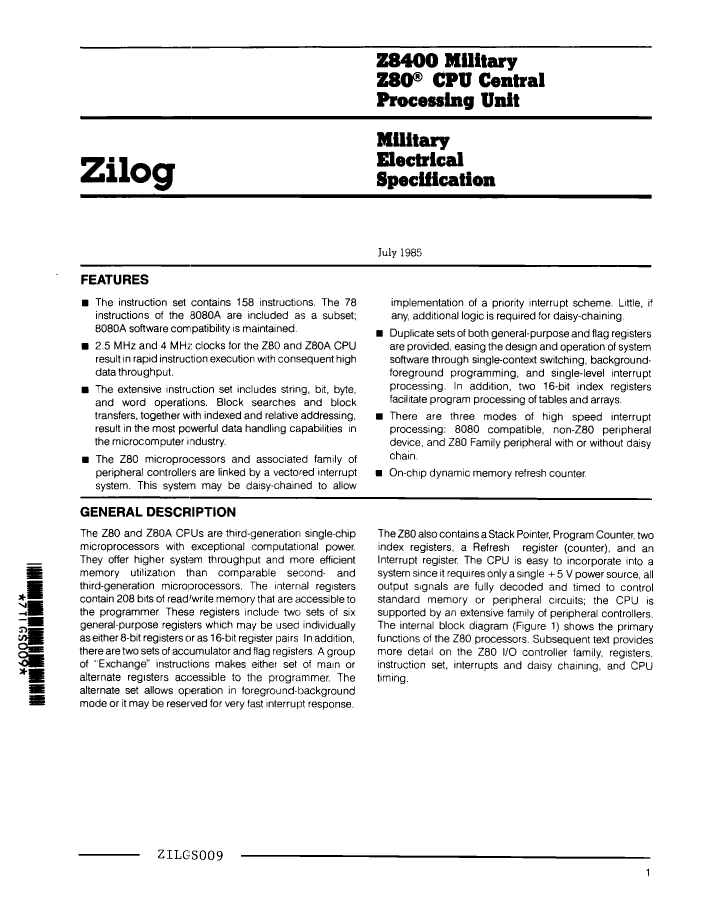

Z8400ALMBC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z8400ALMBC Related Products

	Z8400ALMBC	Z8400ALM	Z8400LMBC	Z8400CMJ	Z8400ACMBC	Z8400CMBC	Z8400LM	Z8400ACMJ
Description	Microprocessor, 8-Bit, 4MHz, MOS, CQCC44, CERAMIC, LCC-44	Microprocessor, 8-Bit, 4MHz, MOS, CQCC44, CERAMIC, LCC-44	Microprocessor, 8-Bit, 2.5MHz, MOS, CQCC44, CERAMIC, LCC-44	Microprocessor, 8-Bit, 2.5MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 4MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 2.5MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 2.5MHz, MOS, CQCC44, CERAMIC, LCC-44	Microprocessor, 8-Bit, 4MHz, MOS, CDIP40, CERAMIC, DIP-40
Maker	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.	Zilog, Inc.
Parts packaging code	LCC	LCC	LCC	DIP	DIP	DIP	LCC	DIP
package instruction	QCCN,	QCCN, LCC44,.65SQ	QCCN,	DIP,	DIP,	DIP,	QCCN, LCC44,.65SQ	DIP,
Contacts	44	44	44	40	40	40	44	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS	3 MODES OF MASKABLE INTERRUPTS
Address bus width	16	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	4 MHz	4 MHz	2.5 MHz	2.5 MHz	4 MHz	2.5 MHz	2.5 MHz	4 MHz
External data bus width	8	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-CQCC-N44	S-CQCC-N44	S-CQCC-N44	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	S-CQCC-N44	R-CDIP-T40
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2	2	2
Number of terminals	44	44	44	40	40	40	44	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN	QCCN	DIP	DIP	DIP	QCCN	DIP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.286 mm	2.286 mm	2.286 mm	4.699 mm	4.699 mm	4.699 mm	2.286 mm	4.699 mm
speed	4 MHz	4 MHz	2.5 MHz	2.5 MHz	4 MHz	2.5 MHz	2.5 MHz	4 MHz
Maximum slew rate	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	YES	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	DUAL	DUAL	QUAD	DUAL
width	16.51 mm	16.51 mm	16.51 mm	15.24 mm	15.24 mm	15.24 mm	16.51 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
