TAP106M025

Description
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED
CategoryPassive components    capacitor
File Size112KB，3 Pages
ManufacturerAVX
Download Datasheet Parametric View All

TAP106M025 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 20% +Tol, 20% -Tol, 10uF, Through Hole Mount, RADIAL LEADED

TAP106M025 Parametric

Parameter NameAttribute value
Objectid2007011370
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7.5
capacitance10 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
leakage current0.002 mA
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeDISK PACKAGE
method of packingTR
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)25 V
surface mountNO
Delta tangent0.08
Terminal shapeWIRE

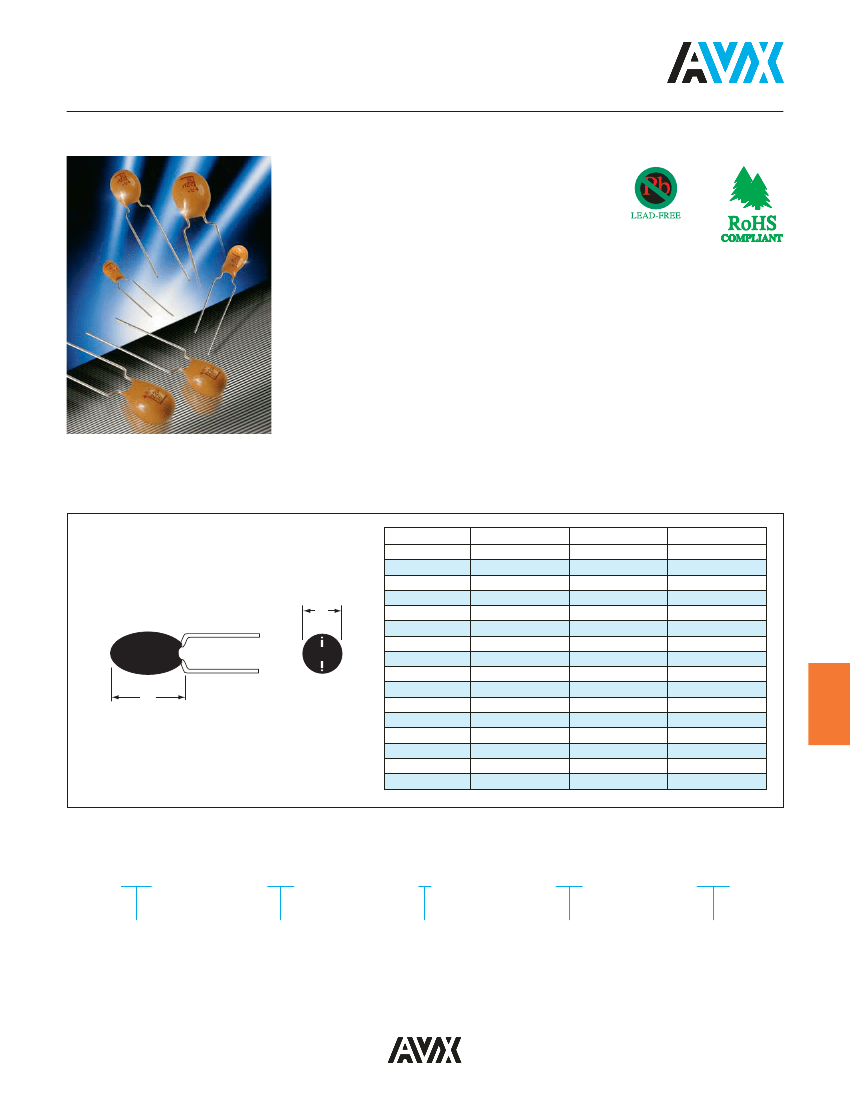

TAP106M025 Preview

Dipped Radial Capacitors
TAP Series
SOLID TANTALUM RESIN DIPPED CAPACITORS
TAP is a professional grade device manufactured
with a flame retardant coating and featuring low
leakage current and impedance, very small
physical sizes and exceptional temperature
stability. It is designed and conditioned to
operate to +125°C (see page 153 for voltage
derating above 85°C) and is available loose or
taped and reeled for auto insertion. The 15 case
sizes with wide capacitance and working voltage
ranges means the TAP can accommodate
almost any application.
LEAD-FREE COMPATIBLE
COMPONENT
MAXIMUM CASE DIMENSIONS:
millimeters (inches)
Wire
Case
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
C, F, G, H
H
8.50 (0.330)
9.00 (0.350)
10.0 (0.390)
10.5 (0.410)
10.5 (0.410)
11.5 (0.450)
11.5 (0.450)
12.0 (0.470)
13.0 (0.510)
14.0 (0.550)
14.0 (0.550)
14.5 (0.570)
16.0 (0.630)
17.0 (0.670)
18.5 (0.730)
B, S, D
*H
1
7.00 (0.280)
7.50 (0.300)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
10.5 (0.410)
11.5 (0.450)
12.5 (0.490)
12.5 (0.490)
13.0 (0.510)
D
+
H
D
4.50 (0.180)
4.50 (0.180)
5.00 (0.200)
5.00 (0.200)
5.50 (0.220)
6.00 (0.240)
6.50 (0.260)
7.00 (0.280)
8.00 (0.310)
8.50 (0.330)
9.00 (0.350)
9.00 (0.350)
9.00 (0.350)
10.0 (0.390)
10.0 (0.390)
HOW TO ORDER
TAP
Type
475
M
035
SCS
Capacitance Code
pF code: 1st two digits
represent significant figures,
3rd digit represents multiplier
(number of zeros to follow)
Capacitance Tolerance
K = ±10%
M = ±20%
(For J = ±5% tolerance,
please consult factory)
Rated DC Voltage
Suffix indicating wire form
and packaging
(see page 116)
JUNE 2013
I
117
Dipped Radial Capacitors
TAP Series
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Environmental Classification:
Dissipation Factor:
All technical data relate to an ambient temperature of +25°C
0.10 μF to 330 μF
±20%; ±10% (±5% consult your AVX representative for details)
6.3 10 16 20 25 35 50
4 6.3 10 13 16 23 33
8 13 20 26 33 46 65
5
9
12 16 21 28 40
-55°C to +125°C
55/125/56 (IEC 68-2)
0.04 for C
R
0.1-1.5μF
0.06 for C
R
2.2-6.8μF
0.08 for C
R
10-68μF
0.10 for C
R
100-330μF
1% per 1000 hrs. at 85°C with 0.1Ω/V series impedance, 60% confidence level.
CECC 30201 - 032
+85°C:
+125°C:
+85°C:
+125°C:
Reliability:
Qualification:
Capacitance Range
(letter denotes case size)
Capacitance
μF
Code
6.3V
10V
0.10
104
0.15
154
0.22
224
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
A
A
A
B
C
D
E
F
G
H
K
M
P
16V
Rated voltage DC (V
R
)
20V
25V
35V
A
A
A
A
A
A
50V
A
A
A
A
A
B
C
D
E
F
G
H
J
K
L
A
A
A
B
C
D
E
F
G
H
K
N
P
R
A
A
A
B
C
D
E
F
F
J
L
N
N
R
A
A
A
B
C
D
E
F
H
J
K
N
N
A
A
A
B
C
D
E
F
H
J
M
N
A
A
B
C
E
F
F
H
K
M
N
Values outside this standard range may be available on request.
AVX reserves the right to supply capacitors to a higher voltage rating, in the same case size, than that ordered.
MARKING
Polarity, capacitance, rated DC voltage, and an "A" (AVX
logo) are laser marked on the capacitor body which is made
of flame retardant gold epoxy resin with a limiting oxygen
index in excess of 30 (ASTM-D-2863).
•
•
•
•
Polarity
Capacitance
Voltage
AVX logo
• Tolerance code:
±20% = Standard (no marking)
±10% = “K” on reverse side of unit
±5% = “J” on reverse side of unit
+A
10μ
16
118
I
JUNE 2013
Dipped Radial Capacitors
TAP Series
RATINGS AND PART NUMBER REFERENCE
AVX
Part No.
Case Capacitance
Size
μF
DCL
(μA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
AVX
Part No.
Case Capacitance
Size
μF
DCL
(μA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
TAP 335(*)006
TAP 475(*)006
TAP 685(*)006
TAP 106(*)006
TAP 156(*)006
TAP 226(*)006
TAP 336(*)006
TAP 476(*)006
TAP 686(*)006
TAP 107(*)006
TAP 157(*)006
TAP 227(*)006
TAP 337(*)006
TAP 225(*)010
TAP 335(*)010
TAP 475(*)010
TAP 685(*)010
TAP 106(*)010
TAP 156(*)010
TAP 226(*)010
TAP 336(*)010
TAP 476(*)010
TAP 686(*)010
TAP 107(*)010
TAP 157(*)010
TAP 227(*)010
TAP 337(*)010
TAP 155(*)016
TAP 225(*)016
TAP 335(*)016
TAP 475(*)016
TAP 685(*)016
TAP 106(*)016
TAP 156(*)016
TAP 226(*)016
TAP 336(*)016
TAP 476(*)016
TAP 686(*)016
TAP 107(*)016
TAP 157(*)016
TAP 227(*)016
TAP 105(*)020
TAP 155(*)020
TAP 225(*)020
TAP 335(*)020
TAP 475(*)020
TAP 685(*)020
TAP 106(*)020
TAP 156(*)020
TAP 226(*)020
TAP 336(*)020
TAP 476(*)020
TAP 686(*)020
TAP 107(*)020
6.3 volt @ 85°C (4 volt @ 125°C)
A
3.3
0.5
6
A
4.7
0.5
6
A
6.8
0.5
6
B
10
0.5
8
C
15
0.8
8
D
22
1.1
8
E
33
1.7
8
F
47
2.4
8
G
68
3.4
8
H
100
5.0
10
K
150
7.6
10
M
220
11.0
10
P
330
16.6
10
10 volt @ 85°C (6.3 volt @ 125°C)
A
2.2
0.5
6
A
3.3
0.5
6
A
4.7
0.5
6
B
6.8
0.5
6
C
10
0.8
8
D
15
1.2
8
E
22
1.7
8
F
33
2.6
8
G
47
3.7
8
H
68
5.4
8
K
100
8.0
10
N
150
12.0
10
P
220
17.6
10
R
330
20.0
10
16 volt @ 85°C (10 volt @ 125°C)
A
1.5
0.5
4
A
2.2
0.5
6
A
3.3
0.5
6
B
4.7
0.6
6
C
6.8
0.8
6
D
10
1.2
8
E
15
1.9
8
F
22
2.8
8
F
33
4.2
8
J
47
6.0
8
L
68
8.7
8
N
100
12.8
10
N
150
19.2
10
R
220
20.0
10
20 volt @ 85°C (13 volt @ 125°C)
A
1.0
0.5
4
A
1.5
0.5
4
A
2.2
0.5
6
B
3.3
0.5
6
C
4.7
0.7
6
D
6.8
1.0
6
E
10
1.6
8
F
15
2.4
8
H
22
3.5
8
J
33
5.2
8
K
47
7.5
8
N
68
10.8
8
N
100
16.0
10
13.0
10.0
8.0
6.0
5.0
3.7
3.0
2.0
1.8
1.6
0.9
0.9
0.7
13.0
10.0
8.0
6.0
5.0
3.7
2.7
2.1
1.7
1.3
1.0
0.8
0.6
0.5
10.0
8.0
6.0
5.0
4.0
3.2
2.5
2.0
1.6
1.3
1.0
0.8
0.6
0.5
10.0
9.0
7.0
5.5
4.5
3.6
2.9
2.3
1.8
1.4
1.2
0.9
0.6
TAP 105(*)025
TAP 155(*)025
TAP 225(*)025
TAP 335(*)025
TAP 475(*)025
TAP 685(*)025
TAP 106(*)025
TAP 156(*)025
TAP 226(*)025
TAP 336(*)025
TAP 476(*)025
TAP 686(*)025
TAP 104(*)035
TAP 154(*)035
TAP 224(*)035
TAP 334(*)035
TAP 474(*)035
TAP 684(*)035
TAP 105(*)035
TAP 155(*)035
TAP 225(*)035
TAP 335(*)035
TAP 475(*)035
TAP 685(*)035
TAP 106(*)035
TAP 156(*)035
TAP 226(*)035
TAP 336(*)035
TAP 476(*)035
TAP 104(*)050
TAP 154(*)050
TAP 224(*)050
TAP 334(*)050
TAP 474(*)050
TAP 684(*)050
TAP 105(*)050
TAP 155(*)050
TAP 225(*)050
TAP 335(*)050
TAP 475(*)050
TAP 685(*)050
TAP 106(*)050
TAP 156(*)050
TAP 226(*)050
25 volt @ 85°C (16 volt @ 125°C)
A
1.0
0.5
4
A
1.5
0.5
4
A
2.2
0.5
6
B
3.3
0.6
6
C
4.7
0.9
6
D
6.8
1.3
6
E
10
2.0
8
F
15
3.0
8
H
22
4.4
8
J
33
6.6
8
M
47
9.4
8
N
68
13.6
8
35 volt @ 85°C (23 volt @ 125°C)
A
0.1
0.5
4
A
0.15
0.5
4
A
0.22
0.5
4
A
0.33
0.5
4
A
0.47
0.5
4
A
0.68
0.5
4
A
1.0
0.5
4
A
1.5
0.5
4
B
2.2
0.6
6
C
3.3
0.9
6
E
4.7
1.3
6
F
6.8
1.9
6
F
10
2.8
8
H
15
4.2
8
K
22
6.1
8
M
33
9.2
8
N
47
10.0
8
50 volt @ 85°C (33 volt @ 125°C)
A
0.1
0.5
4
A
0.15
0.5
4
A
0.22
0.5
4
A
0.33
0.5
4
A
0.47
0.5
4
B
0.68
0.5
4
C
1.0
0.5
4
D
1.5
0.6
4
E
2.2
0.8
6
F
3.3
1.3
6
G
4.7
1.8
6
H
6.8
2.7
6
J
10
4.0
8
K
15
6.0
8
L
22
8.8
8
10.0
8.0
6.0
5.0
4.0
3.1
2.5
2.0
1.5
1.2
1.0
0.8
26.0
21.0
17.0
15.0
13.0
10.0
8.0
6.0
5.0
4.0
3.0
2.5
2.0
1.6
1.3
1.0
0.8
26.0
21.0
17.0
15.0
13.0
10.0
8.0
6.0
3.5
3.0
2.5
2.0
1.6
1.2
1.0
(*) Insert capacitance tolerance code; M for ±20%, K for ±10% and J for ±5%
NOTE: Voltage ratings are minimum values. AVX reserves the right to supply high-
er voltage ratings in the same case size.
JUNE 2013
I
119
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Amplitude modulation and detection circuit

5G14433 constitutes a double integrating digital voltmeter principle circuit

MAX705, 706, and 813L constitute a single-chip microcomputer monitoring circuit

Low conversion coefficient voltage-frequency converter circuit diagram

Pulse signal shaping circuit

SB-50ALTX receiver

Play games and experience 100 points of easy power supply!!!
I just played the game. I made it too simple. But I also found a problem. The answer was wrong! The first level power puzzle selected an inductor, but the answer was a capacitor. [[i] This post was la...
499362154 Analogue and Mixed Signal
Python programming entry, advanced, and improved trilogy high-quality resource sharing
[align=left][color=#565656][backcolor=rgb(237, 235, 235)][font=微软雅黑][size=3]What is Python? [/size][/font][/backcolor][/color][/align][align=left][color=#565656][backcolor=rgb(237, 235, 235)][font=微软雅...
tiankai001 Download Centre
Guo Tianxiang 51 MCU development board protues simulation
It saves you the money of buying a development board. You can also learn circuit design and protues software at the same time. It is suitable for beginners....
panda_man MCU
How to program MSP430 LaunchPad IO external key interrupt
[p=21, null, left][color=rgb(73, 73, 73)][size=4] //Function: P1.3 button interrupt, P1.0LED flip #include #include void main() { // Stop watchdog timer to prevent time out reset WDTCTL = WDTPW + WDTH...
Aguilera Microcontroller MCU
NS online design tool assists filter design
National Semiconductor has announced the launch of WEBENCH Active Filter Designer, a comprehensive online design tool that enables system designers to develop a next-generation filter for data collect...
fighting Analog electronics
Report: Four key factors driving the development of IoT chips
The penetration of semiconductor components classified as “IoT” is expected to grow from 7% in 2019 to 12% in 2025.The four key elements driving the development of IoT semiconductors are: MCUs, connec...
okhxyyo RF/Wirelessly
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. 240-0321-9SPG6J7-18L
  2. MJHS-04L2-48G-018-1N61
  3. 0150200529
  4. 98426-F12-03-290LF
  5. LP24-09-15.0M-20G1KJ
  6. MS3470W1006PW
  7. 2M370MS037C0502-12N
  8. D-SUB-205AJ15KRZBBY2
  9. 1N5221D
  10. GMZJ51T/R
  11. 1.5SMC9.1-AU_R1_100A1
  12. GD25Q16CSIG

Popular Articles

  1. Deep neural network VS lidar, which one is better?
  2. Infineon Technologies' 300mm thin wafer power semiconductor high-tech factory officially starts operation
  3. Fully automatic cell culture equipment with precision drive
  4. Clarience Launches New Program A2Z for e-Mobility™ to Improve Electric Vehicle Range
  5. UNIST team develops cathode material with 98% nickel content to increase EV driving range
  6. 51 single chip microcomputer realizes two cascaded 74HC595 to drive 16 LED lights
  7. Fibocom and its wholly-owned subsidiary have obtained 6 more patent certificates
  8. Shandong proposes a subsidy policy for integrated circuit tape-out fees, with a maximum subsidy of 3 million yuan
  9. Shenzhen Tianma's 6th generation flexible AMOLED production line project will be put into production in the first half of next year
  10. 51 single chip microcomputer simulation - 8 digital tubes scrolling display digital string

Technical ResourceMore

  1. Basic electronic teaching plan of motor and drag
  2. Digital system design example based on Quartus II FPGA/CPLD (VHDL source code file)
  3. Analog oscilloscope driver
  4. stm32f10x_stdperiph_lib_3.0.0 standard library file
  5. USB Function IP Core
  6. Cadence 16.6 Harmony Method _ Revised Edition
  7. Wireless control system of street lamp based on PLC, GPRS and ZigBee
  8. Design and implementation of analog correlator for ultra-wideband signals
  9. MCD2 Quick Start
  10. Design of safety monitoring system for unmanned offshore oil production platform

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1845  1479  1203  735  361  38  30  25  15  8
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
