1 44 4 3 H i g h S p e e d P a s s i v e Ta g I n te r fa c e
1 General Description
The AS3953 NFC interface IC (NFiC) delivers low cost, ultra low
power NFC forum functionality to multiple different applications. The
AS3953 is a analog front-end with integrated 14443A data framing
and SPI interface. It is designed to create a fast data link between an
ISO 14443A reader device (PCD) and a microcontroller. The AS3953
is
Passively powered
meaning that it can be supplied from the PCD
magnetic field, eliminating the need of a continual external supply.
This makes the AS3953 perfect for wireless communication to a low-
power battery powered device.
The AS3953 is used with an appropriate antenna coil connected to
the terminals LC1 and LC2, and behaves as a normal passive ISO
144443A tag (PICC). After the anti-collision protocol is passed, the
PCD sends a
Wake-up
command, which wakes up the
microcontroller by sending an interrupt. From this point onwards, the
AS3953 serves as a data link between the microcontroller and the
PCD. AS3953 can also operate as NFCIP-1 target at 106 kb/s.
The AS3953 includes an onboard EEPROM that can be accessed
either from the PCD or from the microcontroller via the SPI interface.
This built-in flexibility makes it ideal for two types of applications:
Where personalization data is programmed by the PCD (even in
The AS3953 supports ISO 14443A up to Level-4, meaning a
contactless smart card or an NFC forum compatible tag (Tag Type 4)
can be built. Having a NFC Forum compatible tag interface allows
the AS3953 to be used in an application where a standard NFC
enabled phone is used as a PCD.
2 Key Features
ISO 14443A compliant to
NFCIP-1
Level-4
target at 106 kb/s
tag is selected or using
with the possibility to
1k bit EEPROM (928 bits of user memory)
Configurable wake-up interrupt (after
proprietary command)
Powered from external magnetic field
draw up to 5mA
7 byte UID
User configurable regulated voltage extracted from external
magnetic field
Bit rates from 106 Kbps till 848 Kbps
Integrated resonant capacitor
Integrated buffer capacitor
4-wire Serial Peripheral Interface (SPI)
Wide
Wide
case the SPI side is not powered) and it is later read by
microcontroller through SPI interface.
Where log data is stored periodically by the microcontroller
and
can then be read by the PCD even when the microcontroller is
not powered.
with 32 byte FIFO
SPI power supply range (1.65V to 3.6V)
temperature range: -40ºC to 85ºC
A regulated power supply voltage extracted from the PCD field is
also available on a pin and can be used as power supply for external
circuitry. For example, an external microcontroller and a sensor
could be powered from the PCD field combined with pass through
data rates up to 848Kbps, which means the AS3953 is ideal for
contactless passive programming of MCU systems. The AS3953 can
also operate as a stand-alone ISO 14443A tag.

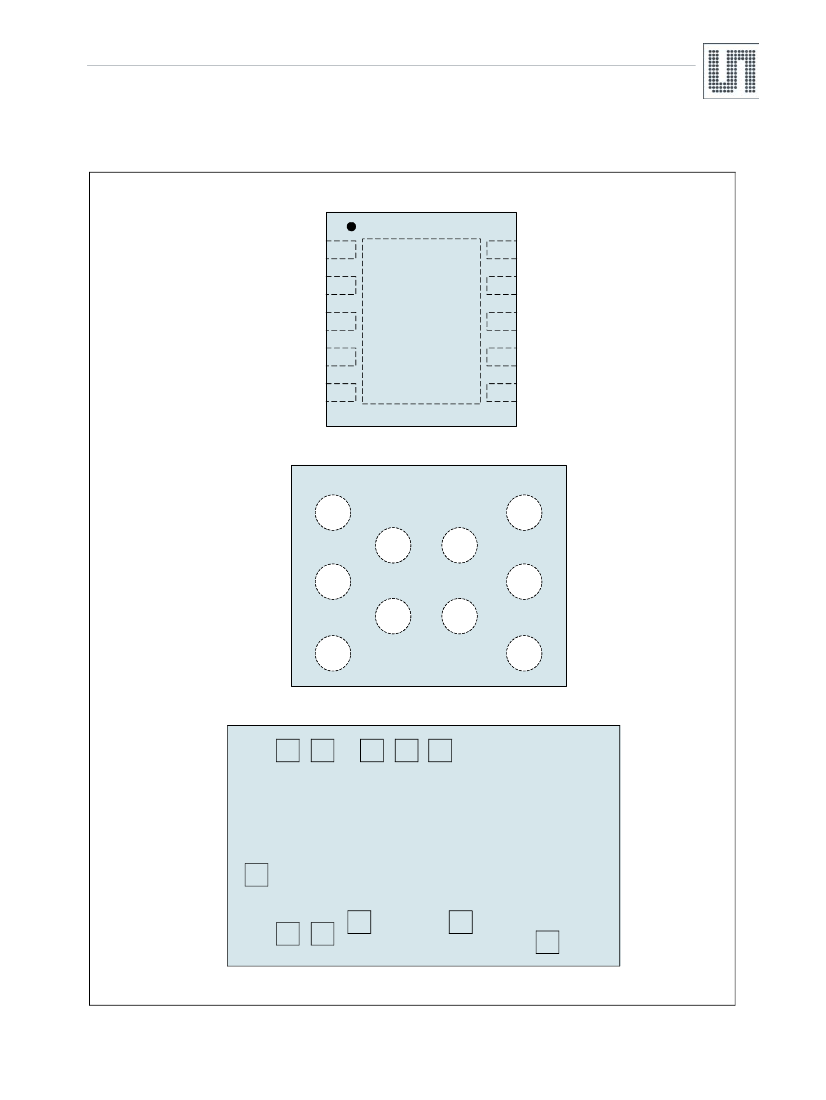

Available as WLCSP 10-bumps (Future delivery options: 10-pin
MLPD (3x3mm) and Gold bumped dies)
3 Applications
The device is ideal for applications like Passive wake-up,
Multipurpose HF interface to a controller, Low power or passive
programming, Ultra Low Power Data Logger, RFID Programmable
configuration EEPROM, ISO 14443A smart card, NFC Forum Tag
Type 4, and Bluetooth and Wi-Fi pairing.

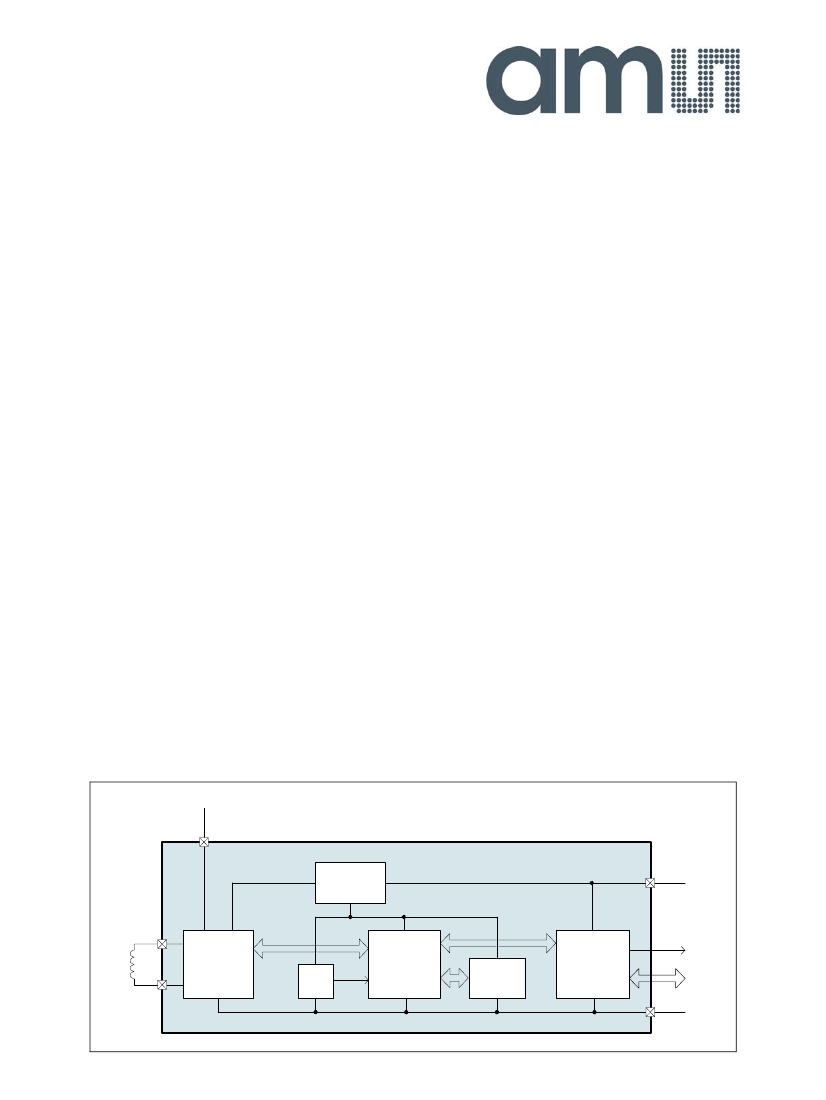

Figure 1. AS3953 Block Diagram
VP_REG
VP_INT
Power
Manager
VDD
LC1
AFE
LC2
POR
Logic
EEPROM
AS3953
VP_SPI
IRQ
Level
Shifters
SPI
VSS
www.ams.com
Revision 1.0
1 - 42
AS3953
Datasheet - C o n t e n t s
Contents
1 General Description ..................................................................................................................................................................
5 Absolute Maximum Ratings ......................................................................................................................................................
6.2 DC/AC Characteristics for Digital Inputs and Outputs..........................................................................................................................
7.3 Power Manager ..................................................................................................................................................................................
7.4 ISO 14443A Framing Mode................................................................................................................................................................
7.5 ISO 14443A Level-4 Protocol Mode...................................................................................................................................................
9
9
9
11
11
12
7.5.1 Coding of UID ............................................................................................................................................................................ 12
7.5.2 Coding of ATQA, SAK and ATS ................................................................................................................................................ 13
7.6.1 Passing of Block Data to Controller ........................................................................................................................................... 17
7.6.2 Use of CID ................................................................................................................................................................................. 17
7.7 ISO 14443A Level-3 Protocol Mode...................................................................................................................................................
UID Word ...................................................................................................................................................................................
Fabrication Data Word...............................................................................................................................................................
OTP Words ...............................................................................................................................................................................
Write Lock Word ........................................................................................................................................................................
Read Lock Word ........................................................................................................................................................................
17
18
18
18
18
19
21
21
21
8 Application Information ...........................................................................................................................................................
8.1.1 Writing of Data to Addressable Registers (Register Write Mode)..............................................................................................
8.1.2 Reading of Data from Addressable Registers (Register Read Mode) .......................................................................................
8.1.3 Writing and Reading of EEPROM Through SPI ........................................................................................................................
8.1.4 Loading Transmitting Data into FIFO.........................................................................................................................................
8.1.5 Reading Received Data from FIFO ...........................................................................................................................................
8.1.6 Direct Command Mode..............................................................................................................................................................
8.1.9 FIFO Water Level and FIFO Status Register.............................................................................................................................
8.1.10 ISO 14443A Frame Data in FIFO ............................................................................................................................................
8.2 Direct Commands...............................................................................................................................................................................
22
22
23
24
24
25
25
26
26
28
28
29
29
8.2.1 Set Default ................................................................................................................................................................................. 29
Overview of Registers................................................................................................................................................................
Interrupt Register and Associated Registers .............................................................................................................................
Definition of Number of Transmitted Bytes ................................................................................................................................
30
30
30
31
32
33
36
9 Package Drawings and Markings ...........................................................................................................................................
