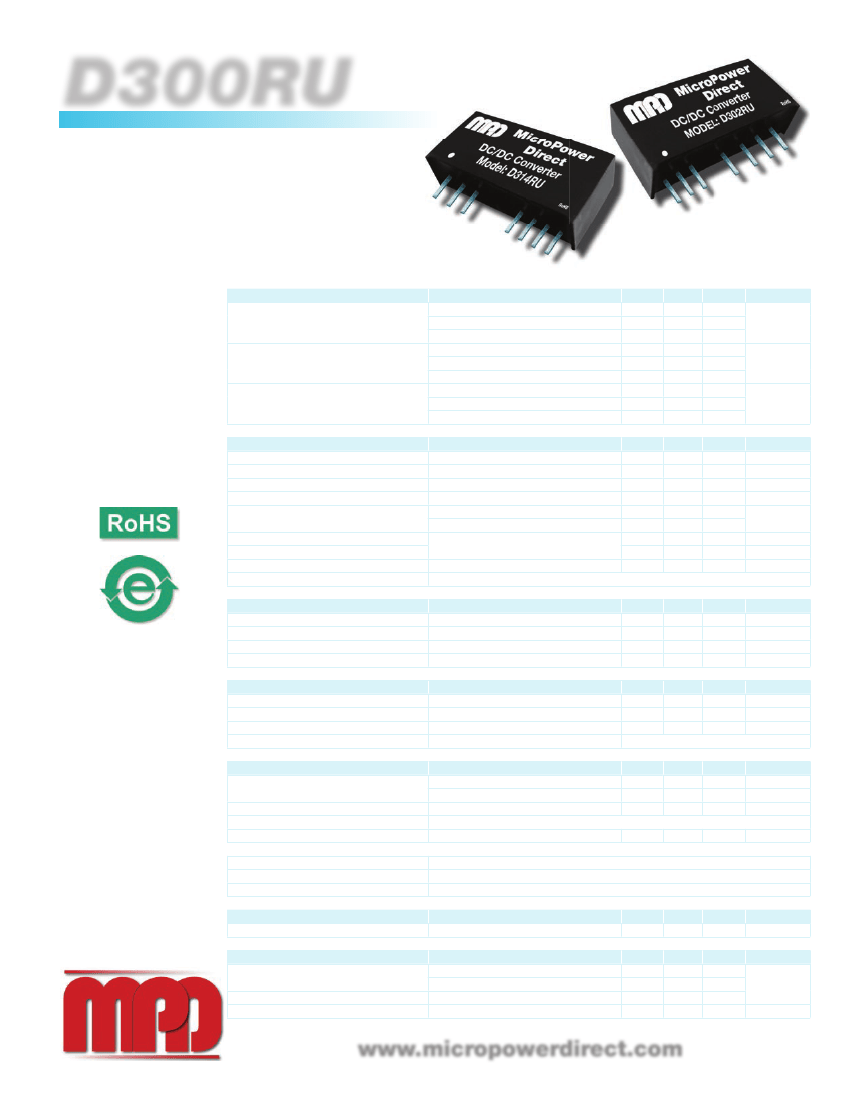

D300RU
Series
Single & Dual Output
3W SIP, Wide Input
DC/DC Converters
Electrical Specifications
Specifications typical @ +25°C, nominal input voltage & rated output current, unless otherwise noted. Specifications subject to change without notice.
Key Features:
•
3W Output Power
•
4:1 Input Voltage Range
•
1,600 VDC Isolation
•
Short Circuit Protected
•
Miniature SIP Case
•
Single & Dual Outputs
•
800 kH MTBF
•
Industry Standard Pin-Out
Input
Parameter
Input Voltage Range
Start-Up Voltage
Under Voltage Shutdown
Conditions
12 VDC Input
24 VDC Input
48 VDC Input
12 VDC Input
24 VDC Input
48 VDC Input
12 VDC Input
24 VDC Input
48 VDC Input
Conditions
Dual Outputs, Balanced Loads
Vin = Min to Max
Iout = 25% to 100%
Iout = 10% to 100%
Over Line, Load & Temp
25% Load Step Change
Min.
4.5
9.0
18.0
3.0
4.5
8.5
Typ.
12.0
24.0
24.0
4.0
6.0
12.0
3.5
Max.
18.0
36.0
72.0
4.5
9.0
18.0
4.0
8.0
16.0
Max.
±1.0
±2.0
±0.5
±1.0
75
100
500
±5.0
±0.02
Units
VDC
VDC
VDC
Output
Parameter
Output Voltage Accuracy
Output Voltage Balance
Line Regulation
Load Regulation
Ripple & Noise (20 MHz), See Note 1
Transient Recovery Time, See Note 2
Transient Response Deviation
Temperature Coefficient
Output Short Circuit
Min.
Typ.
±0.5
±0.5
±0.3
±0.5
50
300
±3.0
Units
%
%
%
%
mV P - P
µSec
%
%/°C
Continuous (Autorecovery)
Conditions
60 Seconds
500 VDC
100 kHz, 1V
Iout = 100%
Conditions
Min.
1,600
1,000
Typ.
Max.
Units
VDC
M
pF
kHz
General
Parameter
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
Remote On/Off,
See Note 3
Parameter
Supply On
Supply Off
Standby Input Current
Control Common
200
350
Min.
Typ.
Max.
Units
0.6
VDC
2.7
15.0
VDC
1.0
2.5
mA
Referenced to Negative Input (pin 1)
Min.
-40
Typ.
+25
Max.
+85
+105
+125
95
Units
°C
°C
°C
%
Environmental
Parameter
Operating Temperature Range
Storage Temperature Range
Cooling
Humidity
Physical
Case Size
Case Material
Weight
Conditions
Ambient
Case
MicroPower Direct
292 Page Street
Suite D
Stoughton, MA 02072
USA
T:
(781) 344-8226
F:
(781) 344-8481
E:
sales@micropowerdirect.com
W:
www.micropowerdirect.com
-55
Free Air Convection
RH, Non-condensing
0.86 x 0.44 x 0.37 Inches (21.80 x 11.20 x 9.30 mm)
Non-Conductive Black Plastic (UL94-V0)
0.17 Oz (4.8g)
Conditions
MIL HDBK 217F, 25°C, Gnd Benign
Conditions
12 VDC Input
24 VDC Input
48 VDC Input
1.5 mm From Case For 10 Sec
Min.
800
Min.
-0.7
-0.7
-0.7
Typ.
Max.
Units
kHours
Units
VDC
°C
Reliability Specifications
Parameter
MTBF
Absolute Maximum Ratings
Parameter
Input Voltage Surge (1 Sec)
Lead Temperature
Typ.
Max.
25.0
50.0
100.0
260
Caution: Exceeding Absolute Maximum Ratings may damage the module. These are not continuous operating ratings.
www.micropowerdirect.com
Model Selection Guide
Model
Number
D301RU
D302RU
D303RU
D304RU
D305RU
D306RU
D307RU
D311RU
D312RU
D313RU
D314RU
D315RU
D316RU
D317RU
D321RU
D322RU
D323RU
D324RU
D325RU
D326RU
D327RU
Input
Voltage
(VDC)
Current
(mA)
Voltage
Nominal
Range
Full-Load No-Load
(VDC)
12
4.5 - 18.0
260
60
3.3
12
4.5 - 18.0
320
60
5.0
12
4.5 - 18.0
313
60
12.0
12
4.5 - 18.0
313
60
15.0
12
4.5 - 18.0
313
60
±5.0
12
4.5 - 18.0
313
60
±12.0
12
4.5 - 18.0
313
60
±15.0
24
9.0 - 36.0
128
25
3.3
24
9.0 - 36.0
156
25
5.0
24
9.0 - 36.0
154
25
12.0
24
9.0 - 36.0
154
25
15.0
24
9.0 - 36.0
158
25
±5.0
24
9.0 - 36.0
156
25
±12.0
24
9.0 - 36.0
154
25
±15.0
48
18.0 - 75.0
65
15
3.3
48
18.0 - 75.0
79
15
5.0
48
18.0 - 75.0
79
15
12.0
48
18.0 - 75.0
79
15
15.0
48
18.0 - 75.0
79
15
±5.0
48
18.0 - 75.0
79
15
±12.0
48
18.0 - 75.0
78
15
±15.0
Current
(mA, Max)
www.micropowerdirect.com
Output
(See Note 4)
Current
(mA, Min)
Capcitive
Load
(µF, Max)
Efficiency Fuse Rating
Slow-Blow
(%, Typ)
(mA)
700.0
600.0
250.0
200.0
±300.0
±125.0
±100.0
700.0
600.0
250.0
200.0
±300.0
±125.0
±100.0
700.0
600.0
250.0
200.0
±300.0
±125.0
±100.0
175.0
150.0
63.0
50.0
±75.0
±31.0
±25.0
175.0
150.0
63.0
50.0
±75.0
±31.0
±25.0
175.0
150.0
63.0
50.0
±75.0
±31.0
±25.0
1,760
1,000
170
110
±470
±100
±47
1,760
1,000
170
110
±470
±100
±47
1,760
1,000
170
110
±470
±100
±47
74
78
80
80
80
80
80
75
80
81
81
79
80
81
74
79
79
79
79
79
80
1,500
1,500
1,500
1,500
1,500
1,500
1,500
700
700
700
700
700
700
700
350
350
350
350
350
350
350
Notes:
1. When measuring output ripple, it is recommended that an external 0.47 µF ceramic capacitor be placed from the +Vout pin to the -Vout pin for single output units and from each
output to common for dual output units.
2. Transient recovery is measured to within a 1% error band for a 75-100% load change.
3. An open collector switch (or equivalent) may be used to turn the unit on/off by controlling the voltage level at Pin 3. The maximum sink current at the on/off pin during a logic low is 1 mA. The maximum
allowable leakage current of a switch connected to the on/off pin is 1 mA. If the on/off pin (Pin 3) is left open, the unit operates.
4. No load operation will not damage these units, but they may not meet all spec’s. Recommended minimum load levels are given in the table above.
5. The converter should be connected to a low ac-impedance source. An input source with a highly inductive impedance may affect the stability of the converter. In applications where the converter output
loading is high and input power is supplied over long lines, it may be necessary to use a capacitor on the input to insure start-up. In this case, it is recommended that a low Equivalent Series Resistance
(ESR <1.0 at 100 kHz) capacitor be mounted close to the converter. A 3.3
µF
is recommended for 12V input models and a 1.5
µF
for 24 & 48V units.
6. Dual output units may be connected to provide a 10V, 24V, or 30 VDC output. To do this, connect the load across the +Vout and -Vout outputs and float the output common.
7. It is recommended that a fuse be used on the input of a power supply for protection. See the Model Selection table above for the correct rating.

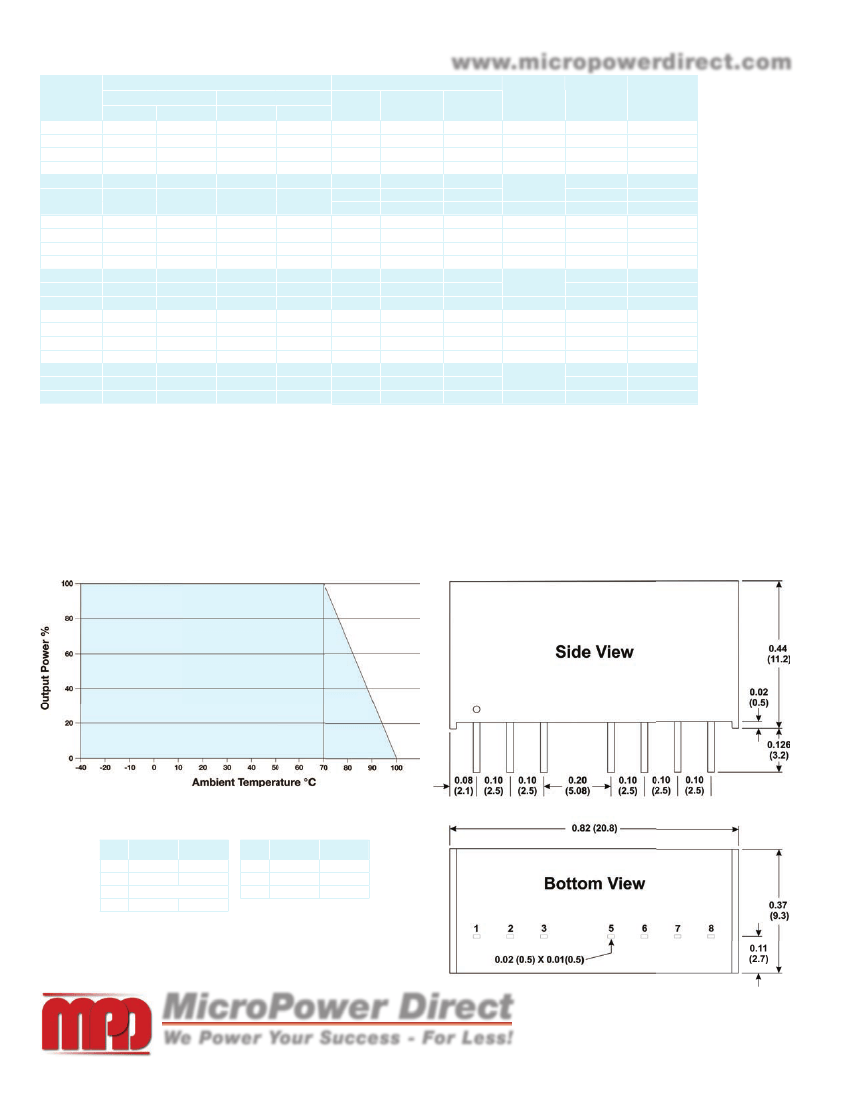

Derating Curve
Mechanical Dimensions
Pin Connections
Pin Single
Dual
1
-Vin
-Vin
2
+Vin
+Vin
3
Remote ON/OFF
5
NC
NC
NC = No Connection
Pin
6
7
8
Single
+Vout
-Vout
NC
Dual
+Vout
Common
-Vout
MicroPower Direct
We Power Your Success - For Less!
292 Page Street Ste D Stoughton, MA 02072
•
Mechanical Notes:
•
All dimensions are typical in inches (mm)
•
Tolerance x.xx = ±0.01 (±0.25)
TEL: (781) 344-8226
•
FAX: (781) 344-8481
•
E-Mail: sales@micropowerdirect.com
