P6KE SERIES
600W TRANSIENT VOLTAGE SUPPRESSOR
WON-TOP ELECTRONICS
Pb
Features
Glass Passivated Die Construction
600W Peak Pulse Power Dissipation
5.5V – 513V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Voltage
Typical Response Time < 1nS
Plastic Case Material has UL Flammability
Classification Rating 94V-0
A
B
A
C
D
Mechanical Data
Case: DO-15, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band Except Bi-Directional
Weight: 0.40 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 6
Dim
A
B
C
D
DO-15
Min
25.4
5.50
0.71
2.60
Max
—
7.62
0.864
3.60
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation on 10/1000µS Waveform (Note 1, 2, 5)
Peak Pulse Current on 10/1000µS Waveform (Note 1)
Peak Forward Surge Current (Note 2, 3)
Maximum Instantaneous Forward Voltage at 50A (Note 3, 4)
Power Dissipation at T
L
= 75°C (Note 2)
Typical Thermal Resistance, Junction to Ambient (Note 2)
Typical Thermal Resistance, Junction to Lead (Note 2)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
PPM
I
FSM
V
F
P
D
R
θJA
R
θJL
T
J
, T
STG
Value
600
See Table 1
100
3.5 / 5.0
5.0
75
20
-55 to +150
Unit
W
A
A
V
W
°C/W
°C
Note: 1. Non-repetitive current pulse per Figure 5 and derated above T
A
= 25°C per Figure 1.
2. Mounted on 40 x 40 x 1.0mm thick copper pads to each terminal that maintained at a distance of 9.5mm from the case.
3. Measured on 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum. For uni-directional devices only.
4. V
F
< 3.5V for V
BR
≤
200V and V
F
< 5.0V for V
BR
≥
201V.
5. Peak pulse power waveform is 10/1000µS.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
P6KE SERIES
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
100
WON-TOP ELECTRONICS
Single Half-Sine-Wave
JEDEC Method
80
80
60
60
40
40
20
20
0
0
15
30 45 60 75 90 105 120 135 150
T
A
, AMBIENT TEMPERATURE (°C)

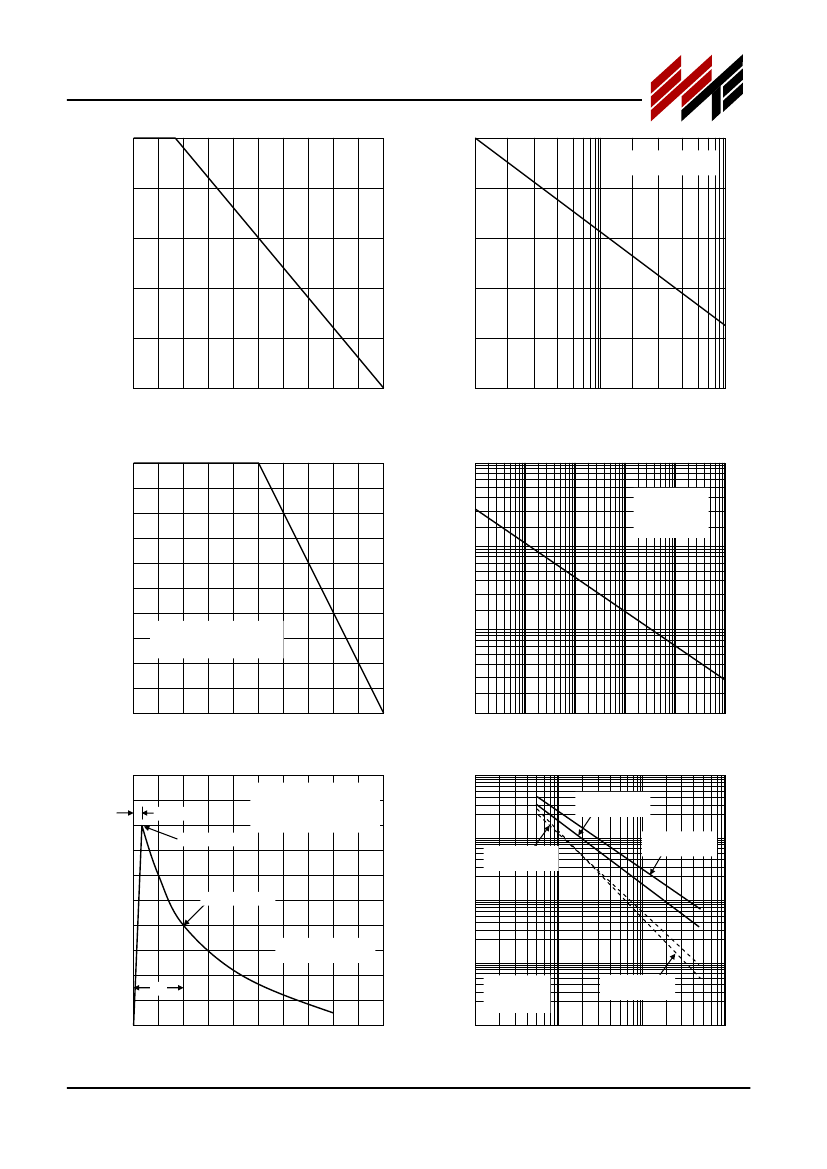

Fig. 1 Pulse Derating Curve
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 2 Forward Surge Current Derating Curve
P
D
, STEADY STATE POWER DISSIPATION (W)
5.0
100
T
A
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 5
4.0
P
PK
, PEAK POWER (kW)
10
3.0
2.0
Mounted on 40 x 40 x 1.0mm
copper pads to each terminal.
Lead length = 9.5mm.
1
1.0
0
0
15
30 45 60 75 90 105 120 135 150
T
L
, LEAD TEMPERATURE (°C)
Fig. 3 Steady State Power Derating Curve
T
A
= 25°C
Pulse Width (t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
0.1
0.1
1
10
100
1000
t
d
, PULSE WIDTH (µs)
Fig. 4 Pulse Rating Curve
10000
125
t
r
= 10µs
10000
C
J
, JUNCTION CAPACITANCE (pF)
Bi-Directional
@ Zero Bias
I
PPM
, PEAK PULSE CURRENT (%)
100
Peak Value I
PPM
1000
Uni-Directional
@ V
RWM
Uni-Directional
@ Zero Bias
75
Half Value I
PP
/2
100
50
10/1000µs Waveform
as defined by R.E.A.
10
T
J
= 25°C
f = 1MHz
V
sig
= 50mV
p-p
Bi-Directional
@ V
RWM
25
t
d
0
0
1
2
3
t, TIME (ms)
Fig. 5 Pulse Waveform
4
5
1
1
10
100
V
BR
, BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
1000
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
P6KE SERIES
WON-TOP ELECTRONICS
Electrical Characteristics (@T
A
=25°C unless otherwise specified) Table 1
Uni-Directional
Part No.
P6KE6.8
P6KE6.8A
P6KE7.5
P6KE7.5A
P6KE8.2
P6KE8.2A
P6KE9.1
P6KE9.1A
P6KE10
P6KE10A
P6KE11
P6KE11A
P6KE12
P6KE12A
P6KE13
P6KE13A
P6KE15
P6KE15A
P6KE16
P6KE16A
P6KE18
P6KE18A
P6KE20
P6KE20A
P6KE22
P6KE22A
P6KE24
P6KE24A
P6KE27
P6KE27A
P6KE30
P6KE30A
P6KE33
P6KE33A
P6KE36
P6KE36A
P6KE39
P6KE39A
P6KE43
P6KE43A
P6KE47
P6KE47A
P6KE51
P6KE51A
P6KE56
P6KE56A
P6KE62
P6KE62A
P6KE68
P6KE68A
P6KE75
P6KE75A
P6KE82
P6KE82A
P6KE91
P6KE91A
P6KE100
P6KE100A
P6KE110
P6KE110A
P6KE120
P6KE120A
P6KE130
P6KE130A
Bi-Directional
Part No.
P6KE6.8C
P6KE6.8CA
P6KE7.5C
P6KE7.5CA
P6KE8.2C
P6KE8.2CA
P6KE9.1C
P6KE9.1CA
P6KE10C
P6KE10CA
P6KE11C
P6KE11CA
P6KE12C
P6KE12CA
P6KE13C
P6KE13CA
P6KE15C
P6KE15CA
P6KE16C
P6KE16CA
P6KE18C
P6KE18CA
P6KE20C
P6KE20CA
P6KE22C
P6KE22CA
P6KE24C
P6KE24CA
P6KE27C
P6KE27CA
P6KE30C
P6KE30CA
P6KE33C
P6KE33CA
P6KE36C
P6KE36CA
P6KE39C
P6KE39CA
P6KE43C
P6KE43CA
P6KE47C
P6KE47CA
P6KE51C
P6KE51CA
P6KE56C
P6KE56CA
P6KE62C
P6KE62CA
P6KE68C
P6KE68CA
P6KE75C
P6KE75CA
P6KE82C
P6KE82CA
P6KE91C
P6KE91CA
P6KE100C
P6KE100CA
P6KE110C
P6KE110CA
P6KE120C
P6KE120CA
P6KE130C
P6KE130CA
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.5
5.8
6.1
6.4
6.6
7.0
7.4
7.8
8.1
8.6
8.9
9.4
9.7
10.2
10.5
11.1
12.1
12.8
12.9
13.6
14.5
15.3
16.2
17.1
17.8
18.8
19.4
20.5
21.8
23.1
24.3
25.6
26.8
28.2
29.1
30.8
31.6
33.3
34.8
36.8
38.1
40.2
41.3
43.6
45.4
47.8
50.2
53.0
55.1
58.1
60.7
64.1
66.4
70.1
73.7
77.8
81.0
85.5
89.2
94.0
97.2
102.0
105.0
111.0
Breakdown Voltage
V
BR
(V) @I
T
Min.
6.12
6.46
6.75
7.13
7.38
7.79
8.19
8.65
9.00
9.50
9.90
10.45
10.80
11.40
11.70
12.35
13.50
14.25
14.40
15.20
16.20
17.10
18.00
19.00
19.80
20.90
21.60
22.80
24.30
25.65
27.00
28.50
29.70
31.35
32.40
34.20
35.10
37.05
38.70
40.85
42.30
44.65
45.90
48.45
50.40
53.20
55.80
58.90
61.20
64.60
67.50
71.25
73.80
77.90
81.90
86.45
90.00
95.00
99.00
104.50
108.00
114.00
117.00
123.50
Max.
7.48
7.14
8.25
7.88
9.02
8.61
10.01
9.56
11.00
10.50
12.10
11.55
13.20
12.60
14.30
13.65
16.50
15.75
17.60
16.80
19.80
18.90
22.00
21.00
24.20
23.10
26.40
25.20
29.70
28.35
33.00
31.50
36.30
34.65
39.60
37.80
42.90
40.95
47.30
45.15
51.70
49.35
56.10
53.55
61.60
58.80
68.20
65.10
74.80
71.40
82.50
78.75
90.20
86.10
100.10
95.55
110.00
105.00
121.00
115.50
132.00
126.00
143.00
136.50
Test
Current
I
T
(mA)
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage @I
PP
V
C
(V)
10.8
10.5
11.7
11.3
12.5
12.1
13.8
13.4
15.0
14.5
16.2
15.6
17.3
16.7
19.0
18.2
22.0
21.2
23.5
22.5
26.5
25.2
29.1
27.7
31.9
30.6
34.7
33.2
39.1
37.5
43.5
41.4
47.7
45.7
52.0
49.9
56.4
53.9
61.9
59.3
67.8
64.8
73.5
70.1
80.5
77.0
89.0
85.0
98.0
92.0
108.0
103.0
118.0
113.0
131.0
125.0
144.0
137.0
158.0
152.0
173.0
165.0
187.0
179.0
Peak Pulse
Current
I
PP
(A)
55.56
57.14
51.28
53.10
48.00
49.59
43.48
44.78
40.00
41.38
37.04
38.46
34.68
35.93
31.58
32.97
27.27
28.30
25.53
26.67
22.64
23.81
20.62
21.66
18.81
19.61
17.29
18.07
15.35
16.00
13.79
14.49
12.58
13.13
11.54
12.02
10.64
11.13
9.69
10.12
8.85
9.26
8.16
8.56
7.45
7.79
6.74
7.06
6.12
6.52
5.56
5.83
5.08
5.31
4.58
4.80
4.17
4.38
3.80
3.95
3.47
3.64
3.21
3.35
Reverse
Leakage*
@V
RWM
I
R
(µA)
1000
1000
500
500
200
200
50
50
10
10
5
5
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
*For bi-directional devices V
RWM
≤
10V, the I
R
limit is double.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
