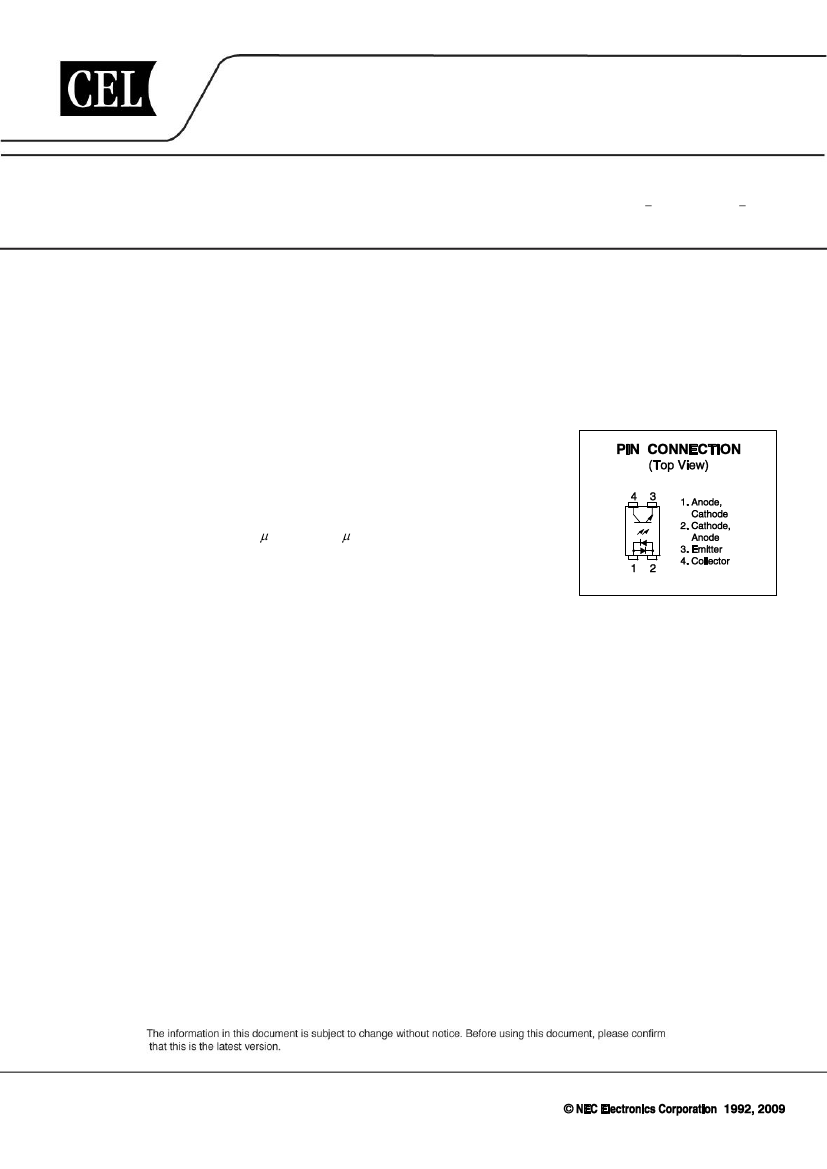

PHOTOCOUPLER
PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1
HIGH ISOLATION VOLTAGE
AC INPUT RESPONSE TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2565-1 is optically coupled isolators containing GaAs light emitting diodes and an NPN silicon
phototransistor.
The PS2565-1 is in a plastic DIP (Dual In-line Package) and the PS2565L-1 is lead bending type (Gull-wing) for
surface mount.
The PS2565L1-1 is lead bending type for long creepage distance.
The PS2565L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.
NEPOC Series
FEATURES
• AC input response
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High current transfer ratio (CTR = 200% TYP.)
• High-speed switching (t
r
= 3 s TYP., t
f
= 5 s TYP.)
<R>
<R>
• Ordering number of taping product: PS2565L-1-F3 : 2 000 pcs/reel
: PS2565L2-1-E3: 1 000 pcs/reel
• Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• BSI approved: No. 7112/7420
• SEMKO approved: No. 903238
• NEMKO approved: No. P09210868
• DEMKO approved: No. 314999
• FIMKO approved: No. FI 25119
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)
APPLICATIONS
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
Document No. PN10236EJ05V0DS (5th edition)
Date Published November 2009 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1
<R>

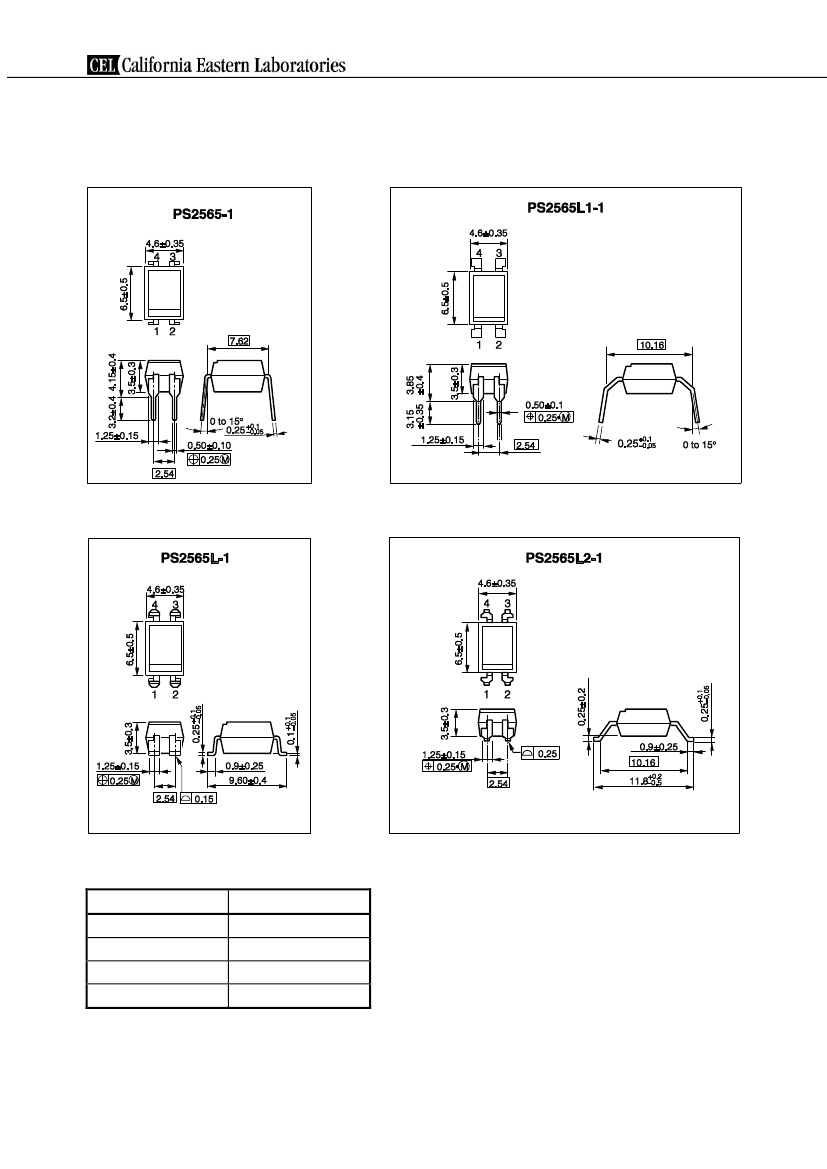

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type
Long Creepage Distance
Lead Bending Type (Gull-Wing)
Long Creepage Distance (Gull-Wing)
<R>
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance
Outer Creepage Distance
Inner Creepage Distance
Isolation Thickness
Unit (MIN.)
7 mm
7 mm
4 mm
0.4 mm
2
Data Sheet PN10236EJ05V0DS
PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1
<R>

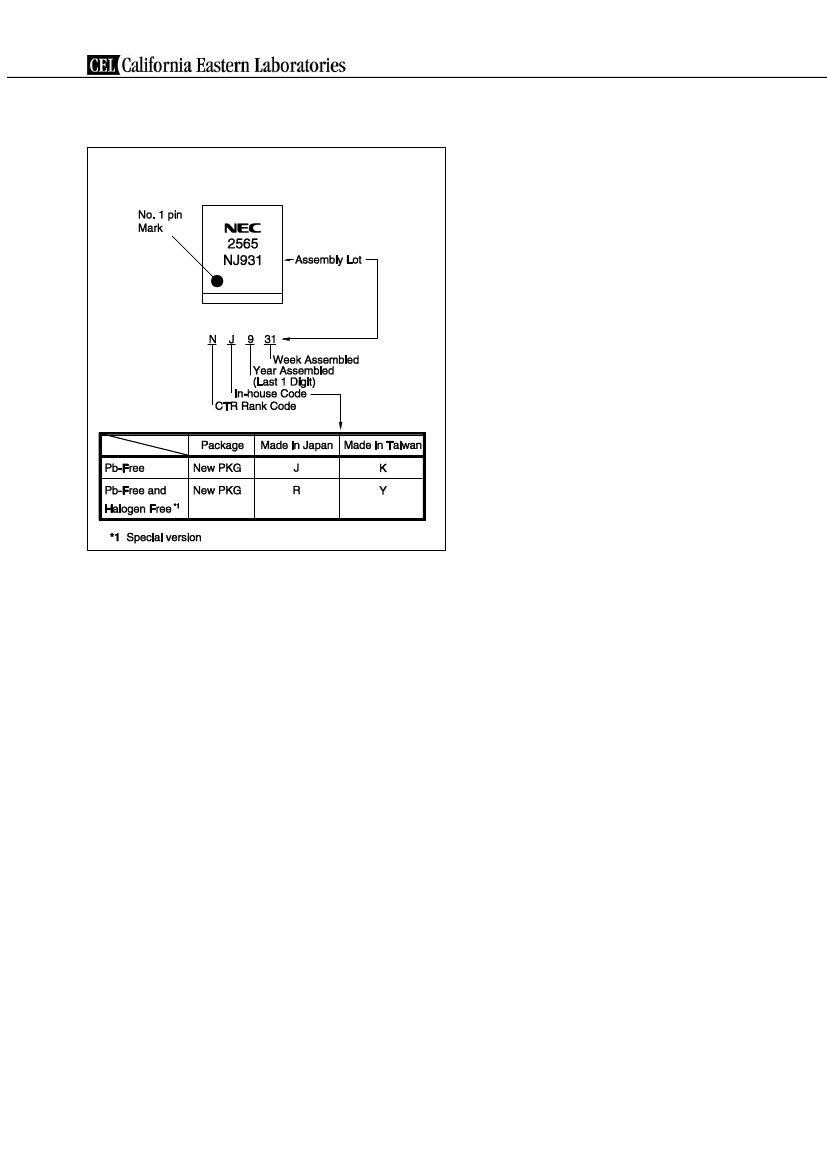

MARKING EXAMPLE
Data Sheet PN10236EJ05V0DS
3
PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
Pb-Free
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
Embossed Tape 2 000
pcs/reel
Embossed Tape 1 000
pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
approved products
(option)
Embossed Tape 2 000
pcs/reel
Embossed Tape 1 000
pcs/reel
Special version Magazine case 100 pcs
(Pb-Free and
Halogen Free)
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
Embossed Tape 2 000
pcs/reel
Embossed Tape 1 000
pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
approved products
(option)
Embossed Tape 2 000
pcs/reel
Embossed Tape 1 000
pcs/reel
approved)
PS2565-1
approved)
Application Part
Number
*1
PS2565-1
PS2565-1
PS2565L-1
PS2565L1-1
PS2565L2-1
PS2565L-1-F3
PS2565-1-A
PS2565L-1-A
PS2565L1-1-A
PS2565L2-1-A
PS2565L-1-F3-A
Magazine case 100 pcs
PS2565L2-1-E3
PS2565L2-1-E3-A
PS2565-1-V
PS2565L-1-V
PS2565L1-1-V
PS2565L2-1-V
PS2565L-1-V-F3
PS2565-1-V-A
PS2565L-1-V-A
PS2565L1-1-V-A
PS2565L2-1-V-A
PS2565L-1-V-F3-A
PS2565L2-1-V-E3
PS2565L2-1-V-E3-A
PS2565-1
PS2565L-1
PS2565L1-1
PS2565L2-1
PS2565L-1-F3
PS2565-1Y-A
PS2565L-1Y-A
PS2565L1-1Y-A
PS2565L2-1Y-A
PS2565L-1Y-F3-A
PS2565L2-1-E3
PS2565L2-1Y-E3-A
PS2565-1-V
PS2565L-1-V
PS2565L1-1-V
PS2565L2-1-V
PS2565L-1-V-F3
PS2565-1Y-V-A
PS2565L-1Y-V-A
PS2565L1-1Y-V-A
PS2565L2-1Y-V-A
PS2565L-1Y-V-F3-A
PS2565L2-1-V-E3
PS2565L2-1Y-V-E3-A
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10236EJ05V0DS
PS2565-1,PS2565L-1,PS2565L1-1,PS2565L2-1
ABSOLUTE MAXIMUM RATINGS (T
A
= 25 C, unless otherwise specified)
Parameter
Diode
Forward Current (DC)
Power Dissipation Derating
Power Dissipation
Peak Forward Current
*1
Transistor
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Derating
Power Dissipation
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
Symbol
I
F
P
D
/ C
P
D
I
FP
V
CEO
V
ECO
I
C
P
C
/ C
P
C
BV
T
A
T
stg
Ratings
80
1.5
150
1
80
7
50
1.5
150
5 000
–55 to +100
–55 to +150
Unit
mA
mW/ C
mW
A
V
V
mA
mW/ C
mW
Vr.m.s.
C
C
*1
PW = 100 s, Duty Cycle = 1%
*2
AC voltage for 1 minute at T
A
= 25 C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
Data Sheet PN10236EJ05V0DS
