FUR820: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size260KB，3 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FUR820 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2

FUR820 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	TO-220AC
package instruction	PLASTIC PACKAGE-2
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.025 µs
surface mount	NO
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

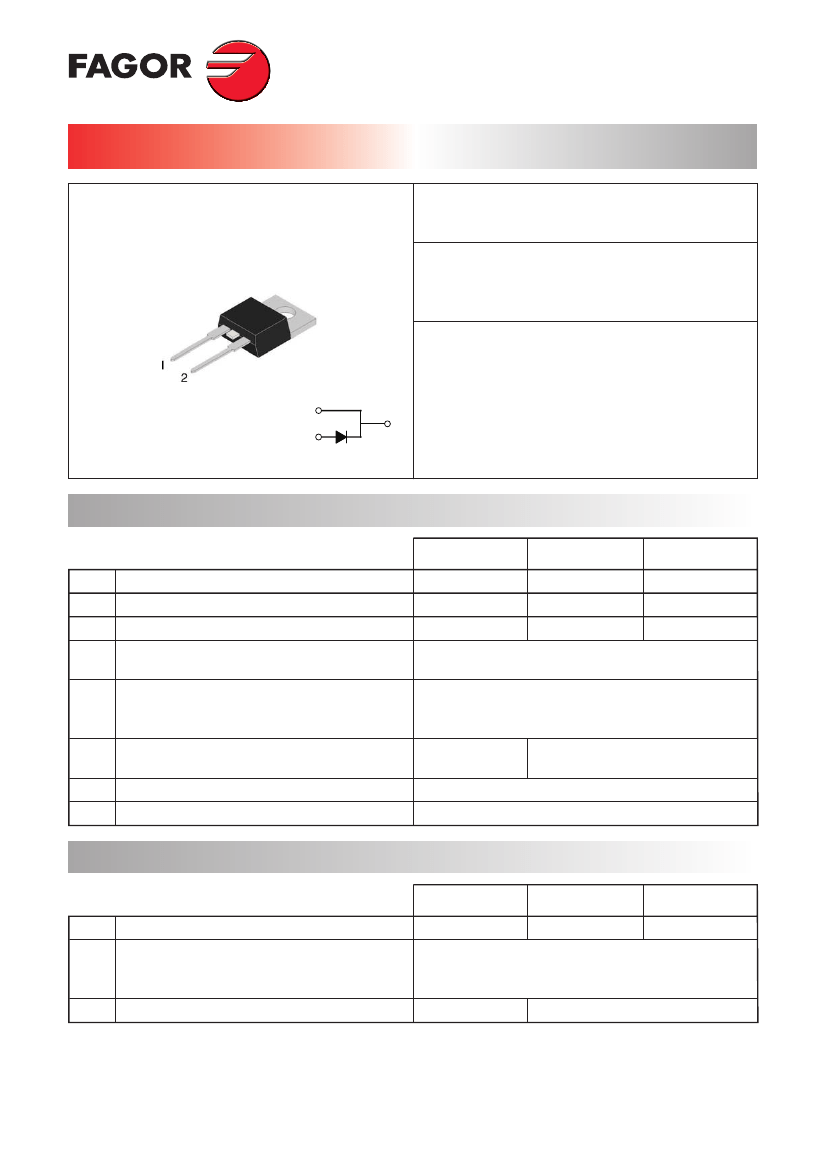

FUR820 ........ FUR860

8.0 Amp. Glass Passivated Ultrafast Rectifiers

TO-220AC

Voltage

200 to 600 V

• Low forward Voltage drop

• High current capability

• High reliability

• High surge current capability

Current

8.0 A

Mechanical Data

1

2

1

2

Case

Case Positive

• Cases: TO-220A molded plastic

• Epoxy: UL 94V-O rate flame retardant

• Terminals: Leads solderable per

MIL-STD-202, Method 208 guaranteed

• Polarity: As marked

• High temperature soldering guaranteed:

260 °C/10 seconds 4.06mm., from case.

• Weight: 2.24 grams

Absolute Maximum Ratings, according to IEC publication No. 134

FUR820

V

RRM

V

RMS

V

DC

I

F(AV)

I

FSM

T

rr

Tj

T

stg

Peak Recurrent Peak Reverse Voltage (V)

Maximum RMS Voltage (V)

Maximum DC Blocking Voltage (V)

Maximum Average Forward Rectified

Current 9.5mm Lead Lenght (See Fig. 1)

Peak Forward Surge Current 8.3 ms. single

Half Sine-wave Superimposed on Rated

Load

(JEDEC Method)

200

140

200

FUR840

400

280

400

8.0 A

100 A

FUR860

600

420

600

Maximum Reverse Recovery Time From

I

F

=0.5 A; I

R

= 1 A; I

RR

= 0.25 A

Operating temperature range

Storage temperature range

25 nS

50 nS

– 65 to + 175 °C

Electrical Characteristics

FUR820

V

F

I

R

thj-C

Max. Instantaneous Forward Voltage @ 8.0 A

Max. DC Reverse Current at @ TC = 25 ºC

Rated DC Blocking Voltage @ TC = 150 ºC

(Note 3)

Typical Thermal Resistance (Note 2)

3.0 °C/W

0.975 V

FUR840

1.3 V

5.0 µA

250 µA

FUR860

1.7 V

2.0 °C/W

Notes: 1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.

2. Thermal Resistance from Junction to Case, Mounted on Heatsink Size of 50.8 mm x 76.2 mm x 6.35 mm Al-Plate.

3. Pulse lest: tp = 300 µS, D4ty Cyc3e < 2

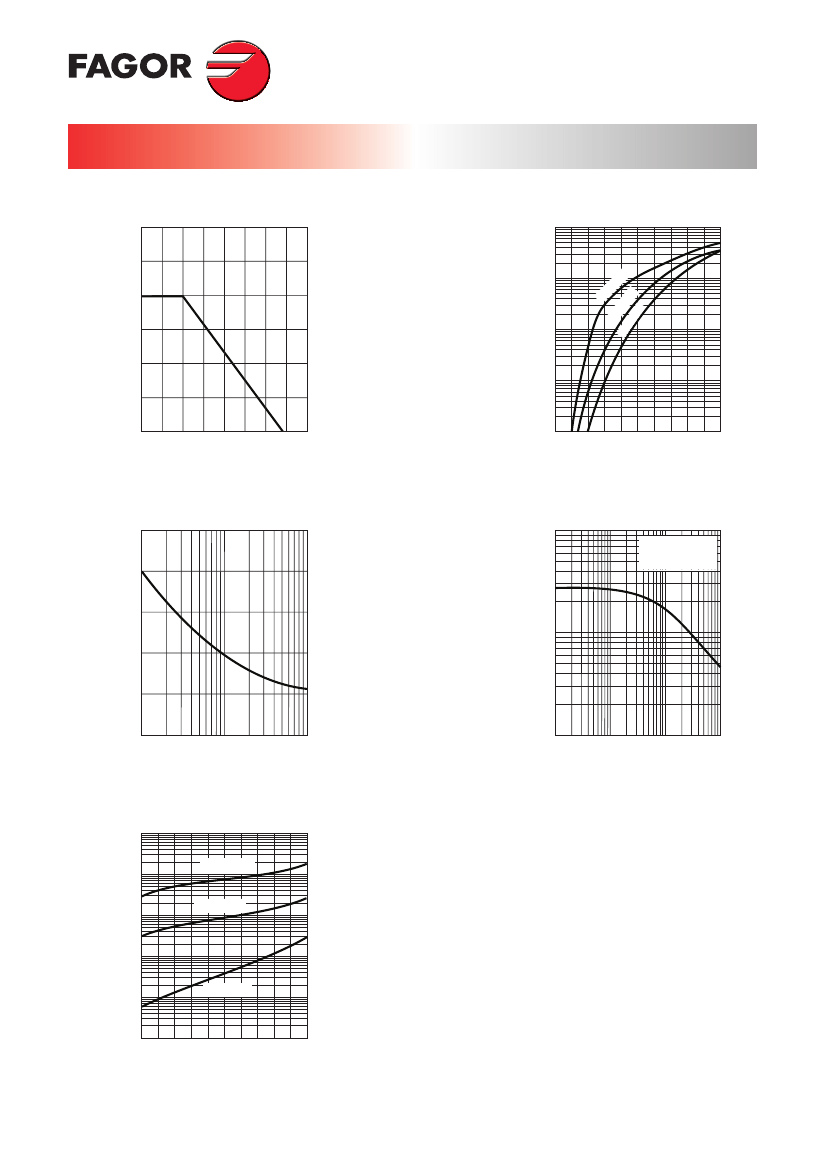

Mar - 09

FUR820 Related Products

	FUR820	FUR840	FUR860
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2	Rectifier Diode, 1 Phase, 1 Element, 8A, 400V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2	Rectifier Diode, 1 Phase, 1 Element, 8A, 600V V(RRM), Silicon, TO-220AC, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	TO-220AC	TO-220AC	TO-220AC
package instruction	PLASTIC PACKAGE-2	R-PSFM-T2	PLASTIC PACKAGE-2
Contacts	3	3	3
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
JESD-609 code	e3	e3	e3
Maximum non-repetitive peak forward current	100 A	100 A	100 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum output current	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	400 V	600 V
Maximum reverse recovery time	0.025 µs	0.5 µs	0.5 µs
surface mount	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Fagor Electrónica	-	Fagor Electrónica
