TCJY477M0020040 datasheet, PDF

Datasheet> All Categories > Passive components> TCJY477M0020040

TCJY477M0020040: DescriptionCAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411; CategoryPassive components; File Size146KB，8 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

TCJY477M0020040 Overview

CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411

TCJY477M0020040 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	6.3 V
Processing package description	CHIP, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	SURFACE MOUNT
Manufacturer Series	TCJ
size code	1411
capacitance	47 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	SOLID POLYMER
Terminal shape	J BEND
polarity	POLARIZED
tangent angle	0.08
ripple current	900mA@100KHz
leakage current	28.2uA

Preview

Download Datasheet

View All

TCJ Series

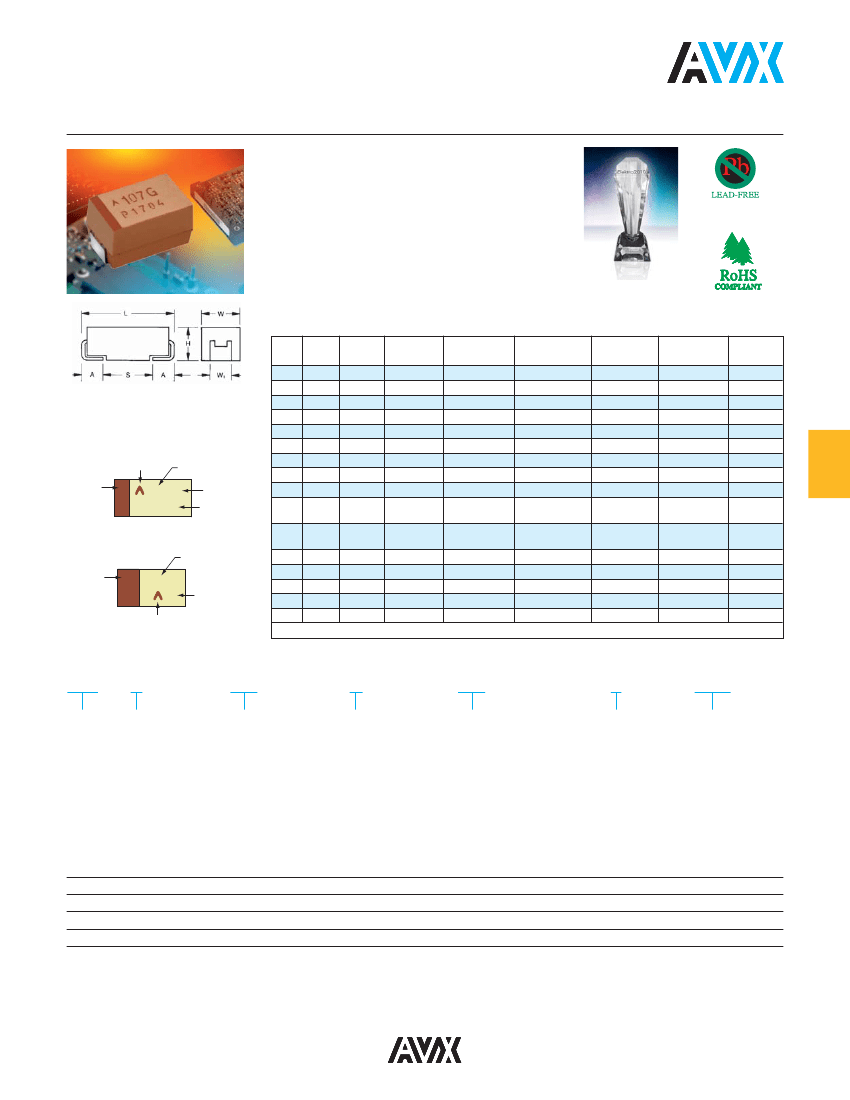

Tantalum Solid Electrolytic Chip Capacitors

with Conductive Polymer Electrode

FEATURES

• Conductive polymer electrode reduces ignition failure mode

• Lower ESR

• 3x reflow 260°C compatible

• CV range: 0.47-470μF / 2.5-125V

• 16 case sizes available

LEAD-FREE COMPATIBLE

COMPONENT

APPLICATIONS

• Smart phone, Tablets, Notebook, LCD TV, Power supplies

Elektra Award 2010

CASE DIMENSIONS:

millimeters (inches)

Code

EIA

Code

1206

1210

2312

2917

1206

1210

1206

0805

1206

1210

2924

2312

2917

EIA

Metric

3216-18

3528-21

6032-28

7343-31

7343-43

3216-15

3528-15

3216-10

2012-10

2012-15

2012-12

3216-12

3528-12

7361-38

6032-15

7343-20

L±0.20

W+0.20 (0.008)

(0.008)

-0.10 (0.004)

3.20 (0.126)

1.60 (0.063)

3.50 (0.138)

2.80 (0.110)

6.00 (0.236)

7.30 (0.287)

3.20 (0.126)

3.50 (0.138)

3.20 (0.126)

2.05 (0.081)

3.20 (0.126)

3.50 (0.138)

7.30 (0.287)

6.00 (0.236)

7.30 (0.287)

3.20 (0.126)

4.30 (0.169)

1.60 (0.063)

2.80 (0.110)

1.60 (0.063)

1.30 (0.051)

1.35 (0.050)

1.30 (0.051)

1.60 (0.063)

2.80 (0.110)

6.10 (0.240)

3.20 (0.126)

4.30 (0.169)

H+0.20 (0.008)

-0.10 (0.004)

1.60 (0.063)

1.90 (0.075)

2.60 (0.102)

2.90 (0.114)

4.10 (0.162)

1.50 (0.059) max

1.00 (0.039) max

1.50 (0.059) max

1.20 (0.047) max

3.55 (0.140)

1.50 (0.059) max

2.00 (0.079) max

±0.20

(0.008)

1.20 (0.047)

2.20 (0.087)

2.40 (0.094)

1.20 (0.047)

2.20 (0.087)

1.20 (0.047)

1.00 (0.039)

1.00±0.10

(0.039±0.004)

1.00±0.10

(0.039±0.004)

1.20 (0.047)

2.20 (0.087)

3.10 (0.120)

2.20 (0.087)

2.40 (0.094)

A+0.30 (0.012)

S Min.

-0.20 (0.008)

0.80 (0.031) 1.10 (0.043)

0.80 (0.031) 1.40 (0.055)

1.30 (0.051)

0.80 (0.031)

0.50 (0.020)

0.80 (0.031)

1.30 (0.051)

2.90 (0.114)

4.40 (0.173)

1.10 (0.043)

1.40 (0.055)

1.10 (0.043)

0.85 (0.033)

1.10 (0.043)

1.40 (0.055)

4.40 (0.173)

2.90 (0.114)

4.40 (0.173)

MARKING

A, B, C, D, E, G, H, K,

S, T, V, W, Y CASE

AVX LOGO

Polymer

Capacitance Value in pF

156 = 15μF

Rated Voltage

J = 6.3V

ID Code

Polarity

Band

(Anode+)

156 J

XXXXX

N, P, R CASE

Capacitance Value in pF

106 = 10μF

Polarity

Band

(Anode+)

106

AVX LOGO

Polymer

Rated Voltage Code

J = 6.3V

W1 dimension applies to the termination width for A dimensional area only.

HOW TO ORDER

TCJ

Type

Case

Size

See table

above

226

Tolerance

M = ±20%

004

Rated

DC Voltage

002 = 2.5Vdc

004 = 4Vdc

006 = 6.3Vdc

010 = 10Vdc

016 = 16Vdc

020 = 20Vdc

025 = 25Vdc

035 = 35Vdc

050 = 50Vdc

063 = 63Vdc

075 = 75Vdc

100 = 100Vdc

125 = 125Vdc

Packaging

R = Pure Tin 7" Reel

S = Pure Tin 13" Reel

0300

ESR in mΩ

Capacitance Code

pF code: 1st two digits

represent significant figures,

3rd digit represents multiplier

(number of zeros to follow)

TECHNICAL SPECIFICATIONS (Common for all TCJ series)

Technical Data:

Capacitance Tolerance:

Leakage Current DCL:

Reliability:

Resistance to soldering heat:

All technical data relate to an ambient temperature of +25°C

±20%

0.1CV

1% per 1000 hours at 85°C, V

with 0.1Ω/V series impedance, 60% confidence level

3x260°C peak for max. 10s reflow

JANUARY 2014

■

TCJY477M0020040 Related Products

	TCJY477M0020040	TCJB337M0020070	TCJD477M0020040	TCJY477M0020025
Description	CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411	CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411	CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411	CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 6.3 V, 47 uF, SURFACE MOUNT, 1411
Maximum operating temperature	85 Cel	85 Cel	85 Cel	85 Cel
Minimum operating temperature	-55 Cel	-55 Cel	-55 Cel	-55 Cel
negative deviation	20 %	20 %	20 %	20 %
positive deviation	20 %	20 %	20 %	20 %
Rated DC voltage urdc	6.3 V	6.3 V	6.3 V	6.3 V
Processing package description	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT
Lead-free	Yes	Yes	Yes	Yes
EU RoHS regulations	Yes	Yes	Yes	Yes
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE
terminal coating	TIN	TIN	TIN	TIN
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Manufacturer Series	TCJ	TCJ	TCJ	TCJ
size code	1411	1411	1411	1411
capacitance	47 uF	47 uF	47 uF	47 uF
packaging shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Capacitor type	SOLID POLYMER	SOLID POLYMER	SOLID POLYMER	SOLID POLYMER
Terminal shape	J BEND	J BEND	J BEND	J BEND
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED
tangent angle	0.08	0.08	0.08	0.08
ripple current	900mA@100KHz	900mA@100KHz	900mA@100KHz	900mA@100KHz
leakage current	28.2uA	28.2uA	28.2uA	28.2uA
