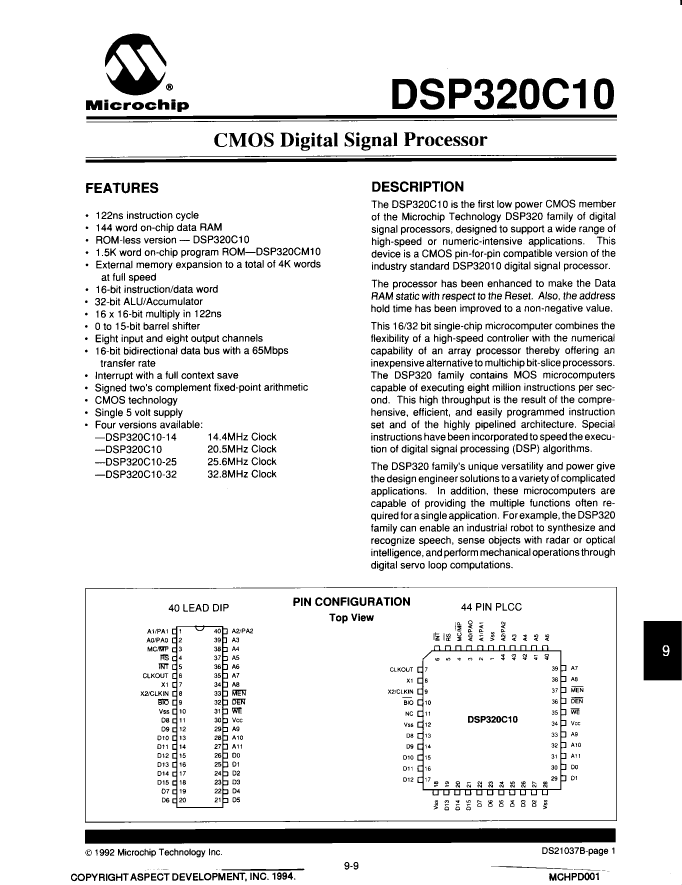

DSP320C10-25I/P datasheet, PDF

DSP320C10-25I/P: Description16-BIT, 25.6 MHz, OTHER DSP, PDIP40, 0.600 INCH, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size486KB，16 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric View All

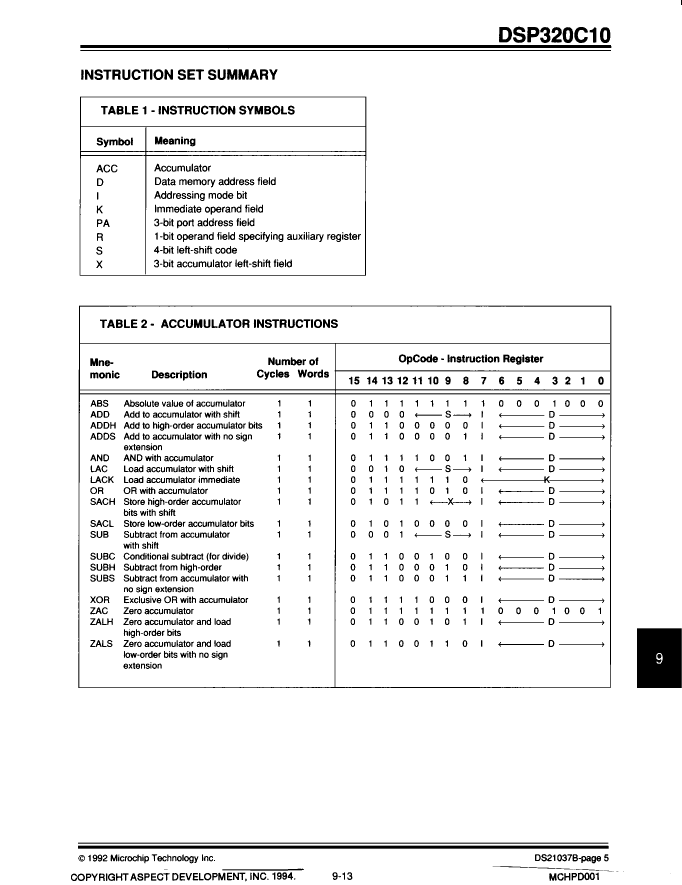

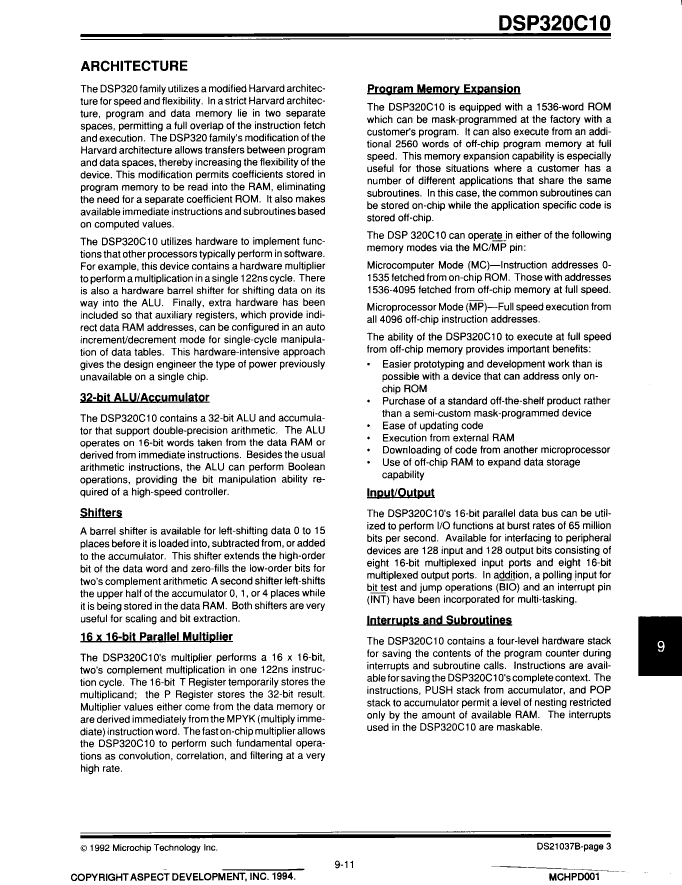

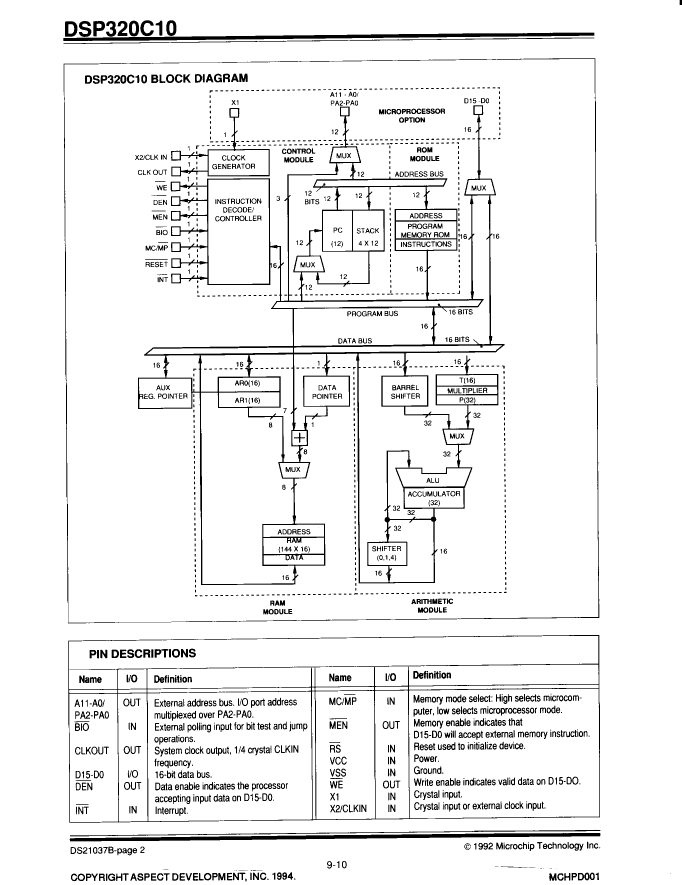

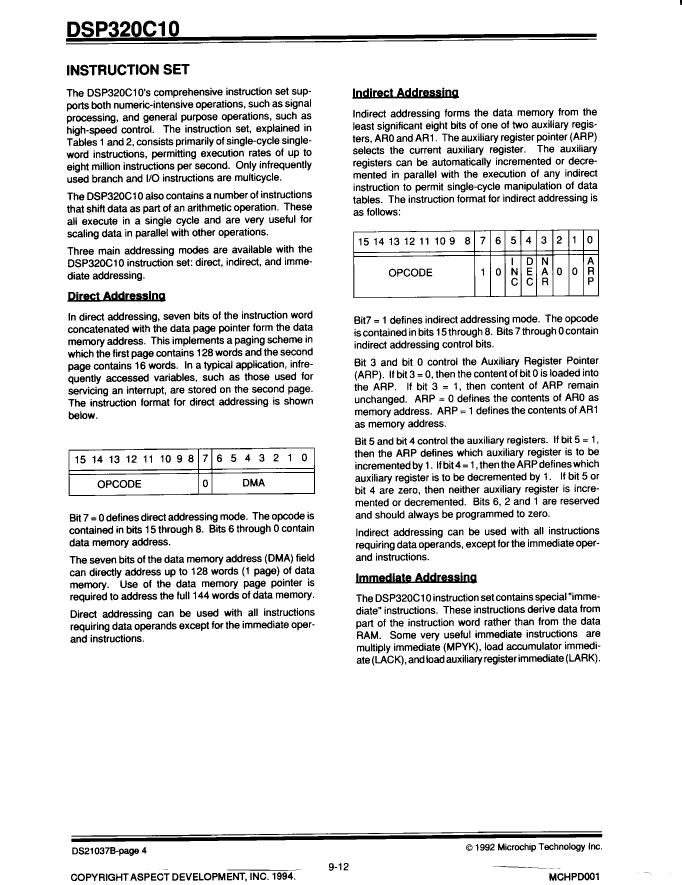

DSP320C10-25I/P Overview

16-BIT, 25.6 MHz, OTHER DSP, PDIP40, 0.600 INCH, PLASTIC, DIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	0.600 INCH, PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A991.A.2
Other features	8 MIPS; DATA BUS USABLE AS EIGHT 16-BIT MUX INPUT AND OUTPUT PORT
Address bus width	12
barrel shifter	YES
bit size	16
boundary scan	NO
maximum clock frequency	25.6 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
Internal bus architecture	MULTIPLE
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	51.689 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	1
Number of serial I/Os
Number of terminals	40
Number of timers
On-chip data RAM width	16
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	144
Maximum seat height	5.08 mm
Maximum slew rate	55 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	DIGITAL SIGNAL PROCESSOR, OTHER
