QL58x0 Enhanced QuickPCI®
Target Family Data
Sheet
• • • • • •
33/66
MHz/32-bit PCI Target with Embedded Programmable
Device Highlights
High Performance PCI Controller
• 33/66 MHz 32-bit PCI Target
• Zero-wait state PCI Target provides up to
264 MBps transfer rates
• Target interface supports retry, disconnect
with/without data transfer, and target abort
• Fully programmable back-end interface
• Independent PCI bus (33/66 MHz) and local bus
(up to 160 MHz) clocks
• Fully customizable PCI Configuration Space
• Configurable FIFOs with depths up to 256 words
• Reference design with driver code
(Win 95/98/2000/NT 4.0) available
• PCI v2.3 compliant
• Supports Type 0 configuration cycles
• 3.3 V PCI signaling
• 1.8 V supply voltage
• 484-ball PBGA, 280-ball LFBGA, 208-pin PQFP,
196-ball TFBGA, and 144-pin TQFP packages
• Unlimited/Continuous Burst Transfers supported

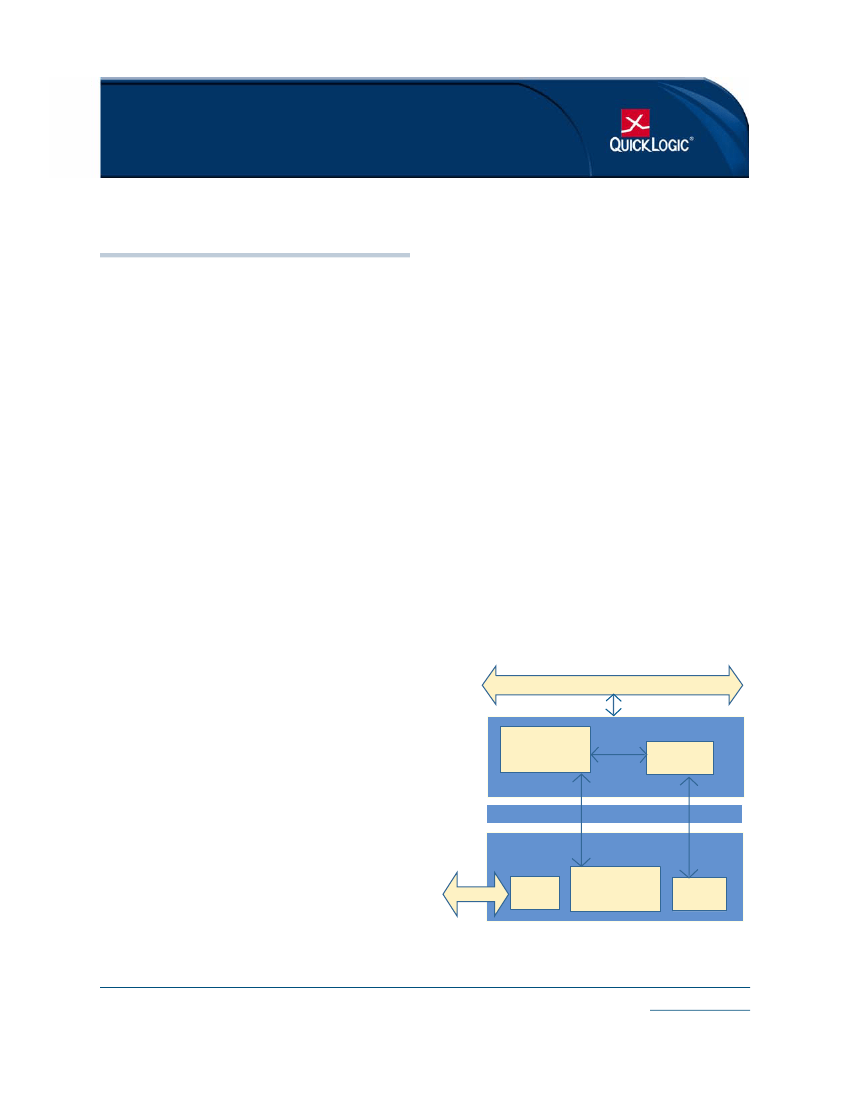

Figure 1: QL58x0 Block Diagram
Logic, Embedded Computational Units, and Dual Port
SRAM
Extendable PCI Functionality
• Support for Configuration Space from
0
×
40 to 0
×
3FF
• PCI v2.3 Power Management Spec. compatible
• PCI v2.3 Vital Product Data (VPD) configuration
support
Flexible Programmable Logic
• Up to 1,478 logic cells
• Up to 50,688 RAM bits
• Up to 264 I/O pins
• All back-end interface and glue-logic can be
implemented on chip
• Two 32-bit busses interface between the PCI
Controller and the Programmable Logic
• Up to twenty-two 2,304 bit dual-port high
performance SRAM blocks
• Up to 3,748 flip-flops available
PCI Bus 33/66 MHz/32 bits (data and
address)
High Speed
Data Path
PCI Controller
32-bit Interface
Programmable
Logic
Target
Controller
264 User I/O
160 MHz
FIFOs
PCI Bus
High Speed
Logic Cells
Config.
Space
© 2006 QuickLogic Corporation
www.quicklogic.com
•
•
•
•
•
•
1
QL58x0 Enhanced QuickPCI® Target Family Data Sheet Rev. L
Architecture Overview
The QL58x0 device family of QuickPCI Embedded Standard Products (ESPs) provides a complete and
customizable PCI interface solution combined with programmable logic. Since the QL58x0 devices provide
optimized pre-verified PCI cores, the burden of PCI timing closure and PCI protocol compliance has been
eliminated and allows for the maximum 32-bit PCI bus bandwidth (264 MBps).
The programmable logic portion of this family contains up to 1,478 QuickLogic Logic Cells and up to 22
QuickLogic Dual-Port RAM Blocks. These configurable RAM blocks can be configured in many width/depth
combinations. They can also be combined with logic cells to form FIFOs, or be initialized via Serial EEPROM
on power-up and used as ROMs.
The QL58x0 device meets PCI 2.3 electrical and timing specifications and has been fully hardware-tested. The
QL58x0 device features 1.8 V operation with multi-volt compatible I/Os. The device can easily operate in
3.3 V embedded systems and is fully compatible with 3.3 V applications.
PCI Controller
The PCI Controller is a 33/66 MHz 32-bit PCI 2.3 compliant Target Controller capable of infinite length
Target Write and Read transactions at zero wait states (264 MBps).
The Target interface offers full PCI Configuration Space and flexible target addressing. It supports zero-wait-
state target Write and Read operations. It also supports retry, disconnect with/without data transfer, and target
abort requested by the back end. Any number of 32-bit BARs may be configured as either memory or I/O
space. All required and optional PCI 2.3 Configuration Space registers can be implemented within the
programmable region of the device. A reference design of a Target Configuration Space and Addressing
module is available and is included in the QuickWorks® design software.
The interface ports are designed for target transactions. The Target Configuration Space and Address
Decoding are done in the programmable logic region of the device. These functions are not timing critical, so
leaving these elements in the programmable region allows the greatest degree of flexibility to the designer.
Table 1
shows several commonly implemented IP cores in the programmable logic portion of the Target
Controller device. Their respective logic cell utilization and performance information are shown for easy
reference. Notice that the Configuration Space and Address Decoding core is labelled as an essential IP core.
This IP block is necessary for the Target Controller to be fully functional. The optional IP cores are common
interface IP cores made available so that designers may implement according to their design requirements.
These optional IP cores do not affect the functionality of the Target Controller.
•
2
•
www.quicklogic.com
•
•
•
•
© 2006 QuickLogic Corporation
QL58x0 Enhanced QuickPCI® Target Family Data Sheet Rev. L
Table 1: IP Implemented in Programmable Logic
Essential PCI IP Cores
Configuration Space/Address Decoding
Optional IP Cores
Async 32x32 FIFO
Async 128x32 FIFO
SDRAM Controller
DDR SDRAM Controller
Pulse Width Modulation
Logic Cells
110
Logic Cells
64
88
149
216
20
RAM
N/A
RAM
2
2
N/A
N/A
N/A
Performance
33/66 MHz
Performance
210 MHz
190 MHz
160 MHz
100 MHz
303 MHz
Configuration
Space
and Address Decode
The configuration space is completely customizable in the programmable region of the device.
PCI address and command decoding is performed by logic in the programmable section of the device. This
allows support for any size of memory or I/O space for back end logic. It also allows the user to implement
any subset of the PCI commands supported by the QL58x0. QuickLogic provides a reference Address
Register/Counter and Command Decode block.
PCI Interface
Symbol
Figure 2
shows the graphical interface symbol numbers you have to use in your schematic design in order to
attach the local interface programmable logic design to the Target PCI core. If you are designing with a top-
level Verilog or VHDL file, use a structural instantiation of this PCI32TV2 block instead of a graphical symbol.
© 2006 QuickLogic Corporation
www.quicklogic.com
•
•
•
•
•
•
3
QL58x0 Enhanced QuickPCI® Target Family Data Sheet Rev. L
Figure 2: PCI Interface Symbol
•
4
•
www.quicklogic.com
•
•
•
•
© 2006 QuickLogic Corporation
QL58x0 Enhanced QuickPCI® Target Family Data Sheet Rev. L
PCI Target Interface
Table 2: PCI Target Interface
Signal
I/O
Description
Target address, and target Write data.
During all target accesses, the address is
presented on Usr_Addr_WrData[31:0]; at the same time, Usr_Adr_Valid is active.
During target Write transactions, this port also presents valid Write data to the PCI
configuration space or user logic when Usr_Adr_Inc is active.
PCI command and byte enables.
During target accesses, the PCI command is
presented on Usr_CBE[3:0]; at the same time, Usr_Adr_Valid is active. This port also
presents active-low byte enables to the PCI configuration space or user logic.
Indicates the beginning of a PCI transaction, and that a target address is valid on
Usr_Addr_WrData[31:0] and the PCI command is valid on Usr_CBE[3:0]. When this
signal is active, the target address must be latched and decoded to determine if this
address belongs to the device's memory or I/O space. Also, the PCI command must
be decoded to determine the type of PCI transaction. On subsequent clocks of a target
access, this signal is low, indicating that address is NOT present on
Usr_Addr_WrData[31:0].
Indicates that the target address should be incremented, because the previous data
transfer has completed. During burst target accesses, the target address is only
presented to the back-end logic at the beginning of the transaction (when
Usr_Adr_Valid is active), and must therefore be latched and incremented by four for
subsequent data transfers. Note that during target Write transactions, Usr_Adr_Inc
indicates valid data on Usr_Addr_WrData[31:0] that must be accepted by the backend
logic (regardless of the state of Usr_Rdy). During Read transactions, Usr_Adr_Inc
signals to the backend that the PCI core has presented the read data on the PCI bus
(TRDYN asserted).
This signal should be the combinatorial decode of the “user read” command from
Usr_CBE[3:0]. This command may be mapped from any of the PCI Read commands,
such as Memory Read, Memory Read Line, Memory Read Multiple, I/O Read, etc. It
is internally gated with Usr_Adr_Valid.
This signal should be the combinatorial decode of the “user write” command from
Usr_CBE[3:0]. This command may be mapped from any of the PCI Write commands,
such as Memory Write or I/O Write. It is internally gated with Usr_Adr_Valid.
This signal should be driven active when the address on Usr_Addr_WrData[31:0] has
been decoded and determined to be within the address space of the device.
Usr_Addr_WrData[31:0] must be compared to each of the valid Base Address
Registers in the PCI configuration space. Also, this signal must be gated by the
Memory Access Enable or I/O Access Enable registers in the PCI configuration space
(Command Register bits 1 or 0 at offset 04h). Internally gated with Usr_Adr_Valid.
This signal is active throughout a “user write” transaction, which has been decoded by
Usr_WrDecode at the beginning of the transaction. The Write strobe for individual
DWORDs of data (on Usr_Addr_WrData[31:0]) during a user Write transaction should
be generated by logically ANDing this signal with Usr_Adr_Inc.
This signal is active throughout a “configuration write” transaction. The Write strobe
for individual DWORDs of data (on Usr_Addr_WrData[31:0]) during a configuration
Write transaction should be generated by logically ANDing this signal with
Usr_Adr_Inc.
Data from the PCI configuration registers, required to be presented during PCI
configuration reads.
Usr_Addr_WrData[31:0]
O
Usr_CBE[3:0]
O
Usr_Adr_Valid
O
Usr_Adr_Inc
O
Usr_RdDecode
I
Usr_WrDecode
I
Usr_Select
I
Usr_Write
O
Cfg_Write
O
Cfg_RdData[31:0]
I
© 2006 QuickLogic Corporation
www.quicklogic.com
•
•
•
•
•
•
5
