1N4007-B

Description
Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
CategoryDiscrete semiconductor    diode
File Size99KB,3 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric Compare View All

1N4007-B Online Shopping

Suppliers Part Number Price MOQ In stock
1N4007-B - - View Buy Now

1N4007-B Overview

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2

1N4007-B Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerDiodes Incorporated
Parts packaging codeDO-41
package instructionO-PALF-W2
Contacts2
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1 V
JEDEC-95 codeDO-41
JESD-30 codeO-PALF-W2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current30 A
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage1000 V
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperature40

1N4007-B Preview

NOT RECOMMENDED FOR NEW DESIGN
USE S1A-S1M series

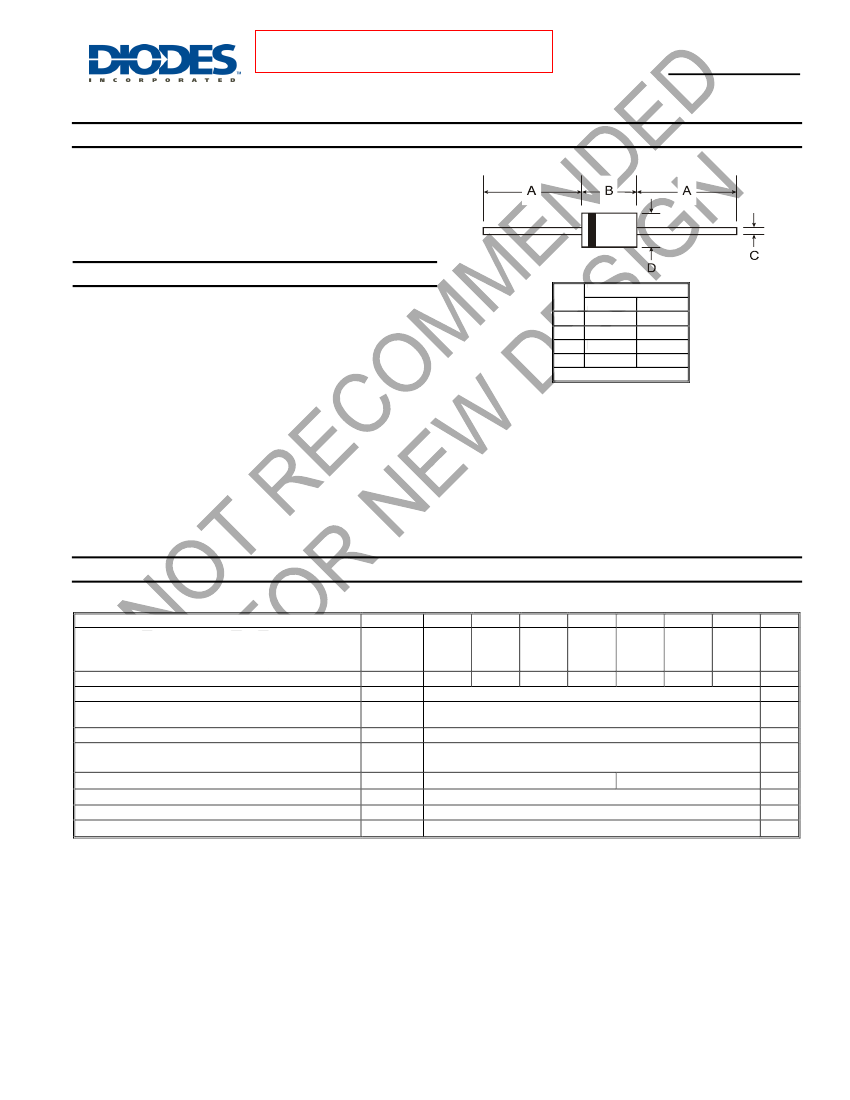

1N4001 - 1N4007
1.0A RECTIFIER
Features
Diffused Junction
High Current Capability and Low Forward Voltage Drop
Surge Overload Rating to 30A Peak
Low Reverse Leakage Current
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
Case: DO-41
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Ordering Information: See Page 2
Marking: Type Number
Weight: 0.30 grams (Approximate)
Dim
DO-41 Plastic
Min
Max
A
25.40
B
4.06
5.21
C
0.71
0.864
D
2.00
2.72
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
(@T
A
= +25°C unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Symbol
V
RRM
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
V
RWM
DC Blocking Voltage
V
R
RMS Reverse Voltage
V
R(RMS)
Average Rectified Output Current (Note 1) @ T
A
=+75C
I
O
Non-Repetitive Peak Forward Surge Current 8.3ms
I
FSM
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage @ I
F
= 1.0A
V
FM
Peak Reverse Current @T
A
= +25C
I
RM
at Rated DC Blocking Voltage @ T
A
= +100C
Typical Junction Capacitance (Note 2)
C
j
Typical Thermal Resistance Junction to Ambient
R
JA
Maximum DC Blocking Voltage Temperature
T
A
Operating and Storage Temperature Range
T
J
,
T
STG
Notes:
1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007
50
35
100
70
200
140
400
280
1.0
30
1.0
5.0
50
15
100
+150
-65 to +150
8
600
420
800
560
1000
700
Unit
V
V
A
A
V
A
pF
K/W
C
C
1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
1N4001-1N4007
Document number: DS28002 Rev. 9 - 3
1 of 3
www.diodes.com
September 2014
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE S1A-S1M series
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
1.0
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
10
0.8
1.0
0.6
0.4
0.1
0.2
T
j
, = 25
o
C
Pulse Width = 300
s
2% Duty Cycle
0
40
60
80
100
120
140
160
180
T
A
, AMBIENT TEMPERATURE (ºC)

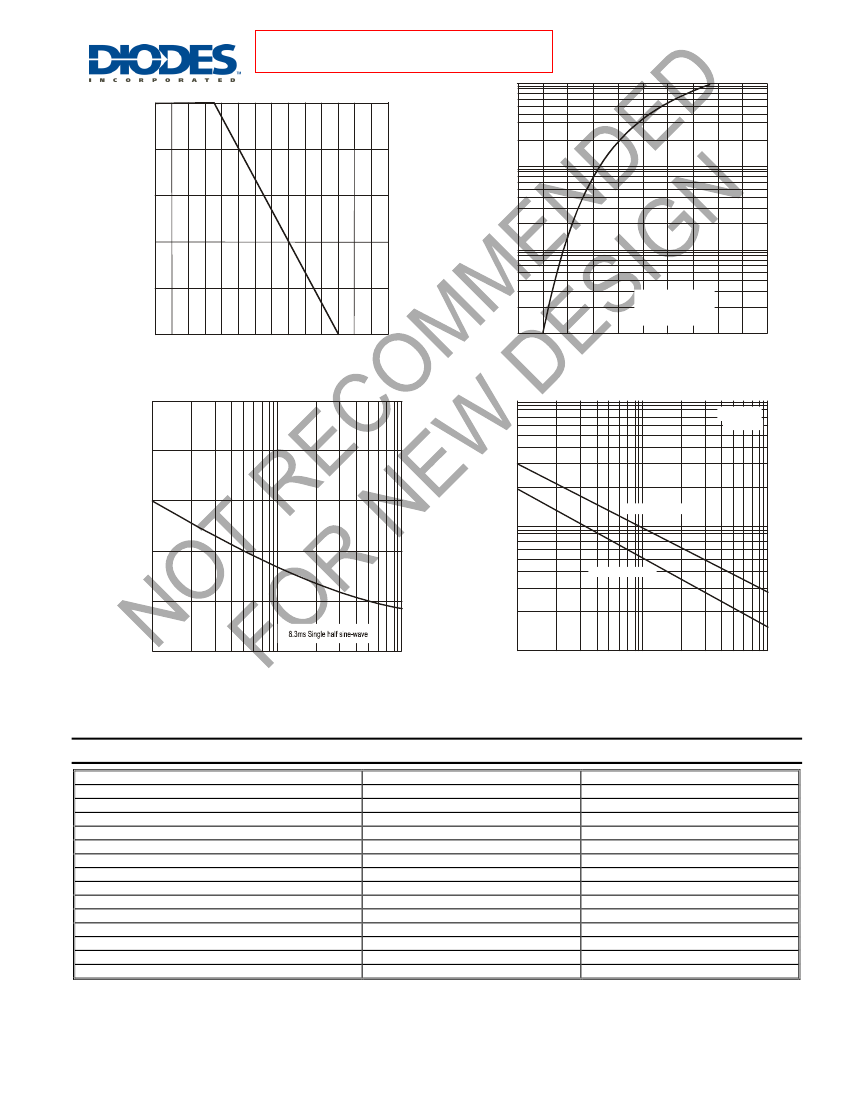

Fig. 1 Forward Current Derating Curve
0.01
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
100
T
j
= 25ºC
f = 1MHz
50
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
40
30
C
j
, CAPACITANCE (pF)
1N4001 - 1N4004
10
20
1N4005 - 1N4007
10
0
1.0
10
100
NUMBER OF CYCLES AT 60 Hz
Fig. 3 Max Non-Repetitive Peak Fwd Surge Current
1.0
1.0
10
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Junction Capacitance
100
Ordering Information
(Note 4)
Device
1N4001-B
1N4001-T
1N4002-B
1N4002-T
1N4003-B
1N4003-T
1N4004-B
1N4004-T
1N4005-B
1N4005-T
1N4006-B
1N4006-T
1N4007-B
1N4007-T
Note:
Packaging
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
DO-41 Plastic
Shipping
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
1K/Bulk
5K/Tape & Reel, 13-inch
4. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf.
1N4001-1N4007
Document number: DS28002 Rev. 9 - 3
2 of 3
www.diodes.com
September 2014
© Diodes Incorporated
NOT RECOMMENDED FOR NEW DESIGN
USE S1A-S1M series
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2014, Diodes Incorporated
www.diodes.com
1N4001-1N4007
Document number: DS28002 Rev. 9 - 3
3 of 3
www.diodes.com
September 2014
© Diodes Incorporated

1N4007-B Related Products

1N4007-B 1N4001-T 1N4005-T 1N4001-B 1N4003-B
Description Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? conform to conform to conform to conform to conform to
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Parts packaging code DO-41 DO-41 DO-41 DO-41 DO-41
package instruction O-PALF-W2 ROHS COMPLIANT, PLASTIC PACKAGE-2 O-PALF-W2 ROHS COMPLIANT, PLASTIC PACKAGE-2 ROHS COMPLIANT, PLASTIC PACKAGE-2
Contacts 2 2 2 2 2
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1 V 1 V 1 V 1 V 1 V
JEDEC-95 code DO-41 DO-41 DO-41 DO-41 DO-41
JESD-30 code O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2 O-PALF-W2
JESD-609 code e3 e3 e3 e3 e3
Maximum non-repetitive peak forward current 30 A 30 A 30 A 30 A 30 A
Number of components 1 1 1 1 1
Number of terminals 2 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C
Maximum output current 1 A 1 A 1 A 1 A 1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) 260 260 260 260 260
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 1000 V 50 V 600 V 50 V 200 V
surface mount NO NO NO NO NO
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form WIRE WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature 40 40 40 40 40
Humidity sensitivity level 1 - - 1 1
Bits and pieces of embedded learning (my study notes - "Bird Brother's Linux Private Recipe" 4)
[size=6]I haven't posted for a long time. I went home recently. Here I would like to thank [size=7]soso administrator[/size] for her support. She always supports me to continue writing every time I po...
lyyiqo Embedded System
Five points that cannot be ignored in PCB design of power supply
5 points that cannot be ignored in PCB design in power supply design. In power supply design, only the PCB design link is mentioned: 1. First of all, there must be a reasonable direction: such as inpu...
sppcb1 Power technology
Android 4.2 Audio Porting on Beaglebone
The print information of the startup board shows ALSA List Device: no soundcards found. Entering the system's /dev/snd directory, only the timer exists, and there are no files such as pcmC0Dx and cont...
theory94 DSP and ARM Processors
A design of a 10Base-T standard interface amplifier circuit
A design of a 10Base-T standard interface amplifier circuitChen Zhiwei, Cai Min (School of Physical Science and Technology, South China University of Technology, Guangzhou 510640)1 Introduction 10Base...
fighting Analog electronics
Anti-piracy issues of embedded system software
I want to know how to make a hardware system correspond to a unique software. The key is that the hardware is not unique. It would be easy if the CPU or memory had a serial number. Don't general flash...
wangwenjia Embedded System
Looking for 16×16 dot matrix fonts. Any language is fine.
Can anyone send it to me? Thanks! backstreet__@163.com...
zwbs007 Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 908  1788  2555  35  210  19  37  52  1  5
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
