B250BE-13: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size288KB，6 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

B250BE-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B250BE-13	-	-	View	Buy Now

B250BE-13 Overview

Rectifier Diode,

B250BE-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	R-PDSO-C2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	EFFICIENCY
Minimum breakdown voltage	50 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	100 µA
Reverse test voltage	50 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30

B250BE-13 Preview

Green

B250AE-B260AE

B250BE-B260BE

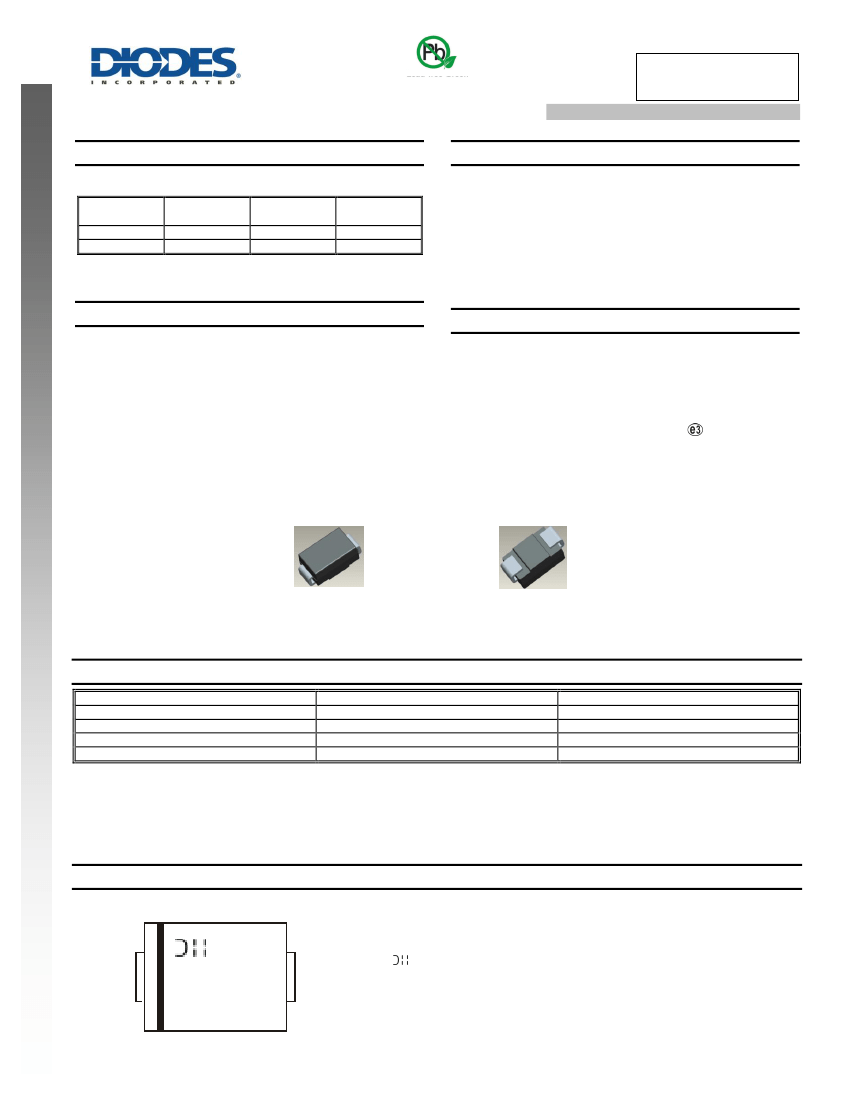

2.0A SCHOTTKY BARRIER RECTIFIER

Product Summary

B250AE/B260AE

B250BE/B260BE

V

RRM

(V)

50

60

I

O

(A)

2

V

F(MAX)

(V)

@ +25°

C

0.65

I

R(MAX)

(mA)

@ +25°

C

0.10

0.20

Features and Benefits



Reduced Low Forward Voltage Drop (V

F

); Better Efficiency and

Cooler Operation

Reduced High-temperature Reverse Leakage; Increased

Reliability against Thermal Runaway Failure in High

Temperature Operation.

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

NEW PRODUCT



Description and Applications

The Schottky rectifier providing low V

F

and excellent reverse leakage

stability at high temperatures, this device is ideal for use in general

rectification applications such as:



Boost Diode

Blocking Diode

Recirculating Diode

Mechanical Data



Case: SMA, SMB

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish - Matte Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: SMA-0.063 grams (Approximate)

SMB-0.093 grams (Approximate)

SMA/SMB

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

B250AE-13

B260AE-13

B250BE-13

B260BE-13

Notes:

Case

SMA

SMB

Packaging

5,000/Tape & Reel

3,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green" products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SMA

YWW

B2XXAE

B250AE(BE)-B260AE(BE)

Document number: DS39271 Rev. 4 - 2

B2XXAE = Product Type Marking Code, ex: B250AE

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 7 for 2017)

WW = Week Code (01 to 53)

1 of 6

www.diodes.com

March 2017

B250AE-B260AE

B250BE-B260BE

Marking Information

(Cont.)

SMB

YWW

NEW PRODUCT

B2XXBE

B2XXBE = Product Type Marking Code, ex: B250BE

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 7 for 2017)

WW = Week Code (01 to 53)

Maximum Ratings

(@T

A

= +25° unless otherwise specified.)

C,

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Average Rectified Output Current

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

Symbol

V

RRM

V

RWM

V

RM

I

O

I

FSM

B250AE

B250BE

50

2

50

B260AE

B260BE

60

Unit

V

A

Thermal Characteristics

Characteristic

Typical Thermal Resistance Junction to Ambient (Note 5)

Typical Thermal Resistance Junction to Case (Note 5)

Operating and Storage Temperature Range

SMA

SMB

SMA

SMB

Symbol

R

θJA

R

θJC

T

J

, T

STG

Value

95

90

45

40

-55 to +150

Unit

°

C/W

°

C/W

°

C

Electrical Characteristics

(@T

A

= +25° unless otherwise specified.)

C,

Characteristic

Forward Voltage Drop

B250AE/B250BE

B260AE/B260BE

B250AE/B250BE

B260AE/B260BE

Symbol

V

F

Min

—

Typ

0.55

0.52

0.01

0.02

11.5

14.5

75

Max

0.65

—

0.10

0.20

—

Unit

V

Test Condition

I

F

= 2A, T

J

= +25°

C

I

F

= 2A, T

J

= +125°

C

V

R

= 50V, T

J

= +25°

C

V

R

= 60V, T

J

= +25°

C

V

R

= 50V, T

J

= +125°

C

V

R

= 60V, T

J

= +125°

C

V

R

= 4.0V, f = 1MHz

Leakage Current (Note 6)

I

R

mA

Typical Capacitance

Notes:

C

T

pF

5. Device mounted on FR-4 substrate, 0.4" x 0.5", 2oz, single-sided, PC boards with 0.2" x 0.25" copper pad.

6. Short duration pulse test used to minimize self-heating effect.

B250AE(BE)-B260AE(BE)

Document number: DS39271 Rev. 4 - 2

2 of 6

www.diodes.com

March 2017

B250AE-B260AE

B250BE-B260BE

I

F

, INSTANTANEOUS FORWARD CURRENT (A)

10

I

R

, REVERSE LEAKAGE CURRENT (mA)

100

150

o

C

10

1

125

o

C

100

o

C

85

o

C

150

o

C

0.1

125

o

C

100

o

C

85

o

C

25

o

C

0.01

-55

o

C

0.0

0.2

0.4

0.6

0.8

V

F

, INSTANTANEOUS FORWARD VOLTAGE ( V)

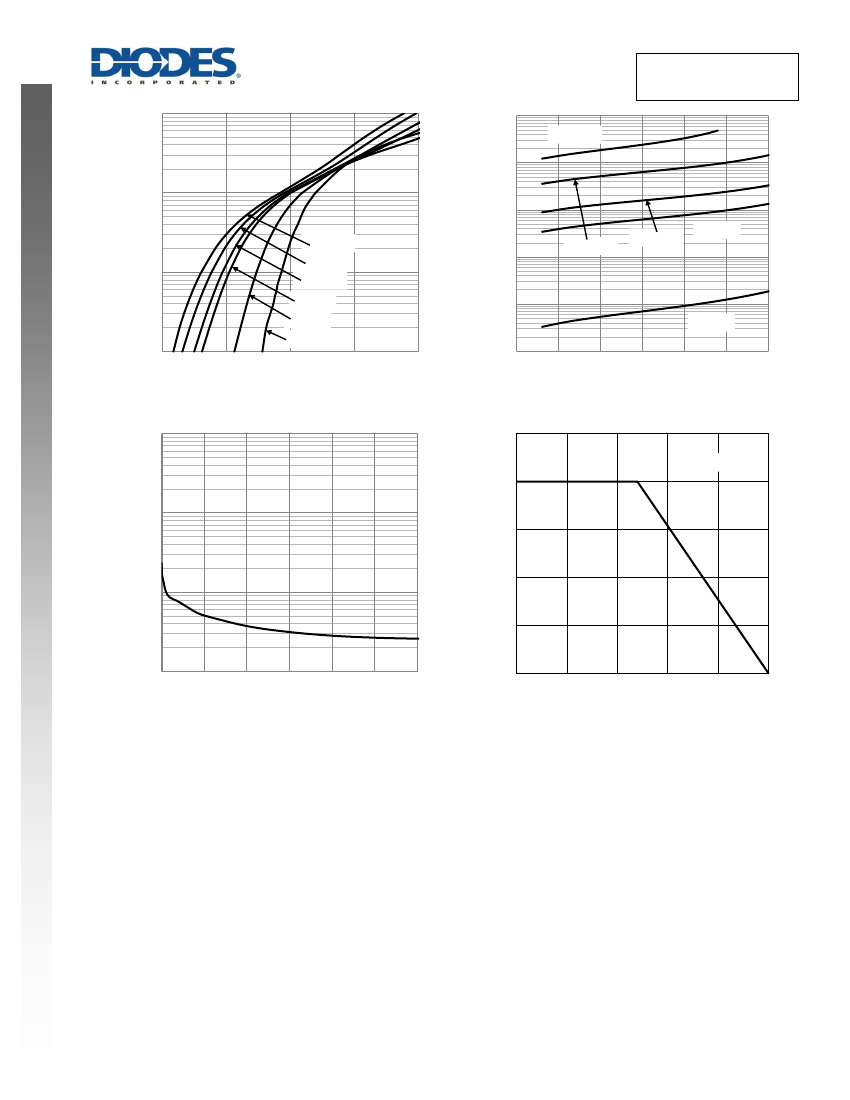

Figure 1. Typical Forward Characteristics

0.1

NEW PRODUCT

0.01

25

o

C

0.001

0

10

20

30

40

50

V

R

, REVERSE VOLTAGE (V)

60

Figure 2. Typical Reverse Characteristics

2.50

Note 5

2.00

10000

C

T

, JUNCTION CAPACITANCE (pF)

1000

I

F

, DC FORWARD CURRENT (A)

0

20

30

40

50

REVERSE VOLTAGE (V)

Figure 3. Typical Junction Capacitance

10

60

1.50

1.00

100

0.50

10

0.00

25

50

75

100

125

T

A

, AMBIENT TEMPERATURE (℃)

Figure 4. DC Forward Current Derating

150

B250AE(BE)-B260AE(BE)

Document number: DS39271 Rev. 4 - 2

3 of 6

www.diodes.com

March 2017

B250AE-B260AE

B250BE-B260BE

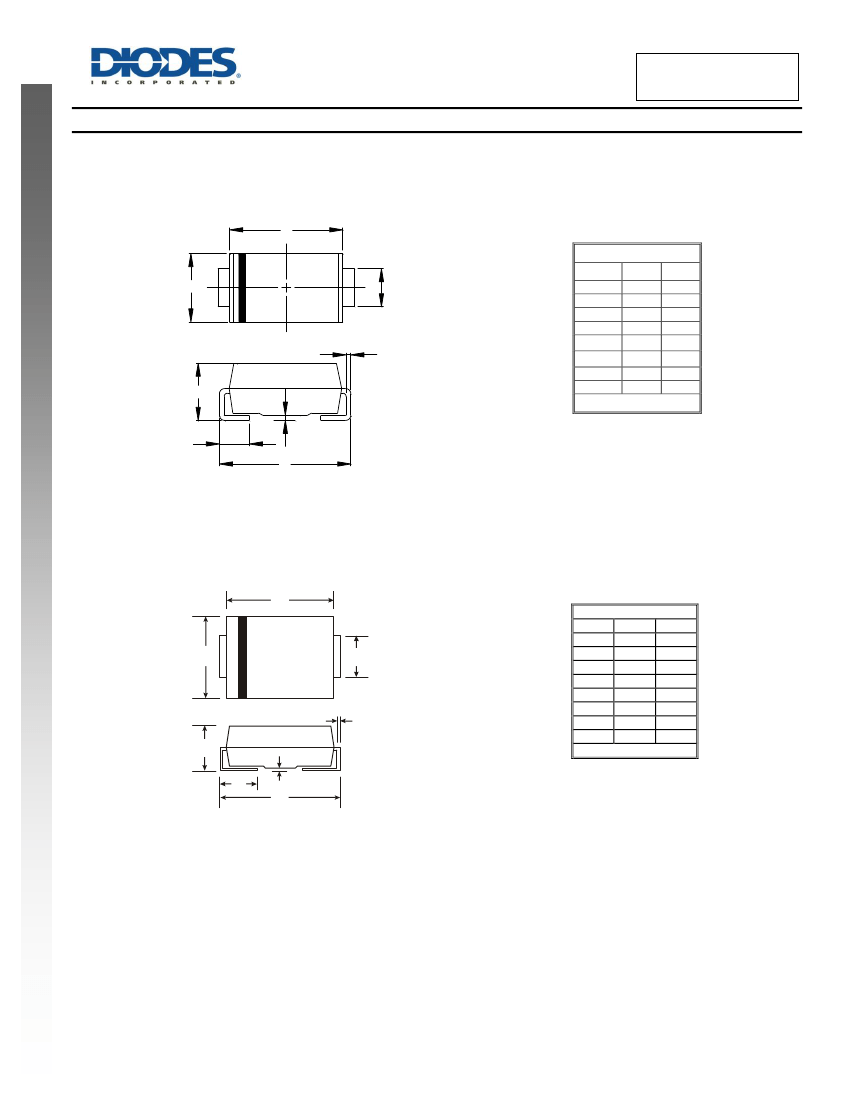

Package Outline Dimensions

Please see http://www.diodes.com/package-outlines.html for the latest version.

(1)

Package Type: SMA

B

SMA

NEW PRODUCT

A

C

D

J

Dim

Min

Max

A

2.29

2.92

B

4.00

4.60

C

1.27

1.63

D

0.15

0.31

E

4.80

5.59

G

0.05

0.20

H

0.76

1.52

J

1.96

2.40

All Dimensions in mm

H

E

G

(2)

Package Type: SMB

B

A

C

D

J

SMB

Dim

Min

Max

A

3.30

3.94

B

4.06

4.57

C

1.96

2.21

D

0.15

0.31

E

5.00

5.59

G

0.05

0.20

H

0.76

1.52

J

2.00

2.50

All Dimensions in mm

H

E

G

B250AE(BE)-B260AE(BE)

Document number: DS39271 Rev. 4 - 2

4 of 6

www.diodes.com

March 2017

B250AE-B260AE

B250BE-B260BE

Suggested Pad Layout

Please see http://www.diodes.com/package-outlines.html for the latest version.

(1)

Package Type: SMA

X

X1

NEW PRODUCT

Y

G

C

Dimensions Value (in mm)

C

4.00

G

1.50

X

2.50

X1

6.50

Y

1.70

(2)

Package Type: SMB

X

Y

X1

Dimensions

C

G

X

X1

Y

Value (in mm)

4.30

1.80

2.50

6.80

2.30

G

C

B250AE(BE)-B260AE(BE)

Document number: DS39271 Rev. 4 - 2

5 of 6

www.diodes.com

March 2017

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
