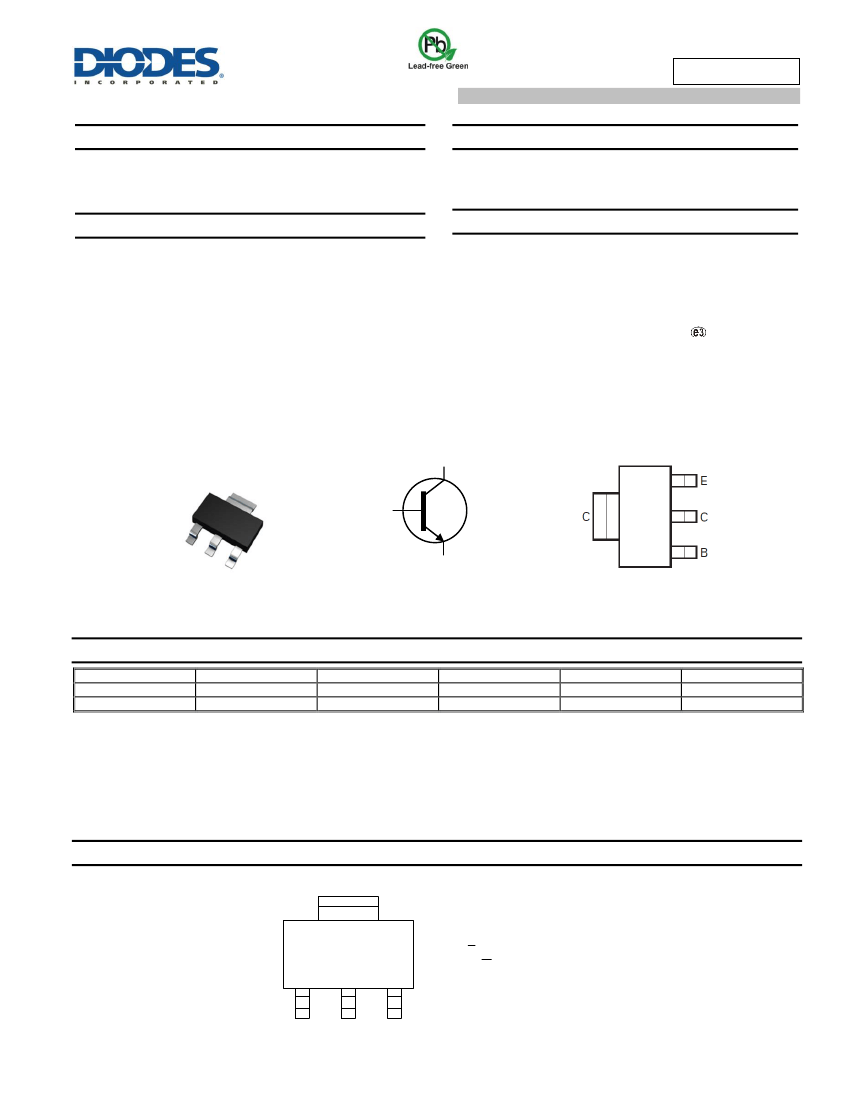

BCP5616Q
80V NPN MEDIUM POWER TRANSISTOR IN SOT223
Description
This Bipolar Junction Transistor (BJT) is designed to meet the
stringent requirements of Automotive Applications.
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
Features
BV
CEO
> 80V
I
C
= 1A High Continuous Collector Current
I
CM
= 2A Peak Pulse Current
2W Power Dissipation
Low Saturation Voltage V
CE(SAT)
< 500mV @ 0.5A
Complementary PNP Type: BCP5316Q
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads.
Solderable per MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
SOT223
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Product
BCP5616QTA
BCP5616QTC
Notes:
Compliance
Automotive
Automotive
Marking
BCP 5616
BCP 5616
Reel Size (inches)
7
13
Tape Width (mm)
12
12
Quantity per Reel
1,000
4,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
BCP
5616
BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
YWW
BCP 5616 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 6 = 2016)
WW or WW = Week Code (01~53)
1 of 7
www.diodes.com
June 2016
© Diodes Incorporated
BCP5616Q
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Collector Current
Continuous Base Current
Peak Pulse Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
Value
100
80
5
1
2
100
200
Unit
V
V
V
A
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Leads
Operating and Storage Temperature Range
(Note 6)
(Note 6)
(Note 7)
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
2
62
19.4
-65 to +150
Unit
W
°C/W
°C/W
°C
ESD Ratings
(Note 8)
Characteristic
Electrostatic Discharge – Human Body Model
Electrostatic Discharge – Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
6. For a device mounted with the collector lead on 50mm x 50mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
7. Thermal resistance from junction to solder-point (at the end of the collector lead).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
2 of 7
www.diodes.com
June 2016
© Diodes Incorporated
BCP5616Q

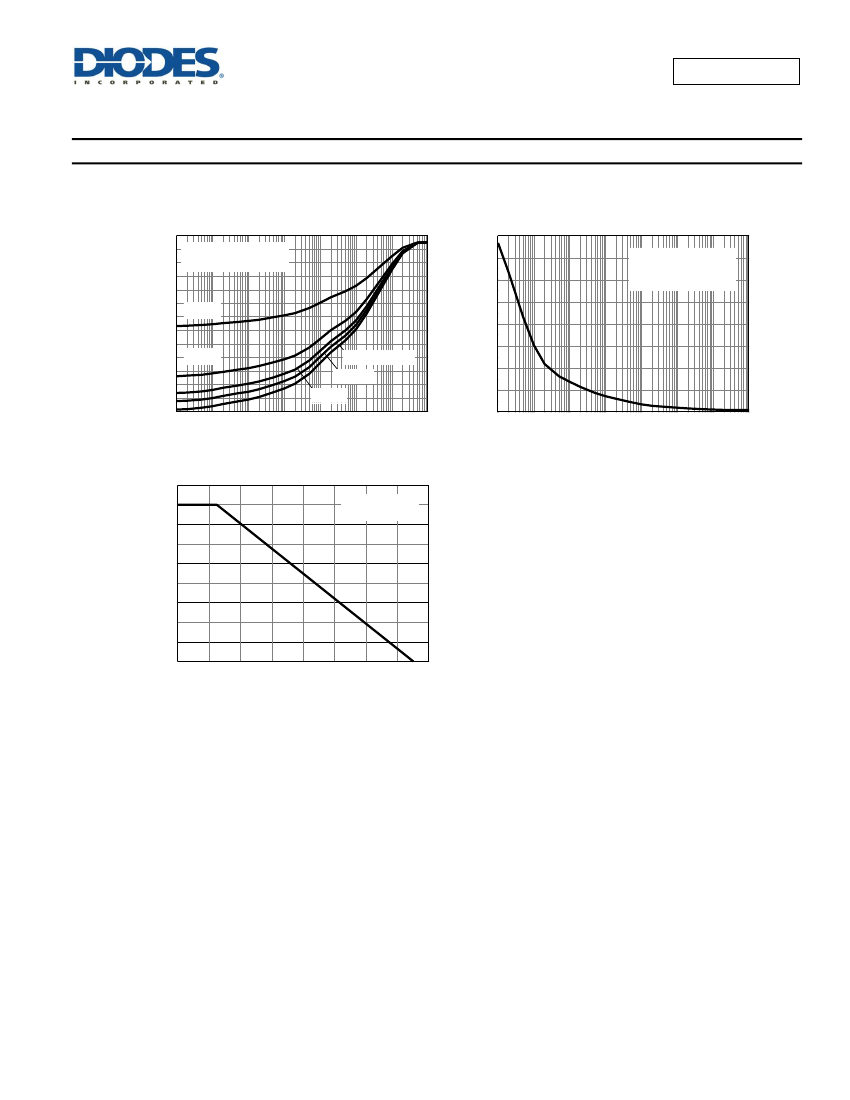

Thermal Characteristics and Derating Information
Thermal Resistance (°C/W)
160
60
50
40
30
20
10
0
100µ
1m
10m 100m
1
D=0.2
Single Pulse
D=0.05
D=0.1
Maximum Power (W)
50mm x 50mm 1oz Cu
T
amb
=
25°C
140
120
100
80
60
40
20
0
100µ
1m
10m 100m
50mm x 50mm 1oz Cu
T
amb
=
25°C
Single pulse
D=0.5
10
100
1k
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Max Power Dissipation (W)
2.0
1.5
1.0
0.5
0.0
50mm x 50mm
1oz Cu
Pulse Power Dissipation
0
20
40
60
80
100 120 140 160
Temperature (°C)
Derating Curve
BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
3 of 7
www.diodes.com
June 2016
© Diodes Incorporated
BCP5616Q
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
Static Forward Current Transfer Ratio (Note 9)
Collector-Emitter Saturation Voltage (Note 9)
Base-Emitter Turn-On Voltage (Note 9)
Transition Frequency
Output Capacitance
Note:
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE
V
CE(SAT)
V
BE(ON)
f
T
C
OBO
Min
100
80
5
—
—
25
100
25
—
—
100
—
Typ
—
—
—
—
—
—
—
—
150
—
Max
—
—
—
0.1
20
20
250
0.5
1.0
—
25
Unit
V
V
V
µA
nA
—
V
V
MHz
pF
Test Condition
I
C
= 100µA
I
C
= 10mA
I
E
= 10µA
V
CB
= 30V
V
CB
= 30V, T
A
= +150°C
V
EB
= 4V
I
C
= 5mA, V
CE
= 2V
I
C
= 150mA, V
CE
= 2V
I
C
= 500mA, V
CE
= 2V
I
C
= 500mA, I
B
= 50mA
I
C
= 500mA, V
CE
= 2V
I
C
= 50mA, V
CE
= 10V
f = 100MHz
V
CB
= 10V, f = 1MHz
9. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
0.8
250
I
C
, COLLECTOR CURRENT (A)
200
h
FE
, DC CURRENT GAIN
0.6
150
0.4
100
0.2
50
0
0
1
2
3
4
5
V
CE
, COLLECTOR-EMITTER VOLTAGE (V)

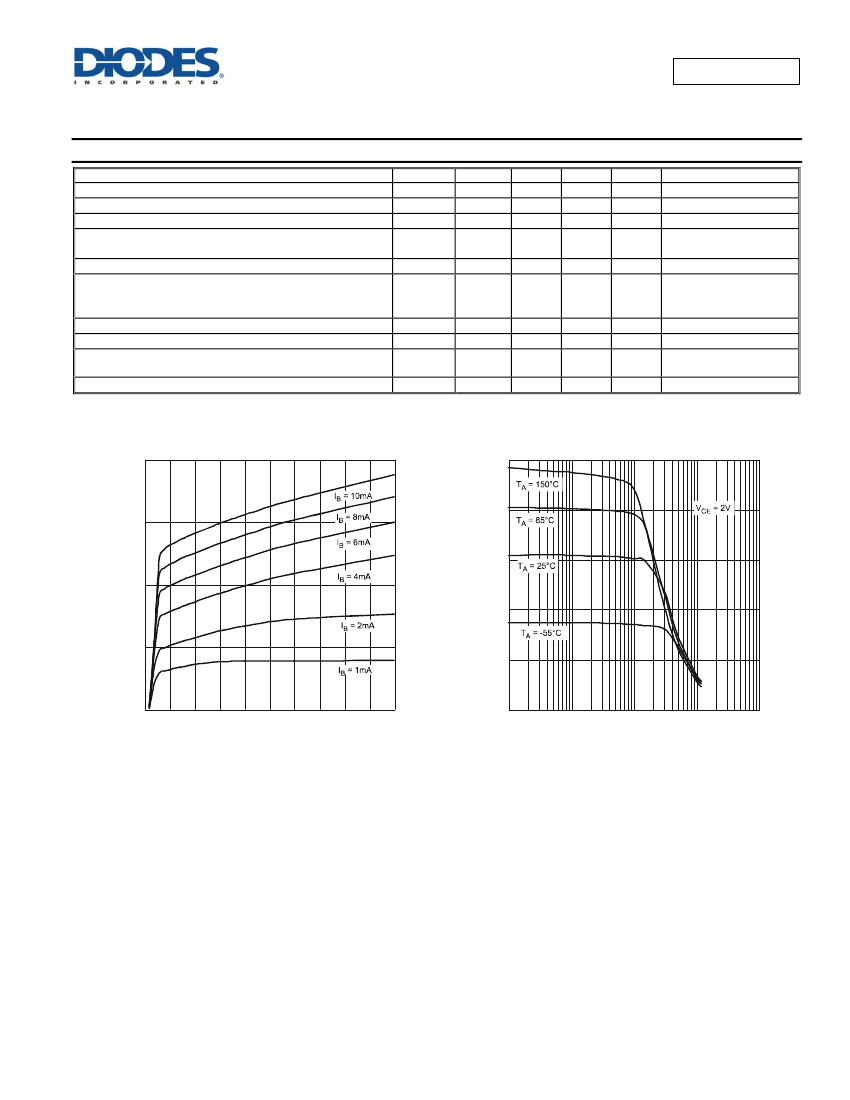

Fig. 1 Typical Collector Current
vs. Collector-Emitter Voltage
0
0.001
0.01
0.1
1
10
I
C
, COLLECTOR CURRENT (A)
Fig. 2 Typical DC Current Gain vs. Collector Current
BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
4 of 7
www.diodes.com
June 2016
© Diodes Incorporated
BCP5616Q
V
BE(ON)
, BASE-EMITTER TURN-ON VOLTAGE (V)
1.2
0.4
V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
1.0
0.3
0.8
0.6
0.2
0.4
0.1
0.2
0
0.0001
0.001
0.01
0.1
1
10
I
C
, COLLECTOR CURRENT (A)

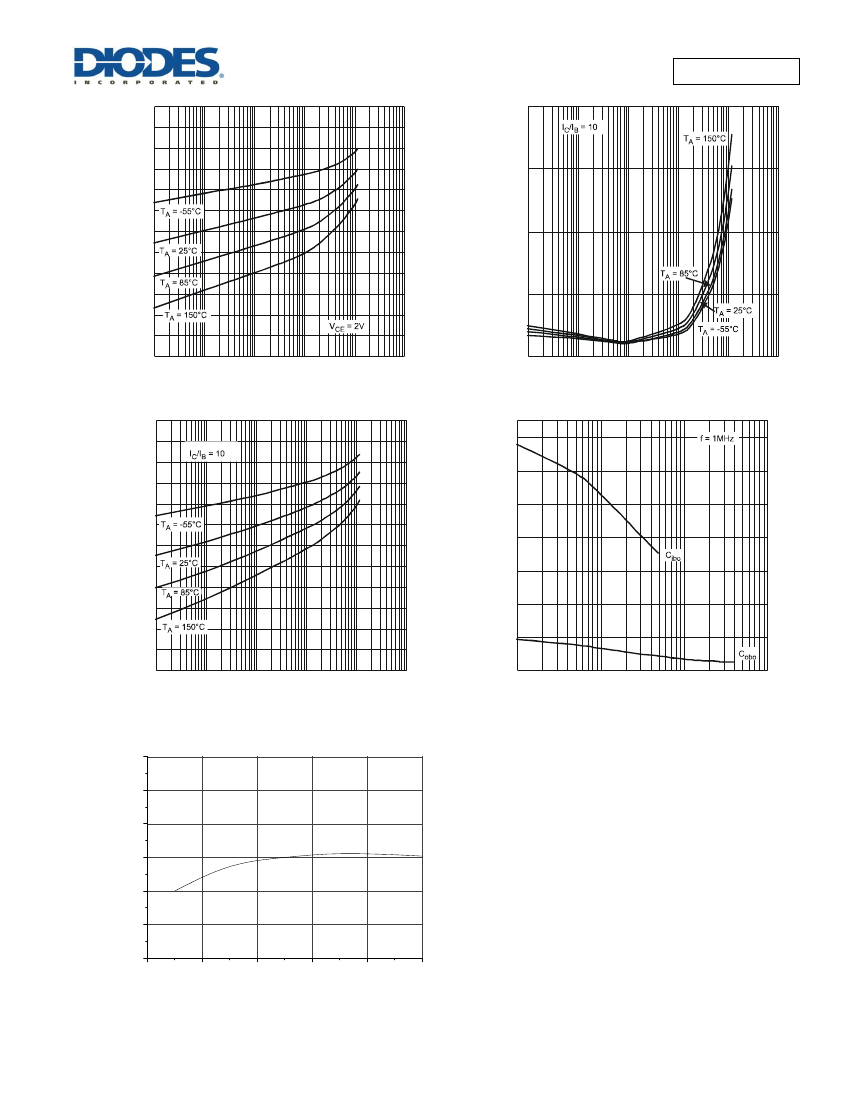

Fig. 3 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
0
0.0001
0.001
0.01
0.1
1
10
I
C
, COLLECTOR CURRENT (A)
Fig. 4 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
V
BE(SAT)
, BASE-EMITTER SATURATION VOLTAGE (V)
1.2
140
1.0
120
CAPACITANCE (pF)
0.8
100
80
60
40
20
0.6
0.4
0.2
0
0.0001
0.001
0.01
0.1
1
10
I
C
, COLLECTOR CURRENT (A)
Fig. 5 Typical Base-Emitter Saturation Voltage
vs. Collector Current
0
0.1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 6 Typical Capacitance Characteristics
f
T
, GAIN BANDWIDTH PRODUCT (MHz)
300
250
200
150
100
V
CE
= 5V
f = 100MHz
50
0
0
20
40
60
80
100
I
c
, COLLECTOR CURRENT (mA)
Fig. 7 Typical Gain-bandwidth Product
vs. Collector Current
BCP5616Q
Datasheet Number: DS36981 Rev. 3 - 2
5 of 7
www.diodes.com
June 2016
© Diodes Incorporated
