BZT52C2V7LP-7B: DescriptionZener Diode, 2.7V V(Z), 7.41%, 0.25W, Silicon, Unidirectional, GREEN, LEADLESS, ULTRA SMALL, PLASTIC, DFN1006-2, 2 PIN; CategoryDiscrete semiconductor diode; File Size232KB，5 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

BZT52C2V7LP-7B Overview

Zener Diode, 2.7V V(Z), 7.41%, 0.25W, Silicon, Unidirectional, GREEN, LEADLESS, ULTRA SMALL, PLASTIC, DFN1006-2, 2 PIN

BZT52C2V7LP-7B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	DFN
package instruction	GREEN, LEADLESS, ULTRA SMALL, PLASTIC, DFN1006-2, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	100 Ω
JESD-30 code	R-PBCC-N2
JESD-609 code	e4
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.25 W
Nominal reference voltage	2.7 V
surface mount	YES
technology	ZENER
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
Maximum voltage tolerance	7.41%
Working test current	5 mA

Preview

Download Datasheet

View All

BZT52C2V4LP - BZT52C39LP

SURFACE MOUNT ZENER DIODE

Features



Ultra-Small Leadless Surface Mount Package

Ideally Suited for Automated Assembly Processes

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: X1-DFN1006-2

Case Material: Molded Plastic, "Green" Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: See Marking Information

Terminals: Finish



NiPdAu Over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.001 grams (Approximate)

Bottom View

Ordering Information

(Note 3)

Part Number

(Type Number)-7*

(Type Number)-7B**

Case

X1-DFN1006-2

Packaging

3,000/Tape & Reel

10,000/Tape & Reel

*Add “-7” to the appropriate type number in Electrical Characteristics Table. Example: 6.2V Zener = BZT52C6V2LP-7.

**Add “-7B” to the appropriate type number in Electrical Characteristics Table. Example: 6.2V Zener = BZT52C6V2LP-7B.

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html

Marking Information

BZT52CxxLP-7B

BZT52CxxLP-7

Top View

Bar Denotes

Cathode Side

Top View

Dot Denotes

Cathode Side

xx = Product Type Marking Code

BZT52C2V4LP - BZT52C39LP

Document number: DS30506 Rev. 20 - 2

1 of 5

www.diodes.com

December 2013

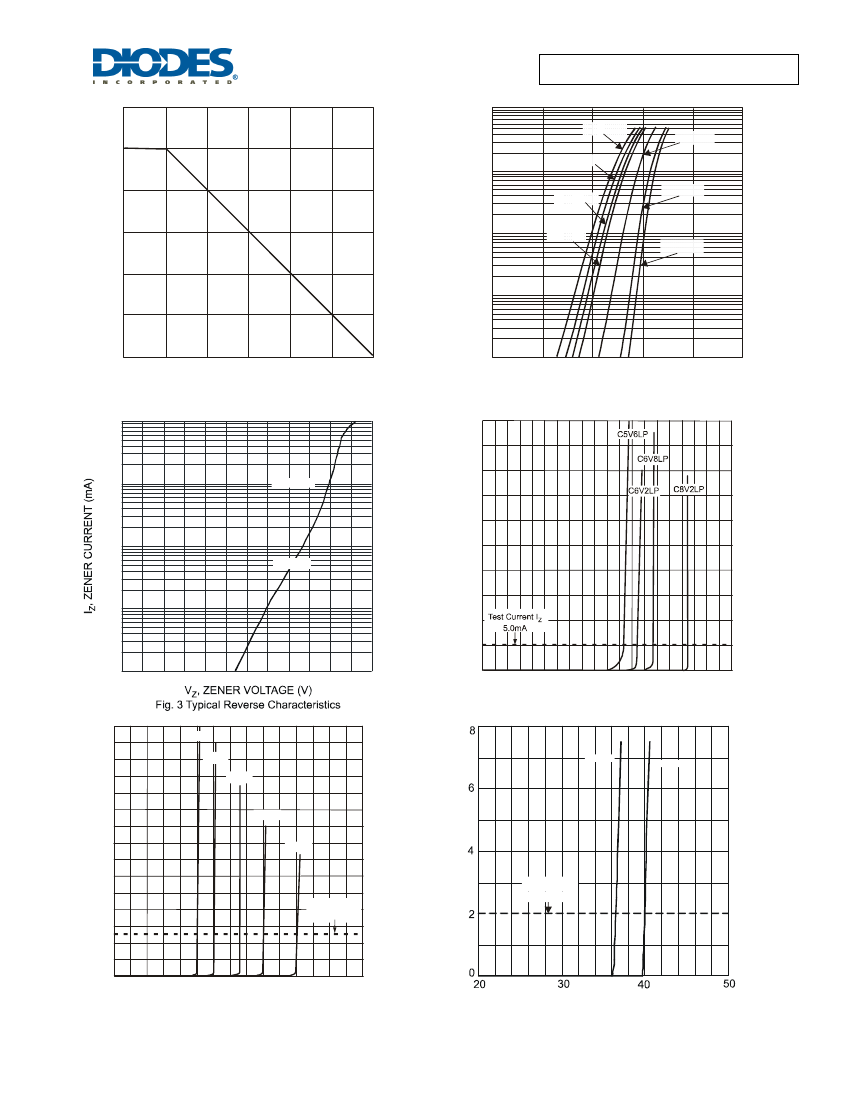

BZT52C2V4LP - BZT52C39LP
