DVR5V0W
COMPLEX ARRAY FOR VOLTAGE REGULATORS
Features
•
•
•
•
•
Epitaxial Planar Die Construction
Selectively Paired NPN Transistors & Zener Diodes for Series
Pass Voltage Regulator Circuits
Ideally Suited for Automated Assembly Processes
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
"Green" Device (Note 2)
Mechanical Data
•
•
•
•
•
•
Case: SOT363
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.006 grams (approximate)

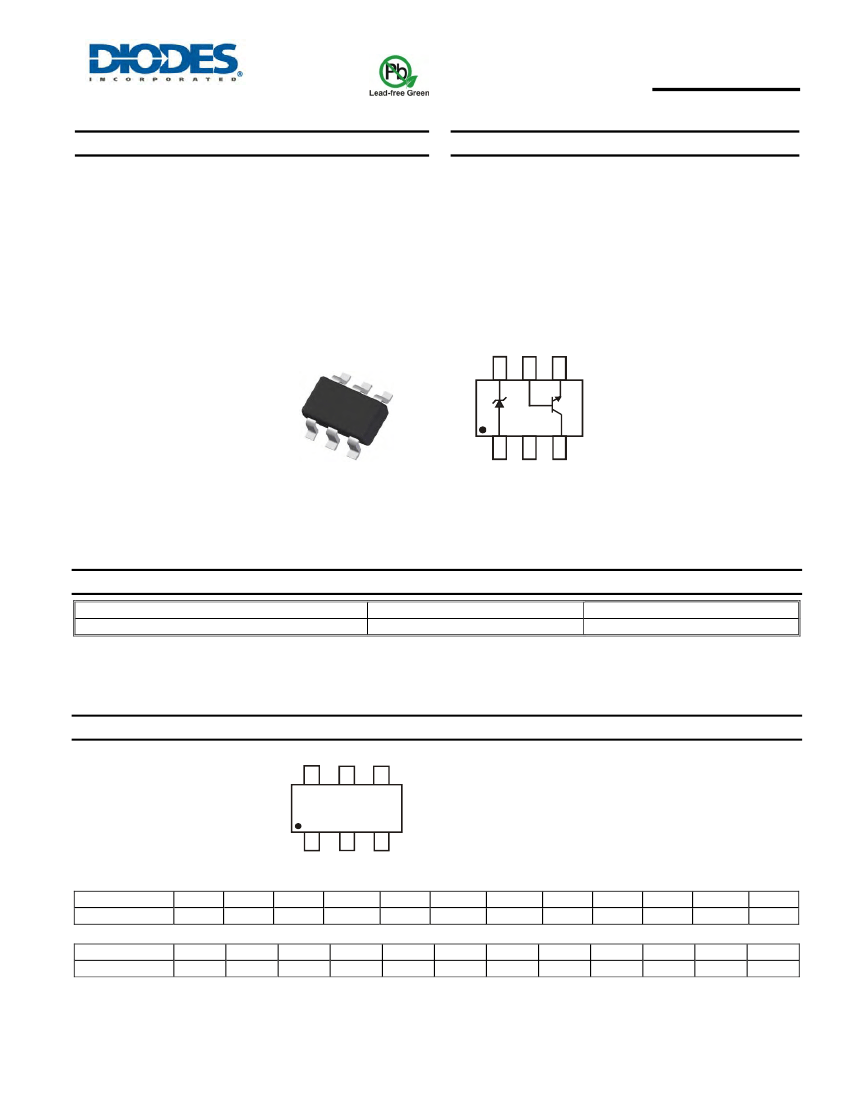

SOT363
K
1
B
1
E
1
A
1
NC
C
1
Top View
Top View
Pin Configuration
Ordering Information
(Note 3)
Packaging
SOT363
Shipping
3000/Tape & Reel
Device
DVR5V0W-7
Notes:
1. No purposefully added lead.
2. Diodes Inc’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
VR04
VR04 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: Y = 2011
M = Month ex: 9 = September
Date Code Key
Year
Code
Month
Code
2004
R
Jan
1
2005
S
Feb
2
2006
T
Mar
3
2007
U
Apr
4
YM
2008
V
2009
W
Jun
6
2010
X
Jul
7
2011
Y
Aug
8
2012
Z
Sep
9
2013
A
Oct
O
2014
B
Nov
N
2015
C
Dec
D
May
5
DVR5V0W
Document number: DS30578 Rev. 6 - 2
1 of 5
www.diodes.com
July 2011
© Diodes Incorporated
Maximum Ratings, Total Device
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Operating and Storage Temperature Range
@T
A
= 25°C unless otherwise specified
Symbol
(Note 4)
(Note 4)
P
d
R
θ
JA
T
j
, T
STG
Value
200
625
-55 to +150
Unit
mW
°C/W
°C
Maximum Ratings, NPN Transistor
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
(Note 4)
I
C
Value
45
18
5
1
Unit
V
V
V
A
Maximum Ratings, Zener Element
Characteristic
Forward Voltage
@ I
F
= 10mA
@T
A
= 25°C unless otherwise specified
Symbol
V
F
Value
0.9
Unit
V
Electrical Characteristics, NPN Transistor
Characteristic
OFF CHARACTERISTICS (Note 5)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
ON CHARACTERISTICS (Note 5)
DC Current Gain
Collector-Emitter Saturation Voltage
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Current Gain-Bandwidth Product
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
V
CE(SAT)
C
obo
f
T
Min
45
18
5
⎯
⎯
150
⎯
⎯
100
Max
⎯
⎯
⎯
1
1
800
0.5
8
⎯
Unit
V
V
V
μA
μA
⎯
V
pF
MHz
Test Condition
I
C
= 100μA, I
E
= 0
I
C
= 1mA, I
B
= 0
I
E
= 100μA, I
C
= 0
V
CB
= 40V, I
E
= 0
V
EB
= 4V, I
C
= 0
I
C
= 100mA, V
CE
= 1V
I
C
= 300mA, I
B
= 30mA
V
CB
= 10V, f = 1.0MHz, I
E
= 0
V
CB
= 10V, I
E
= 50mA, f = 100MHz
Electrical Characteristics, Zener Element
Zener Voltage Range
(Note 6)
V
Z
@ I
ZT
Nom (V)
5.1
Notes:
@T
A
= 25°C unless otherwise specified
Maximum Reverse
Leakage Current
(Note 5)
I
ZT
I
R
@ V
R
μA
5
V
3
mA
0.05
Min (V)
4.85
Max (V)
5.36
4. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
5. Short duration pulse test used to minimize self-heating effect.
6. Nominal Zener voltage is measured with the device junction in thermal equilibrium at T
T
= 30°C ±1°C.
DVR5V0W
Document number: DS30578 Rev. 6 - 2
2 of 5
www.diodes.com
July 2011
© Diodes Incorporated

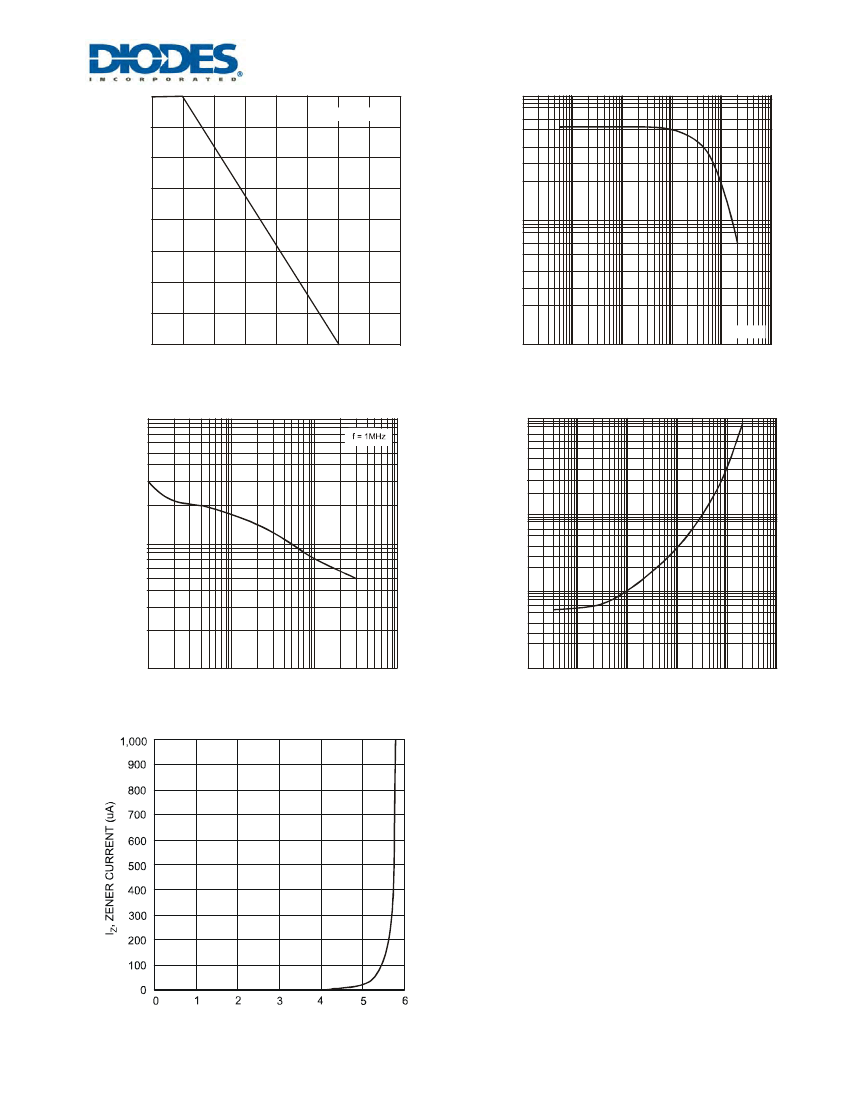

200
(Note 4)
1,000
P
d
, POWER DISSIPATION (mW)
150
h
FE
, DC CURRENT GAIN
100
100
50
0
0
25
50
75 100 125 150 175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Max Power Dissipation vs.
Ambient Temperature (Total Device)
V
CE
= 1.0V
200
1
0.0001
.001
.01
.1
1
I
C
, COLLECTOR CURRENT (A)
Fig. 2 Typical DC Current Gain vs.
Collector Current (NPN Transistor)
10
100
C
OBO
, OUTPUT CAPACITANCE (pF)
1,000
V
CE (SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (mV)
100
10
1
V
CB
, COLLECTOR-BASE VOLTAGE (V)
Fig. 3 Typical Output Capacitance vs.
Collector-Base Voltage (NPN Transistor)
100
10
10
1
0.1
1
10
0.0001 .001
.01
.1
1
I
C
, COLLECTOR CURRENT (A)
Fig. 4 Typical Collector Saturation Voltage vs.
Collector Current (NPN Transistor)
V
Z
, ZENER VOLTAGE (V)
Fig. 5 Typical
Zener Breakdown Characteristics
DVR5V0W
Document number: DS30578 Rev. 6 - 2
3 of 5
www.diodes.com
July 2011
© Diodes Incorporated

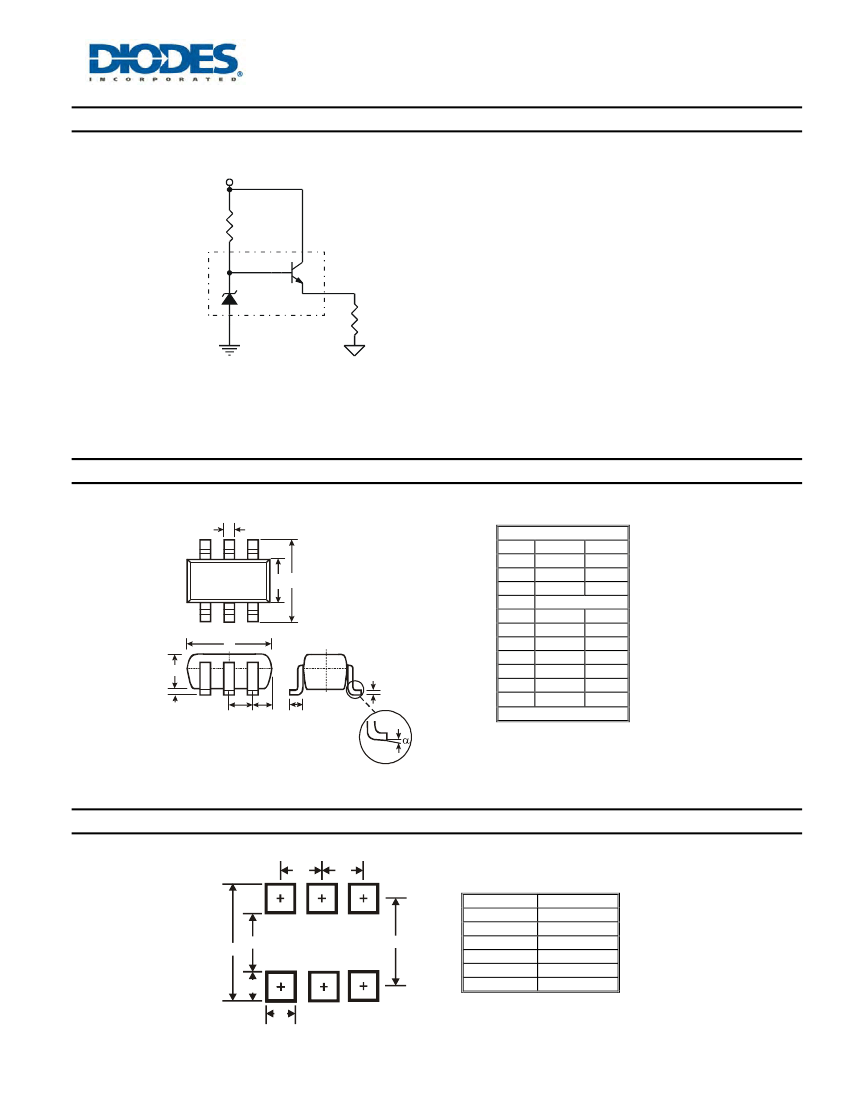

Sample Applications
VCC = 6.0V
R1 = 560R
Q1
Vo(nom) = 5.0V
Z1
Sample Application for DVR5V0W:
R1= 560Ω
V
CC
= 6.0V
Vo(nom) = 5.0V
I
O
= 100mA
Iq(typical) = 0.5mA @ I
O
= 0mA
Typical Vreg(load) = 0.2V from Io = 100mA to 0mA
DVR5V0W
R Load
Notes:
7. Resistor R1 not included.
8. Typical performance shown is under setup and operating conditions specified in the sample applications.
9. Recommended V
CC
(min) ~ Vo(nom) + 1V.
Package Outline Dimensions
A
B C
H
K
M
J
D
F
L
SOT363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Typ
F
0.40
0.45
H
1.80
2.20
J
0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.22
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
C2
C2
Z
G
C1
Y
X
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C1
1.9
C2
0.65
DVR5V0W
Document number: DS30578 Rev. 6 - 2
4 of 5
www.diodes.com
July 2011
© Diodes Incorporated
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2011, Diodes Incorporated
www.diodes.com
DVR5V0W
Document number: DS30578 Rev. 6 - 2
5 of 5
www.diodes.com
July 2011
© Diodes Incorporated
