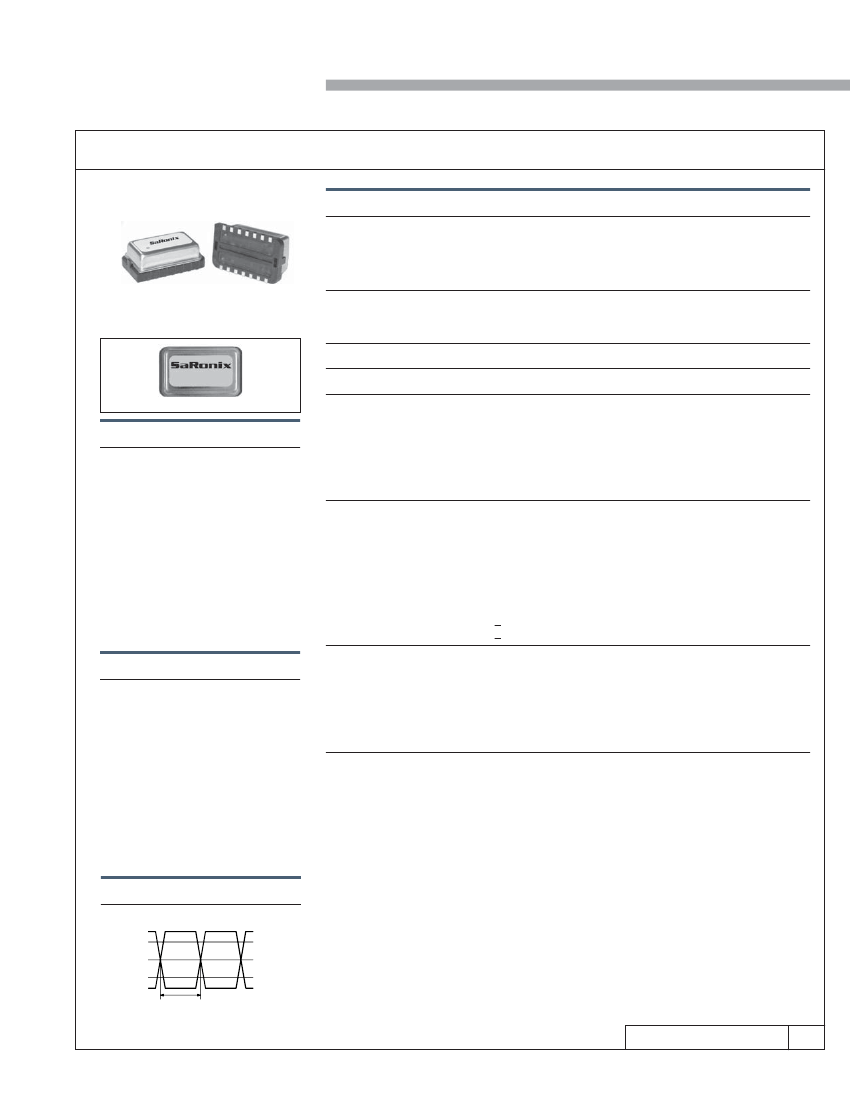

SaRonix
Voltage Controlled Crystal Oscillator
Technical Data
Frequency Range:
Frequency Stability:
70 MHz to 155.52 MHz
±20, ±25, or ±50 ppm over all conditions: operating temperature,
supply voltage change, load change, calibration tolerance, aging**,
shock and vibration.
**5 years @ 40°C ambient operating temperature range
Temperature Range:
Operating:
Storage:
Supply Voltage (V
CC
):
Supply Current:
ACTUAL SIZE
5V PECL
S1554 Series
0 to +70°C, 0 to +85°C, -40 to +85°C
-55°C to +105°C
5V ±5%
65mA typ, 70mA max
Output Drive:
Symmetry:
Rise & Fall Times:
Logic 0:
Logic 1:
Load:
Period Jitter RMS:
Pull Characteristics:
Input Impedence (Pin 1):
Frequency Response (-3dB):
Pullability:
Control Voltage:
Transfer Function:
Monotonic Linearity:
Center Control Voltage:
Output Enable Voltage (Pin 3):
Disable Voltage:
Mechanical:
Shock:
Solderability:
Terminal Strength:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Environmental:
Gross Leak Test:
Fine Leak Test:
Thermal Shock:
Moisture Resistance:
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-202,
MIL-STD-202,
Method 213, Condition F
Method 2003
Method 2004, Conditions B2
Method 2007, Condition A
Method 215
Method 210, Condition B (I or J for Gull-wing)
45/55% max @ 50% waveform
550ps max @ 20 to 80% waveform
V
CC
-1.620 max
V
CC
-1.025 min
50Ω to V
CC
-2V (output requires termination)
3.5ps max
Description
A voltage controlled 5V PECL crystal
oscillator designed primarily for use in
phase locked loops, Sonet, ATM, SDH
and Network/Switch applications.
Complementary outputs are Motorola
10KE compatible and can be enabled/
disabled. Device is packaged in a 14-pin
DIP compatible, resistance welded pack-
age with case grounded to Pin 7 to reduce
EMI. True SMD DIL versions for IR
reflow are available, select option "S" or
"U" in part number builder. See separate
data sheet for SMD package dimensions
Applications & Features
Telecom
Networking
ATM, SDH, SONET
Switch Applications
Phased Locked Loops
Output Enable/Disable Feature
Complementary Output
Wide frequency range from 70 MHz to
155.52 MHz using SaRonix fundamen-
tal crystals for exceptional jitter perfor-
mance
˜
±50 or ±100ppm minimum APR*
•
˜
˜
•
•
˜
•
•
Output Waveforms
Logic 1
80%
V
OH
Min
Outputs
Crossing
20%
Logic 0
SYMMETRY
45% Min, 55% Max
V
OL
Max
50KΩ min
10kHz min
±50 or ±100ppm min APR*
0.5V to 4.5V
Frequency increases when control voltage increases
10%
2.5V
< V
CC
-1.475V or open
> V
CC
-1.165V (output disabled to a fixed level of Logic 0)
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
MIL-STD-883,
Method
Method
Method
Method
1014, Condition C
1014, Condition A2
1011, Condition A
1004
*
APR = (VCXO Pull relative to specified Output Frequency)
–
(VCXO Freq. Stability)
DS-195
REV B
SaRonix
www.pericom.com/saronix
SaRonix
Voltage Controlled Crystal Oscillator
Technical Data

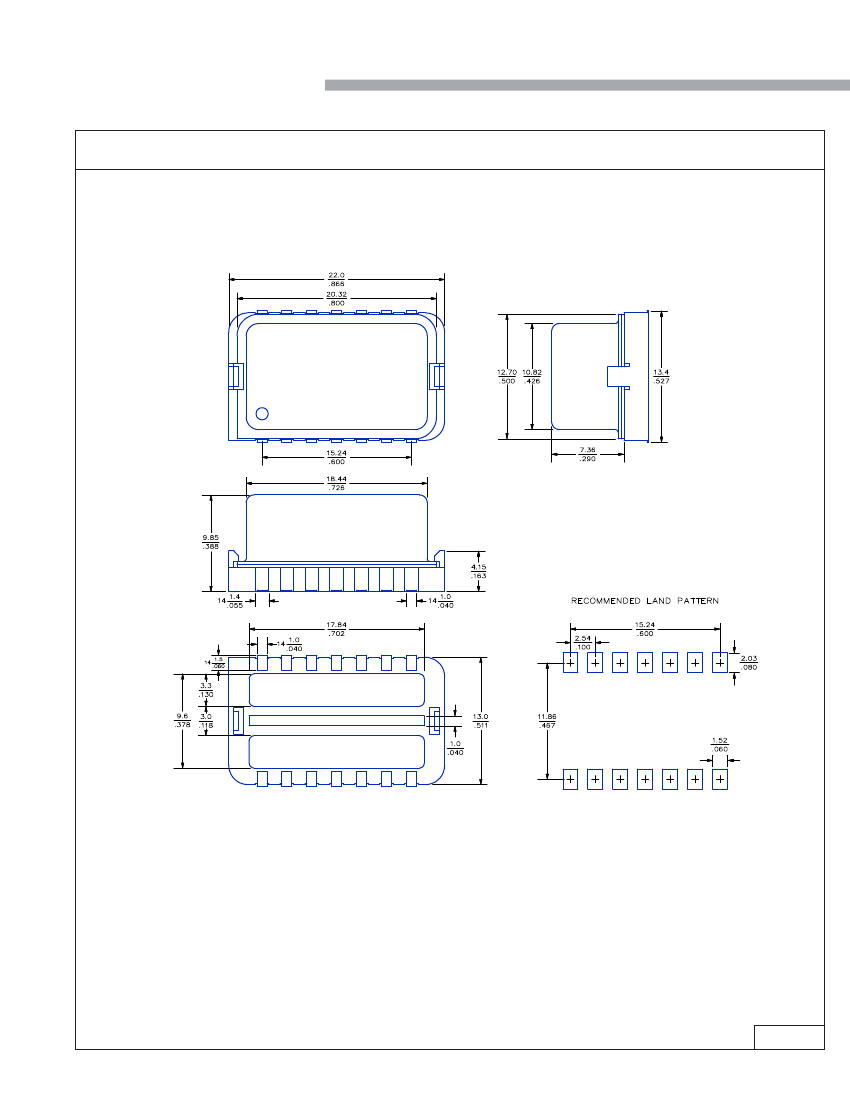

Package Details
21.0 max
.825
0.91
.036
max
7.49
.295
max
3.94±.25
.155±.010
15.24±.13
.600±.005
Pin 1
Pin 3
Pin 7
0.46±.05
.018±.002
5V PECL
S1554 Series
Part Numbering Guide
S 1554 B B B
Model
5V PECL VCXO
Complementary Output with Enable
Stability Tolerance
AA = ±20ppm, 0 to +70°C
A = ±25ppm, 0 to +70°C
B = ±50 ppm, 0 to +70°C
E = ±50 ppm, -40 to +85°C
G = ±50 ppm, 0 to +85°C
Pullability
(minimum APR)
**
A = ±50 ppm
B = ±100 ppm
- 80.0000 (T)
Packing Method
(T) = Tape & Reel for SMD versions,
full reel increments only (200pcs)
Blank = Bulk
Frequency (MHz)
Package Options
Blank = 7.49mm Thru-hole
K = 7.49mm Gull Wing
L = 5.08mm Thru-hole
S = True SMD Adaptor, 7.57mm high
U = True SMD Adaptor, 9.85mm high
7.62
.300
13.0
.510
max
Linearity
B = 10%
Pin 14
5.08
.200
Pin 12
Pin 8
**
APR = (VCXO Pull relative to specified Output Frequency)
–
(VCXO Freq. Stability)
Test Circuit
1.78
typ
.070
Gull Wing Package
Q
+2.0V
13.46±.25
.530±.010
50Ω INTERNAL SCOPE
TERMINATION TO GND
Pin 14
Pin 12
Pin 8
Q
OSCILLATOR
50Ω INTERNAL SCOPE
TERMINATION TO GND
Pin 7
Pin 1
Pin Functions:
S1554
Pin 1: Control Voltage
Pin 3: Enable
Pin 7: GND / Case
Pin 8: Q Output
Pin 12: Q Output
Pin 14: Supply Voltage
Pin 3
CONTROL
VOLTAGE
-3.0V
ENABLE/DISABLE
PECL compatible Input
Marking Format
**
Includes Date Code, Frequency & Part Number
SARONIX
VCXO
Denotes Pin 1
**
Exact location of items may vary
Scale: None (Dimensions in
mm
)
inches
All specifications are subject to change without notice.
DS-195
REV B
SaRonix
www.pericom.com/saronix
