ZTX704L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> ZTX704L

ZTX704L: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size155KB，6 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

ZTX704L Overview

Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

ZTX704L Parametric

Parameter Name	Attribute value
Maker	Diodes Incorporated
Parts packaging code	TO-92
package instruction	IN-LINE, R-PSIP-W3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	100 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	2000
JESD-30 code	R-PSIP-W3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	PNP
Certification status	Not Qualified
Guideline	CECC
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	160 MHz

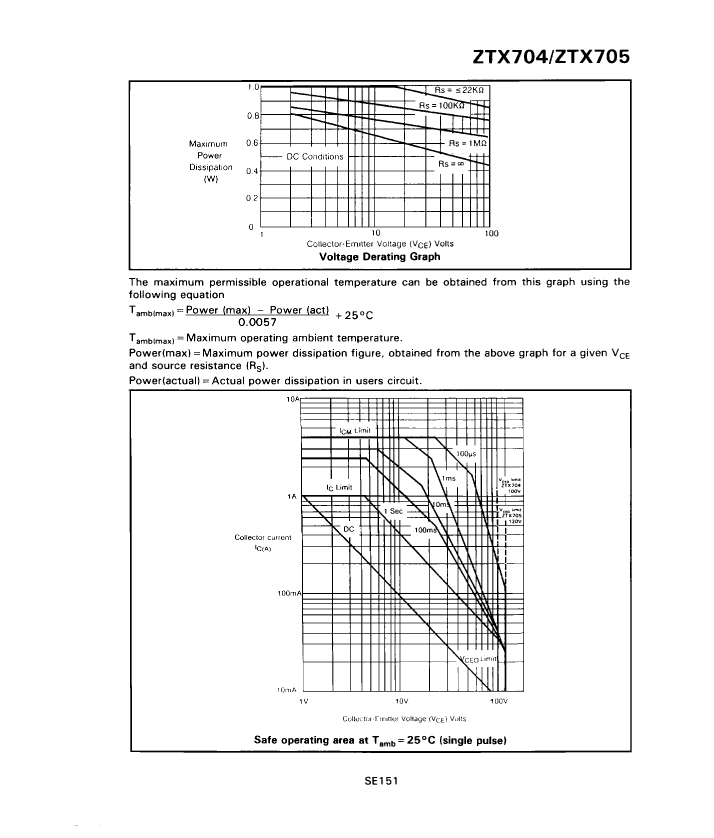

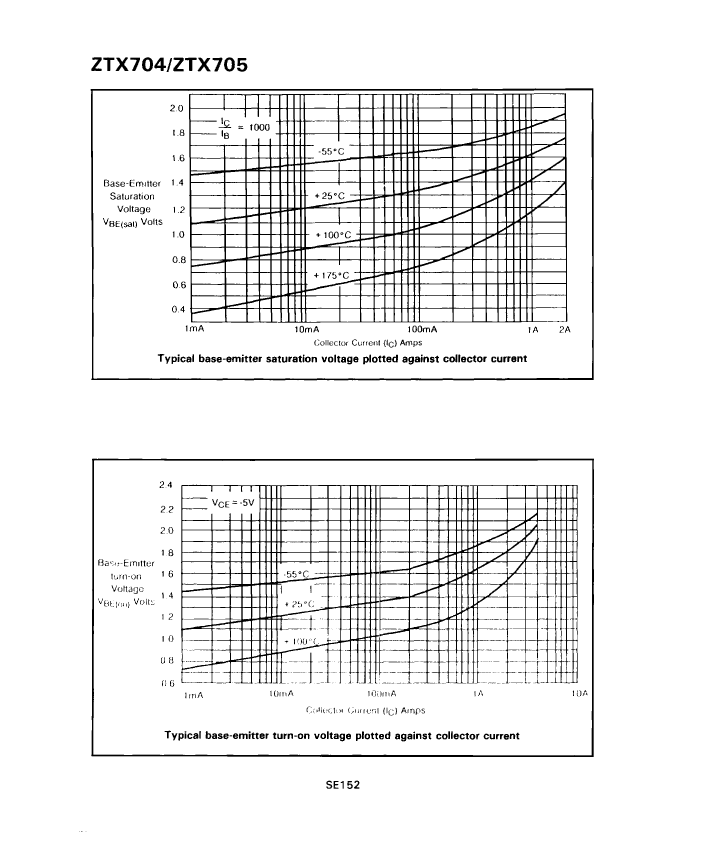

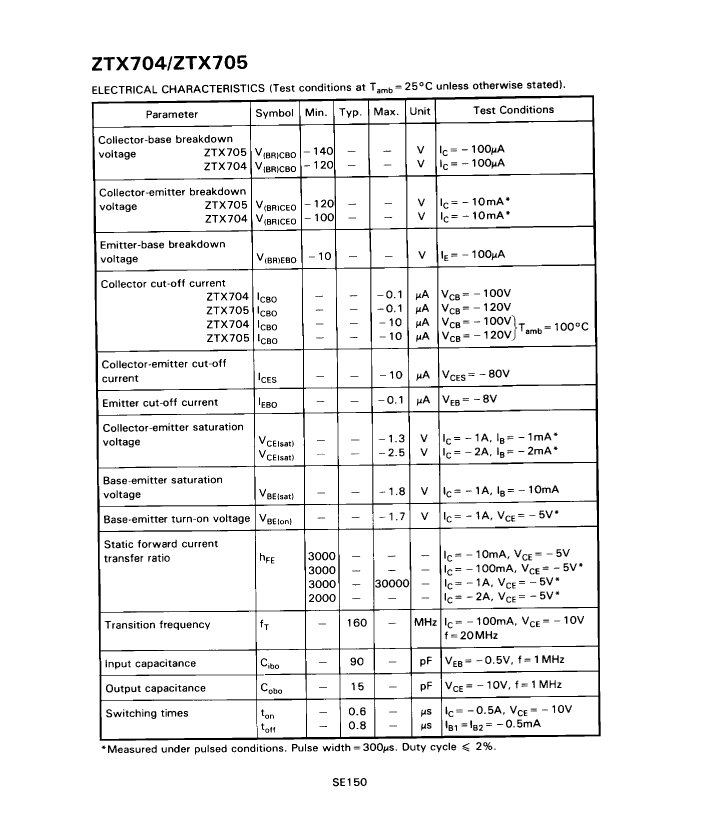

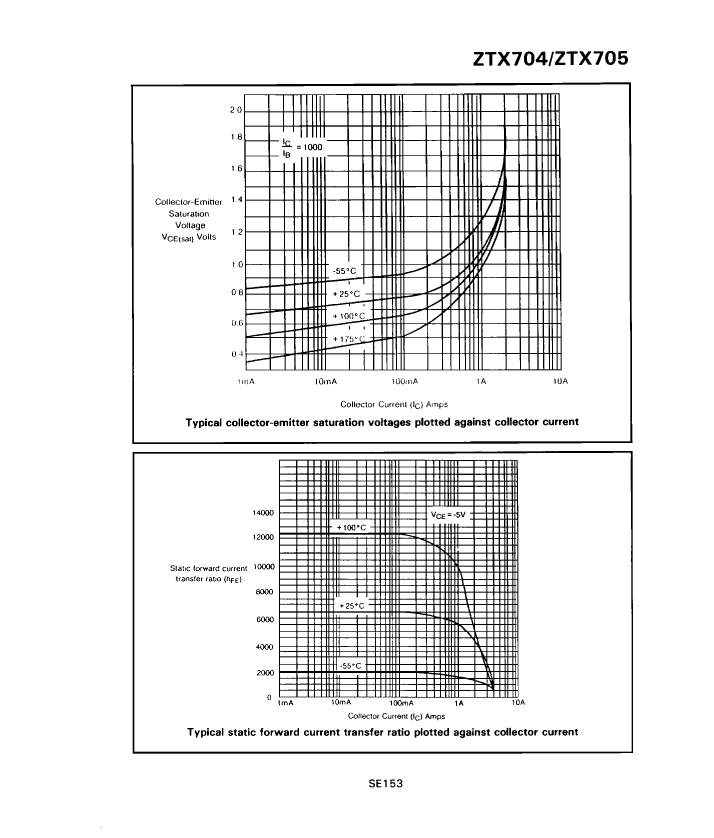

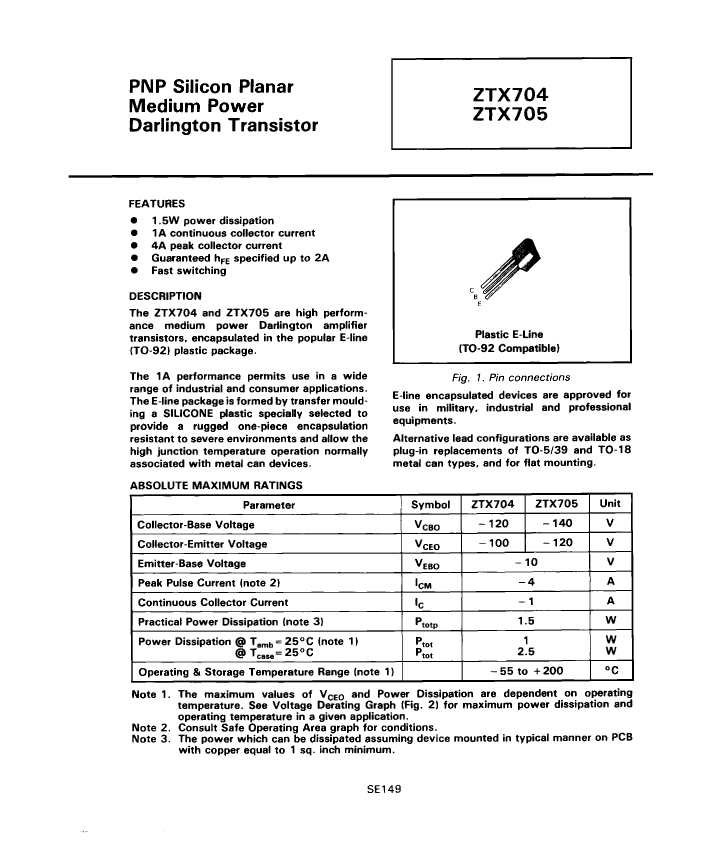

Preview

Download Datasheet

View All

ZTX704L Related Products

	ZTX704L	ZTX705M1	ZTX704Q	ZTX705L	ZTX705K	ZTX704K
Description	Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3	Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
Parts packaging code	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
package instruction	IN-LINE, R-PSIP-W3	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3	IN-LINE, R-PSIP-W3
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	100 V	120 V	100 V	120 V	120 V	100 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	2000	2000	2000	2000	2000	2000
JESD-30 code	R-PSIP-W3	R-PSSO-G3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3	R-PSIP-W3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	CECC	CECC	CECC	CECC	CECC	CECC
surface mount	NO	YES	NO	NO	NO	NO
Terminal form	WIRE	GULL WING	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz	160 MHz
Maker	Diodes Incorporated	-	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
