ZVP3310ASTZ

Description
Small Signal Field-Effect Transistor, 0.14A I(D), 100V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92 COMPATIBLE, E-LINE PACKAGE-3
CategoryDiscrete semiconductor    The transistor
File Size128KB，3 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

ZVP3310ASTZ Online Shopping

Suppliers Part Number Price MOQ In stock
ZVP3310ASTZ - - View Buy Now

ZVP3310ASTZ Overview

Small Signal Field-Effect Transistor, 0.14A I(D), 100V, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92 COMPATIBLE, E-LINE PACKAGE-3

ZVP3310ASTZ Parametric

Parameter NameAttribute value
MakerDiodes Incorporated
Parts packaging codeTO-92
package instructionTO-92 COMPATIBLE, E-LINE PACKAGE-3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Minimum drain-source breakdown voltage100 V
Maximum drain current (ID)0.14 A
Maximum drain-source on-resistance20 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSIP-W3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeP-CHANNEL
Certification statusNot Qualified
surface mountNO
Terminal surfaceMATTE TIN
Terminal formWIRE
Terminal locationSINGLE
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON

ZVP3310ASTZ Preview

P-CHANNEL ENHANCEMENT
MODE VERTICAL DMOS FET
ISSUE 2 – MARCH 94
FEATURES
* 100 Volt V
DS
* R
DS(on)
=20Ω
ZVP3310A
D
G
S
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
Drain-Source Voltage
Continuous Drain Current at T
amb
=25°C
Pulsed Drain Current
Gate Source Voltage
Power Dissipation at T
amb
=25°C
Operating and Storage Temperature Range
SYMBOL
V
DS
I
D
I
DM
V
GS
P
tot
T
j
:T
stg
E-Line
TO92 Compatible
VALUE
-100
-140
-1.2
±
20
UNIT
V
mA
A
V
mW
°C
625
-55 to +150
ELECTRICAL CHARACTERISTICS (at T
amb
= 25°C unless otherwise stated).
PARAMETER
Drain-Source Breakdown
Voltage
Gate-Source Threshold
Voltage
Gate-Body Leakage
Zero Gate Voltage Drain
Current
On-State Drain Current(1)
SYMBOL MIN.
BV
DSS
V
GS(th)
I
GSS
I
DSS
I
D(on)
-300
20
50
50
15
5
8
8
8
8
-100
-1.5
-3.5
20
-1
-50
MAX. UNIT CONDITIONS.
V
V
nA
µ
A
µ
A
I
D
=-1mA, V
GS
=0V
ID=-1mA, V
DS
= V
GS
V
GS
=
±
20V, V
DS
=0V
V
DS
=-100V, V
GS
=0
V
DS
=-80V, V
GS
=0V, T=125°C
(2)
V
DS
=-25 V, V
GS
=-10V
V
GS
=-10V,I
D
=-150mA
V
DS
=-25V,I
D
=-150mA
mA
Ω
Static Drain-Source On-State R
DS(on)
Resistance (1)
Forward Transconductance
(1)(2)
Input Capacitance (2)
Common Source Output
Capacitance (2)
Reverse Transfer
Capacitance (2)
Turn-On Delay Time (2)(3)
Rise Time (2)(3)
Turn-Off Delay Time (2)(3)
Fall Time (2)(3)
g
fs
C
iss
C
oss
C
rss
t
d(on)
t
r
t
d(off)
t
f
mS
pF
pF
pF
ns
ns
ns
ns
V
DS
=-25V, V
GS
=0V, f=1MHz
V
DD
≈
-25V, I
D
=-150mA
(1) Measured under pulsed conditions. Width=300
µ
s. Duty cycle
≤
2%
(2) Sample test.
3-432
Switching times measured with 50
Ω
source impedance and <5ns rise time on a pulse generator
(
3
)
ZVP3310A

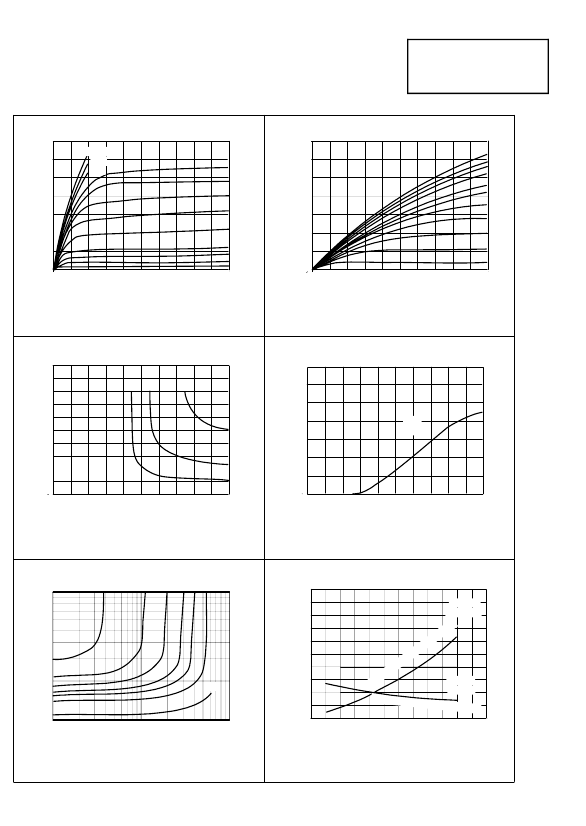

TYPICAL CHARACTERISTICS
